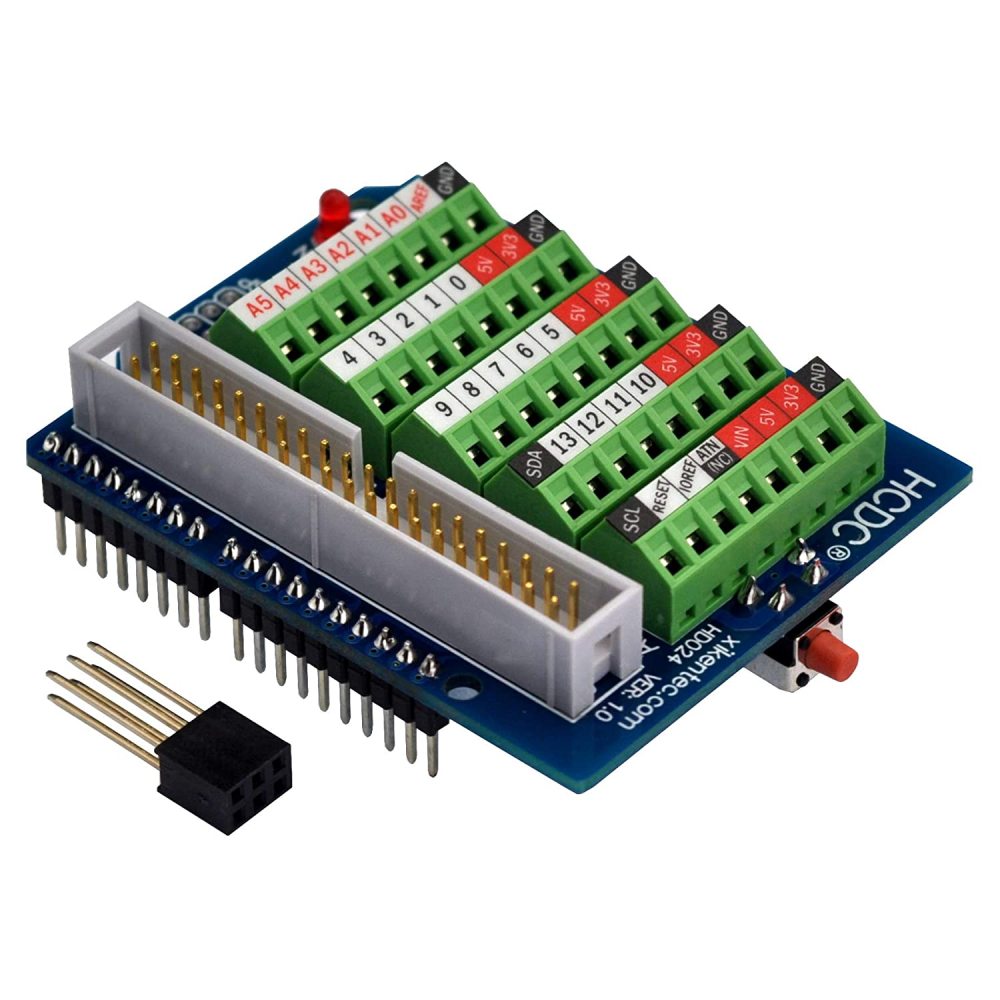

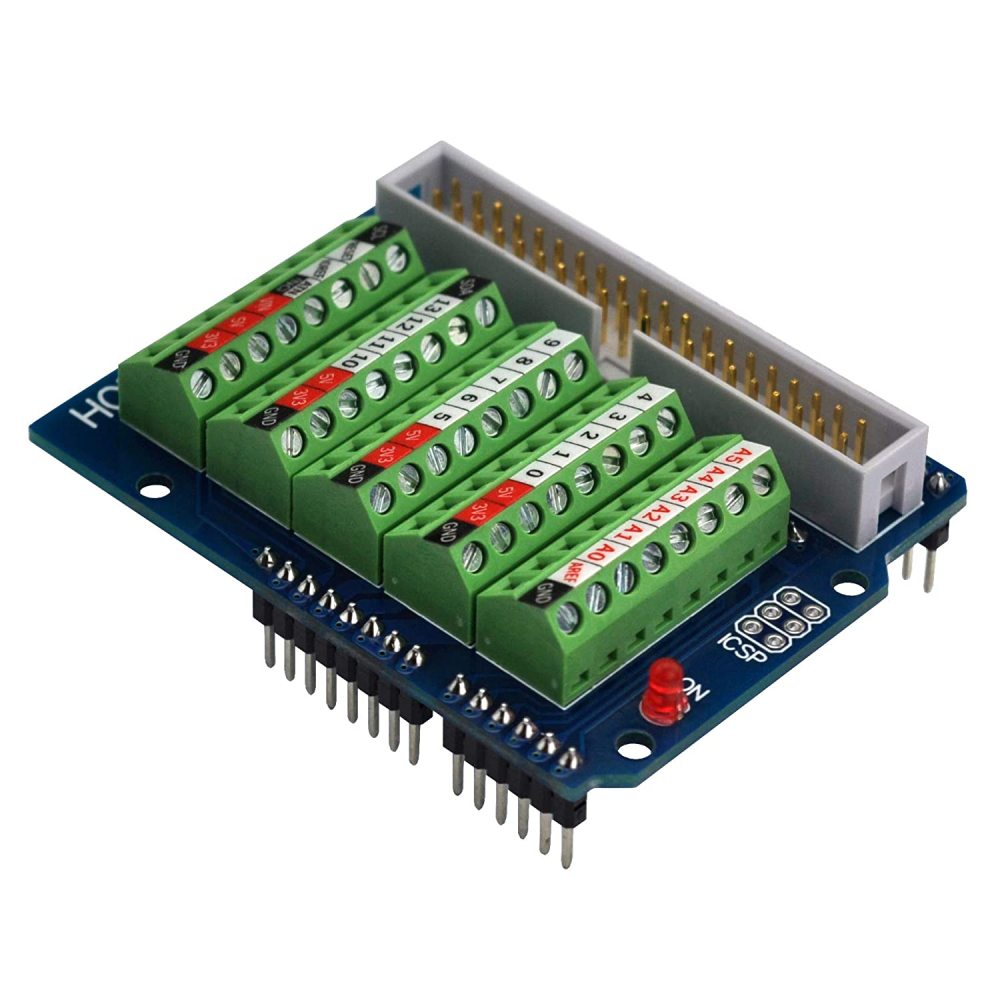

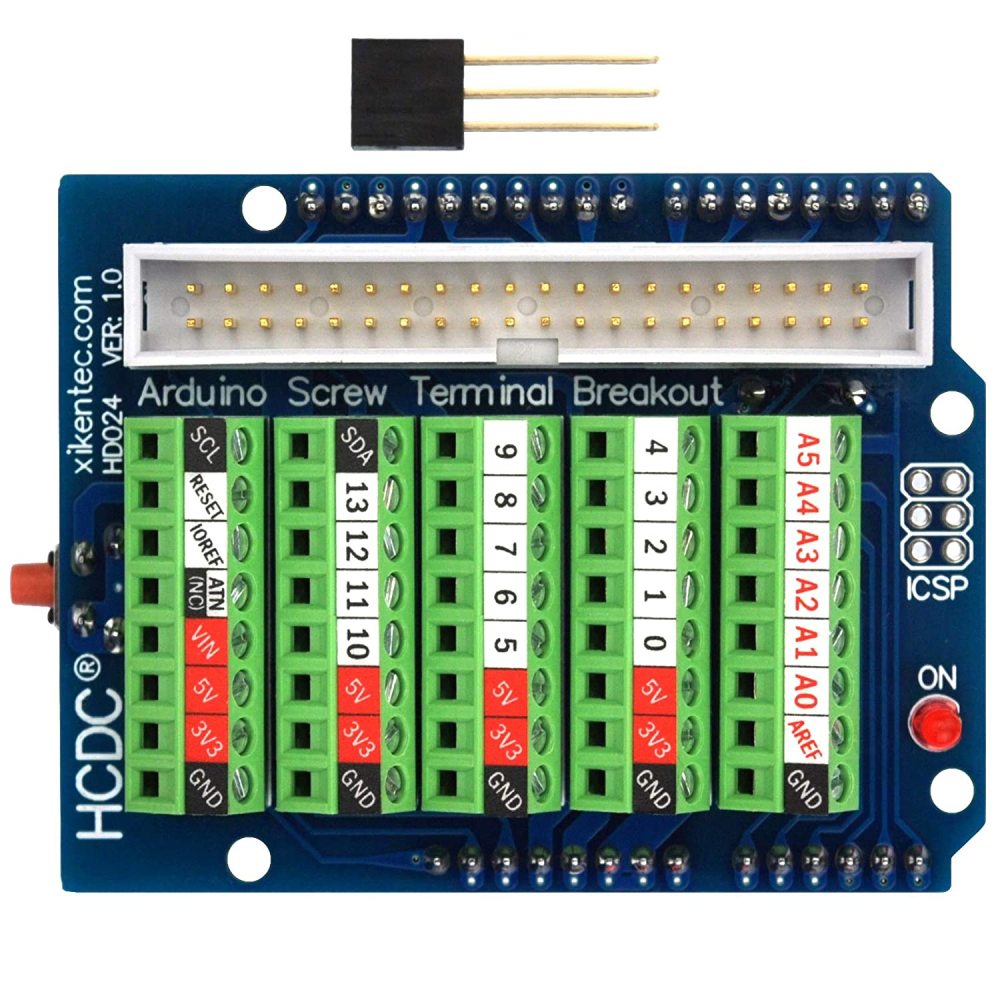

Terminal Block Breakout Shield Module - for Arduino UNO R3. the item has been soldered and assembled.
Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.
Standard IDC40 pitch 0.1" header, you can use 40pin FRC(flat ribbon cable) connector cable connect all Arduino Uno pins to peripheral equipment.
With power on LED indicating. red reset button on the side. with a ICSP adapter connect header. FR-4 fiber glass PCB, dual copper layers.

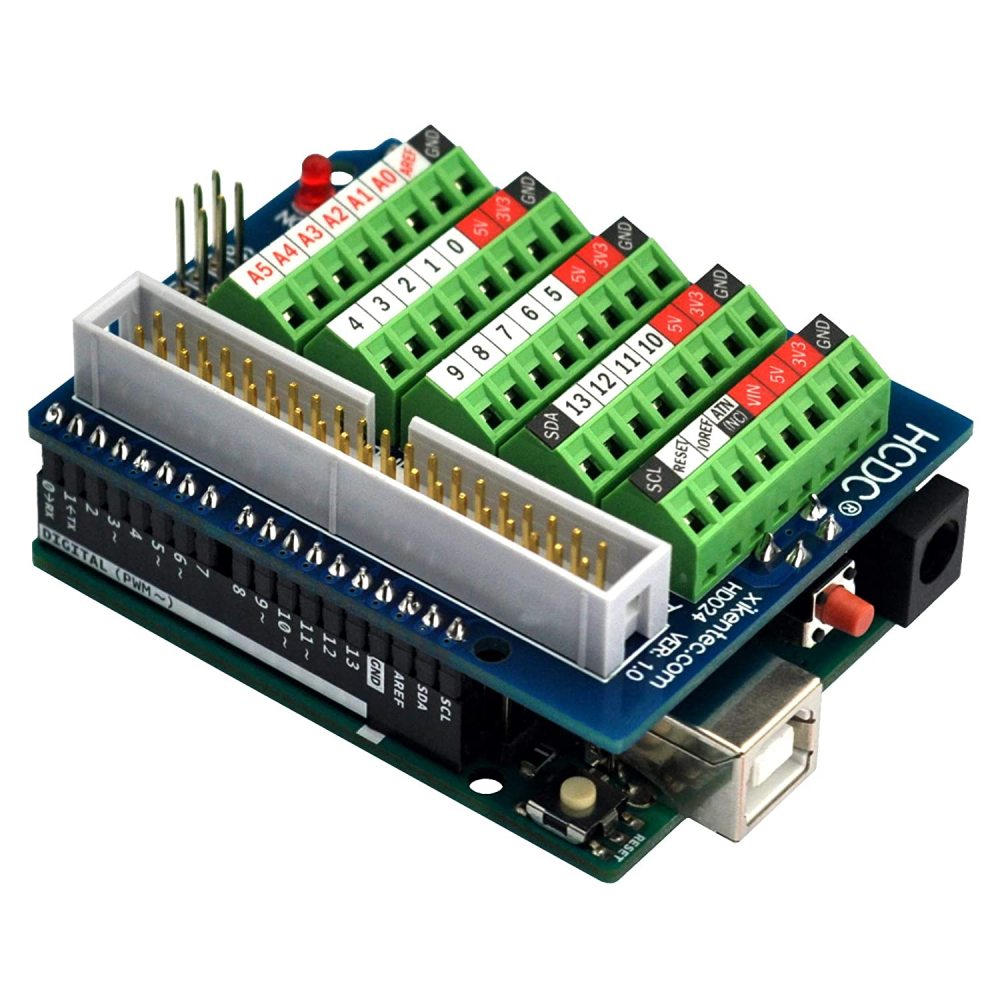

NOTE: the item not include Arduino Uno module.
Own brand: HCDC
Distribution brands: Chunzehui, Electronics-Salon, CZH-LABS, AudioWind, OONO.
Our head office and factory in Shenzhen, China. we specialize in industrial electronic control / audio equipment, we have own R & D team, sales team and factory.
Our R & D team specializes in electronics hardware and firmware design, look forward to working with you.
In addition, we are expanding business sales, we look forward to working with other countries sellers.
