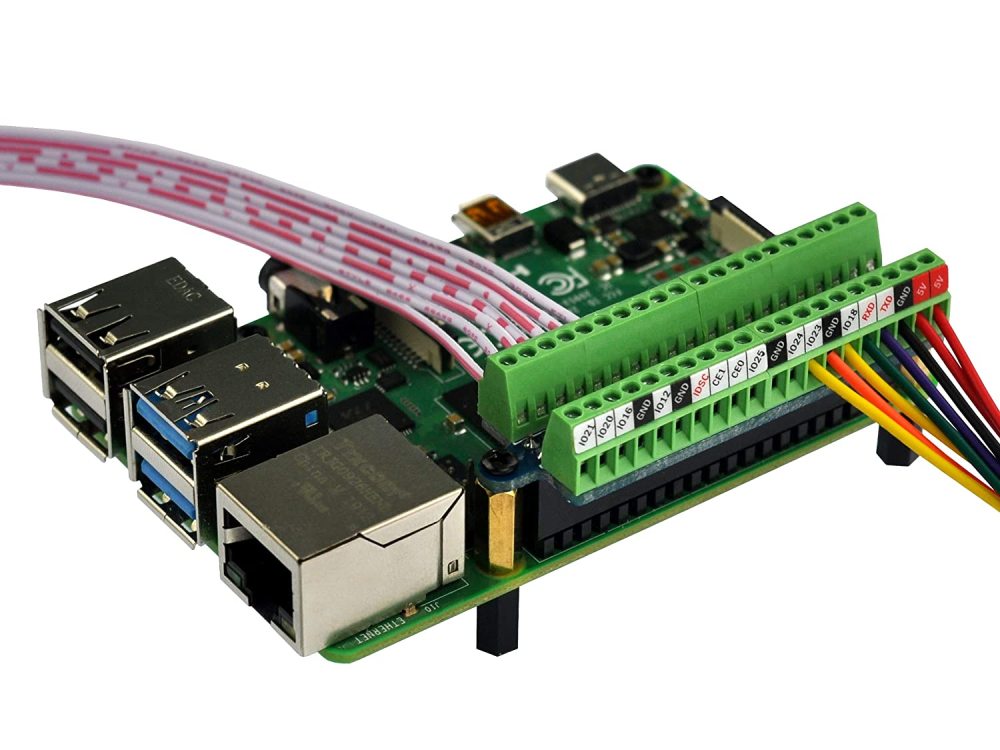

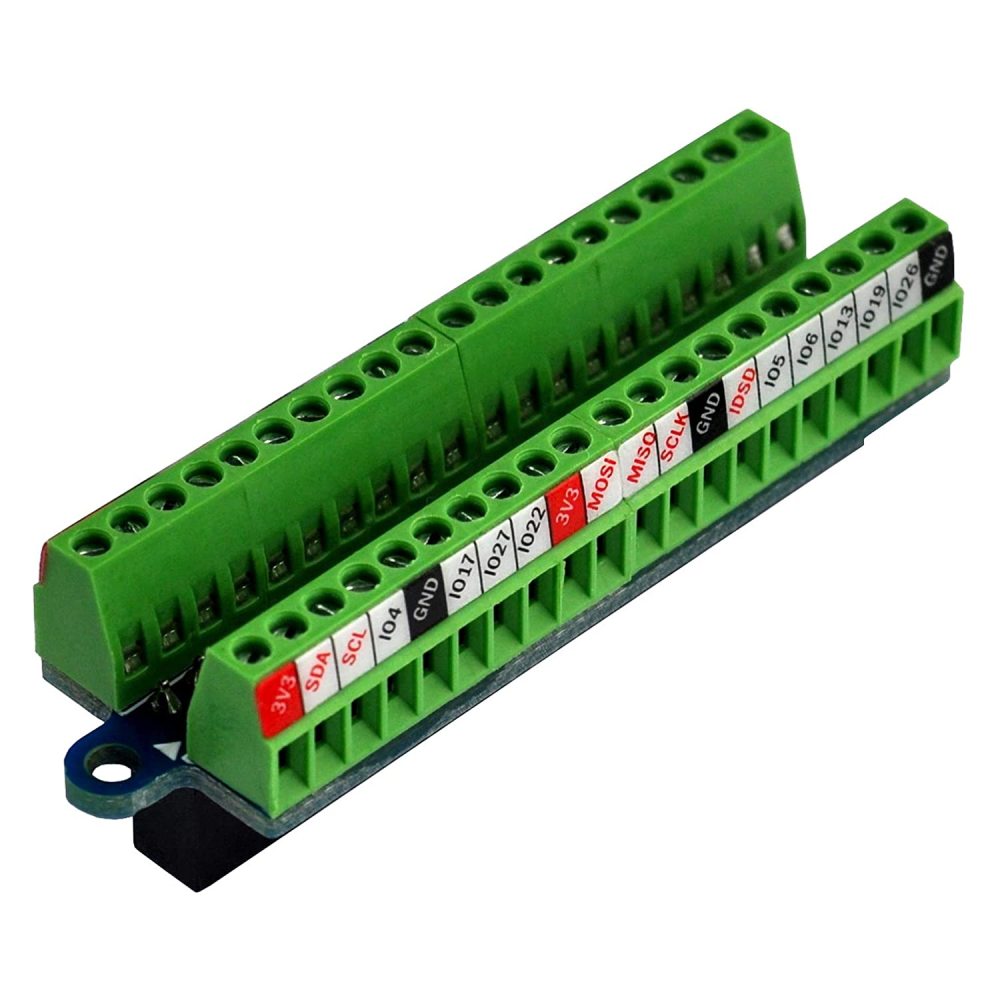

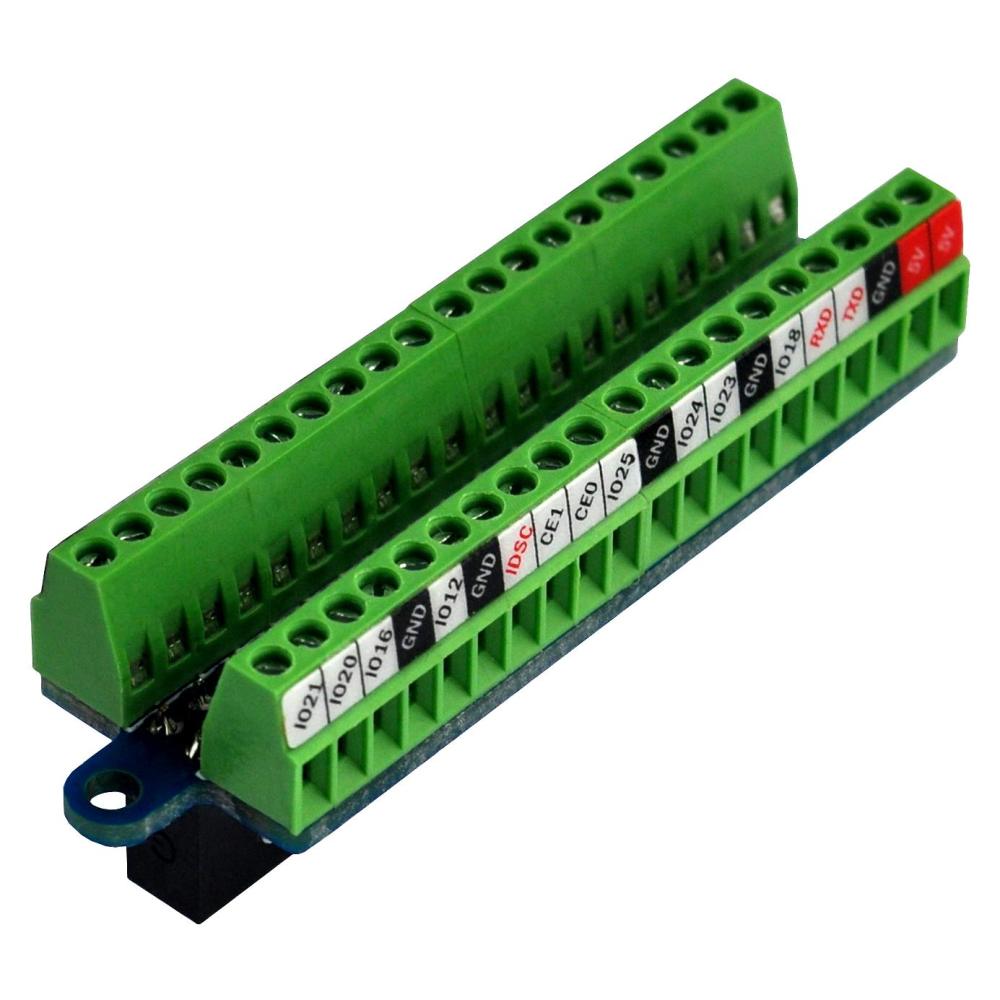

Ultra-Small RPi Pinout Terminal Block Breakout Board Module for Raspberry Pi

Name: Ultra-Small RPi Pinout Terminal Block Breakout Board Module for Raspberry Pi
Brand: Xikentech
SKU: HD029
Price: 17.99 USD
Availability: InStock

SKU: HD029

0.0 (0)

0 Sold

$17.99 ~~$17.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

The item has been soldered and assembled. Support for Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+, Pi 4 Model B, Pi Zero, Pi Zero-W.
Terminal block pitch 2.54mm/0.1", wire size range 28AWG to 18AWG, strip length 4.5mm, screw M1.6 steel, pin header and cage copper.
FR-4 fiber glass PCB, dual copper layers.

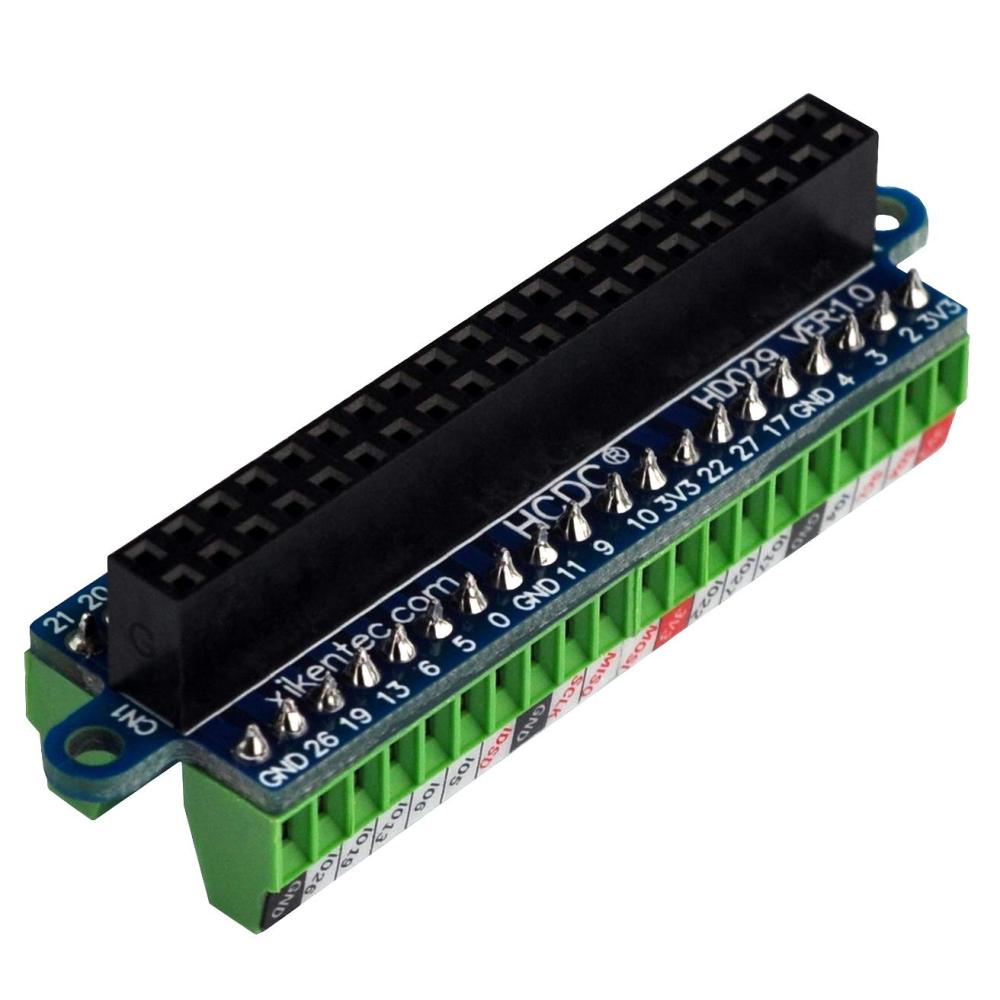

2x20 positions header connect to Raspberry Pi board.

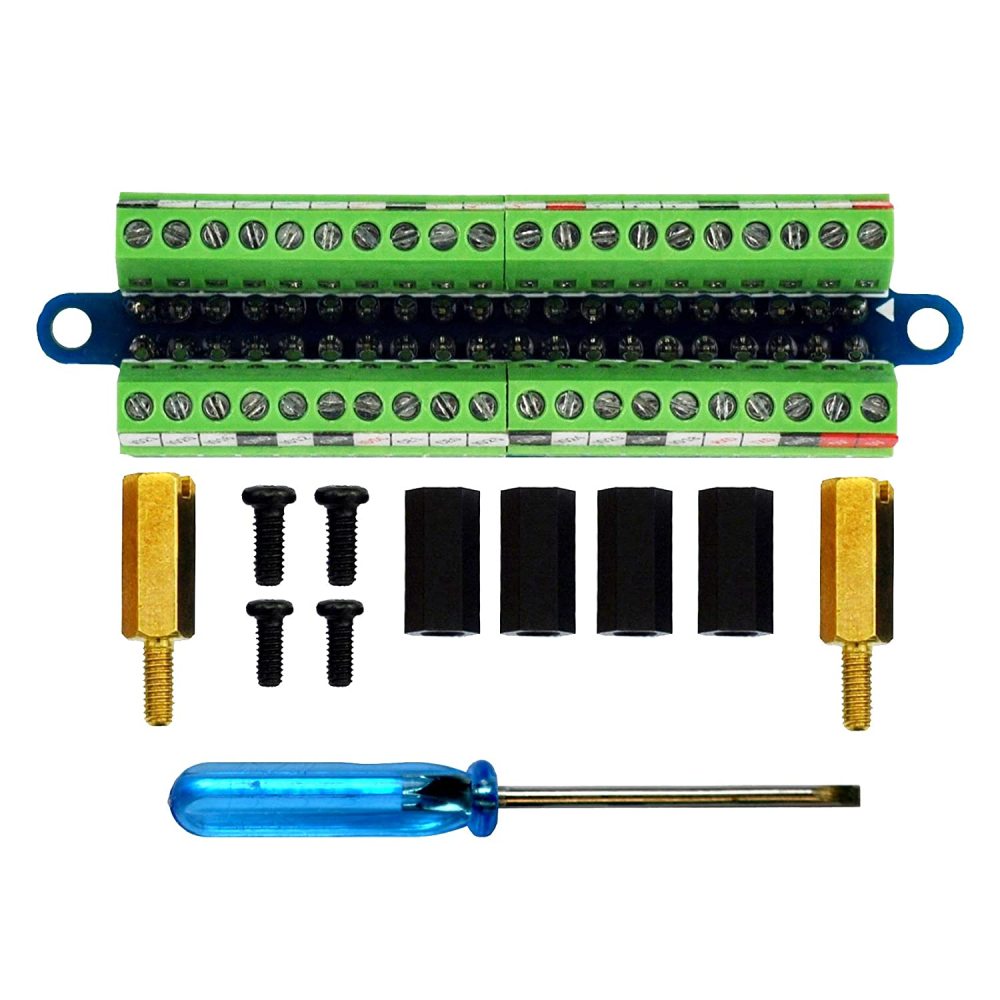

Packing list: 1x terminal block breakout module, 4x M2.5x6mm screws, 4x 10mm nylon standoffs. 2x 11.5mm brass standoffs, 1x small slotted screwdriver (NOTE: the item not include Raspberry Pi Board).
