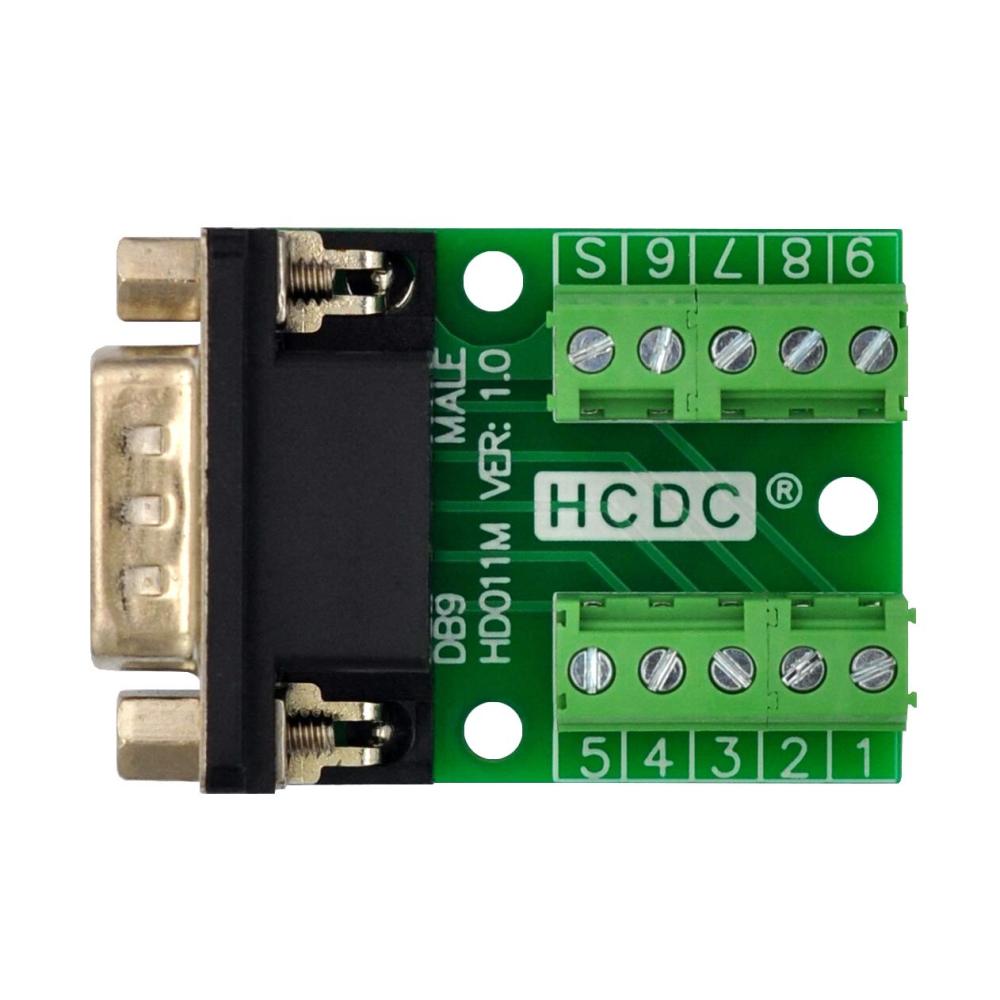

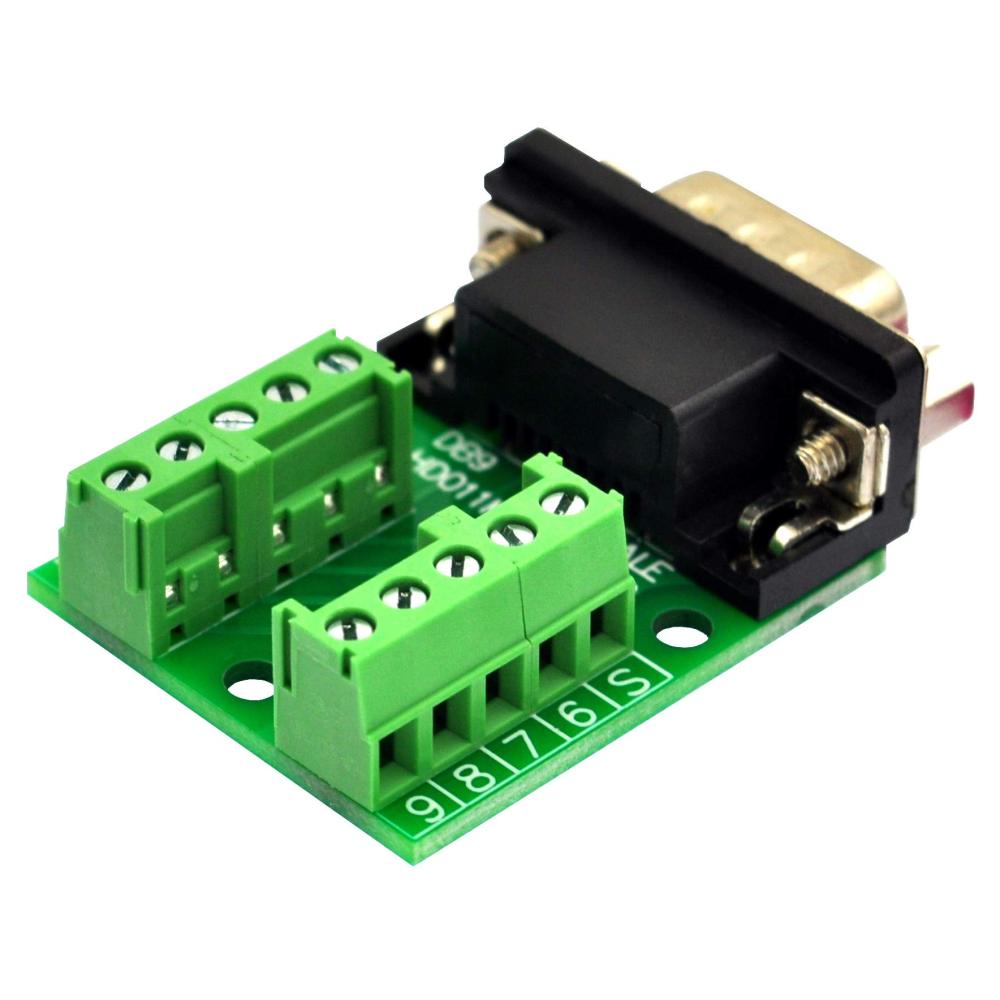

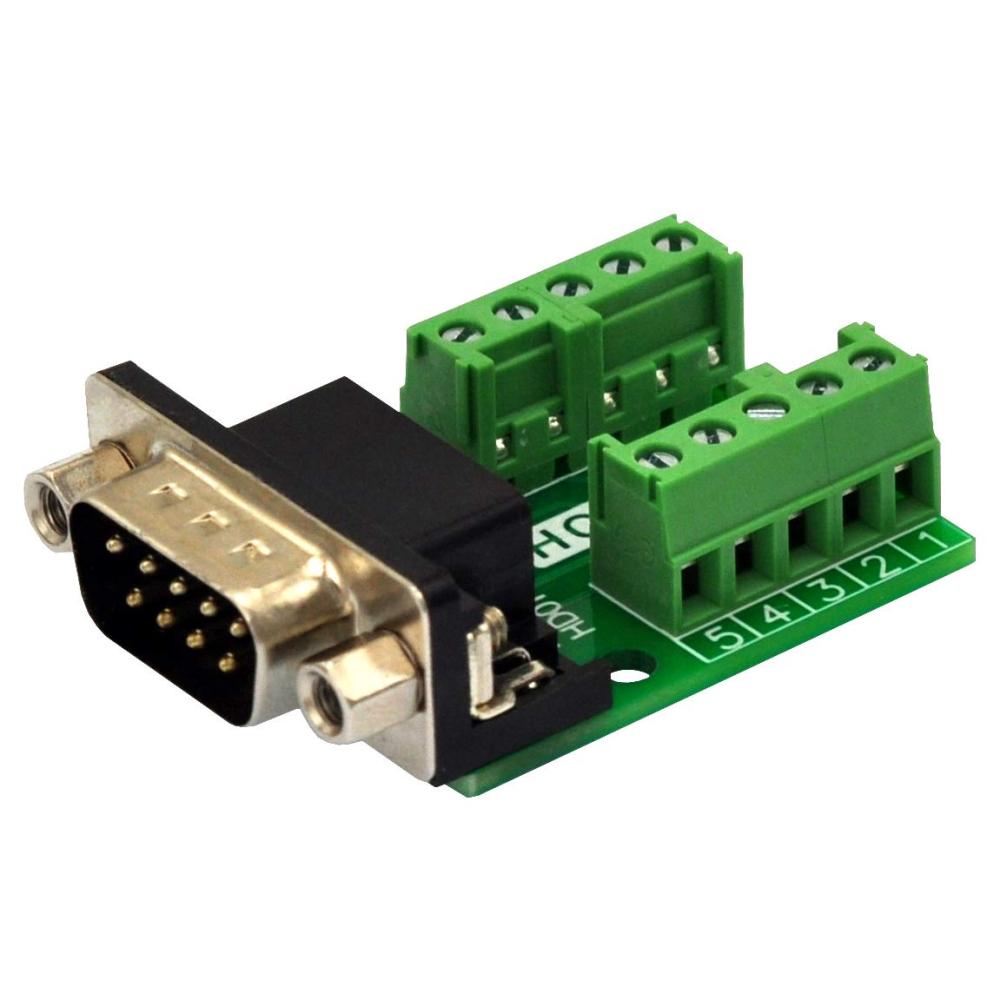

Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB9 Male)

Name: Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB9 Male)
Brand: Xiken Tech
SKU: HD011M
Price: 12 USD
Availability: InStock

SKU: HD011M

$12.00 ~~$12.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

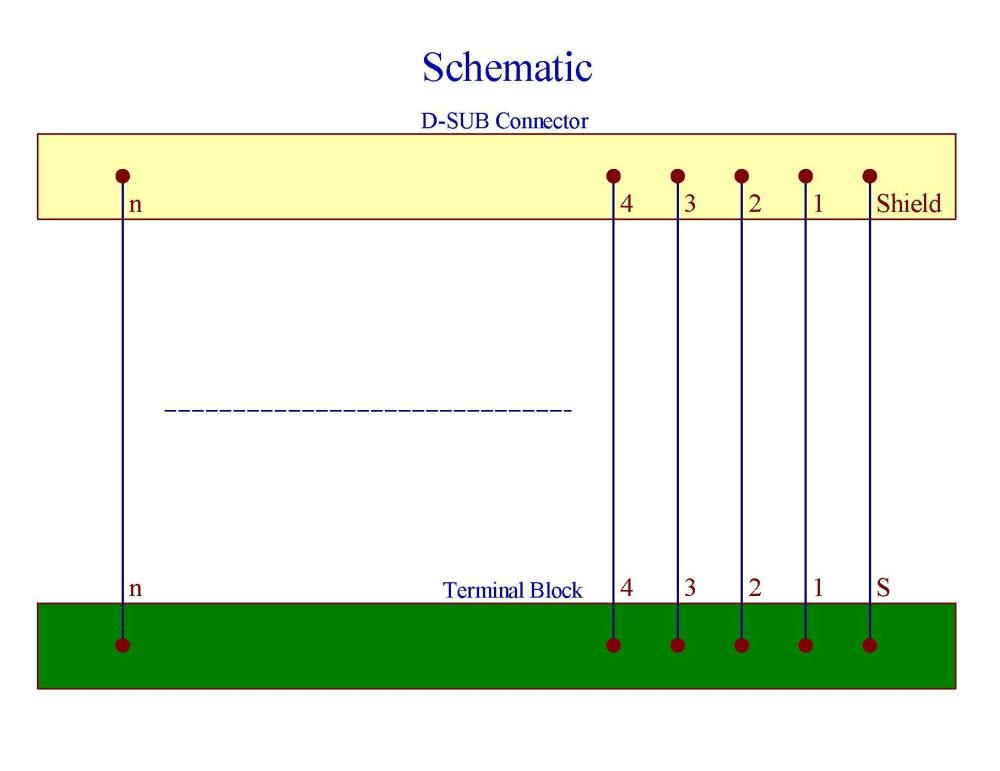

1, Standard D-SUB male or female header connector. Connector to screw terminal 1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.

Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB9 Male)
