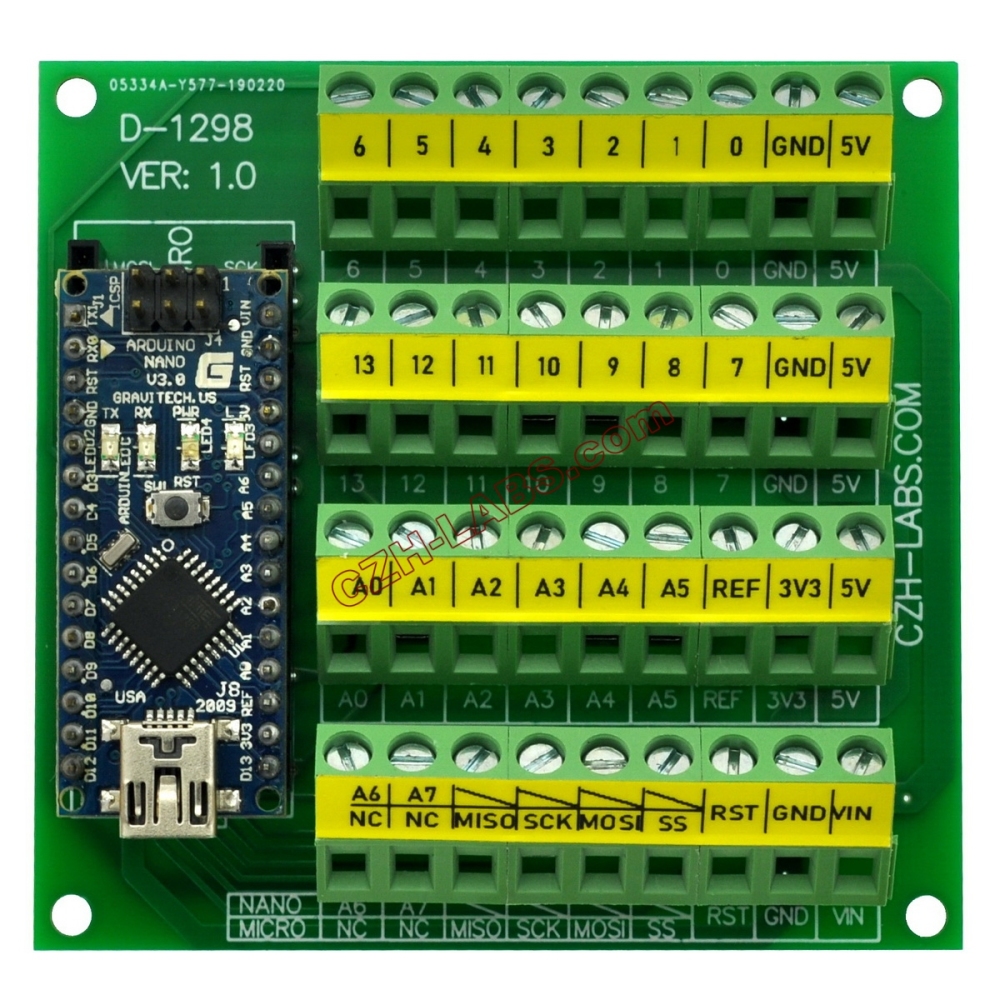

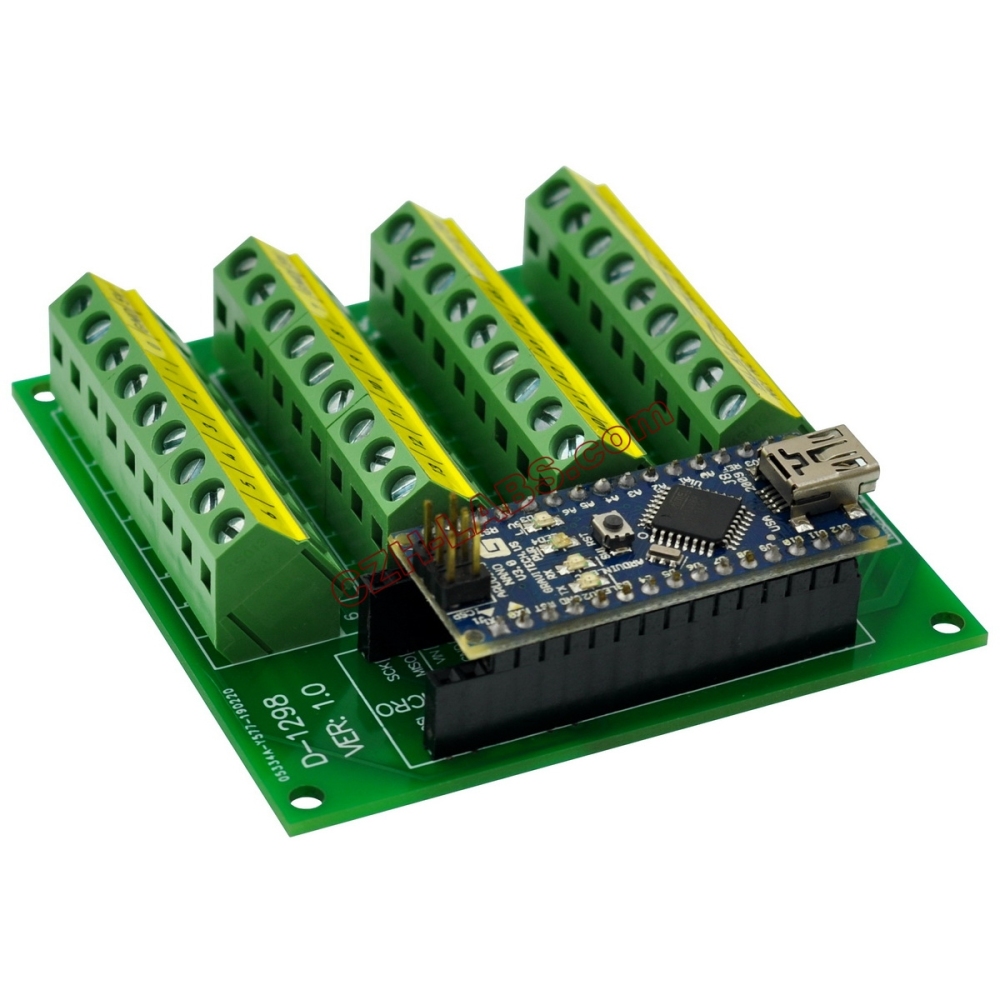

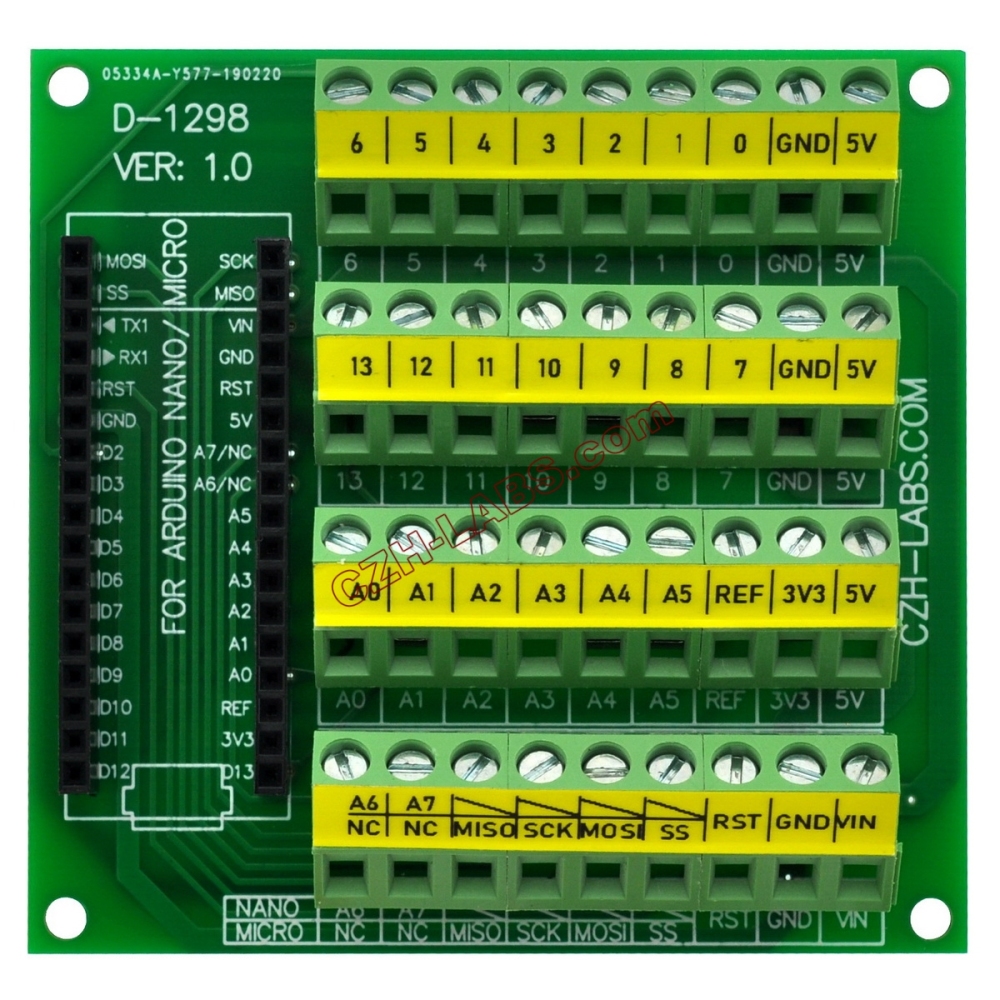

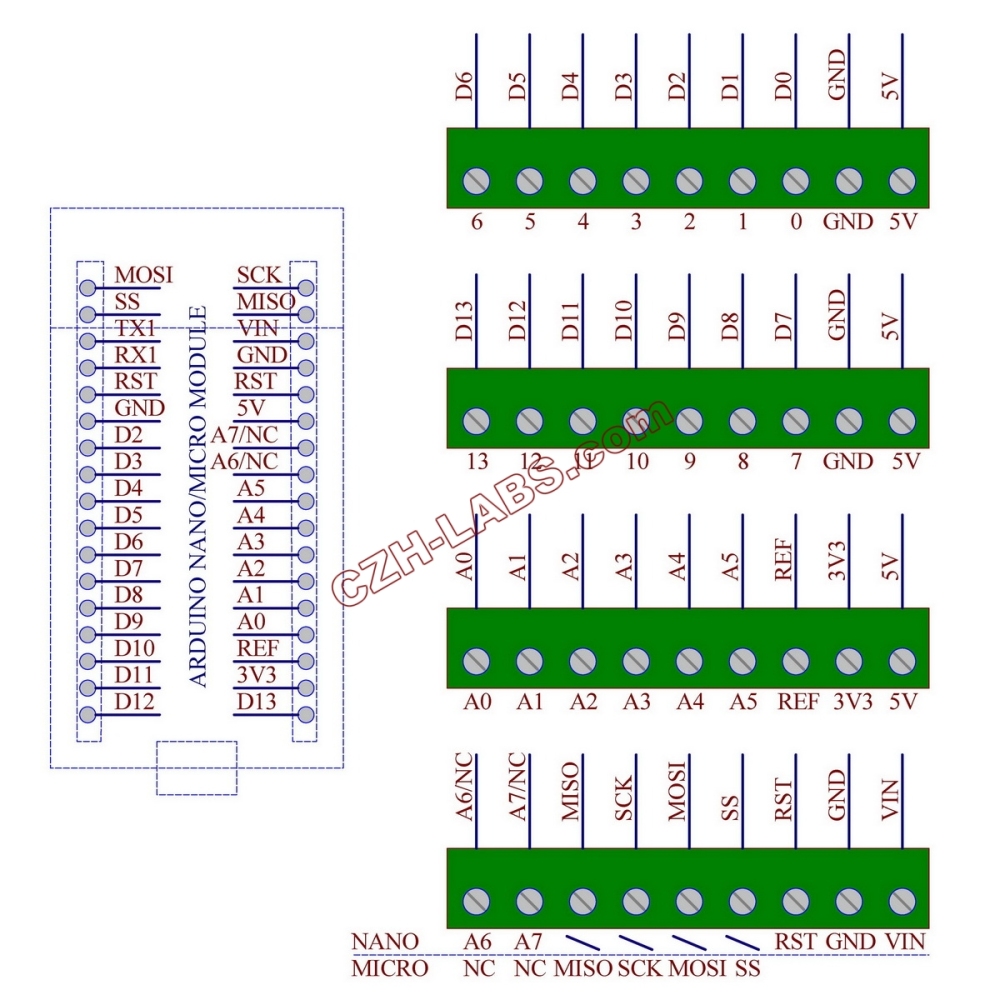

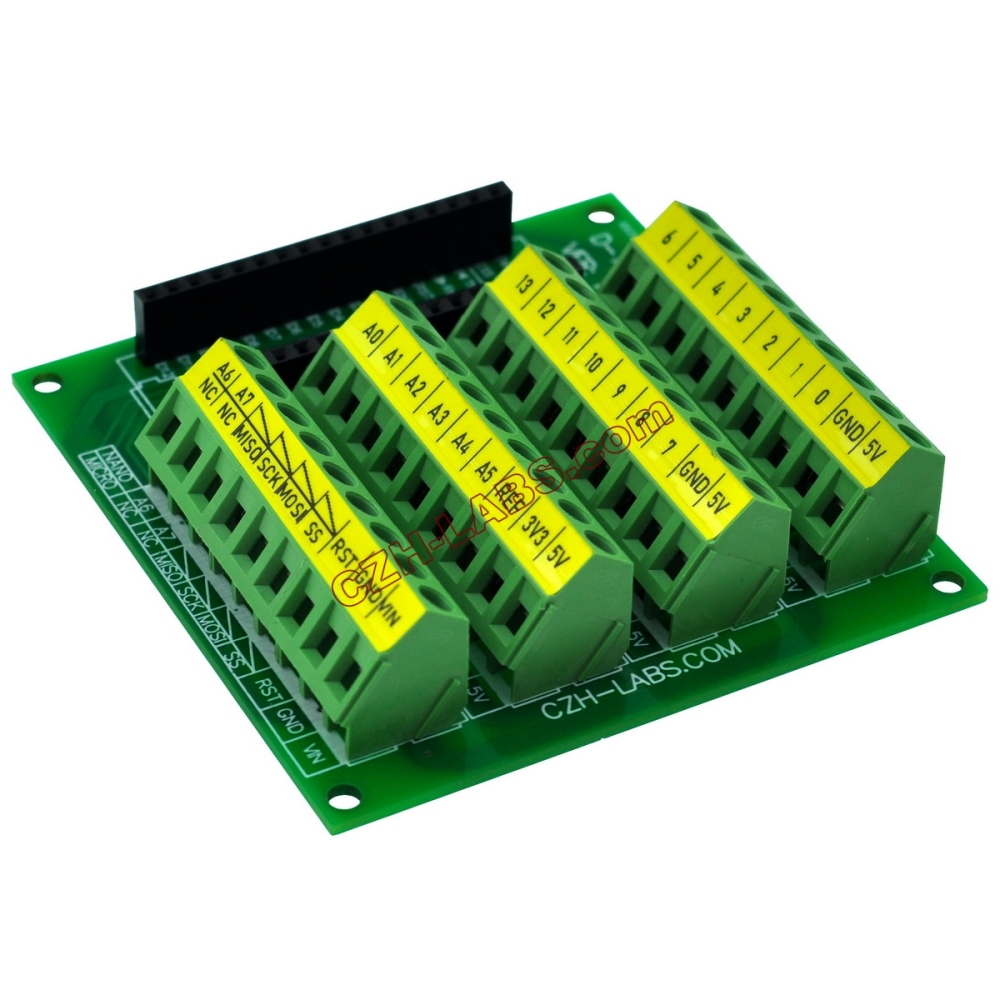

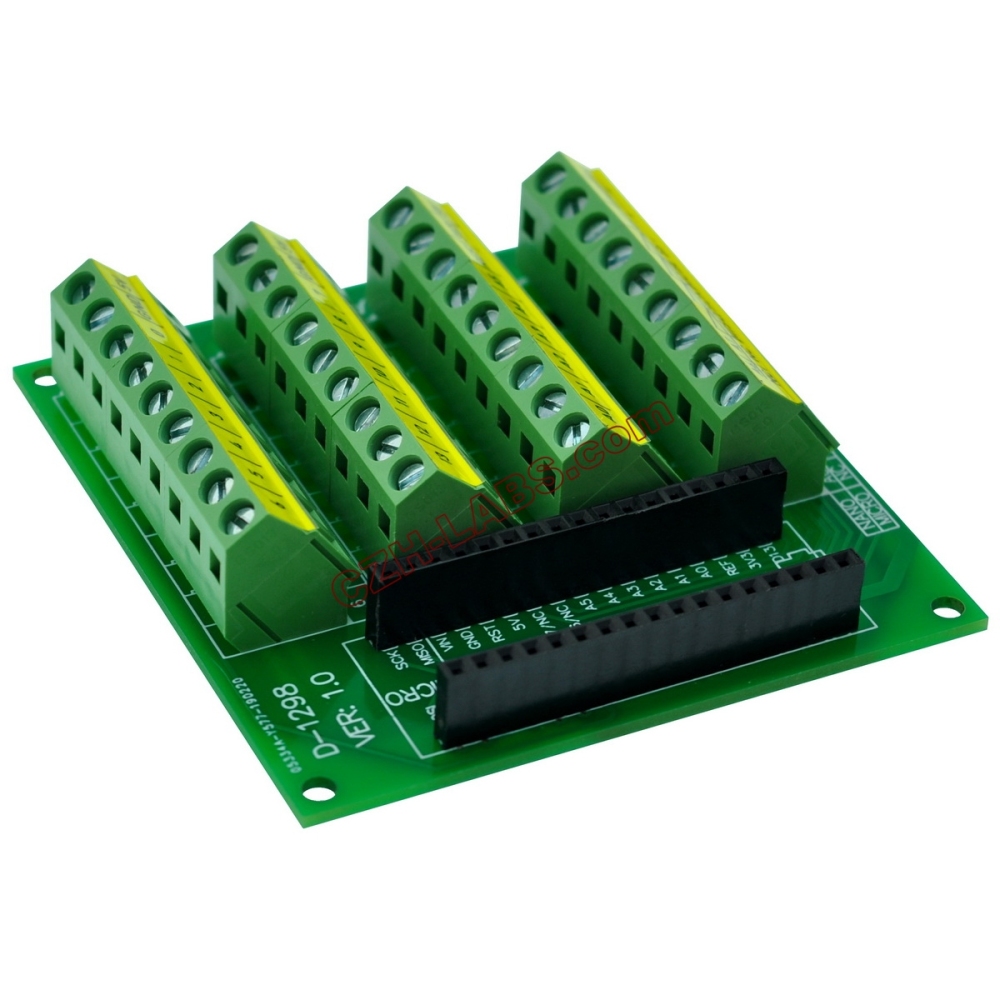

Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.

SKU: D-1298
$19.00 $19.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $19 = $19
save $0.00
Add to Favorites
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
1/1
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Screw Terminal Block Breakout Module Board for Arduino NANO/MICRO.
  • Description

Screw Terminal Block Breakout Board for Arduino NANO/MICRO.
With the breakout board, you can easily extend Arduino projects to industrial control applications.

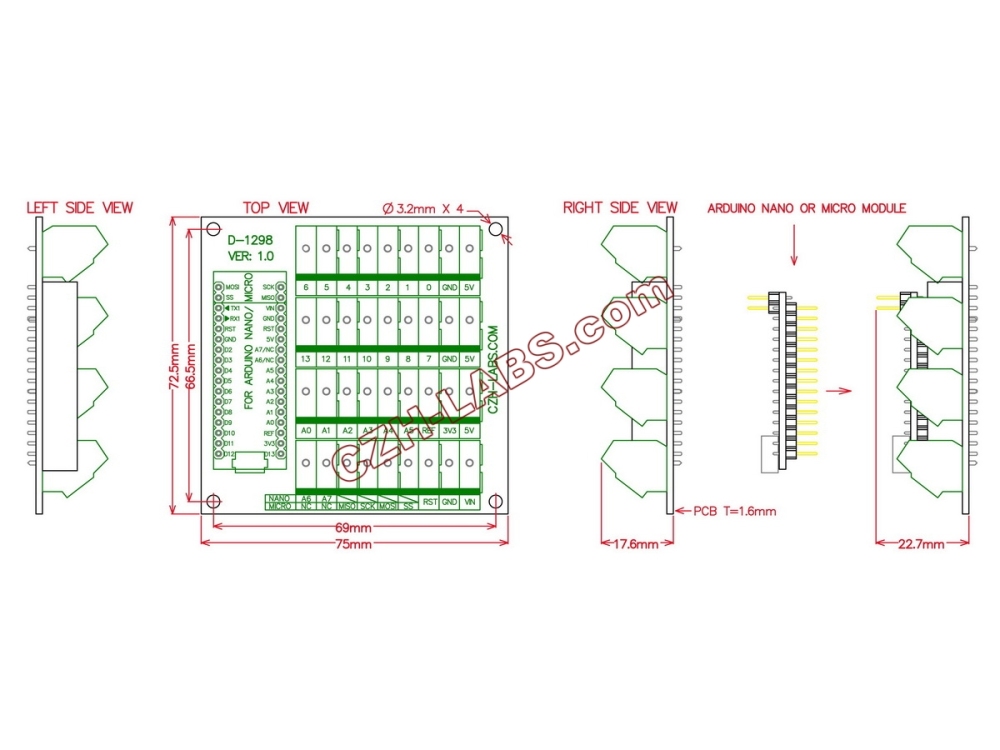

PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
FR-4 fiber glass PCB, dual copper layers.
Note: the item not include Arduino-NANO or MICRO.
