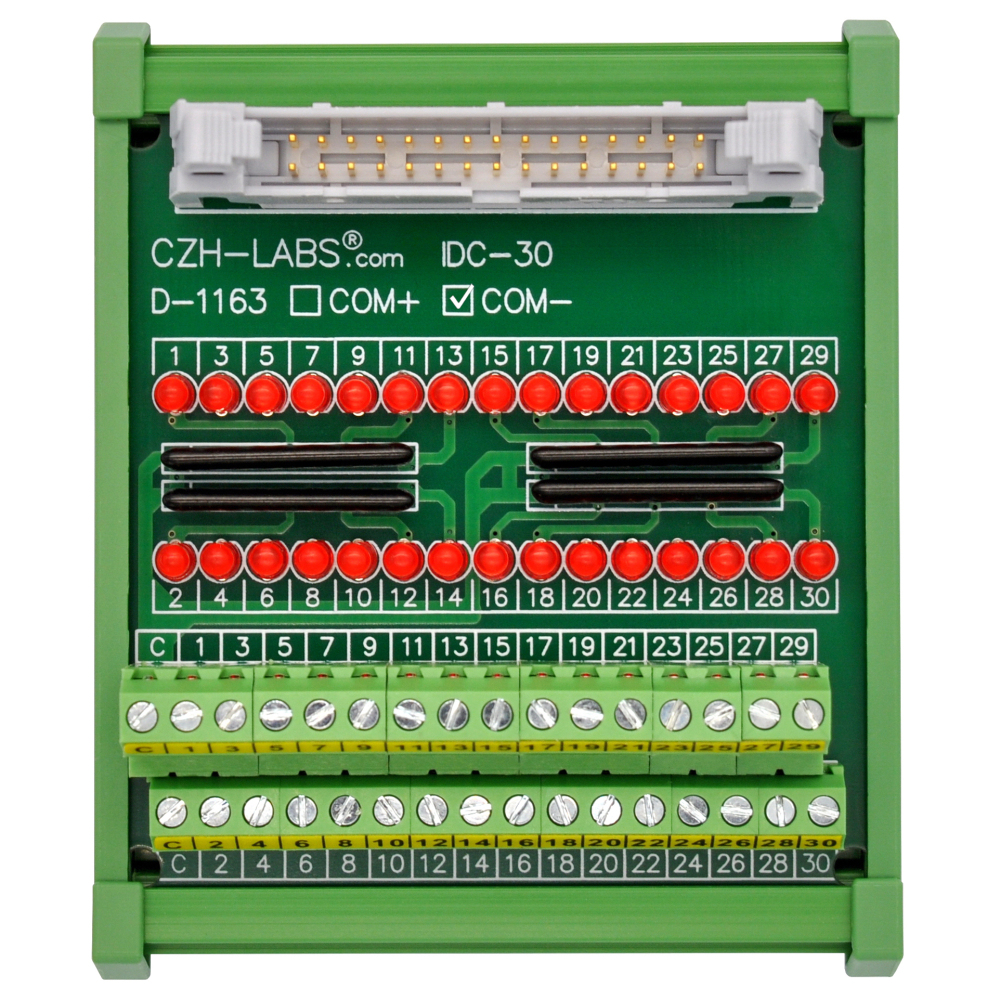

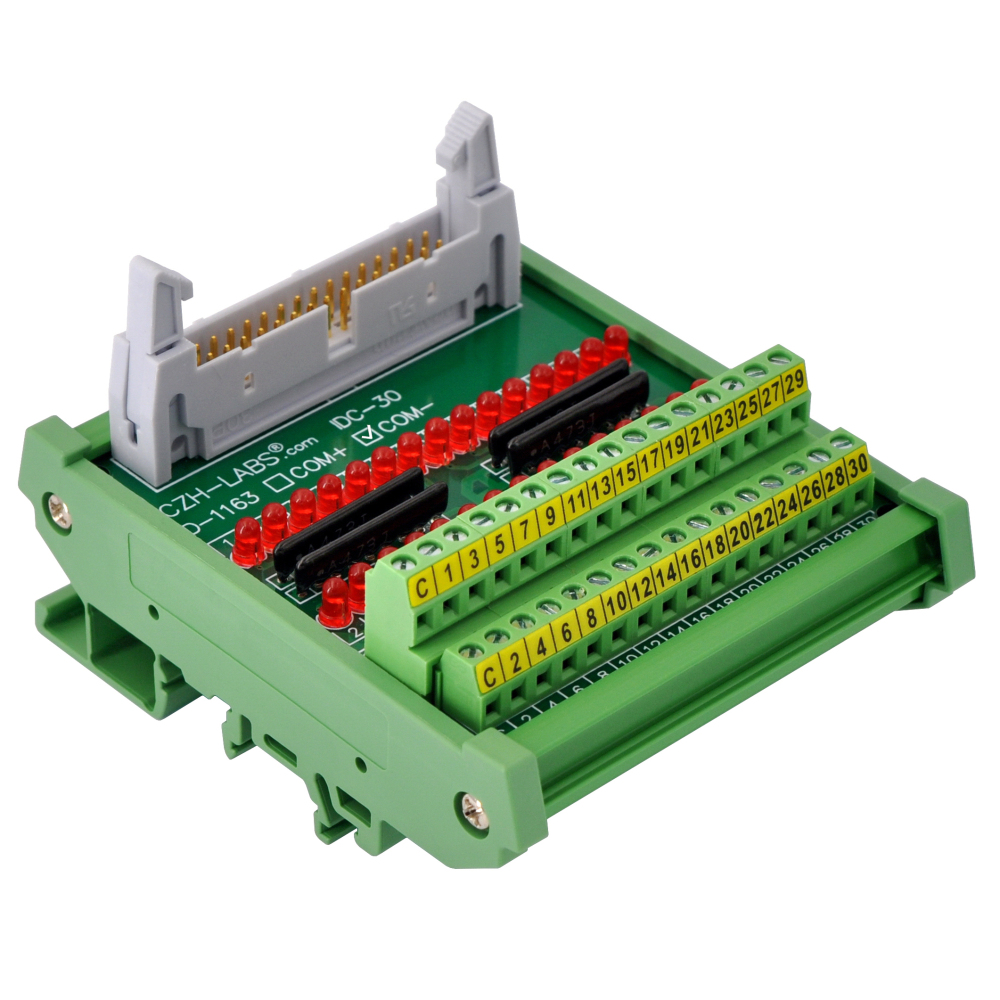

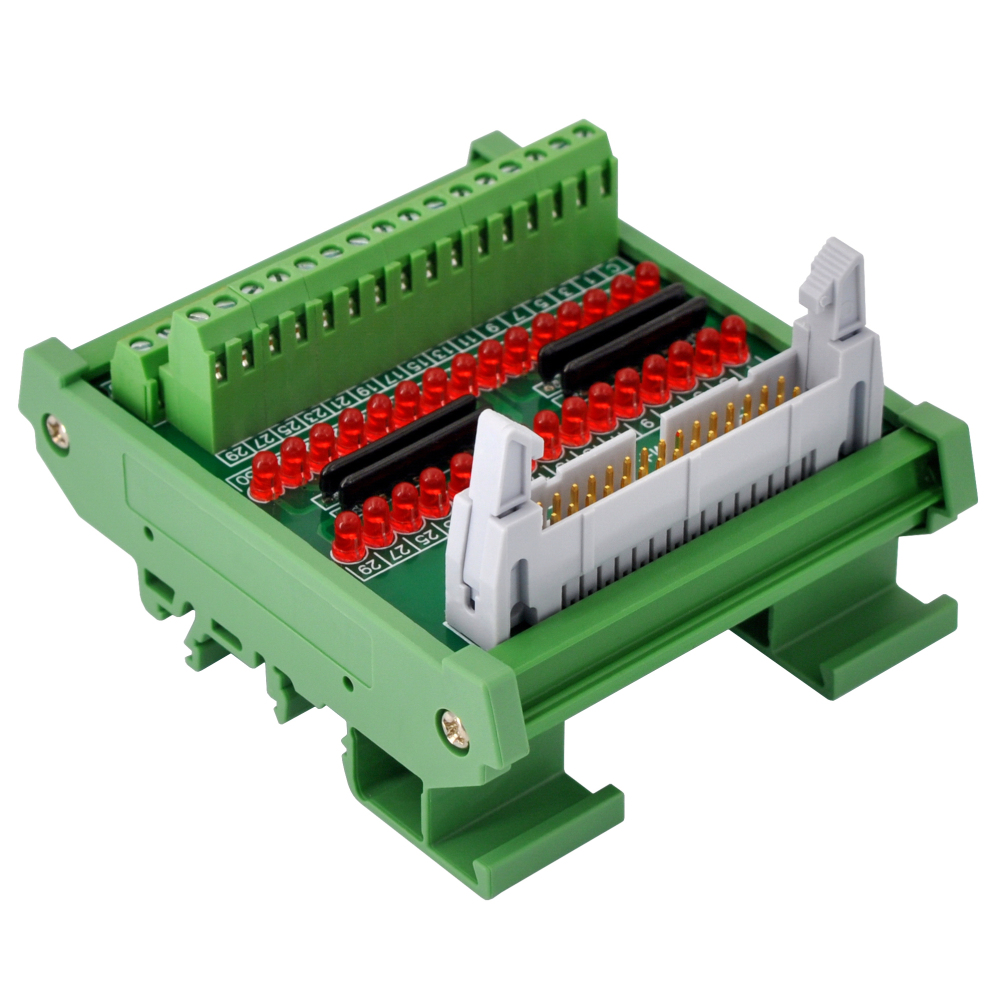

IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount

SKU: D-1163BT
$80.00 $80.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $80 = $80
save $0.00
Add to Favorites
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC10 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC10 Interface Module, COM+ with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC10 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC10 Interface Module, COM+ with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
1/1
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC10 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC10 Interface Module, COM+ with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • IDC30 Interface Module, COM- with LEDs For Circuit Indication, DIN41651 Flat Ribbon Cable Breakout Board, DIN Rail Mount
  • Description

Features:
1, Standard IDC30 DIN41651 IDC/FRC connector, pin pitch 2.54mm / 0.1”.

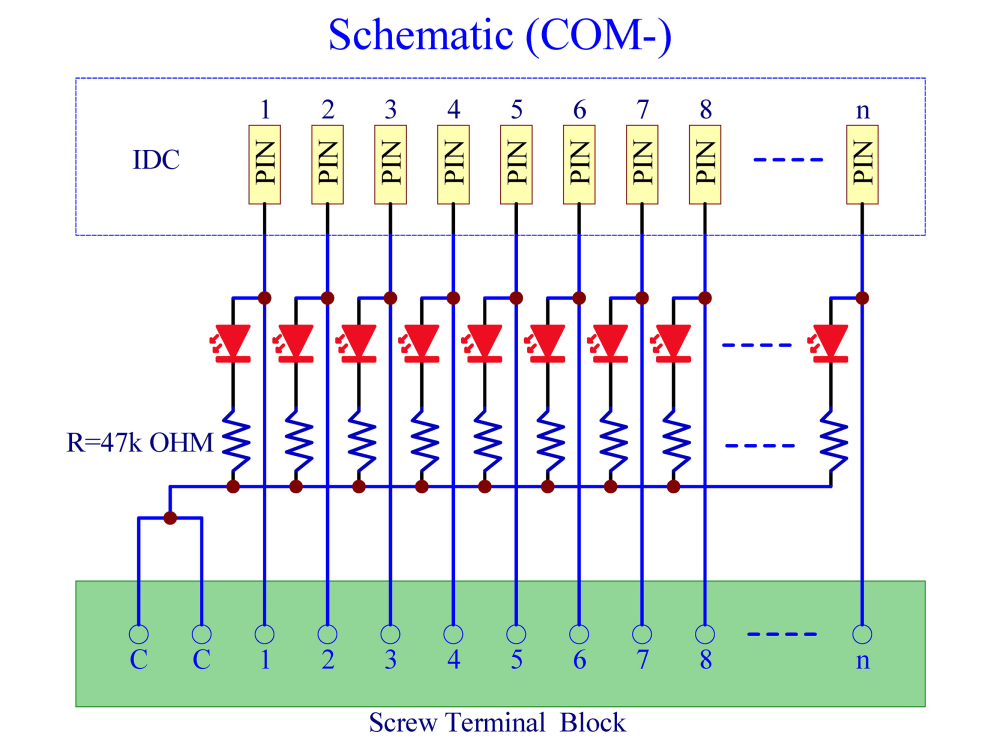

2, LED circuit connection type: COM-, the LED lights up when the signal terminal is at a high level.
3, Each pin of the IDC connector corresponds to a terminal block position. Each connection pin is equipped with an LED to indicate the signal status.
4, Screw terminal block: Pin pitch of 3.81mm/0.15", wire range of 26 - 16AWG / 1.0mm square, strip length 5mm, and M2 metric screws.
5, Rated voltage 50V. Rated current 1 Amp / per pin. The LED supports a signal voltage range of 5V - 50V for indication.

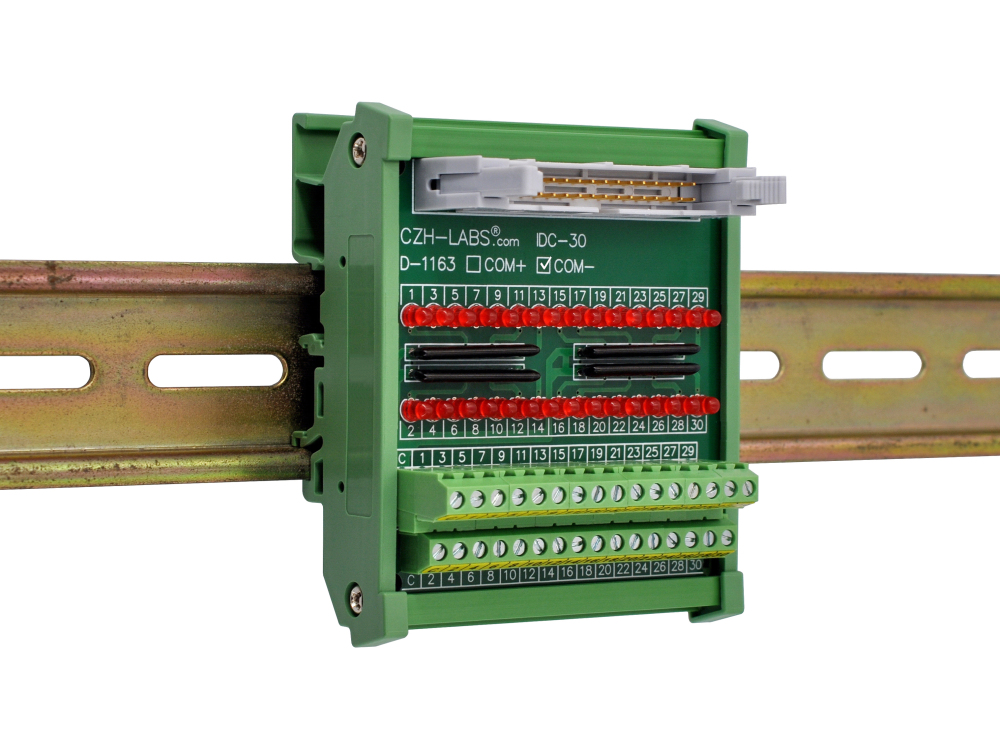

6, DIN rail mounted. Made from high-quality fireproof nylon, the DIN rail mount carrier supports 35mm, 32mm, or 15mm rail widths.
7, Certified for safety with UL, CE, and CQC certified terminal blocks, UL-certified IDC connector. UL 94-V0 certified PCB, UL/CE certified DIN rail mount carrier.
8, Operating Temperature: -40 to 85C.
