ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.

SKU: D-238T
$20.99 $20.99
ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $20.99 = $20.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
1/1
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 9-Way Buss Board DIN Rail Mount Interface Module.
  • Description

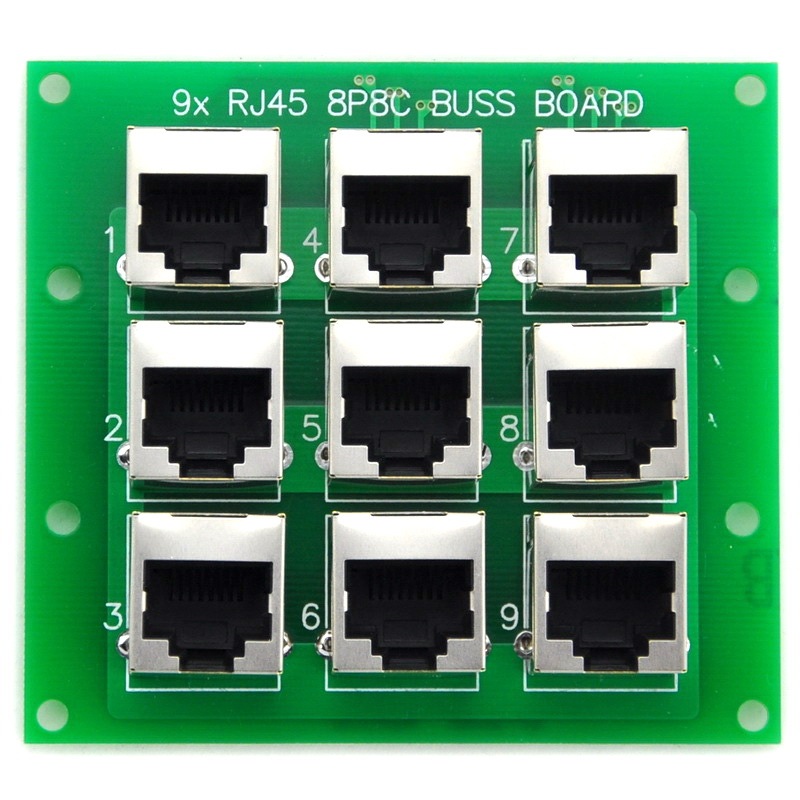

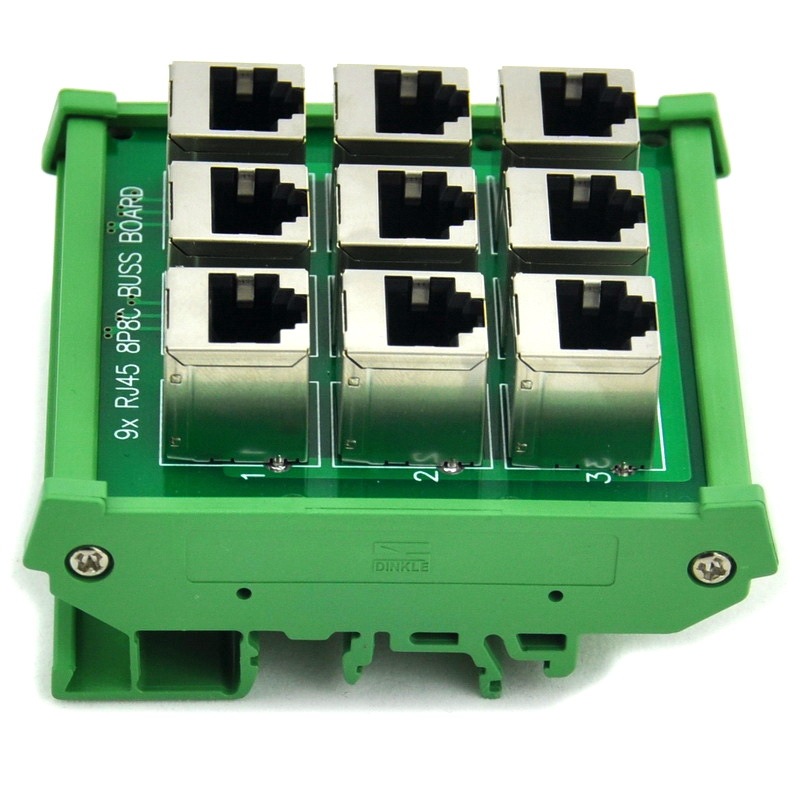

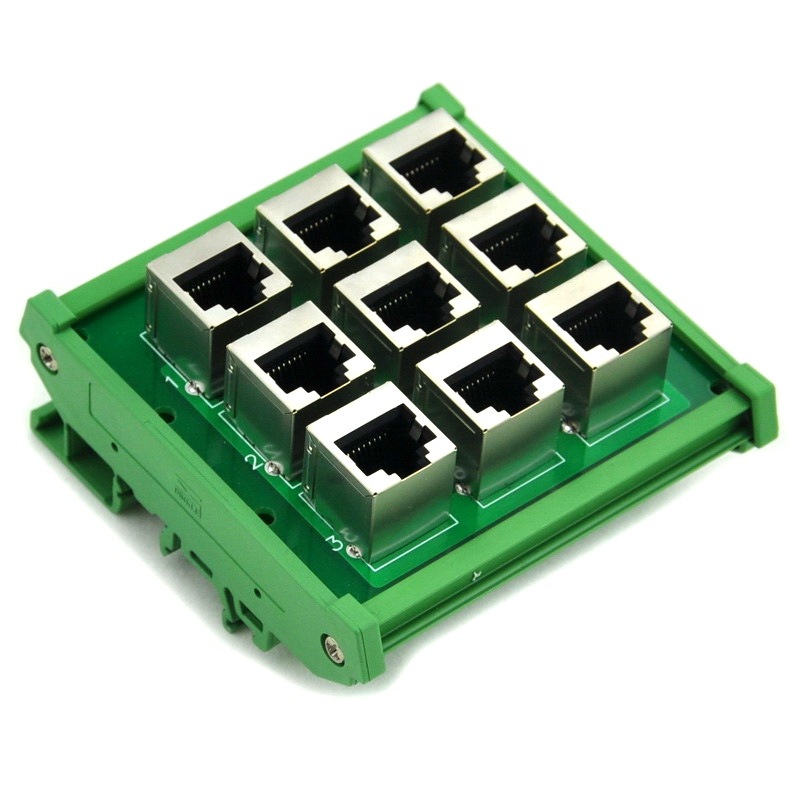

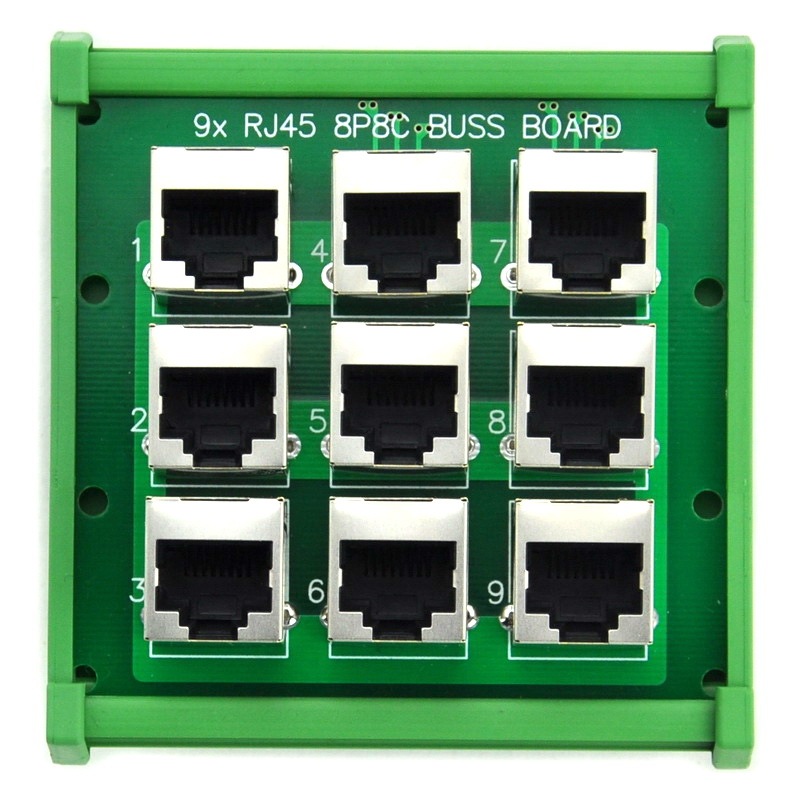

RJ45 9-Way Buss Board DIN Rail Mount Interface Module.

Part number: MD-D238T.
RJ45 vertical shielded 8P8C jacks.

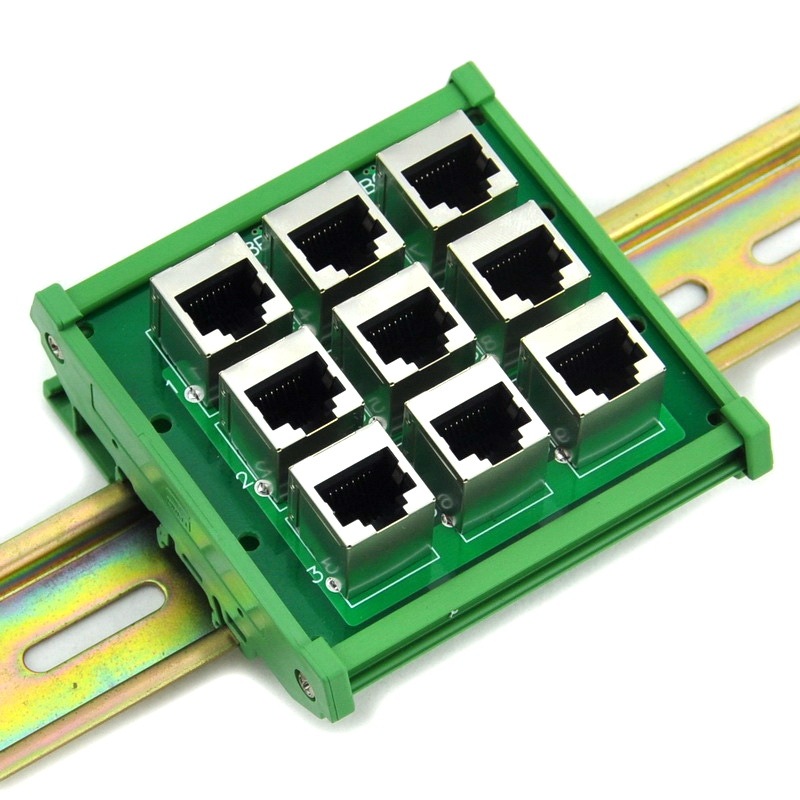

DIN rail mountable - for width 35 / 32 / 15mm rails.
DIN mount case can be taken apart for panel mount use.
High quality PCB housing/carrier.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 72.5 x 83 x 42mm(W x L x H).
PCB dimensions: 72.5 x 80(W x L).
100% new, never used.

Rated voltage: 100V.
Rated current: 500mA / per pin.
Operating Temperature: -20ºC to 50ºC
