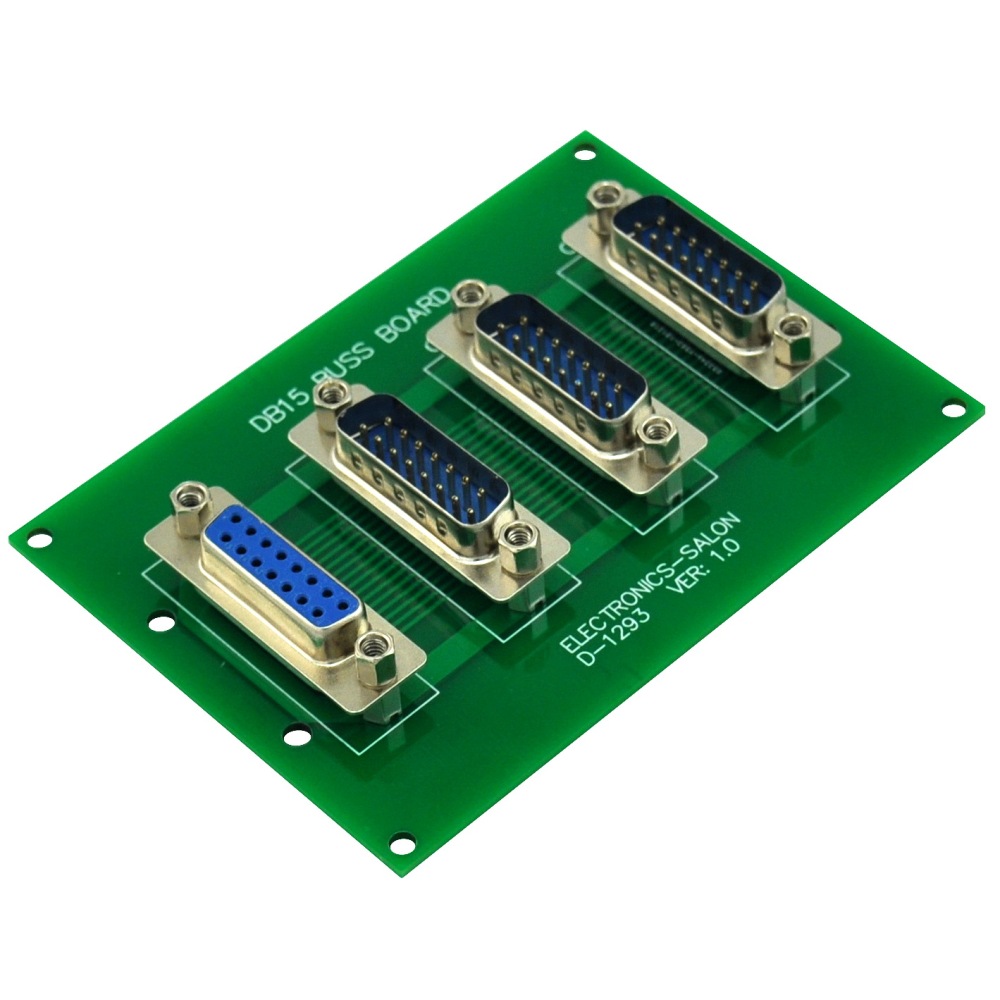

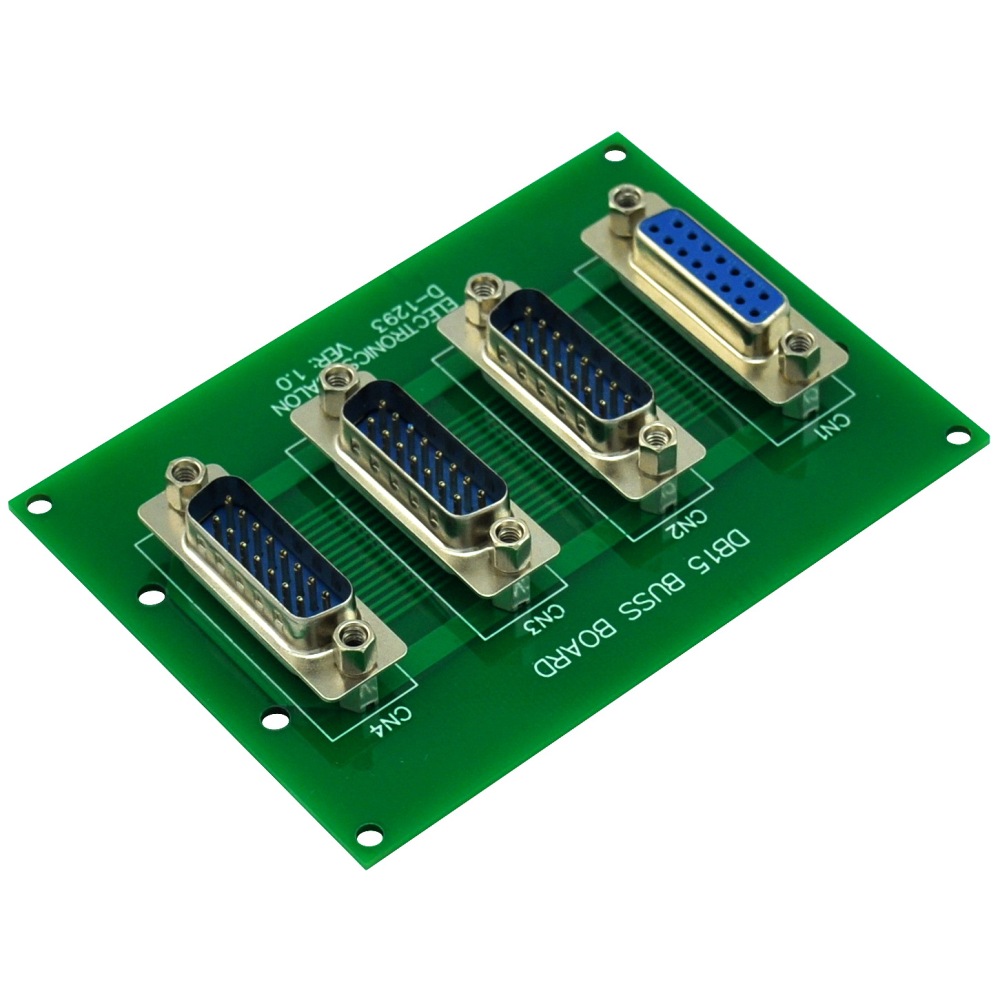

ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.

SKU: D-1293/1F3M
$16.00 $16.00
ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $16 = $16
save $0.00
Add to Favorites
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
1/1
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON Panel Mount DB15 1 Female 3 Male Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • Description

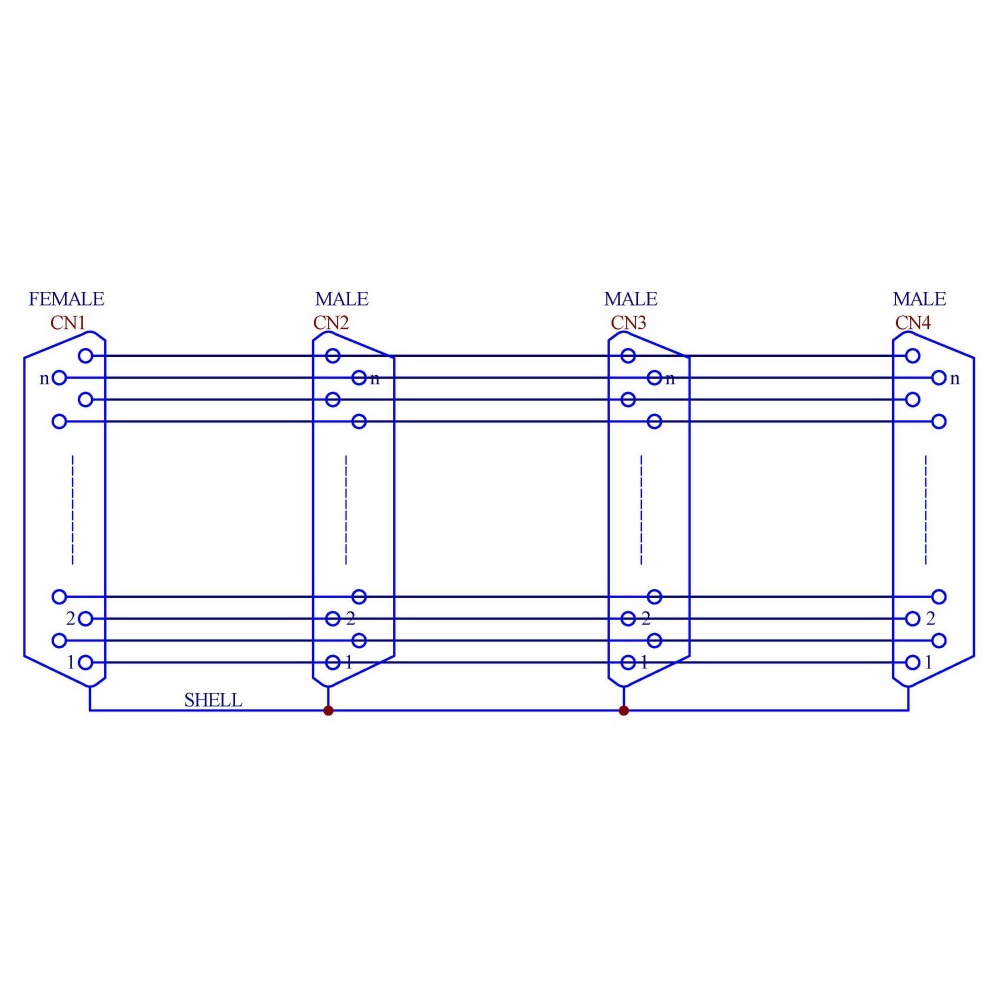

The buss board provide a total of four DB15 connectors(1 Female and 3 Male), with all 15 pins of each connector wired together 1:1 as a buss, all corresponding pins are connected: pin 1 to pin 1, pin 2 to pin 2, etc.
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 60V, rated current: 1Amp / per pin.
Operating Temperature: -20C to 50C.
