Home > Breakout Board Module > IDC FRC Breakout Board Module > D-217S - D-227S IDC FRC Breakout Board Module, IDC FRC Interface Module > ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.

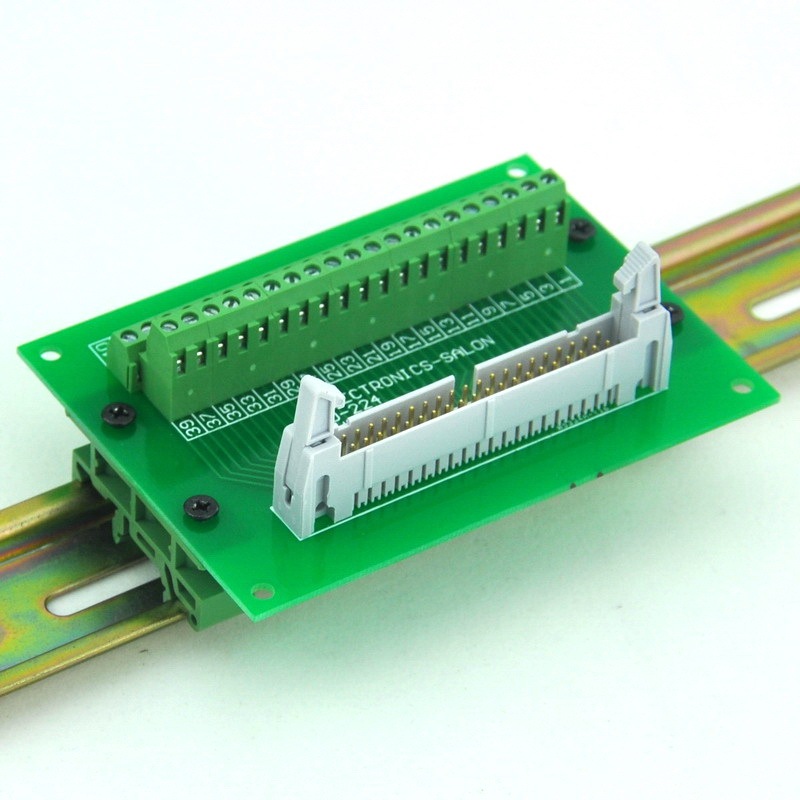

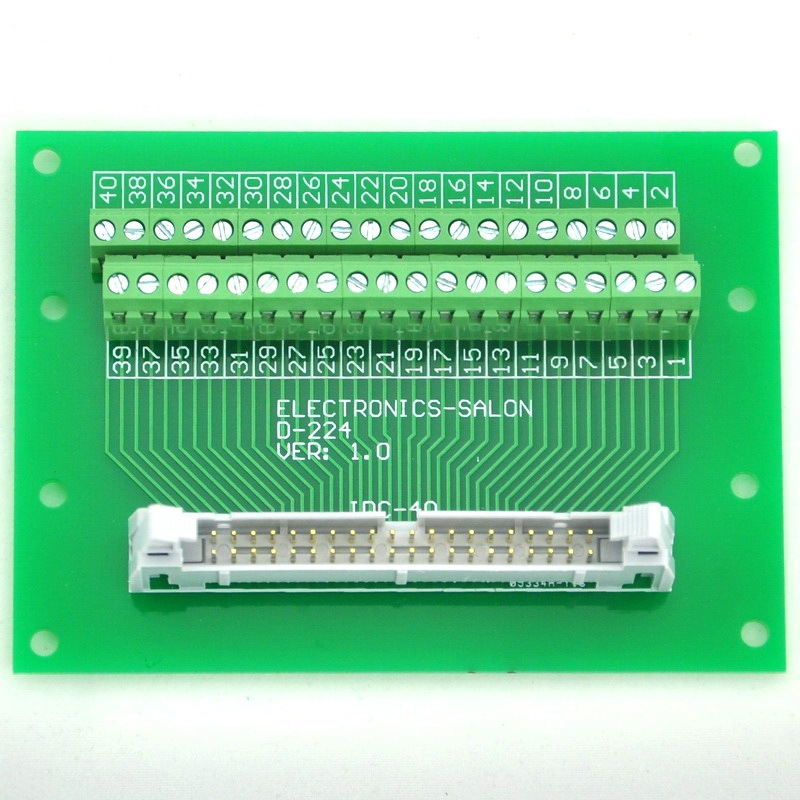

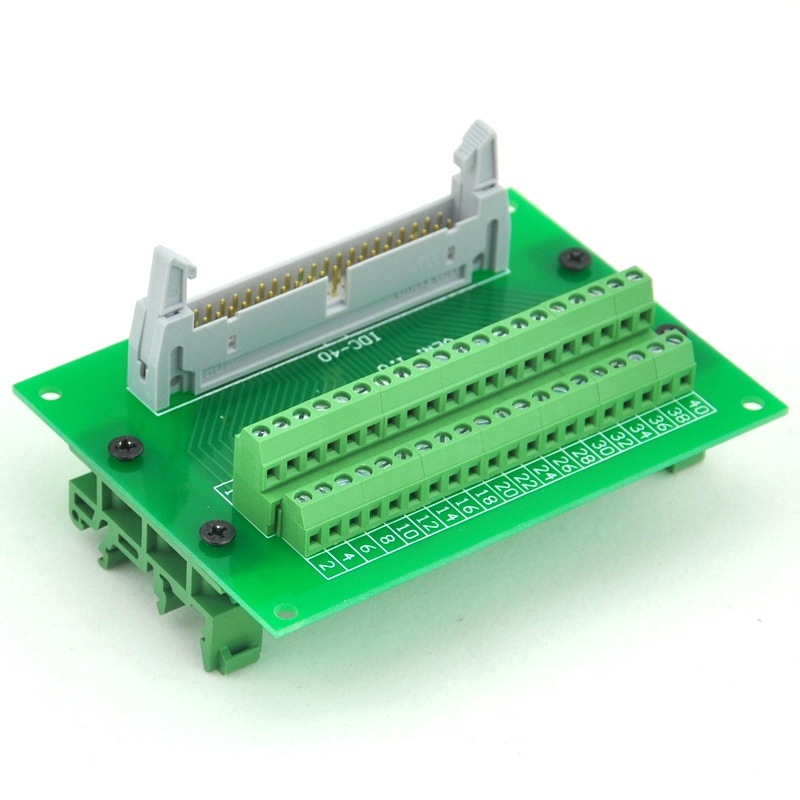

  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
1/1
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
Share:

ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.

SKU: D-224S
$20.99 $20.99
ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $20.99 = $20.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
1/1
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • ELECTRONICS-SALON IDC40 Header Interface Module with Simple DIN Rail Mounting feet.
  • Description

IDC pin pitch 2.54mm/0.1" male header connector.
Pitch 3.81mm/0.15" screw terminal block.
Sample DIN Adapters (Feet): for width 35 / 32 / 15mm DIN rails.
FR-4 fiber glass PCB, dual copper layers.

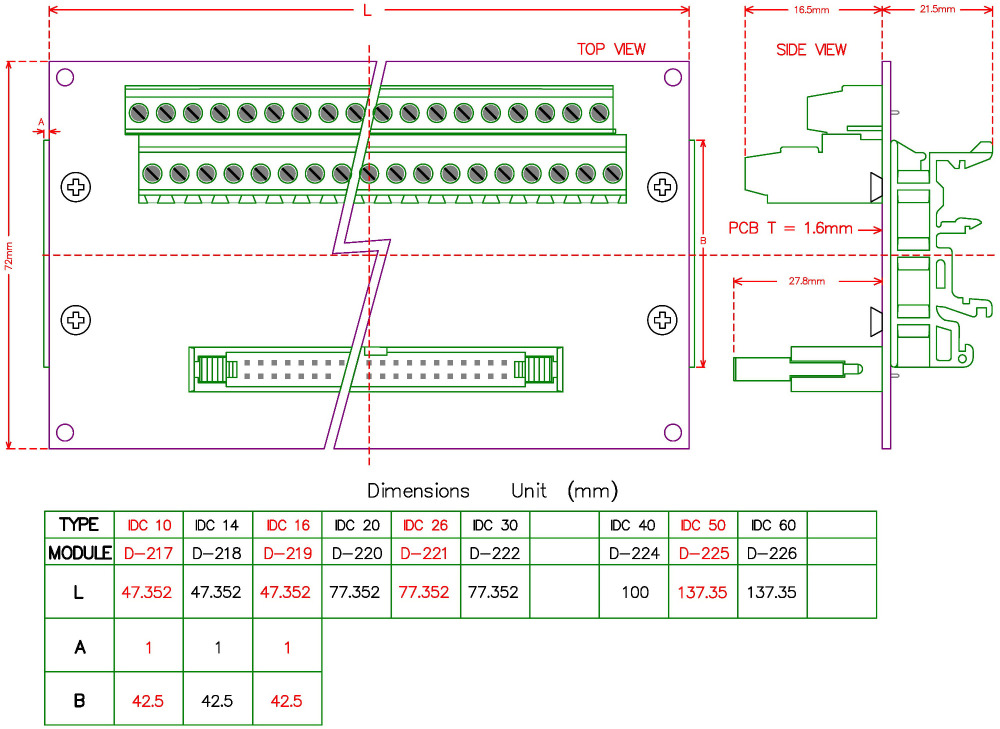

External dimensions: 72 x 100 x 48.5mm(W x L x H).
PCB dimensions: 72 x 100mm(W x L).
100% new, never used.

Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
