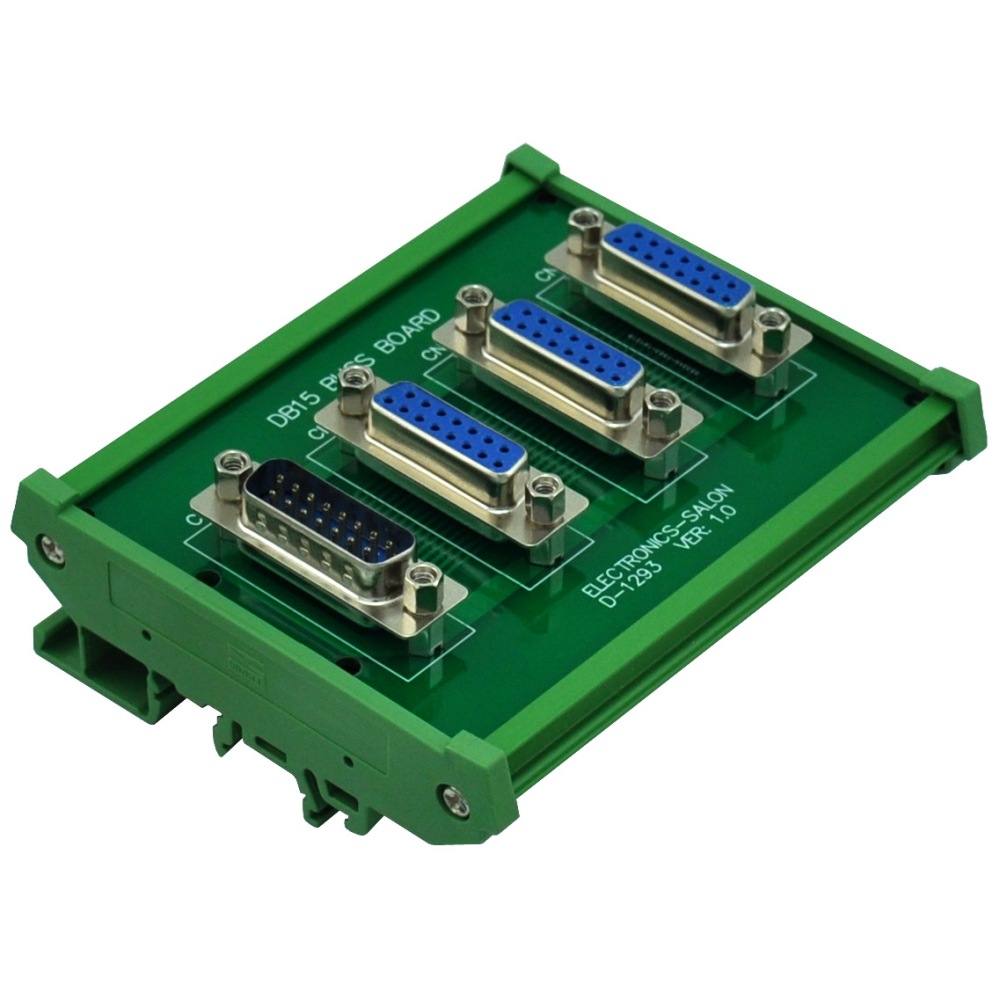

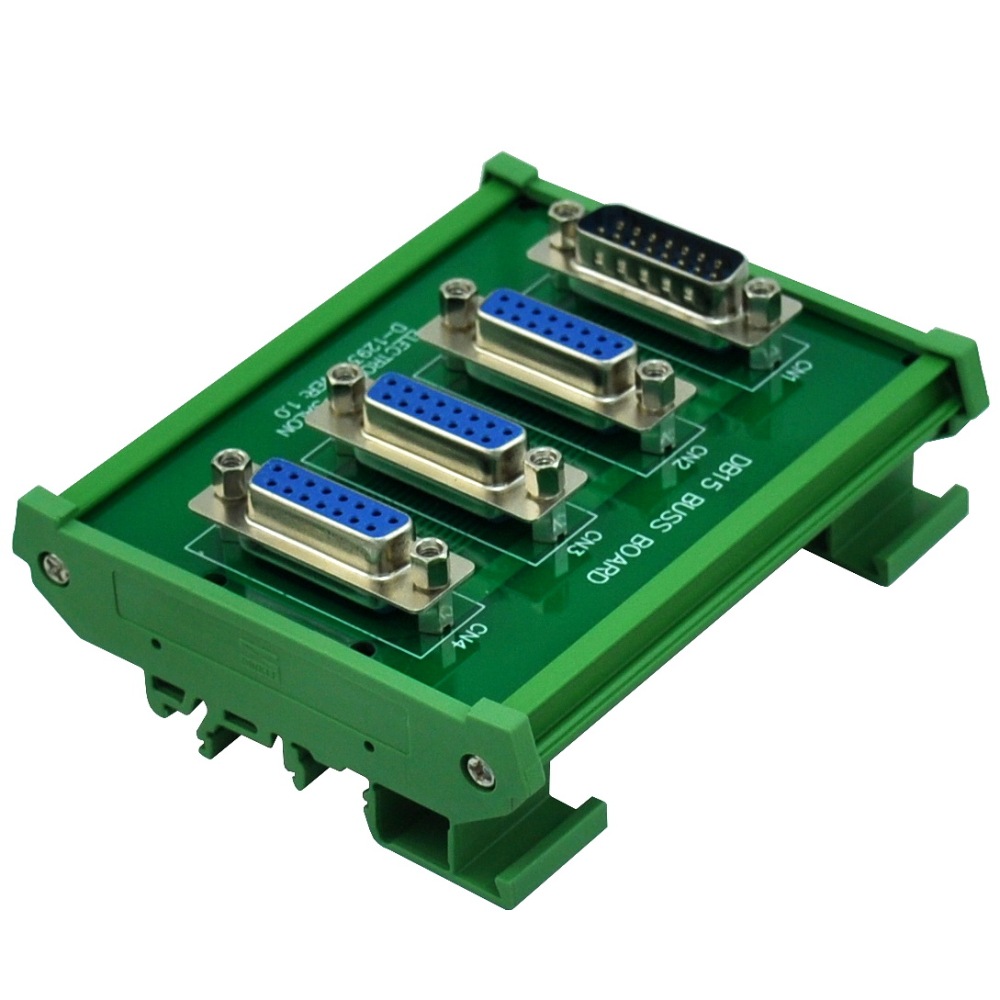

ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.

SKU: D-1293T/1M3F
$25.00 $25.00
ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $25 = $25
save $0.00
Add to Favorites
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
1/1
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • ELECTRONICS-SALON DIN Rail Mount DB15 1 Male 3 Female Buss Board, DB-15 Busboard, D-Sub Bus Board Module.
  • Description

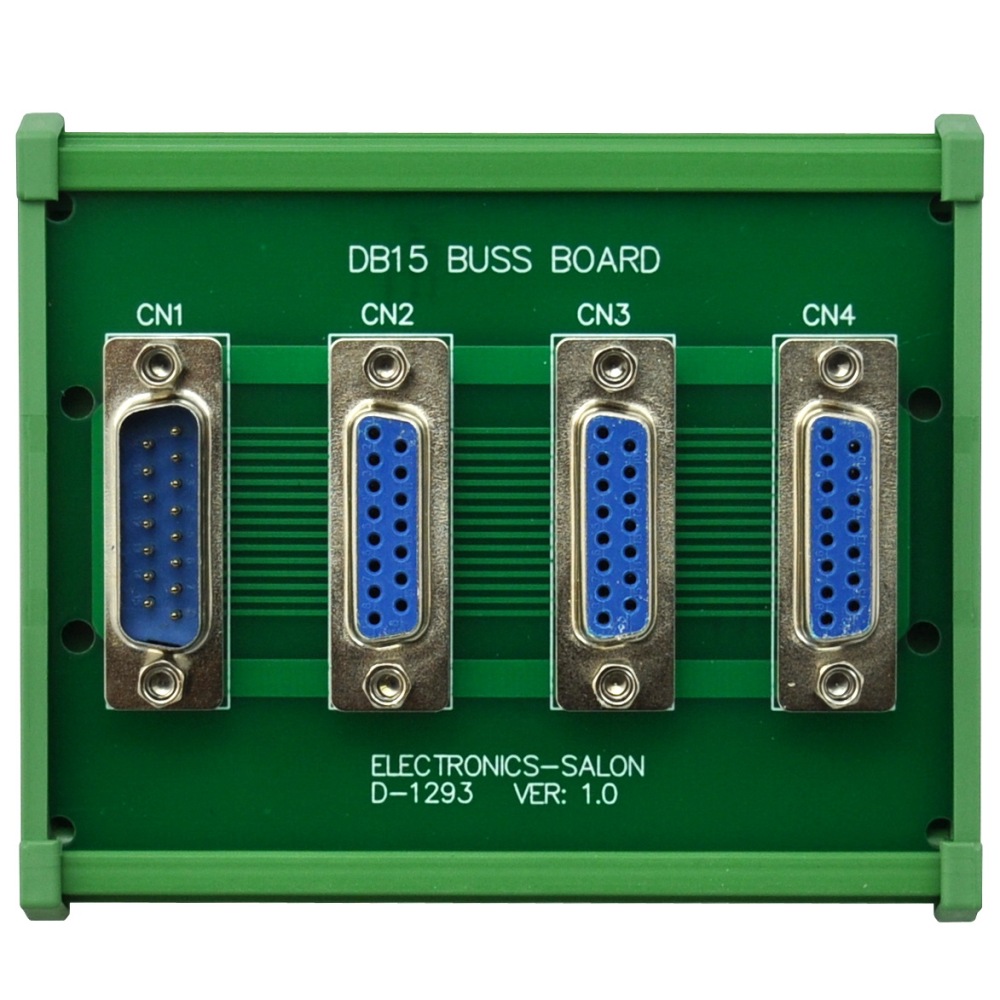

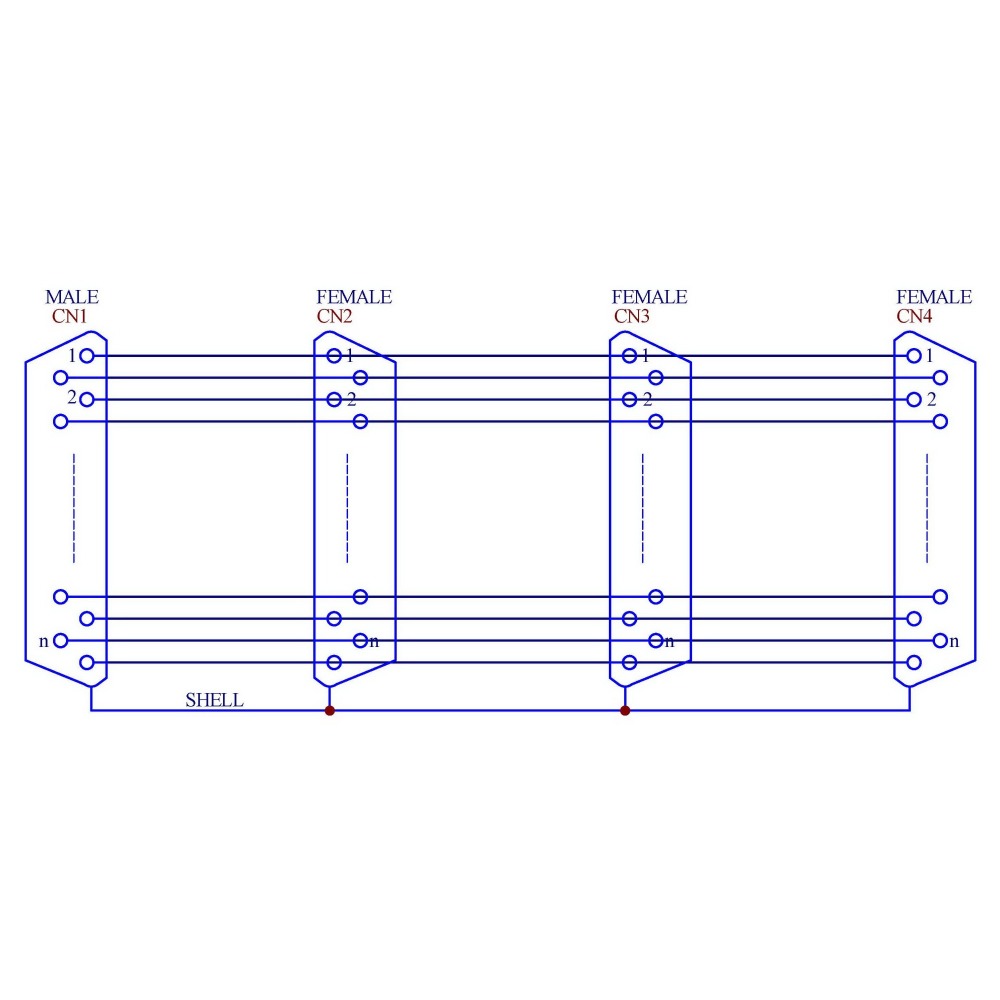

The buss board provide a total of four DB15 connectors(1 Male and 3 Female), with all 15 pins of each connector wired together 1:1 as a buss, all corresponding pins are connected: pin 1 to pin 1, pin 2 to pin 2, etc.
Dinkle high quality fireproof nylon material DIN rail mount housing(not China low quality non-fireproof housing), can support width 35mm, 32mm or 15mm rail.
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 60V, rated current: 1Amp / per pin.
Operating Temperature: -20C to 50C.
