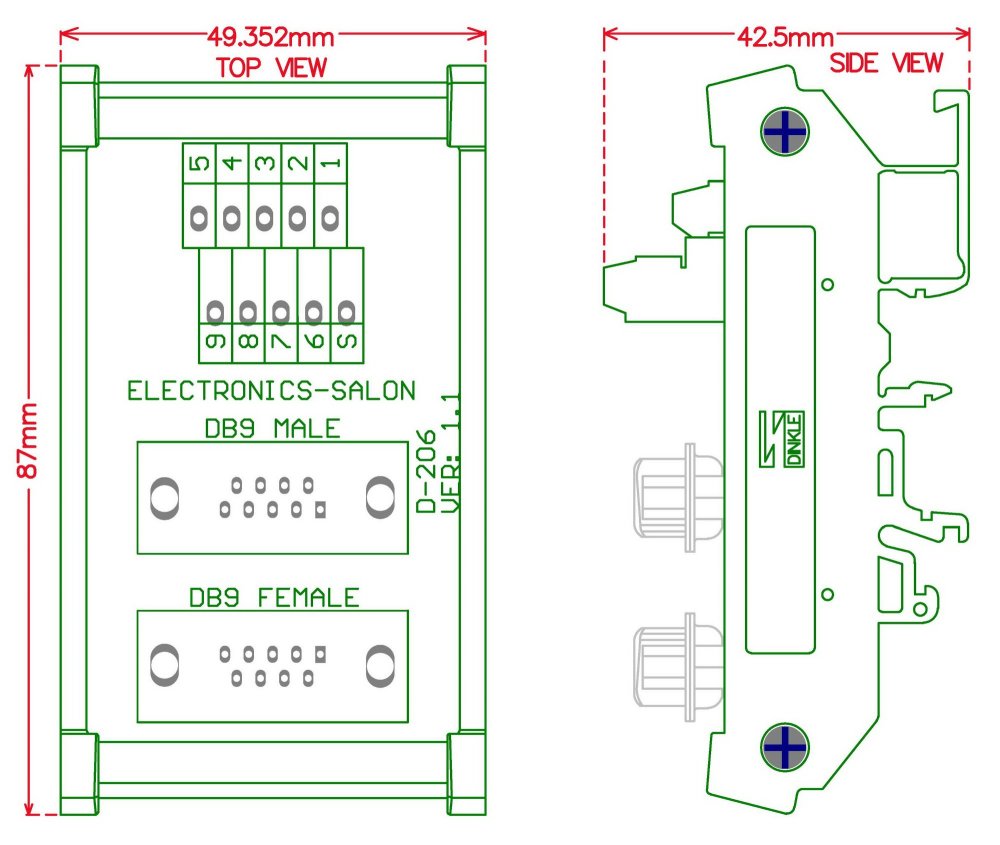

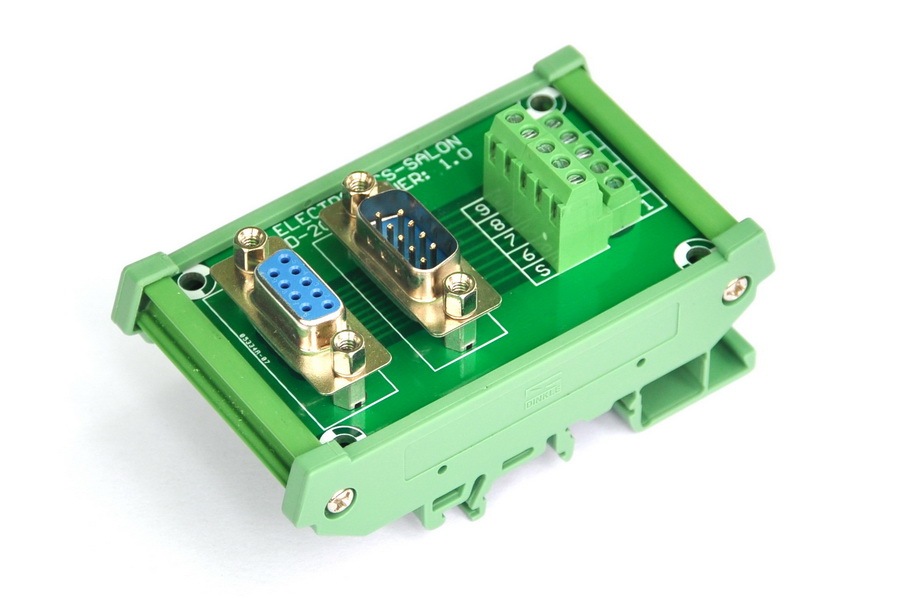

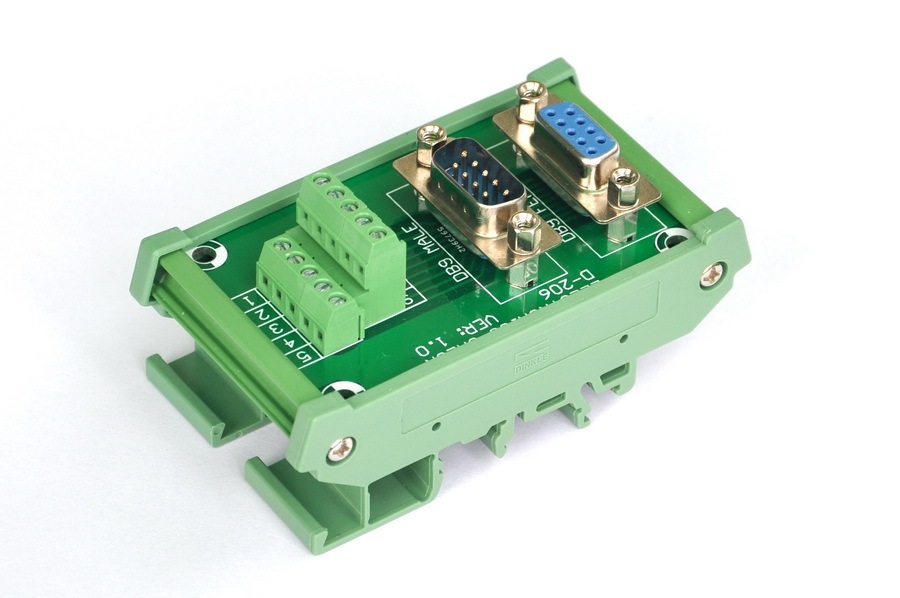

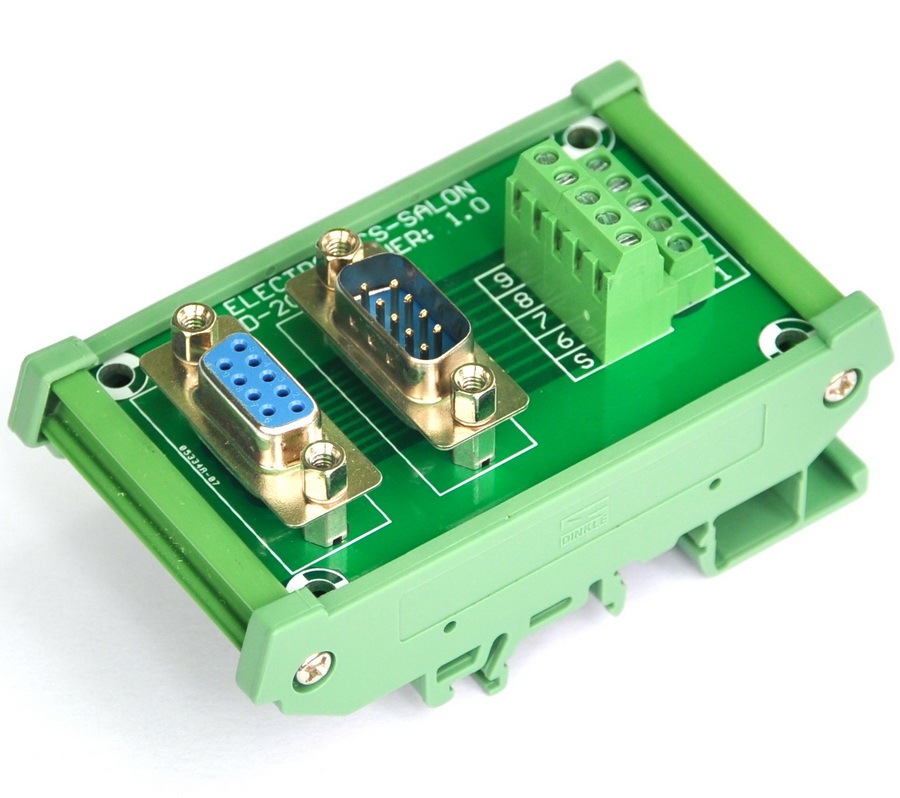

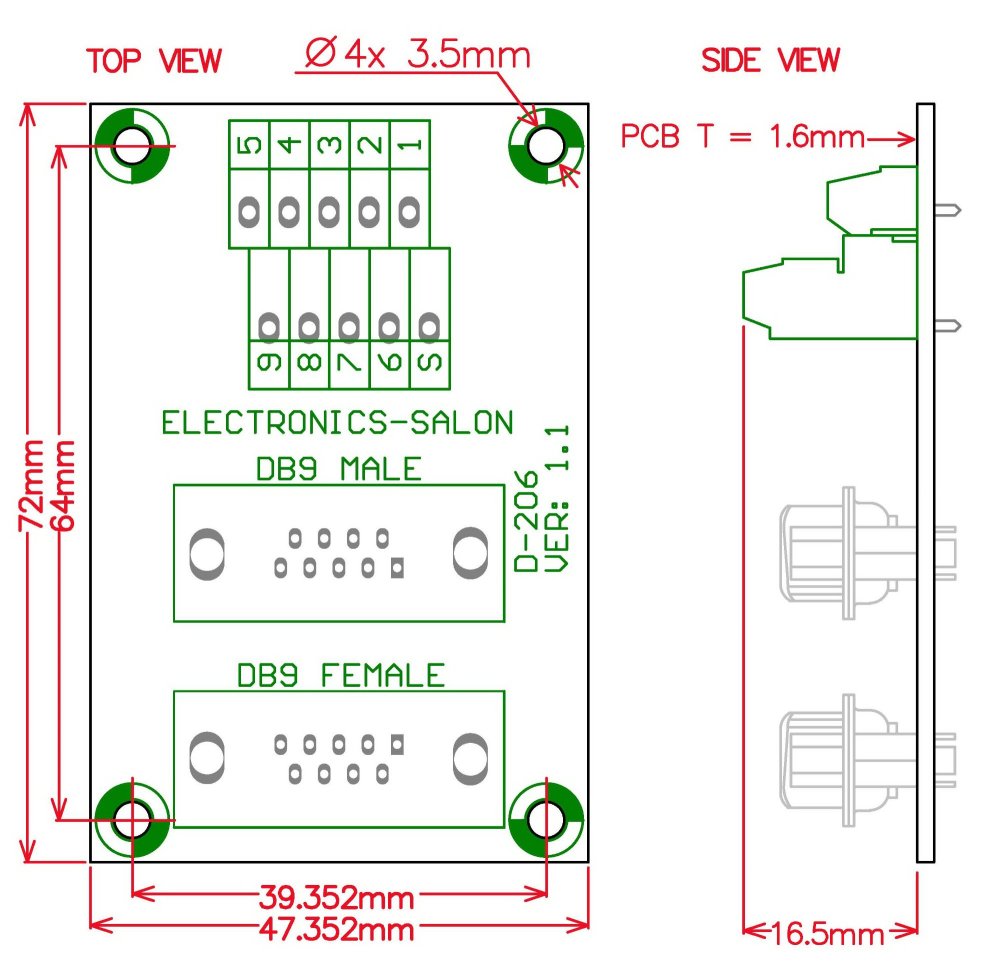

ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.

SKU: D-206T
$18.99 $18.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $18.99 = $18.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
1/1
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • ELECTRONICS-SALON DIN Rail Mount D-SUB DB9 Male/Female Header Interface Module, DSUB Breakout Board.
  • Description

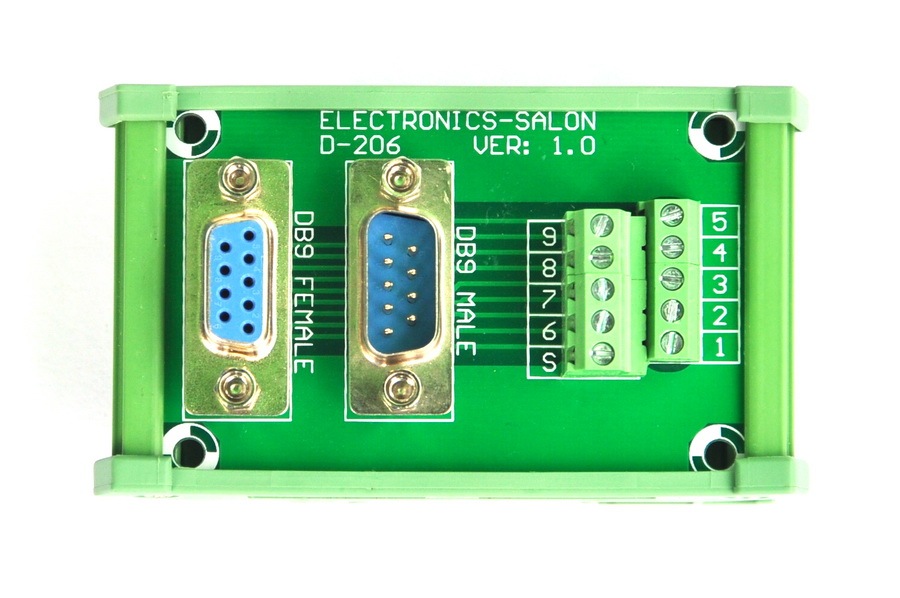

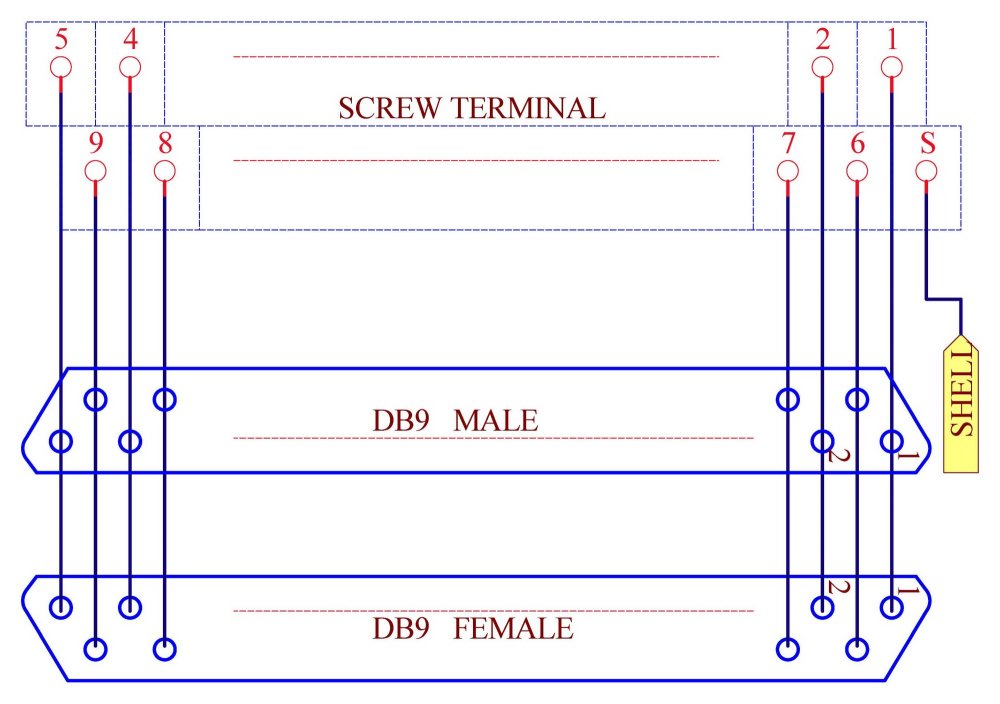

Standard DB9 Male/Female header connector.
Pitch 3.81mm/0.15" miniaturization screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

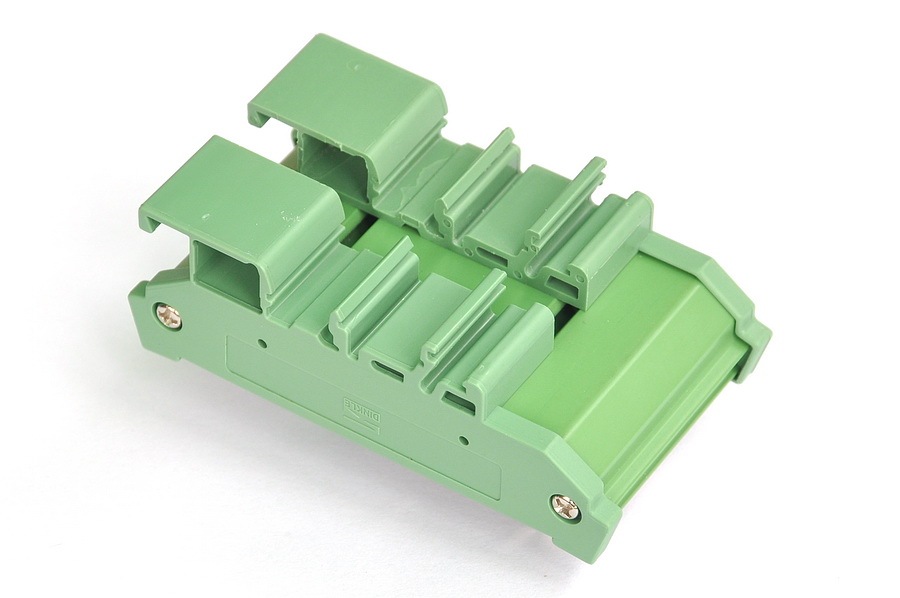

High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.

Specification:
Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
