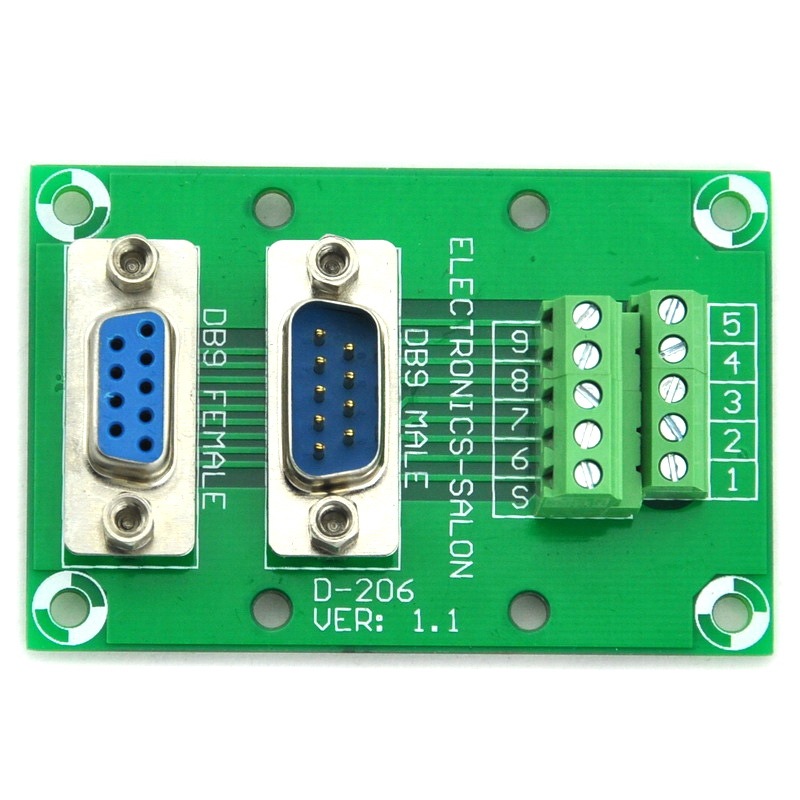

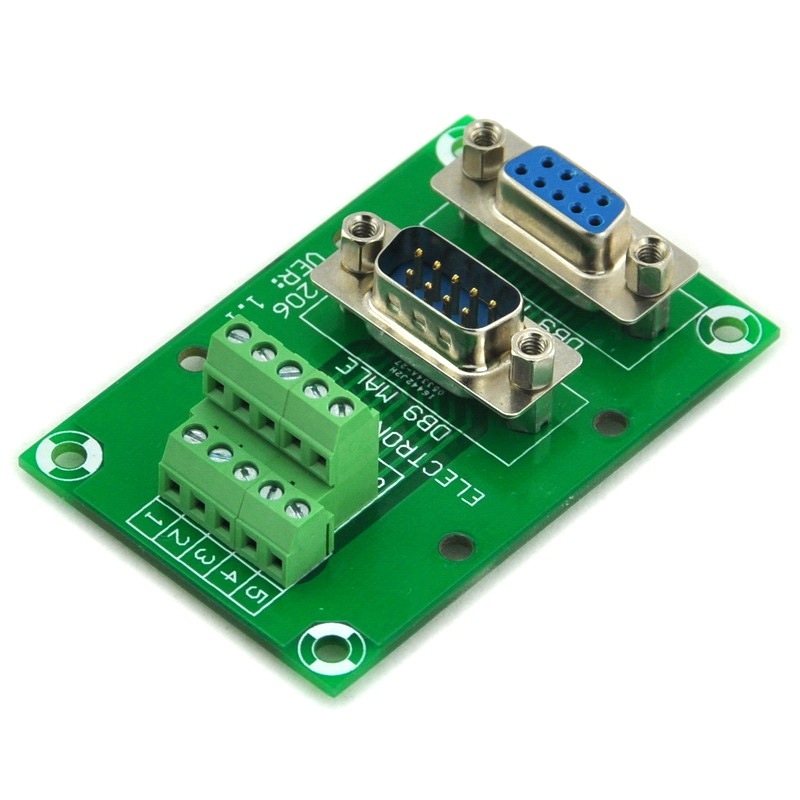

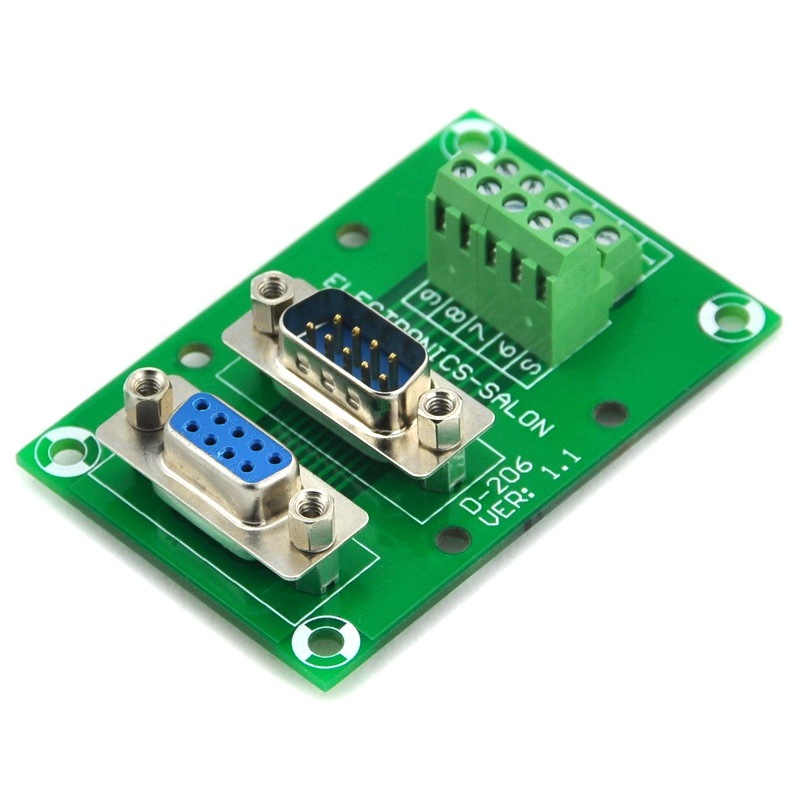

ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.

SKU: D-206
$9.99 $9.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $9.99 = $9.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
1/1
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • ELECTRONICS-SALON D-SUB DB9 Male/Female Header Breakout Board, DSUB.
  • Description
Standard DB9 Male/Female header connector.
Pitch 3.81mm/0.15" miniaturization screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
