ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.

SKU: D-285/6A
$9.99 $9.99
ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $9.99 = $9.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
1/1
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • ELECTRONICS-SALON 8 Individual Diode Module Board, 6A10 6A 1000V.
  • Description

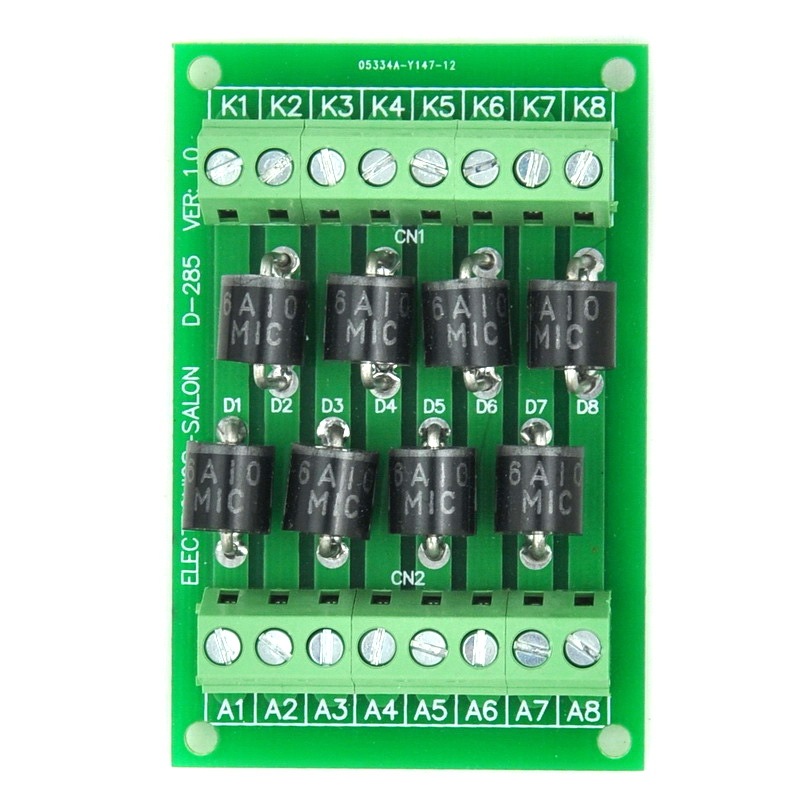

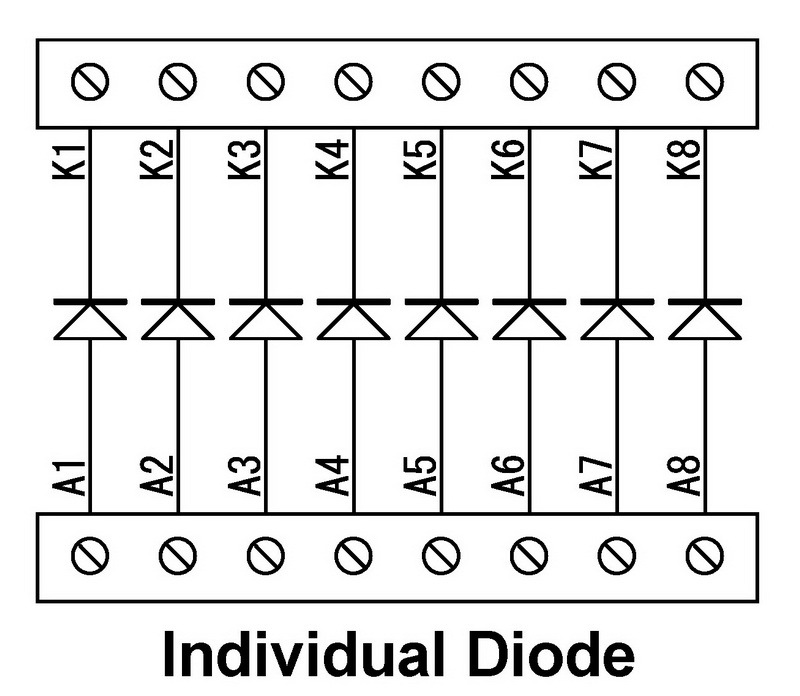

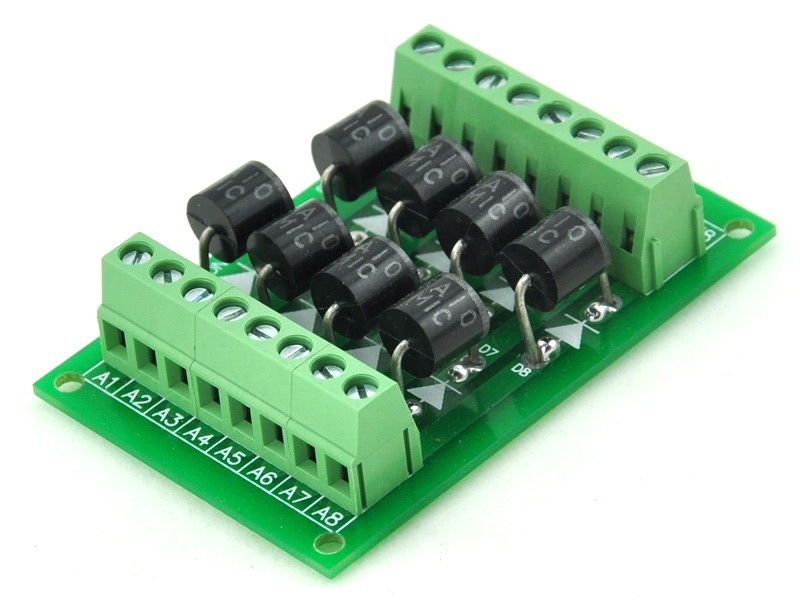

6 Amp 1000V 8 Individual Diode Module.

6A10 diodes.
Pitch 5.0mm/0.197" screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

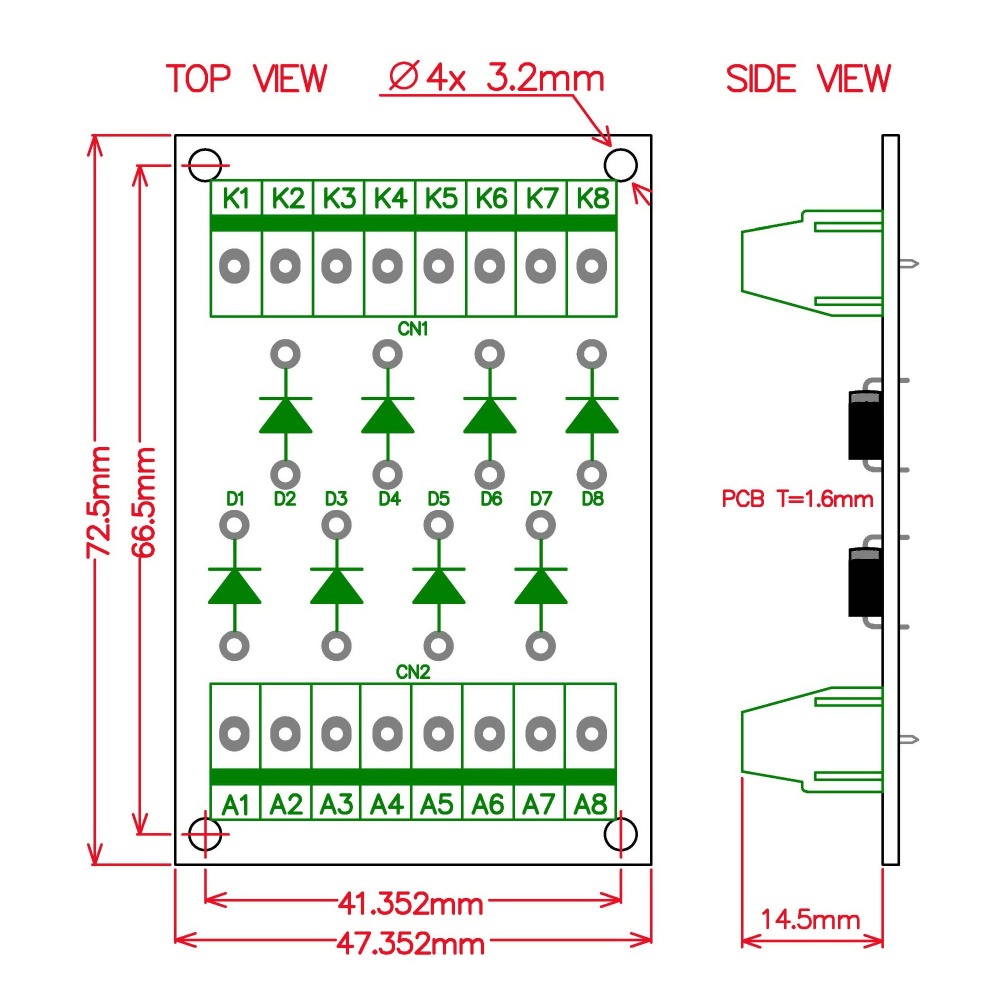

Dimensions: 47.35 x 72.5 x 18mm (W x L x H).
100% new, never used.

Rated current: 6 Amp.
Maximum blocking voltage: 1000V DC.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.
