ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.

SKU: D-256/24V
$19.99 $19.99
ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $19.99 = $19.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
1/1
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 4 DPDT Signal Relay Module Board, DC 24V Version, for Arduino Raspberry-Pi 8051 PIC.
  • Description

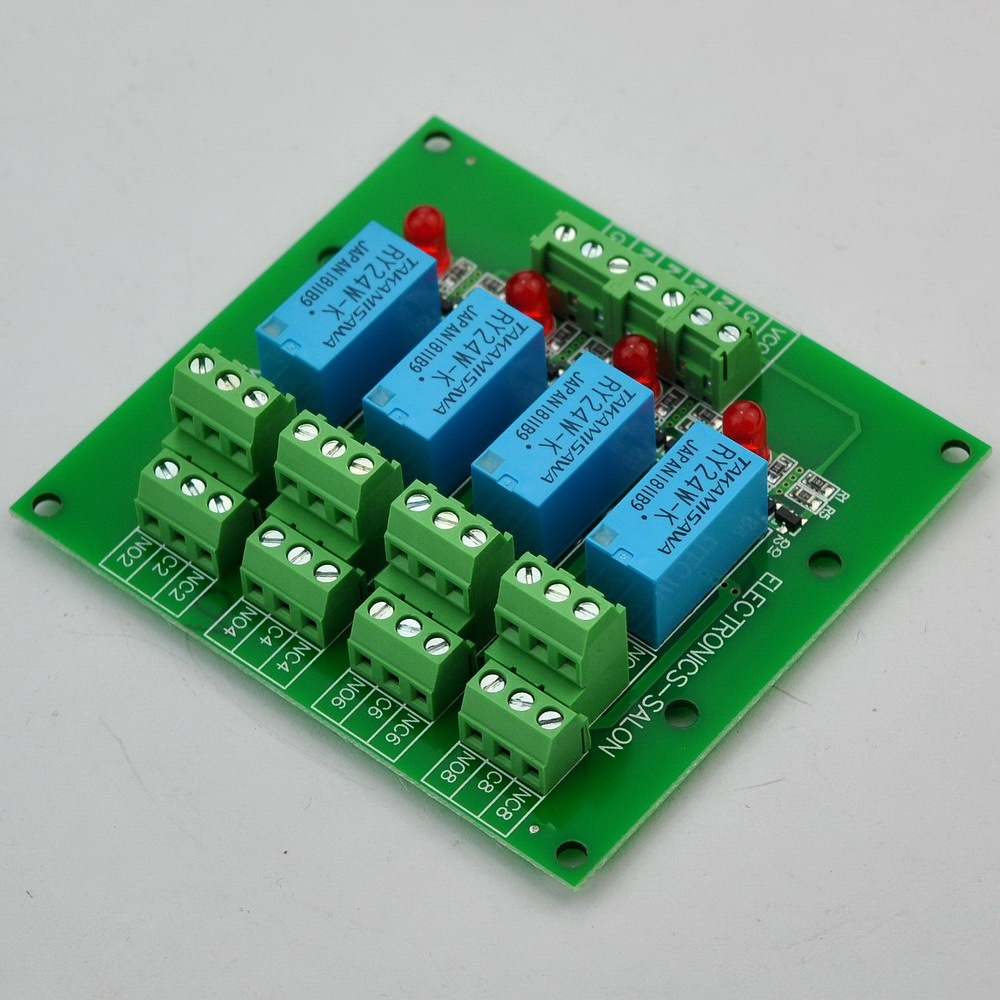

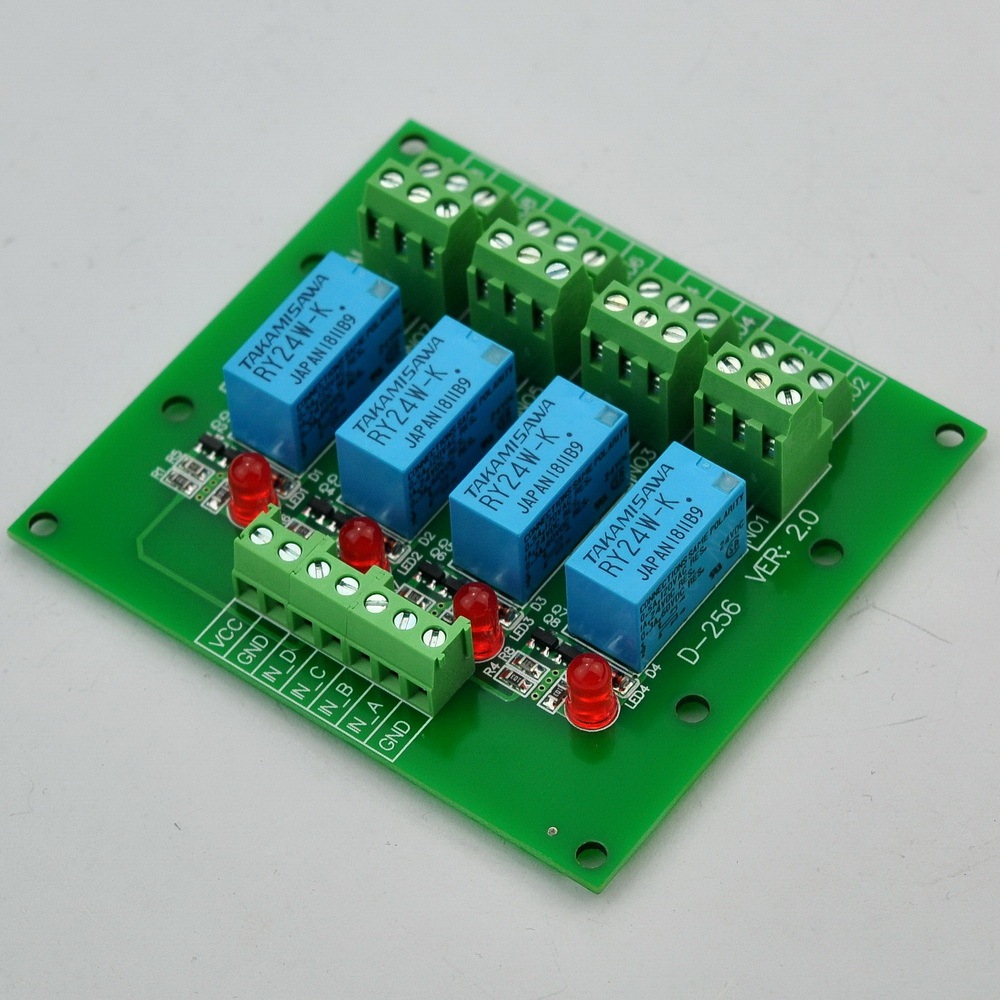

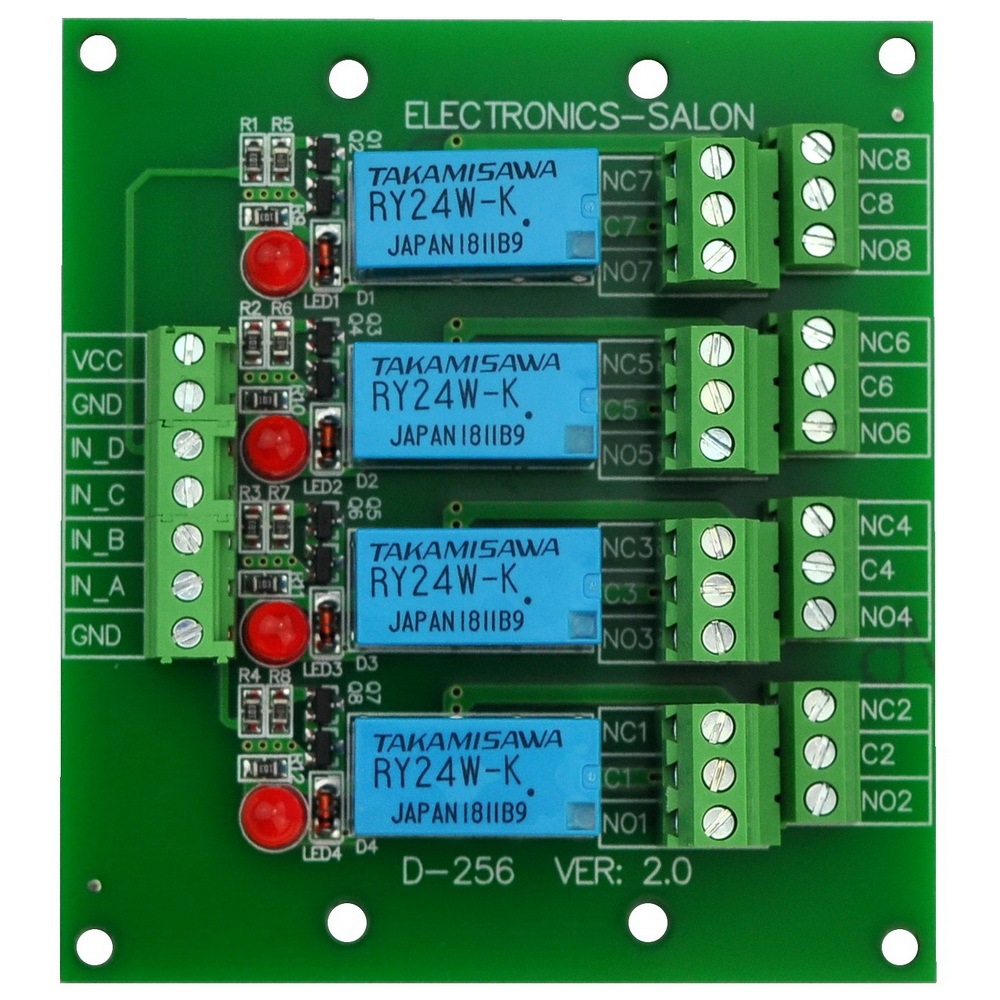

4 DPDT signal relay module. TAKAMISAWA RY24W-K high quality relays, switch contact material - gold overlay silver-palladium.

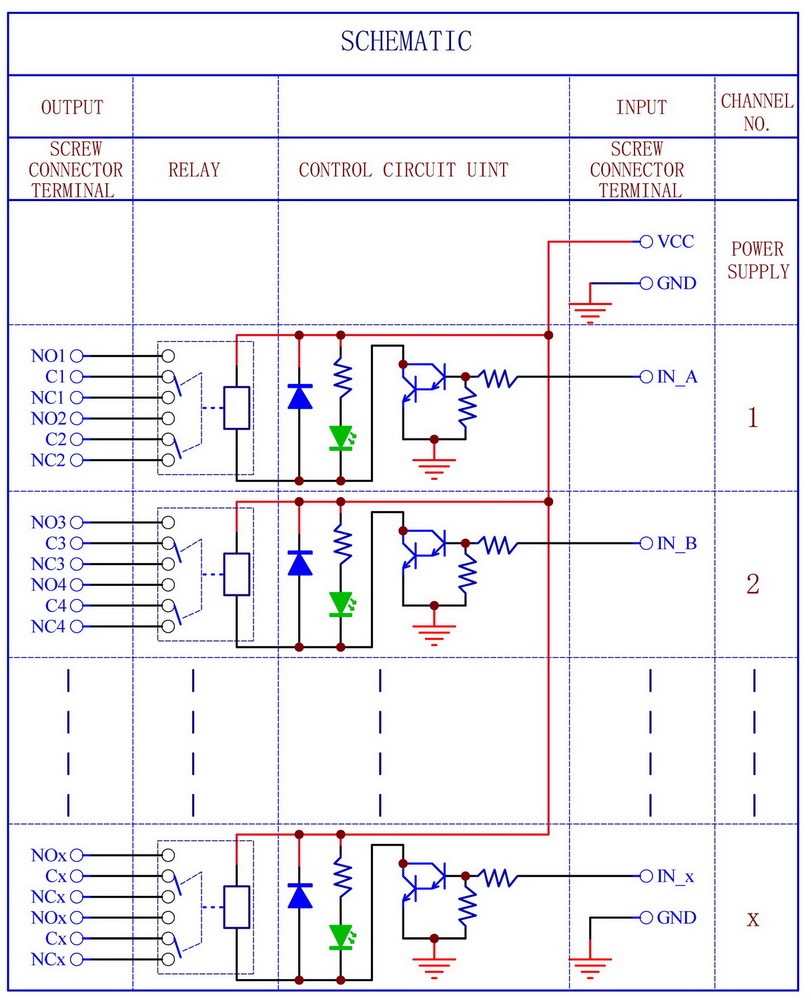

Darlington transistor circuits drive relay coil, LED indicator for each relay channel.

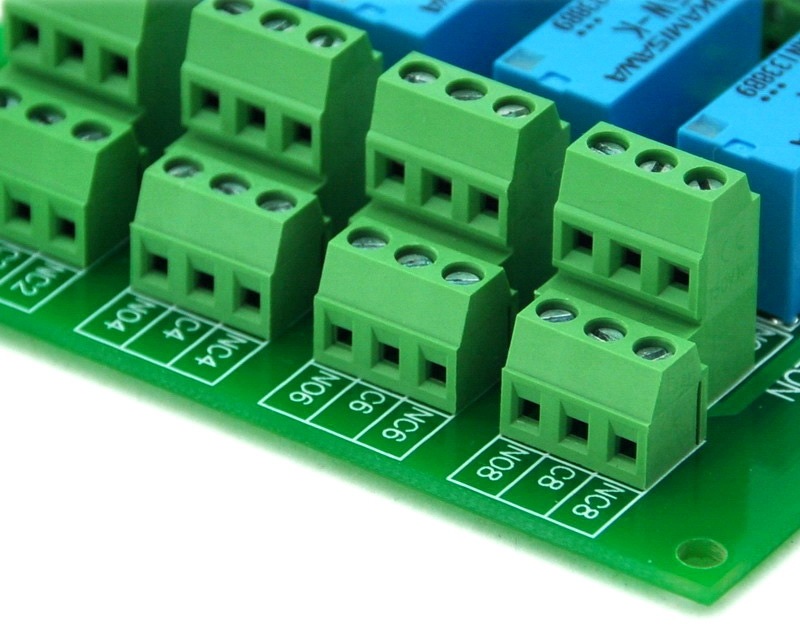

High quality screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

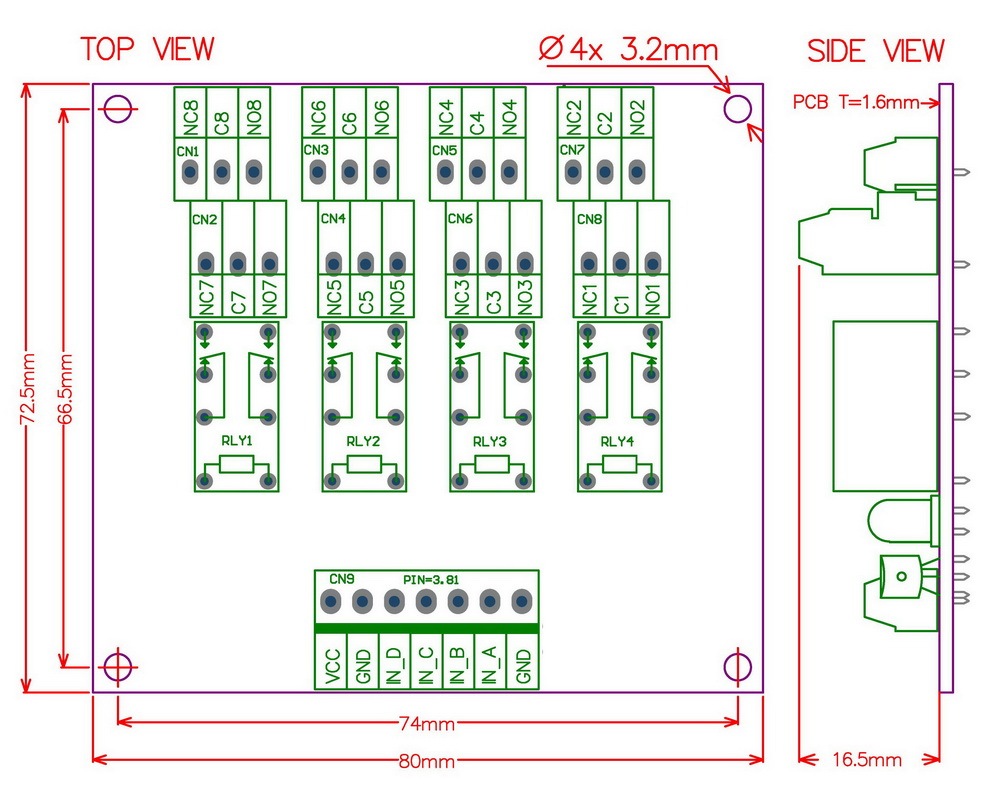

Dimensions: L72.5mm x W80mm x H18.1mm

Operating Voltage / Current (VCC): 16.8 to 31.2VDC / 80mA(at 24VDC).
Control signal voltage (IN-X):
0V - 0.5Vdc (low level), relay not action.
2.5V - 24Vdc (high level), relay action.

Output (relay switch) contact rating for each switch:
For AC, 120VAC / 0.5Amp
For DC, 24 VDC / 1.0Amp
