ELECTRONICS-SALON 2 DPDT Signal Relay Module Board, DC 12V Version, for Arduino Raspberry-Pi 8051 PIC.

SKU: D-249/12V
0.0 (0)
48 Sold
$9.99 $9.99
ELECTRONICS-SALON 2 DPDT Signal Relay Module Board, DC 12V Version, for Arduino Raspberry-Pi 8051 PIC.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
Quantity:
0 in stock
1 * $9.99 = $9.99
save $0.00
Add to Favorites (0)
  • ELECTRONICS-SALON 2 DPDT Signal Relay Module Board, DC 12V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 2 DPDT Signal Relay Module Board, DC 12V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 2 DPDT Signal Relay Module Board, DC 12V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 2 DPDT Signal Relay Module Board, DC 12V Version, for Arduino Raspberry-Pi 8051 PIC.
  • ELECTRONICS-SALON 2 DPDT Signal Relay Module Board, DC 12V Version, for Arduino Raspberry-Pi 8051 PIC.
  • Description

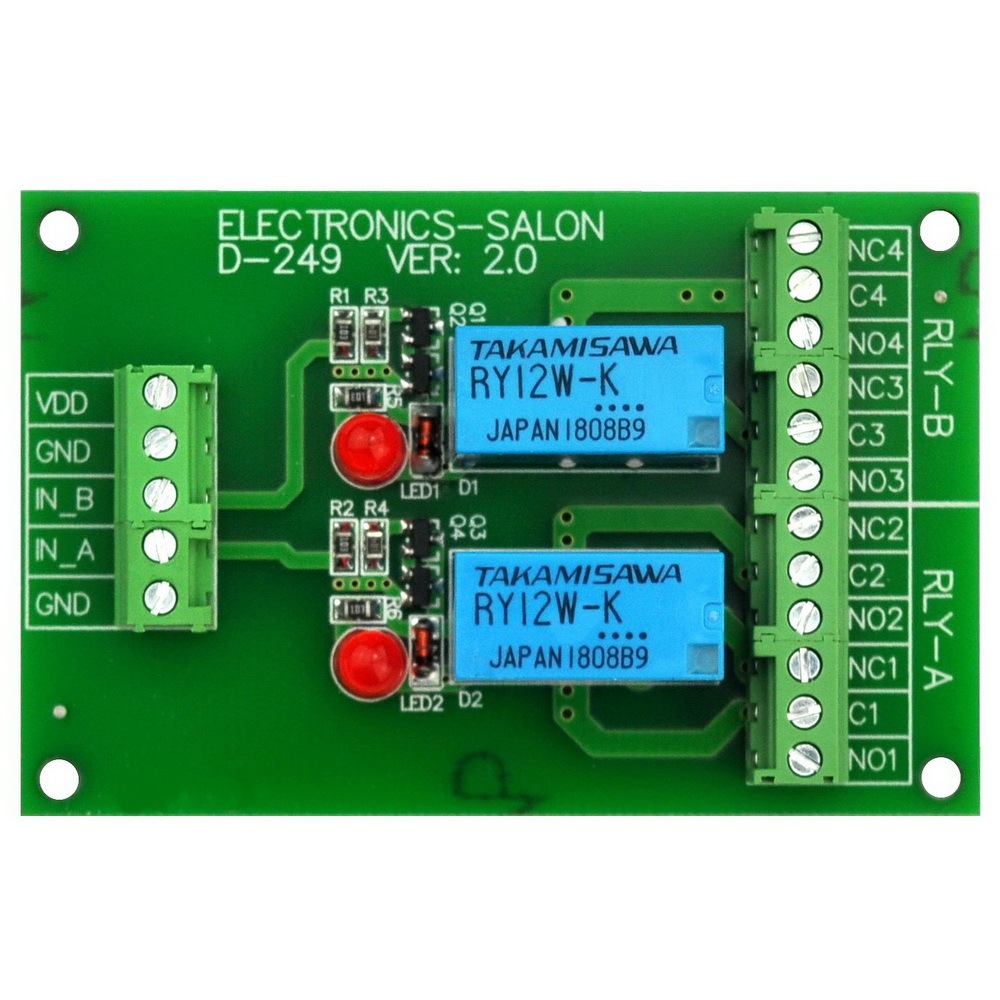

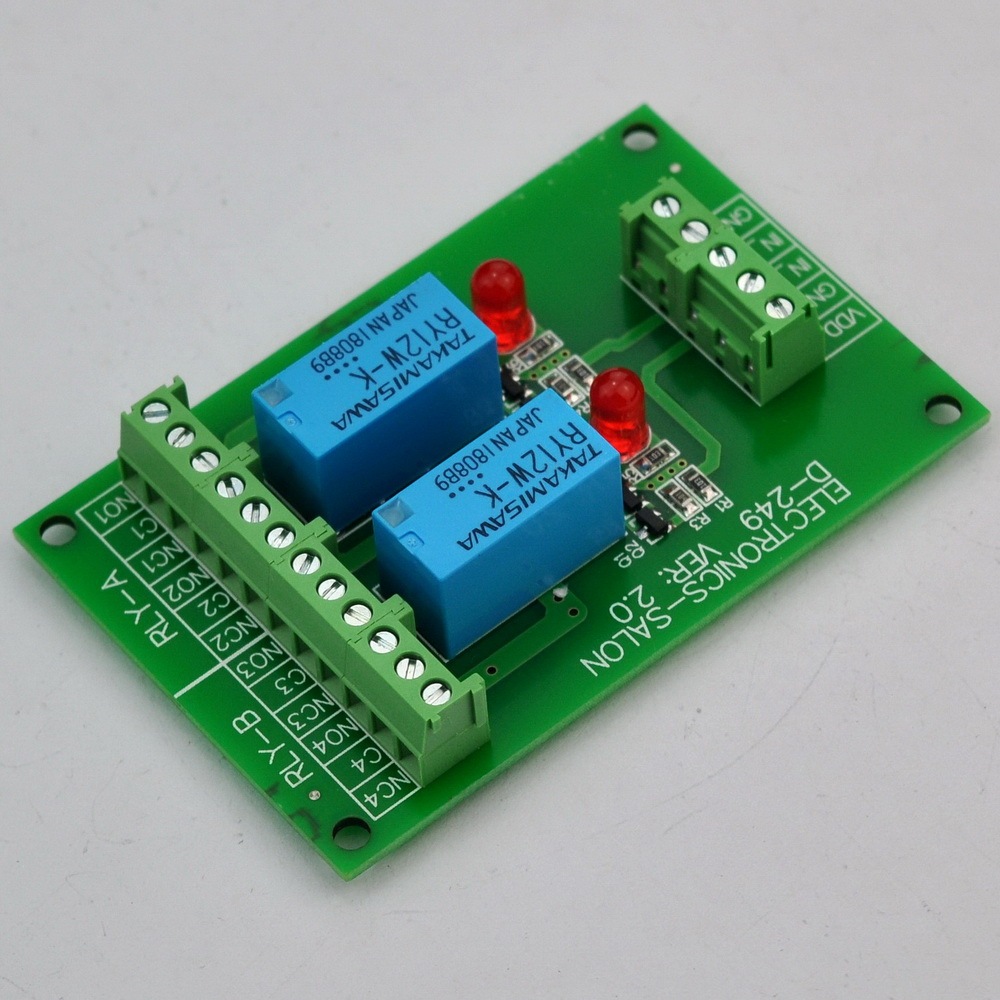

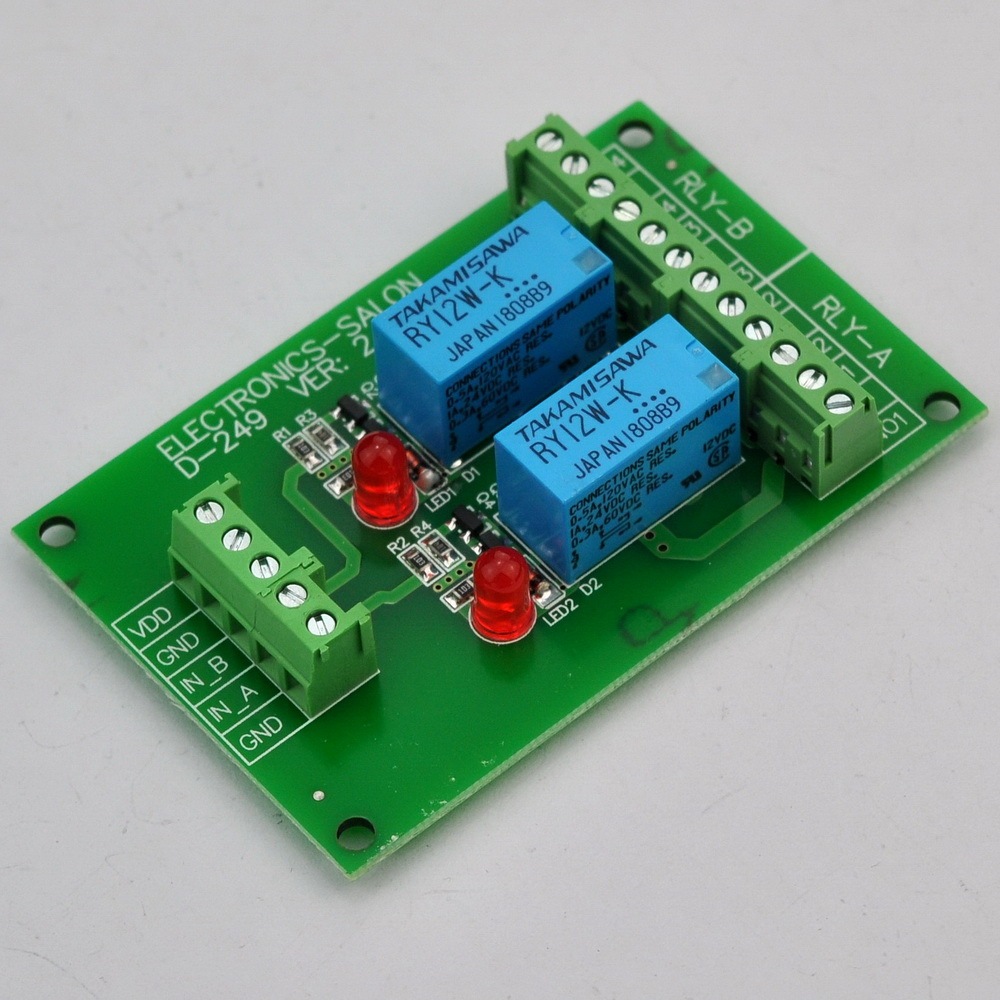

2 DPDT signal relay module. TAKAMISAWA RY12W-K high quality relays, switch contact material - gold overlay silver-palladium.

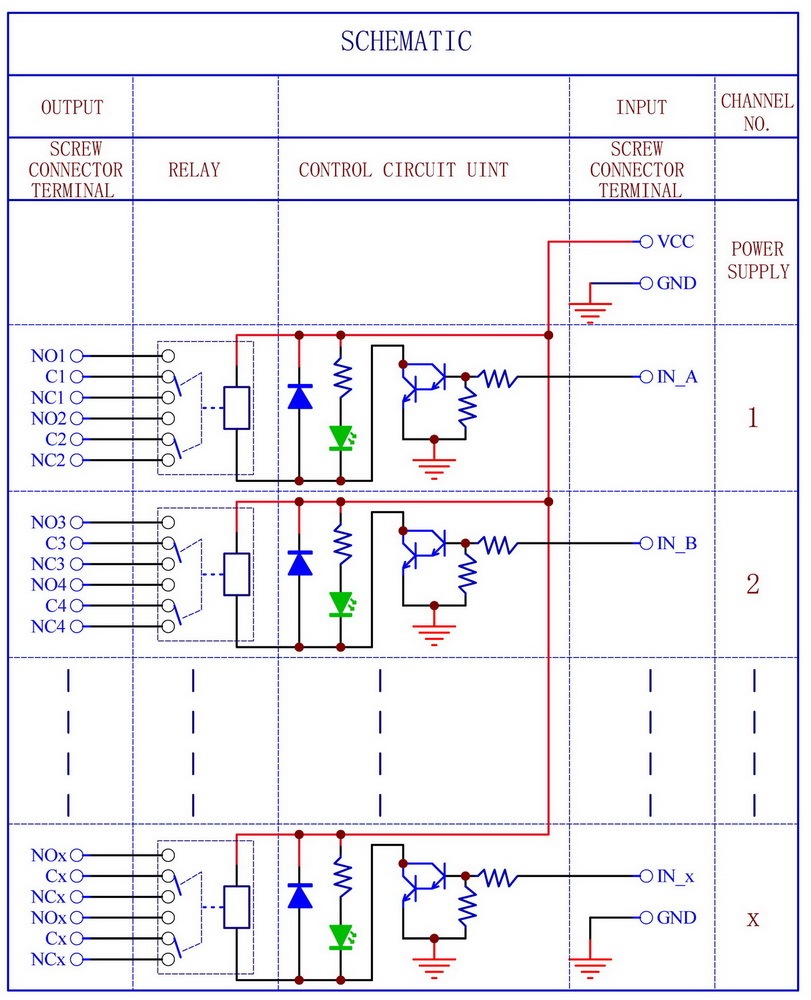

Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
High quality screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

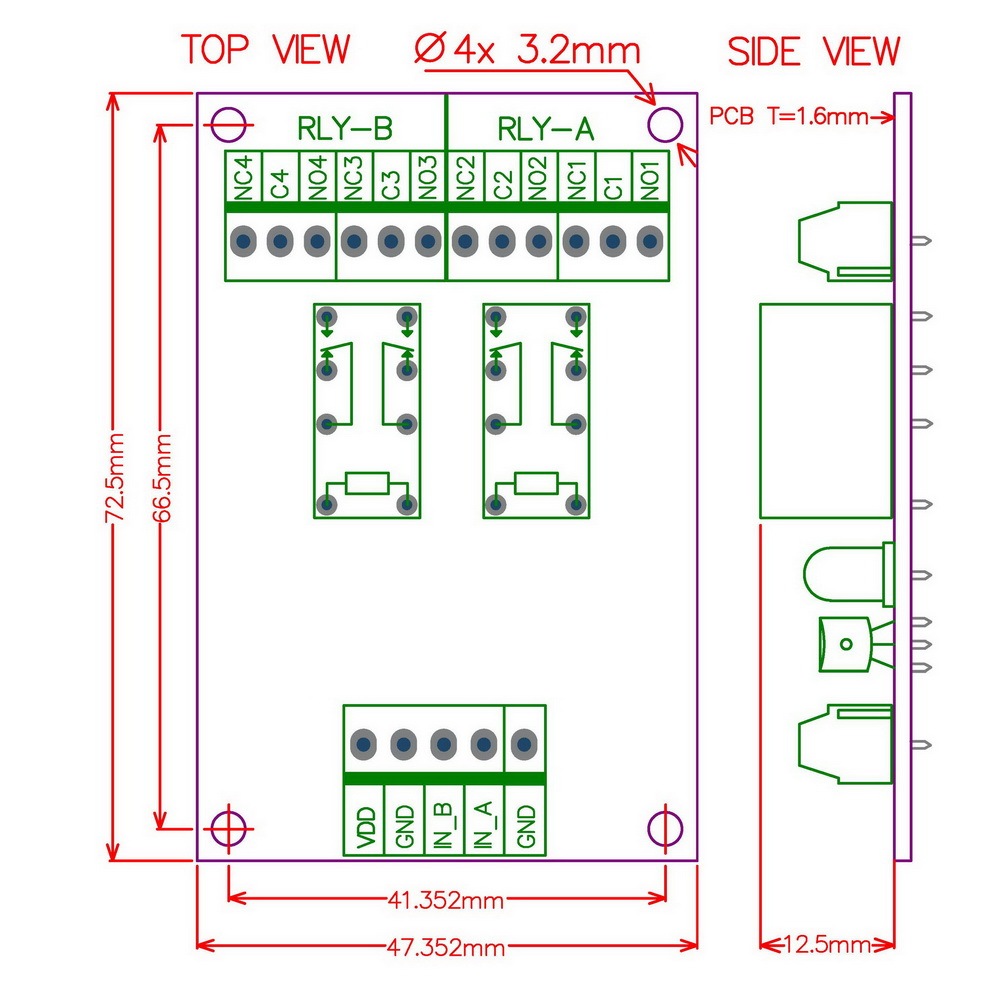

Dimensions: L72.5mm x W47.35mm x H14.1mm

Operating Voltage / Current (VCC): 8.5 to 15.6VDC / 60mA(at 12VDC).
Control signal voltage (IN-X):
0V - 0.5Vdc (low level), relay not action.
2.5V - 24Vdc (high level), relay action.

Output (relay switch) contact rating for each switch:
For AC, 120VAC / 0.5Amp
For DC, 24 VDC / 1.0Amp


Datasheet:
