ELECTRONICS-SALON 16 SPDT 10Amp Power Relay Module, DC 12V Version.

SKU: D-11H/12V
0.0 (0)
2 Sold
$64.00 $64.00
ELECTRONICS-SALON 16 SPDT 10Amp Power Relay Module, DC 12V Version.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
Quantity:
0 in stock
1 * $64 = $64
save $0.00
Add to Favorites (0)
  • ELECTRONICS-SALON 16 SPDT 10Amp Power Relay Module, DC 12V Version.
  • ELECTRONICS-SALON 16 SPDT 10Amp Power Relay Module, DC 12V Version.
  • ELECTRONICS-SALON 16 SPDT 10Amp Power Relay Module, DC 12V Version.
  • ELECTRONICS-SALON 16 SPDT 10Amp Power Relay Module, DC 12V Version.
  • ELECTRONICS-SALON 16 SPDT 10Amp Power Relay Module, DC 12V Version.
  • Description

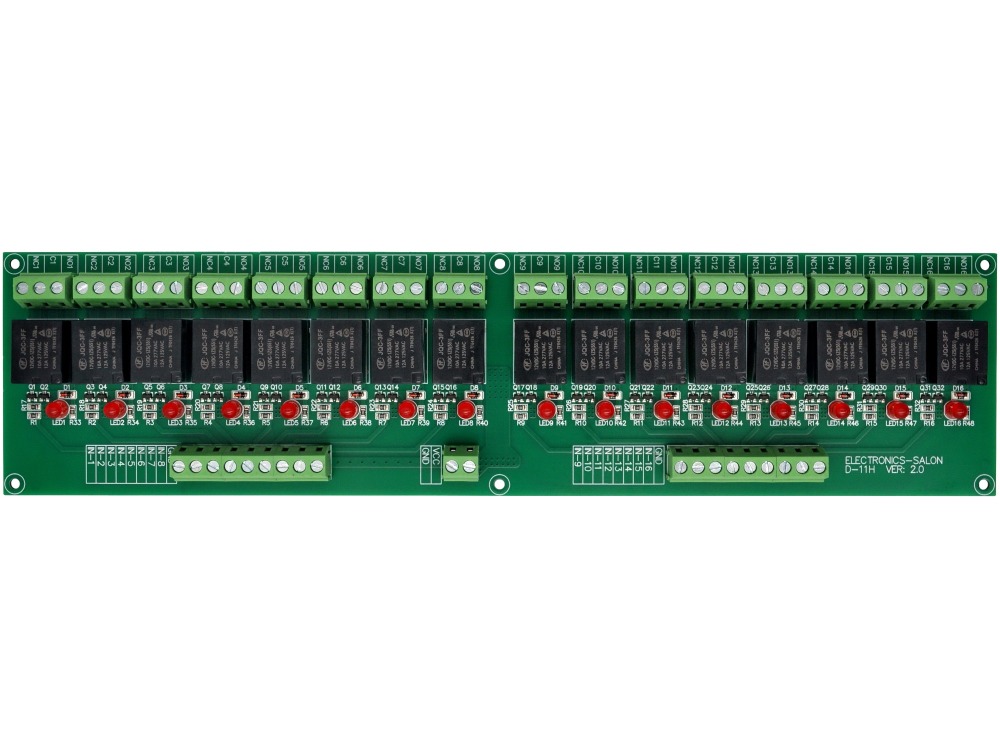

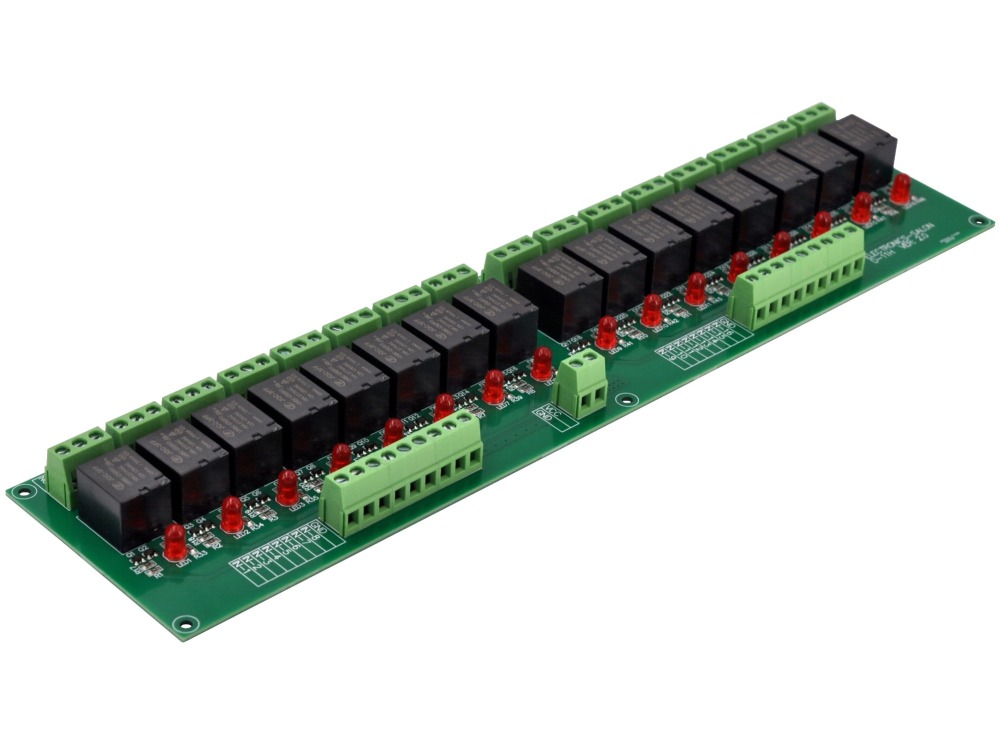

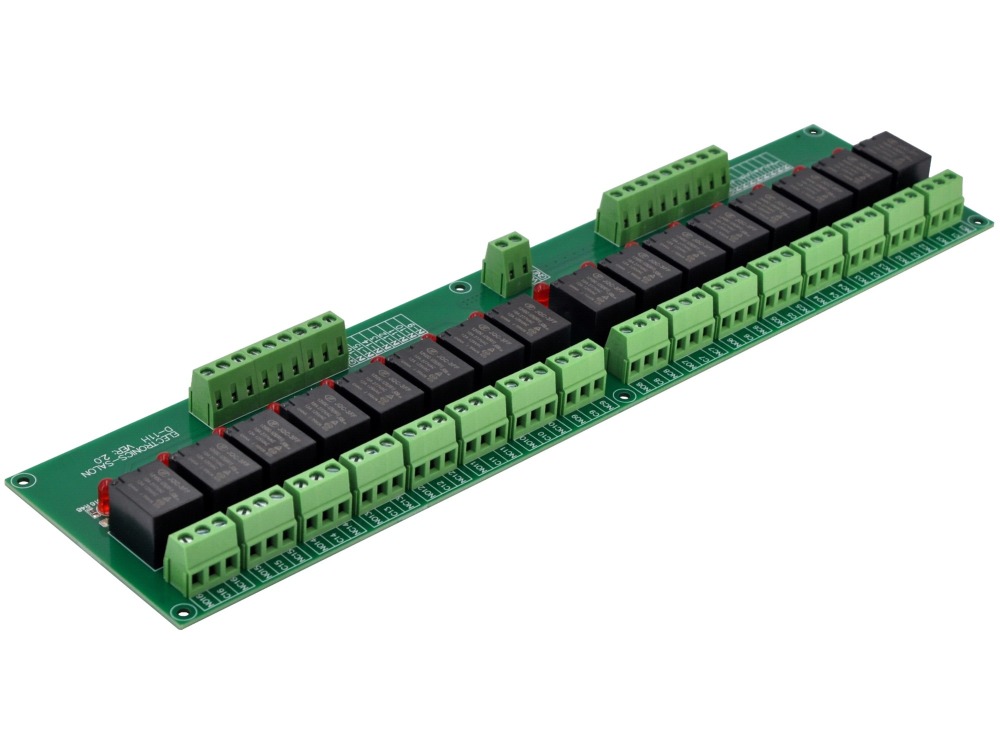

16 Channel SPDT power relay module, high quality JS1-12V-F 10Amp relays.

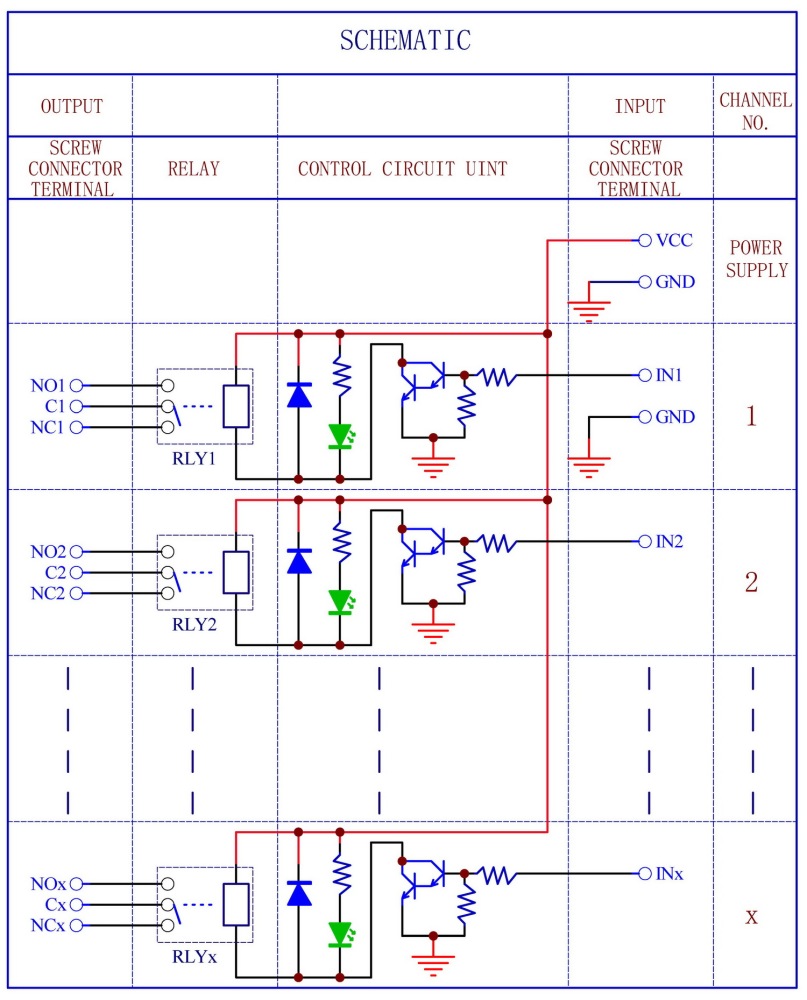

Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
High quality screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

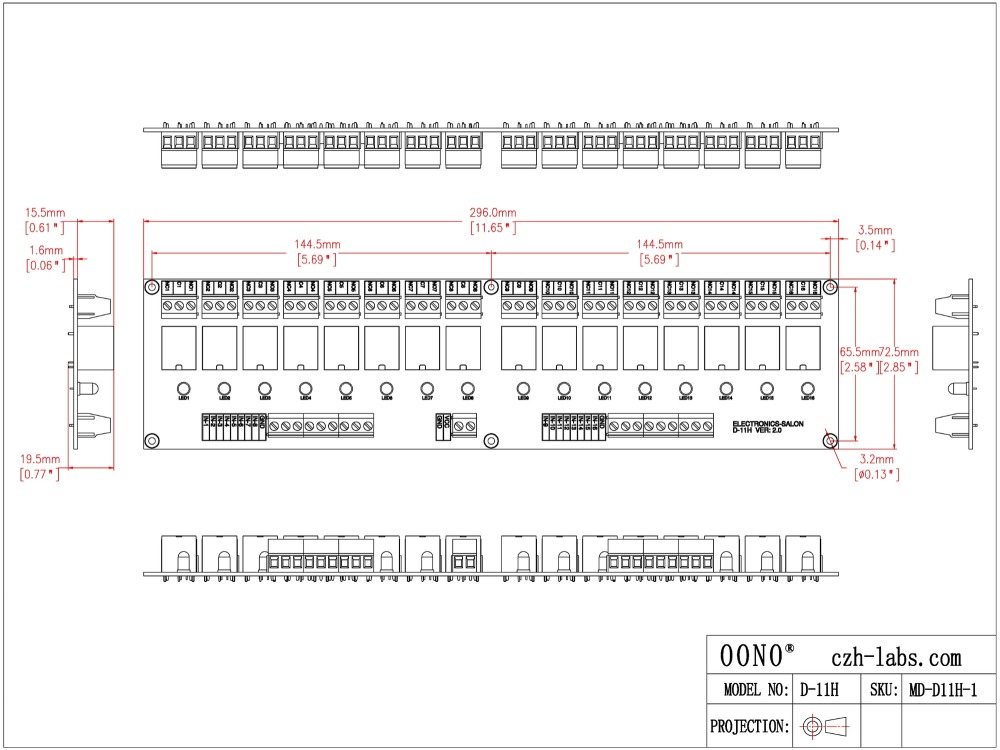

Dimensions: L296mm x W72.5mm x H17.1mm

Operating Voltage / Current (VCC): 9 to 18VDC / 800mA(at 12VDC).
Control signal voltage (IN-X):
0V - 0.5Vdc (low level), relay not action.
2.5V - 24Vdc (high level), relay action.

Output (relay switch) contact rating for each channel:
For AC, 125 / 250 VAC, 10Amp
For DC, 30 VDC, 5Amp

Datasheet:
