DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.

SKU: D-1135T
$50.00 $50.00
CZH-LABS DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $50 = $50
save $0.00
Add to Favorites
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
1/1
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.
  • Description

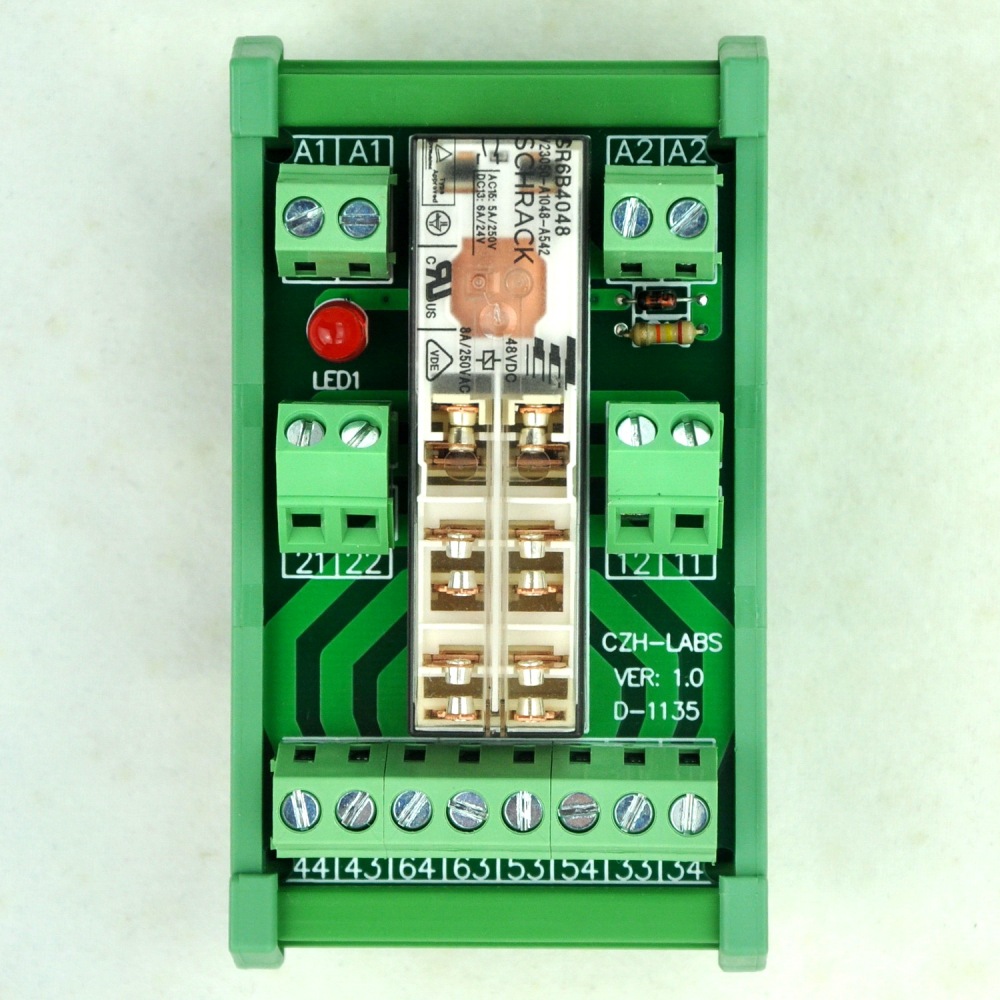

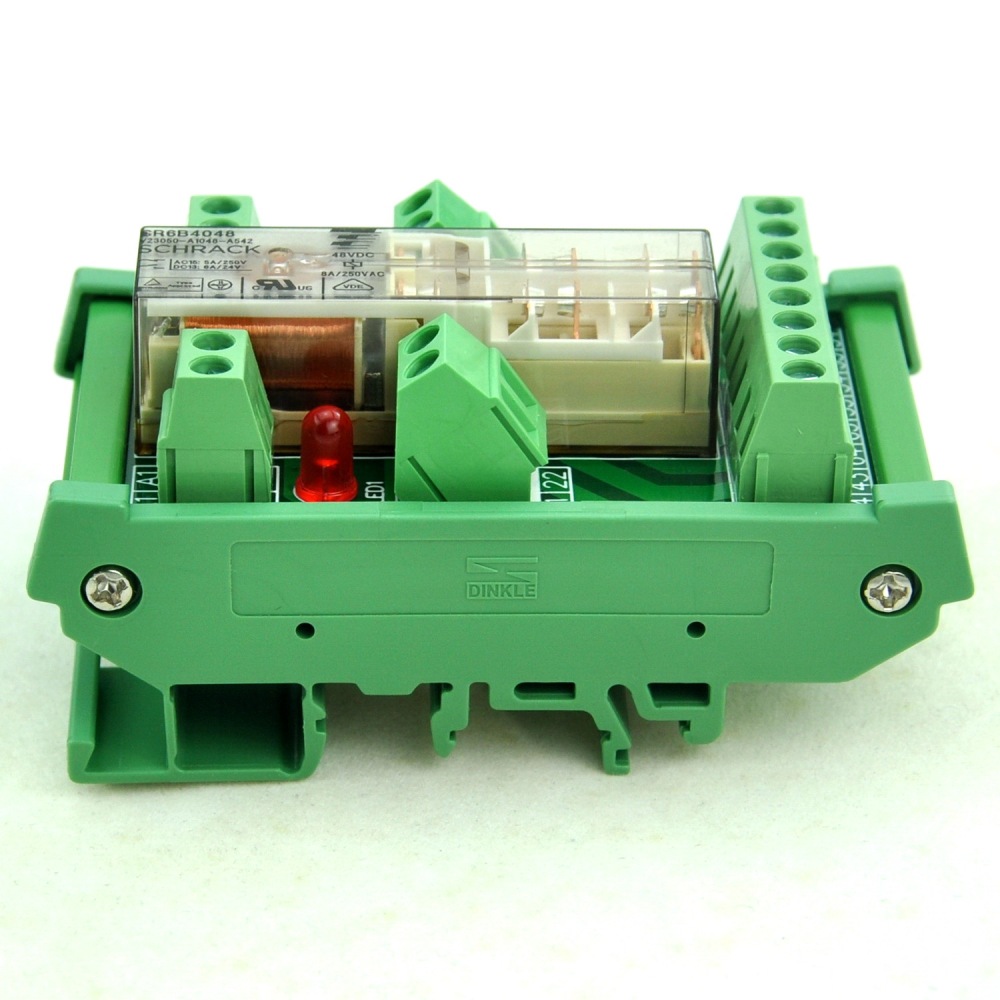

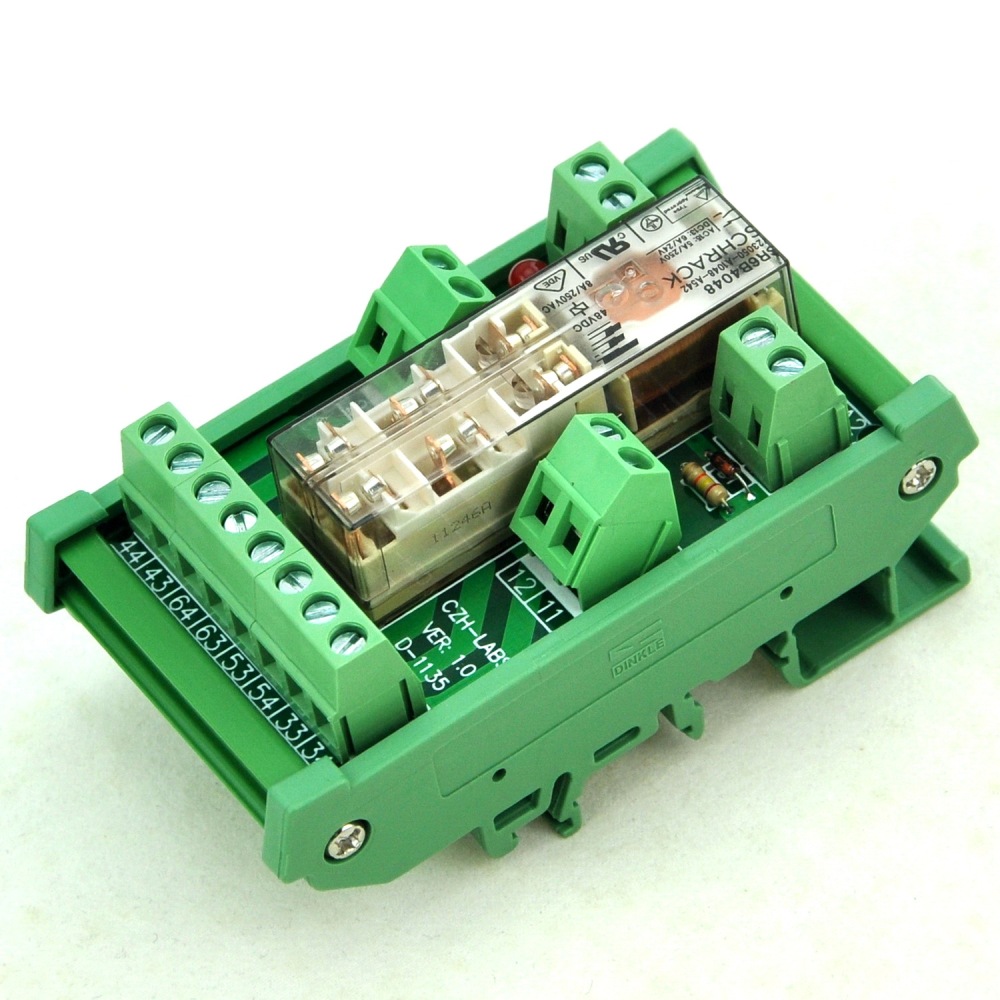

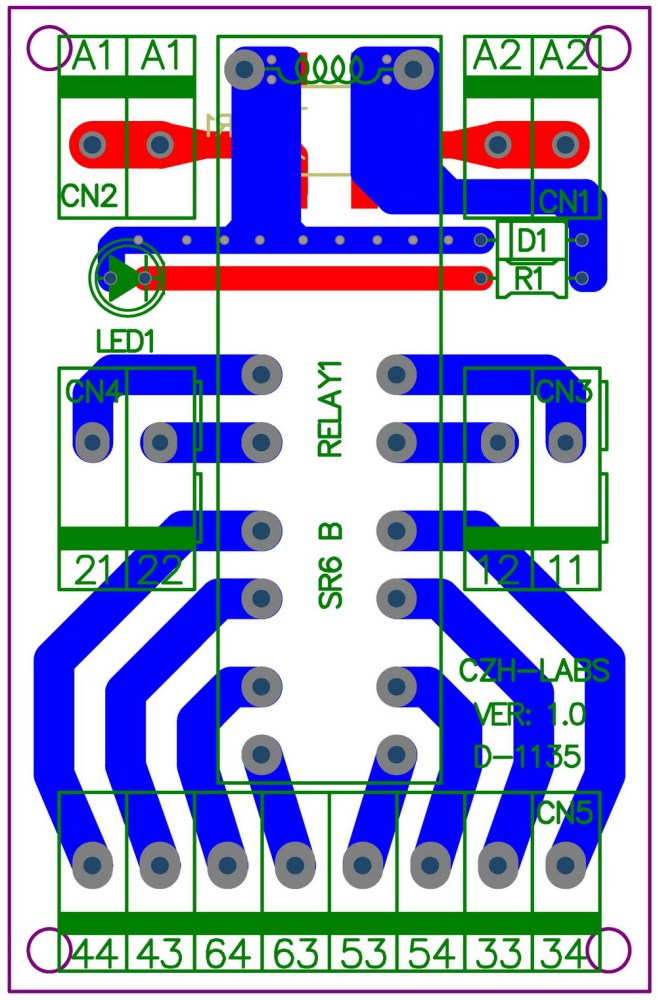

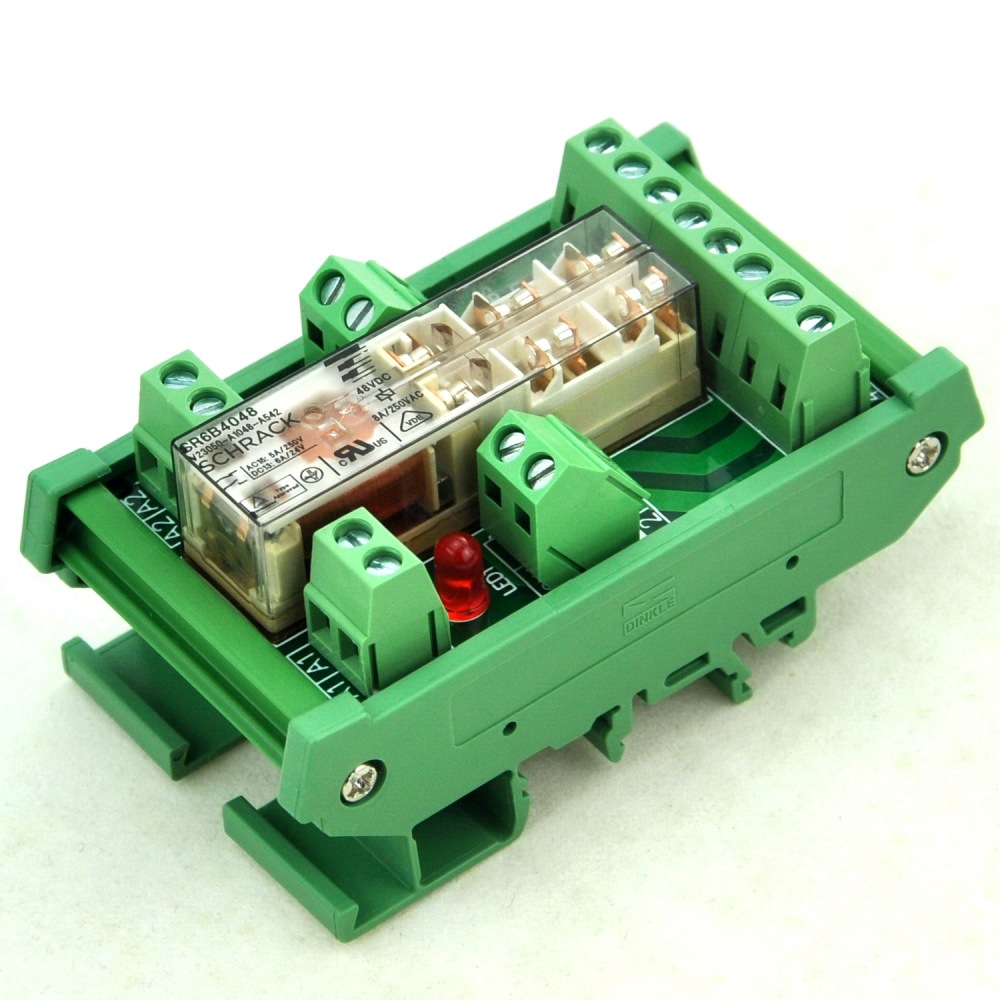

DIN Rail Mount Safety Relay Module, 48V AC/DC, SR6B4048, 4PST-NO DPST-NC.

Operating voltage: DC 48V(36 to 53V), or AC 48V(40 to 50V).
Operating current: 27mA(at 48VDC).

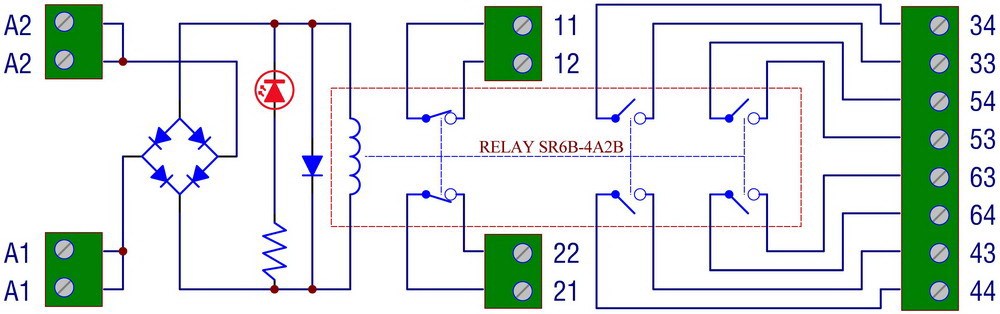

Poles / Contact configuration: 6 poles / 4PST-NO, DPST-NC.
Rated voltage / current: 240VAC / 8A.
Relay number: SR6B4048 (V23050-A1048-A542).
Relay coil protection by means of a freewheeling diode.
LED indication to denote relay actuation.

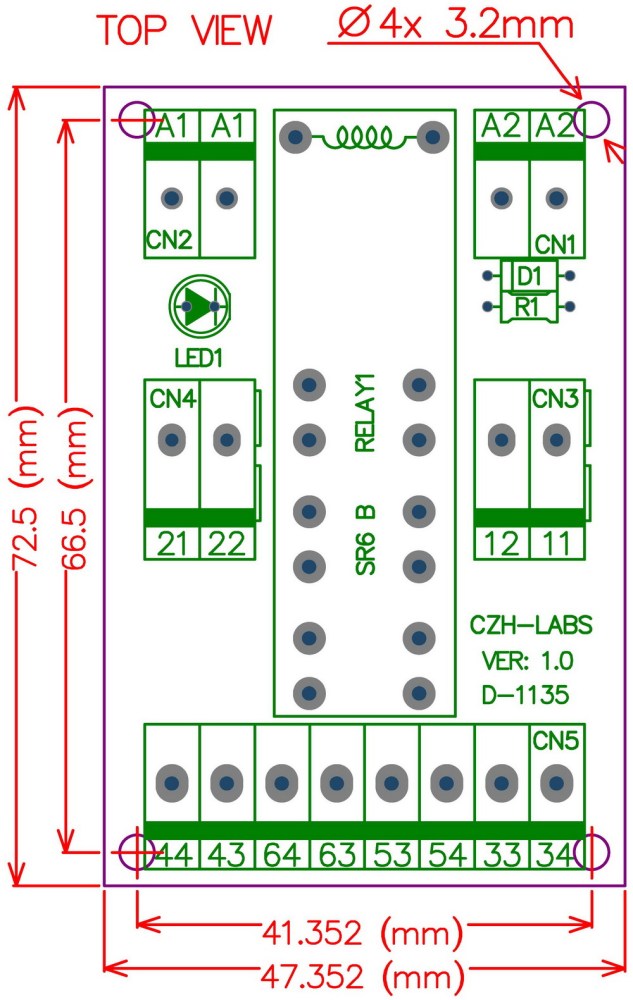

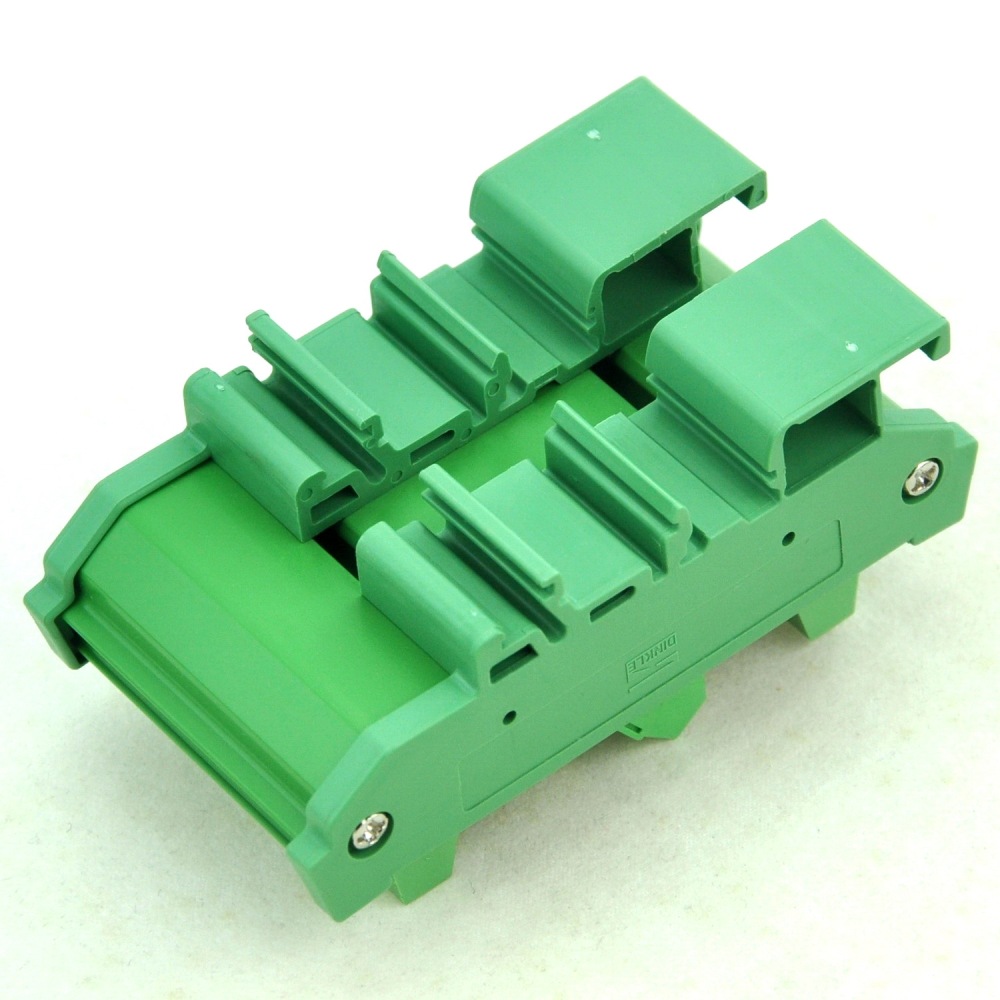

High quality fireproof materials DIN rail mount carrier, can support width 15mm/32mm/35mm rail.
100% new, never used.
