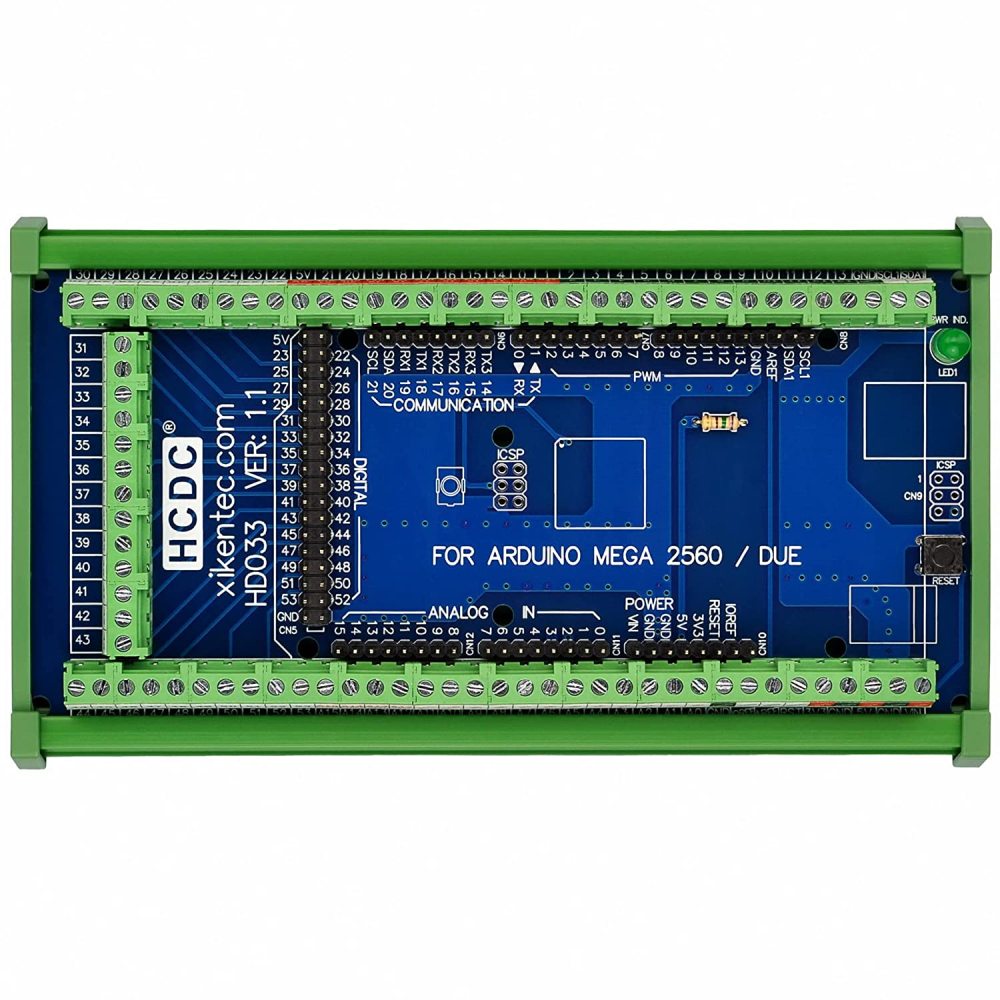

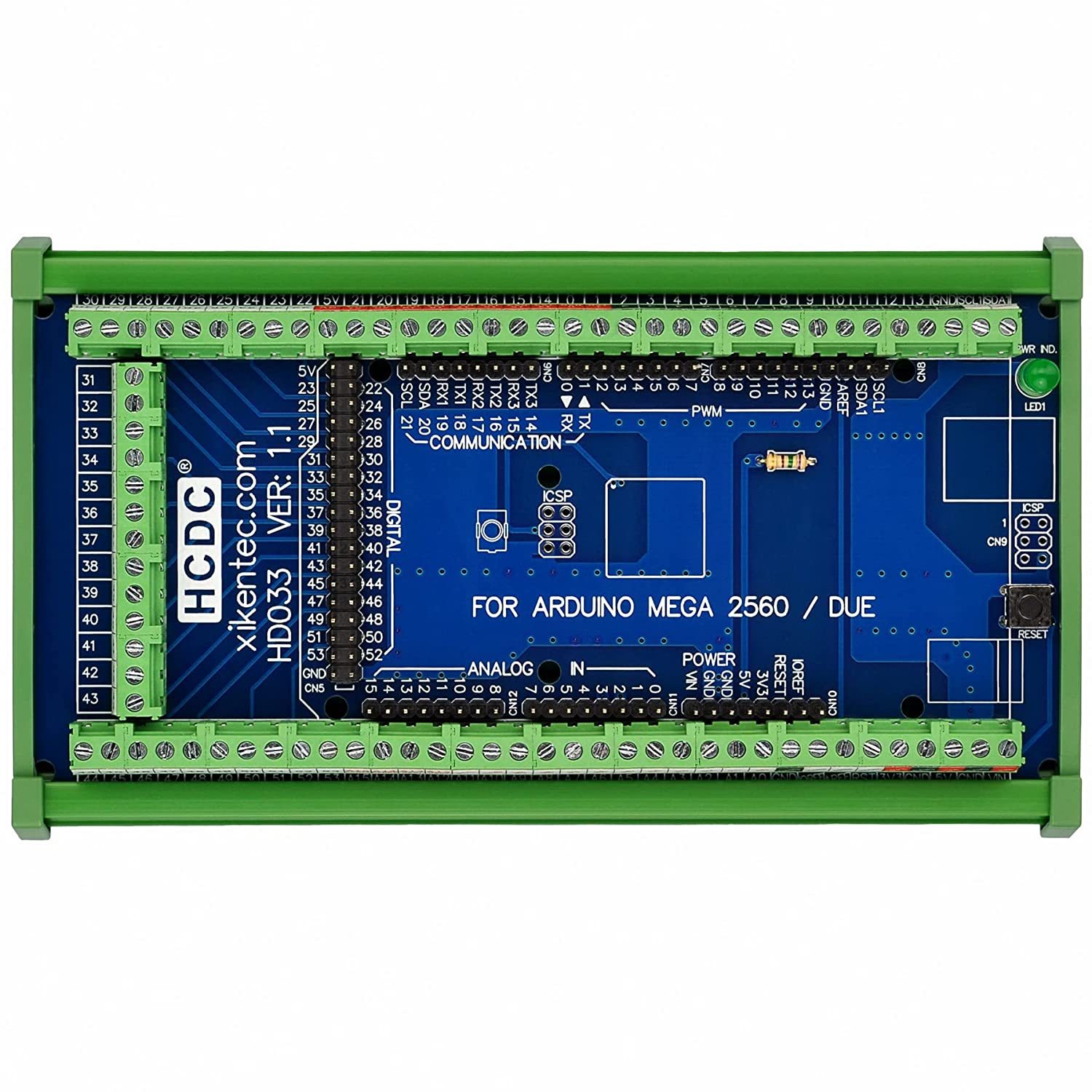

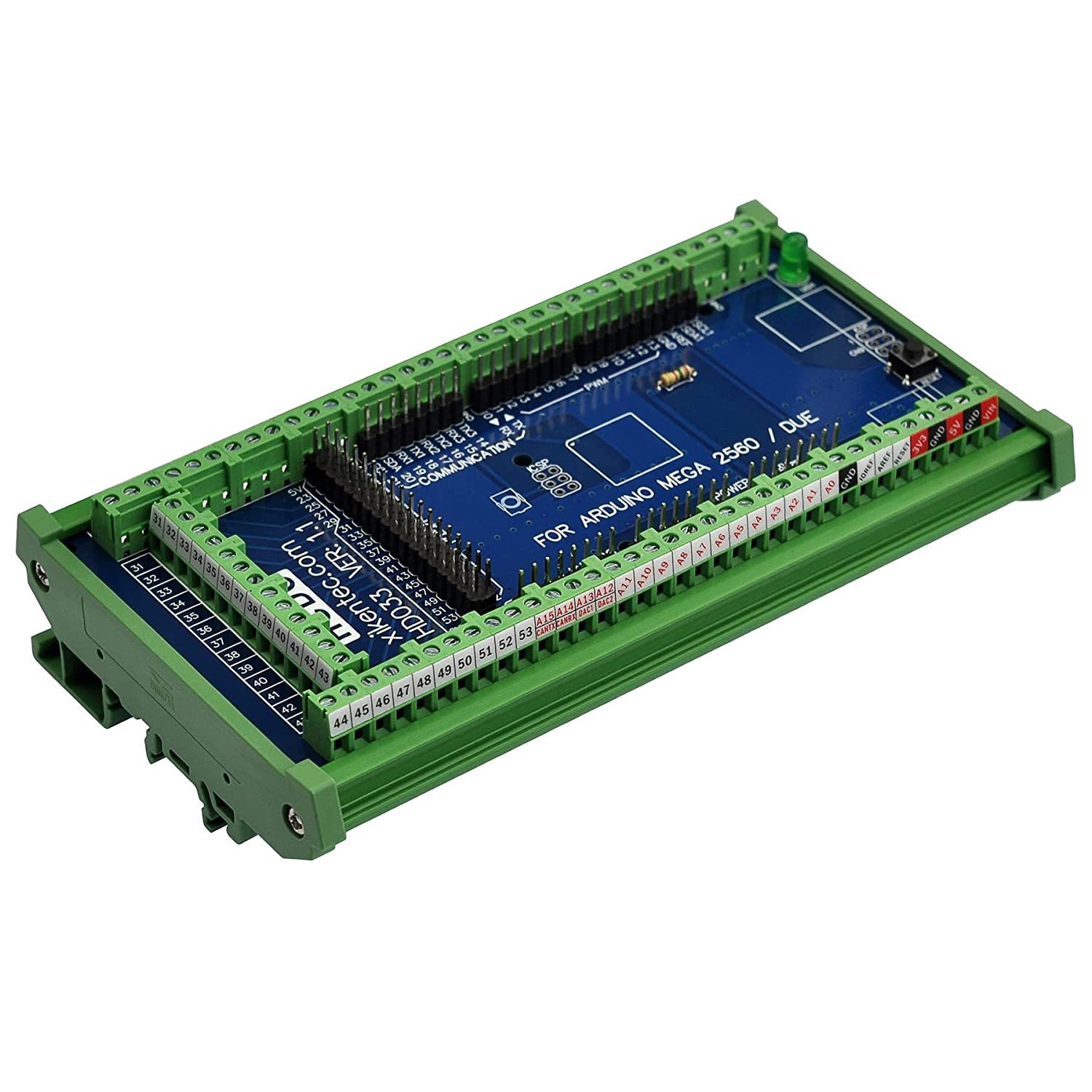

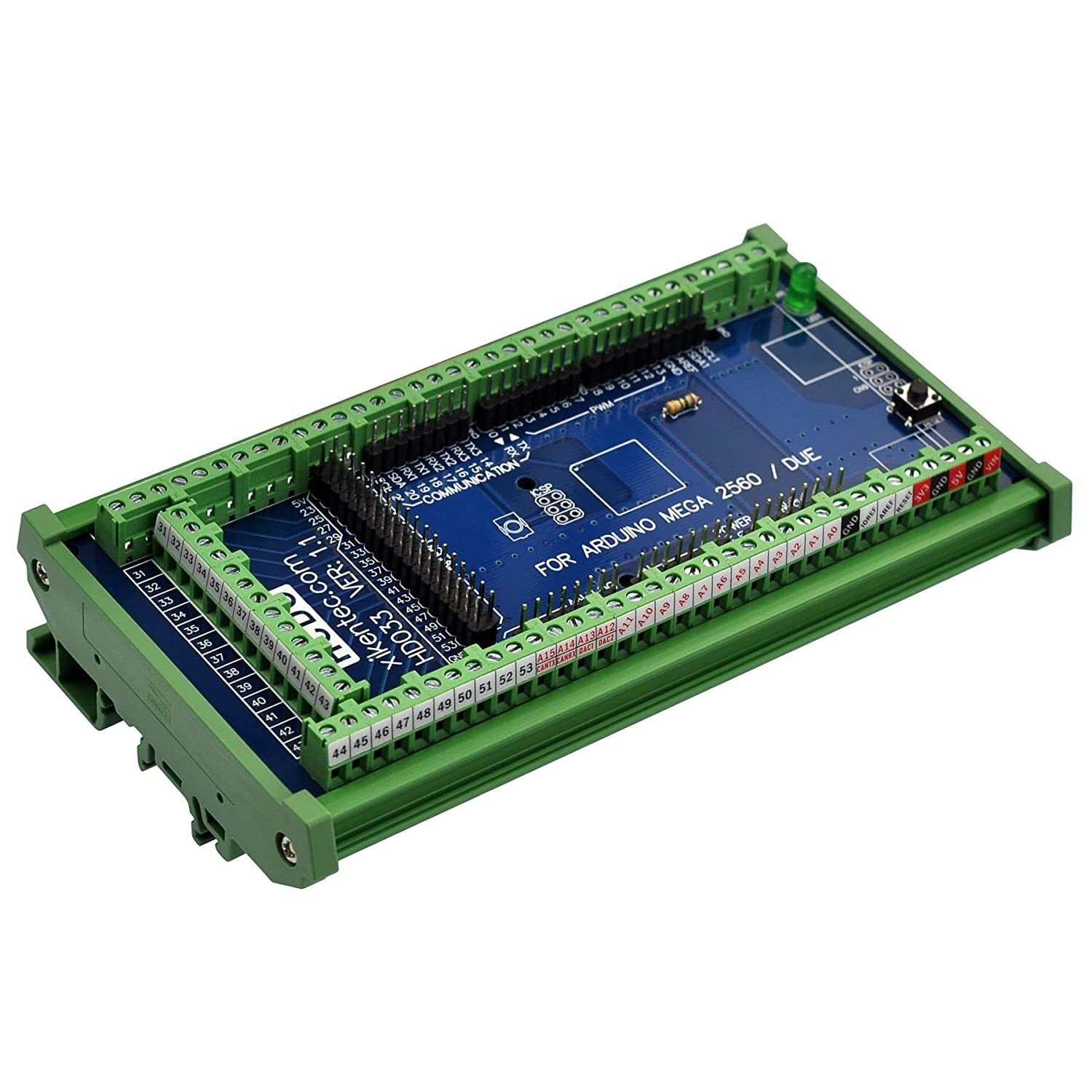

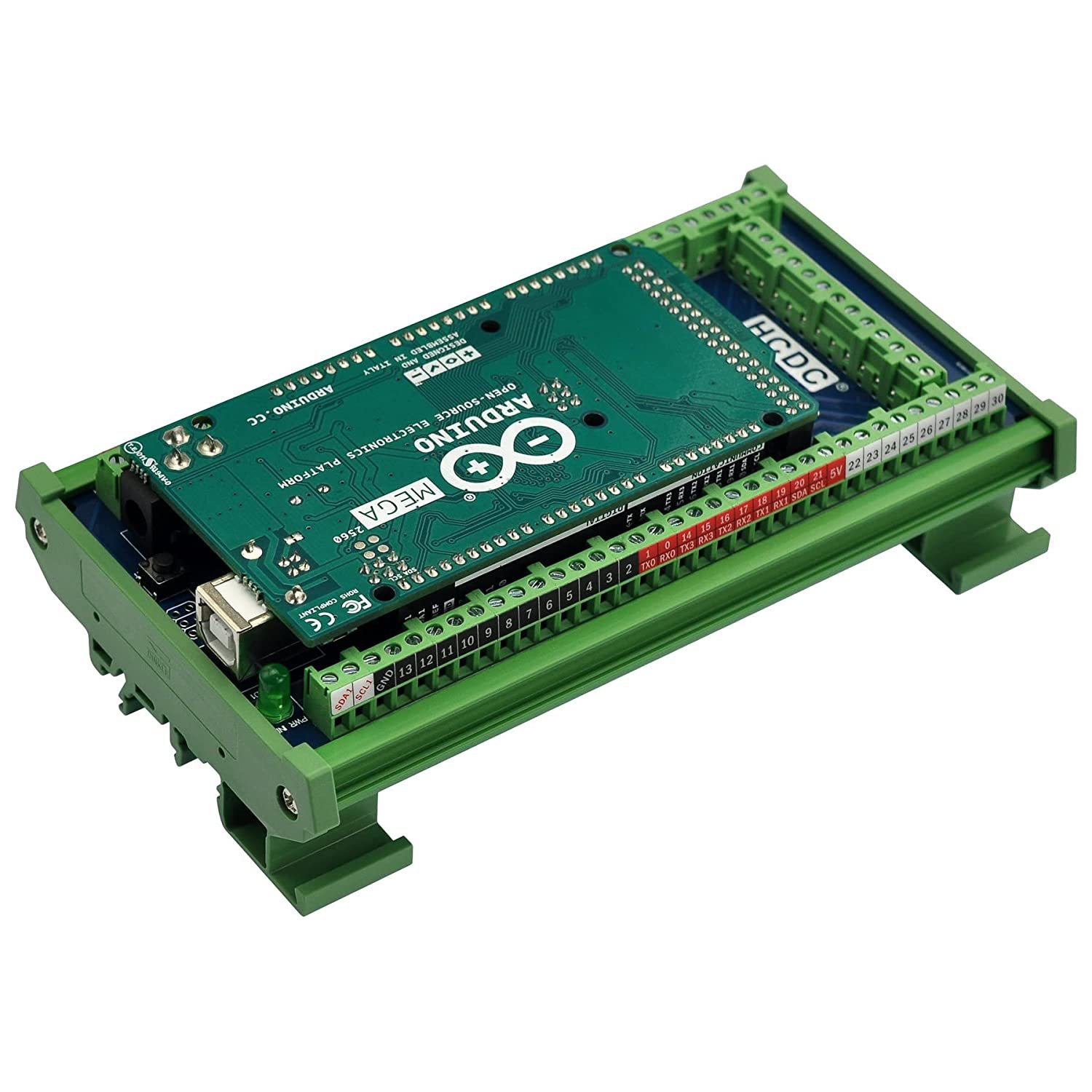

DIN Rail Mount Pinout Breakout Terminal Block Module for Arduino MEGA-2560 R3 / Due

February-23, 2022, upgrade the version to 1.1: Modified PCB and terminal block labels, add support for Arduino DUE.

DIN Rail Mount Screw Terminal Block Adapter Module for Arduino MEGA-2560 R3 / DUE, with the adapter module, you can easily extend Arduino projects to industrial control applications.
Pitch 3.81mm/0.15" screw terminal block. Terminal block: wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.

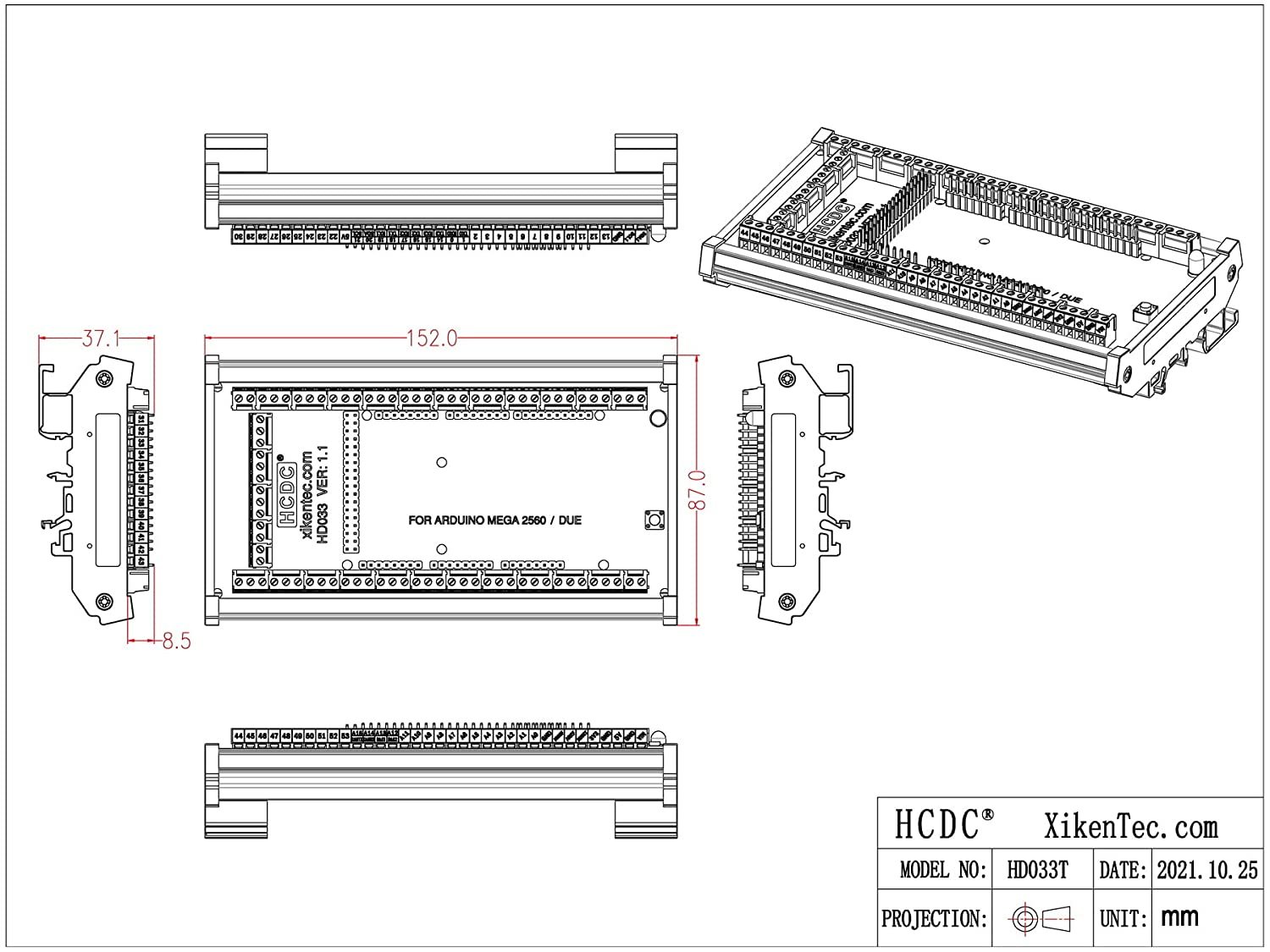

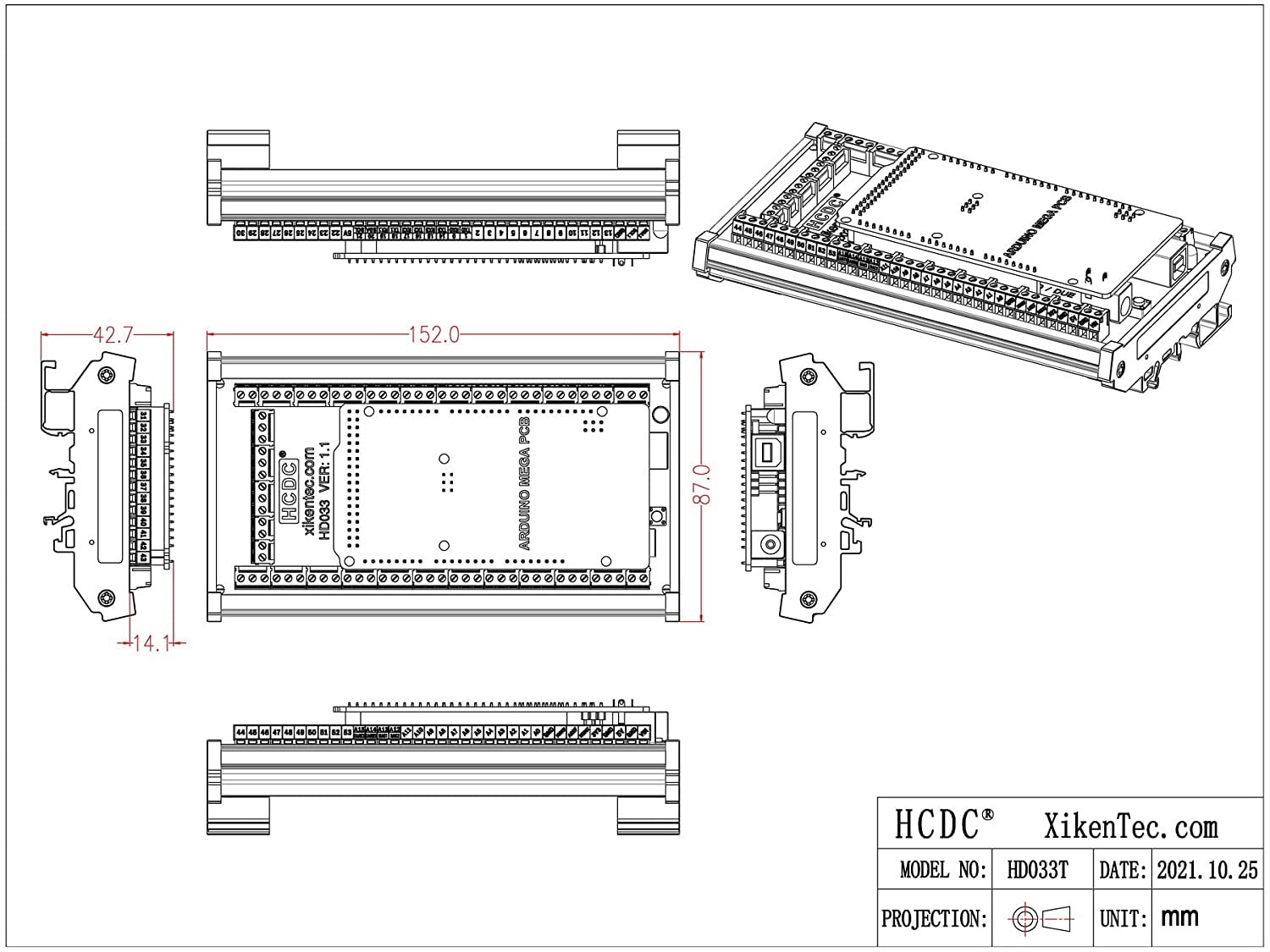

FR-4 fiber glass PCB, dual copper layers. PCB Dimensions: 150mm x 72.5mm(W x L). Module Dimensions: 153mm x 87mm x 45mm (W x L x H).

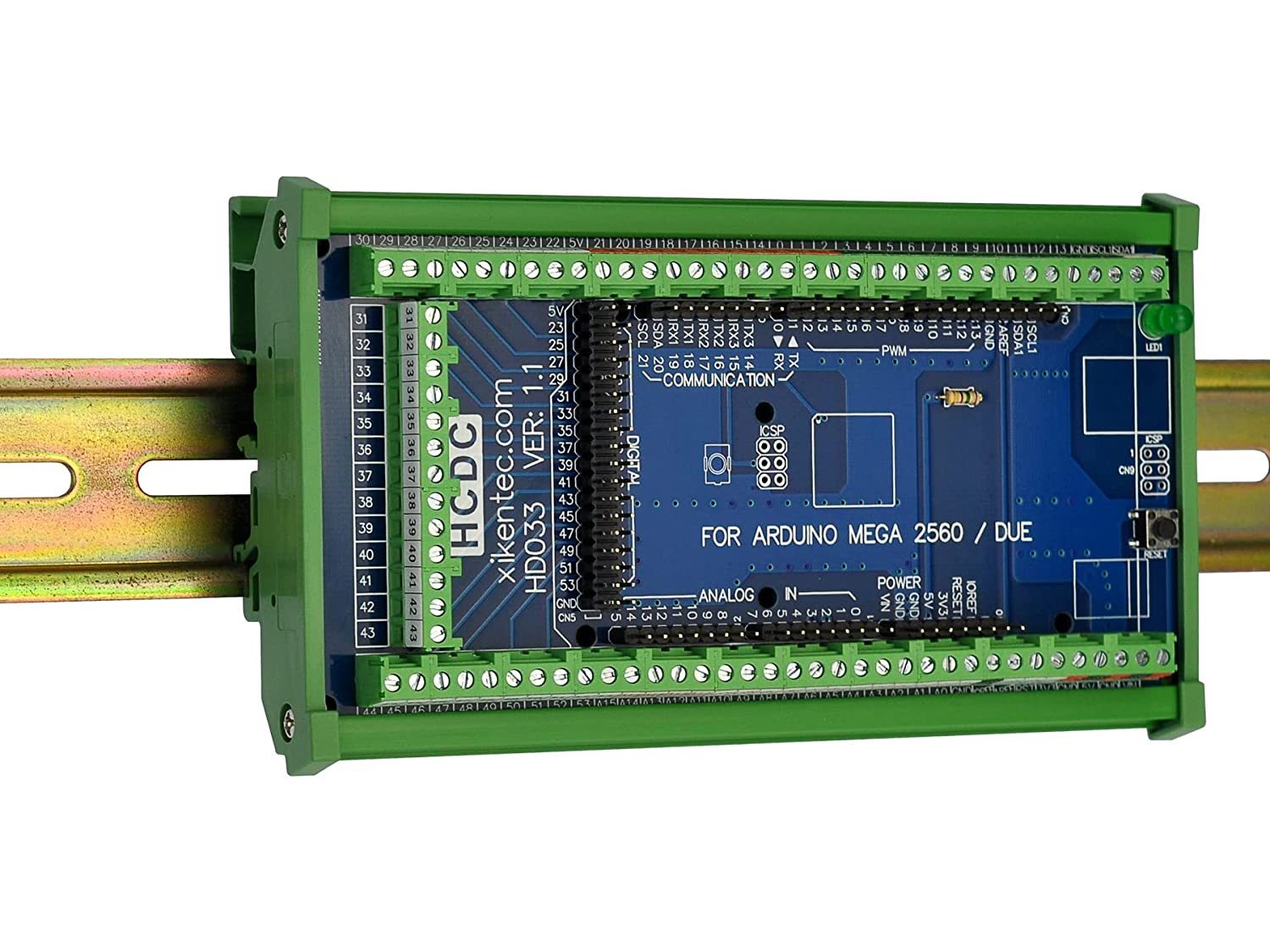

High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
Note: the item not include Arduino-Mage module and iron rail.
