DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module

SKU: D-1547TP/RED
$18.00 $18.00

Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $18 = $18
save $0.00
Add to Favorites
  • DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
1/1
  • DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Red 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • DIN Rail Mount DC 5-32V Common Positive 3 Blue 10mm LED Indicator Light Module
  • Description

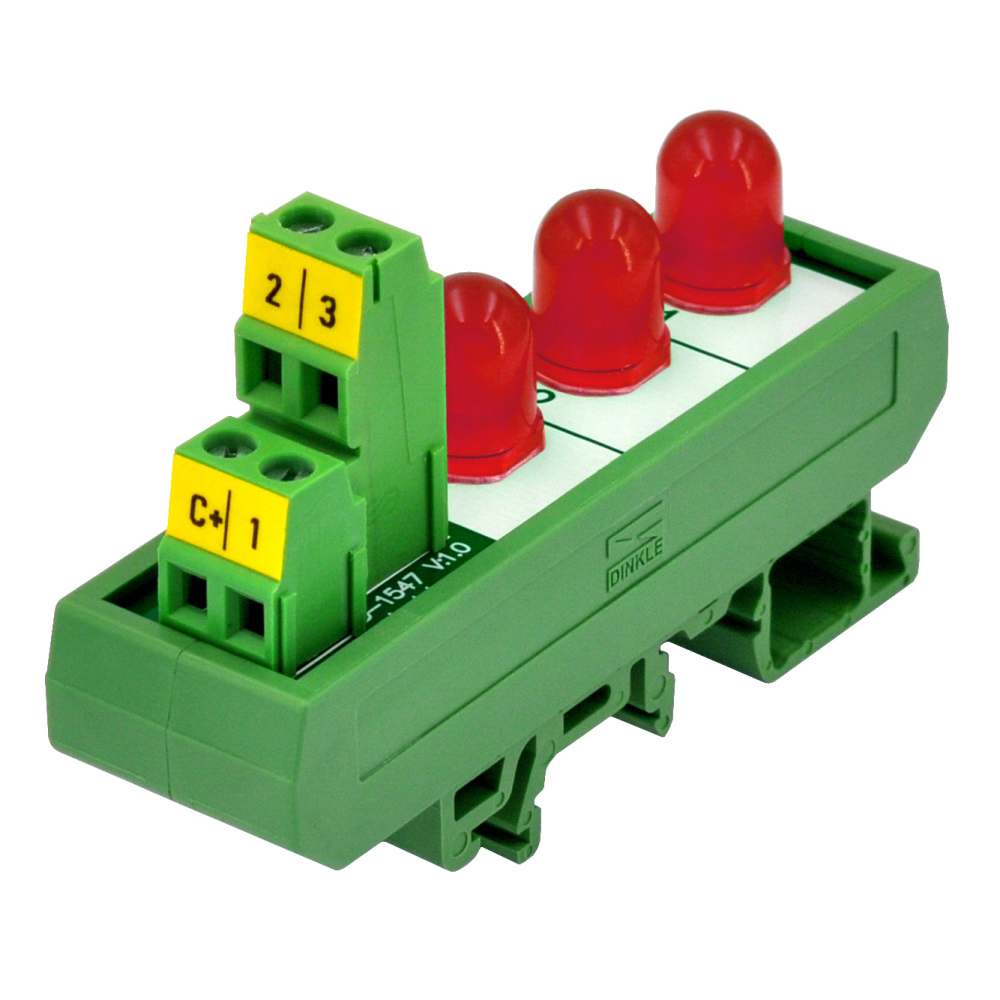

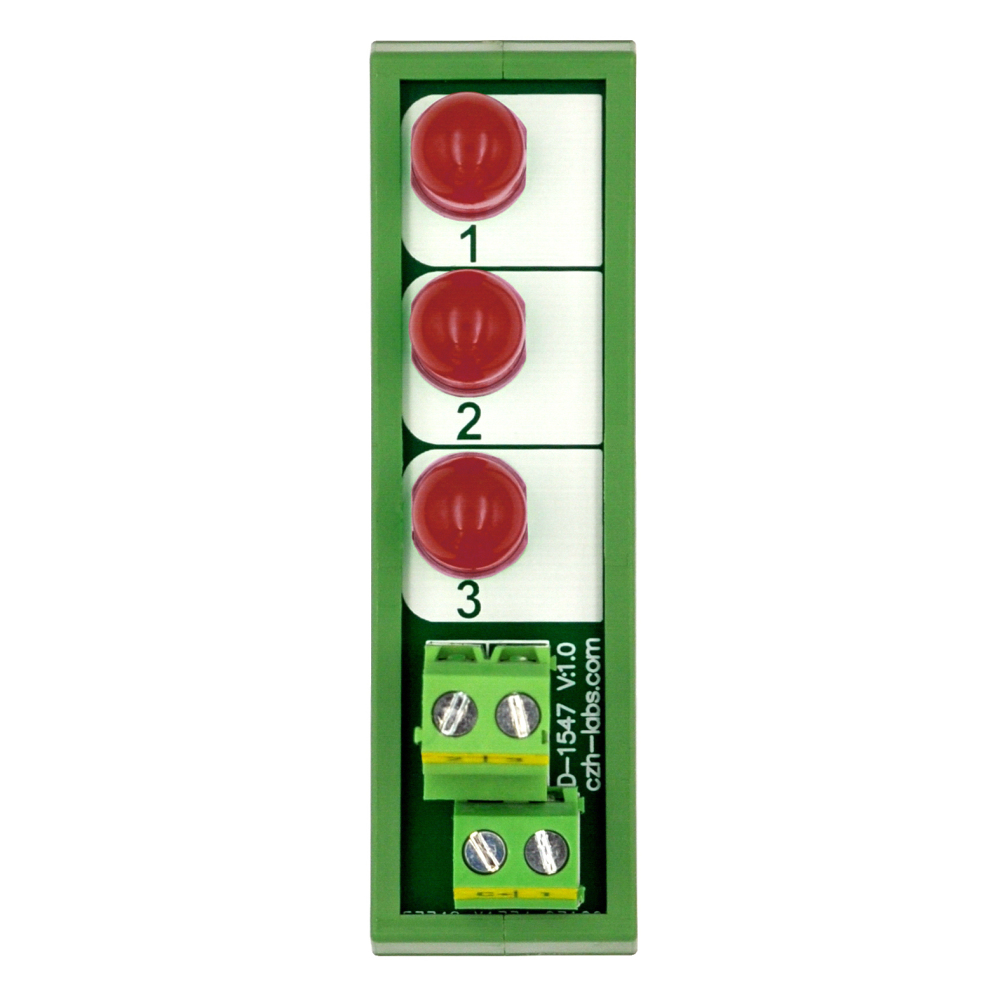

DIN rail mount 3 channel LED Indicator light module, LED color - Red, LED Diameter 10mm.

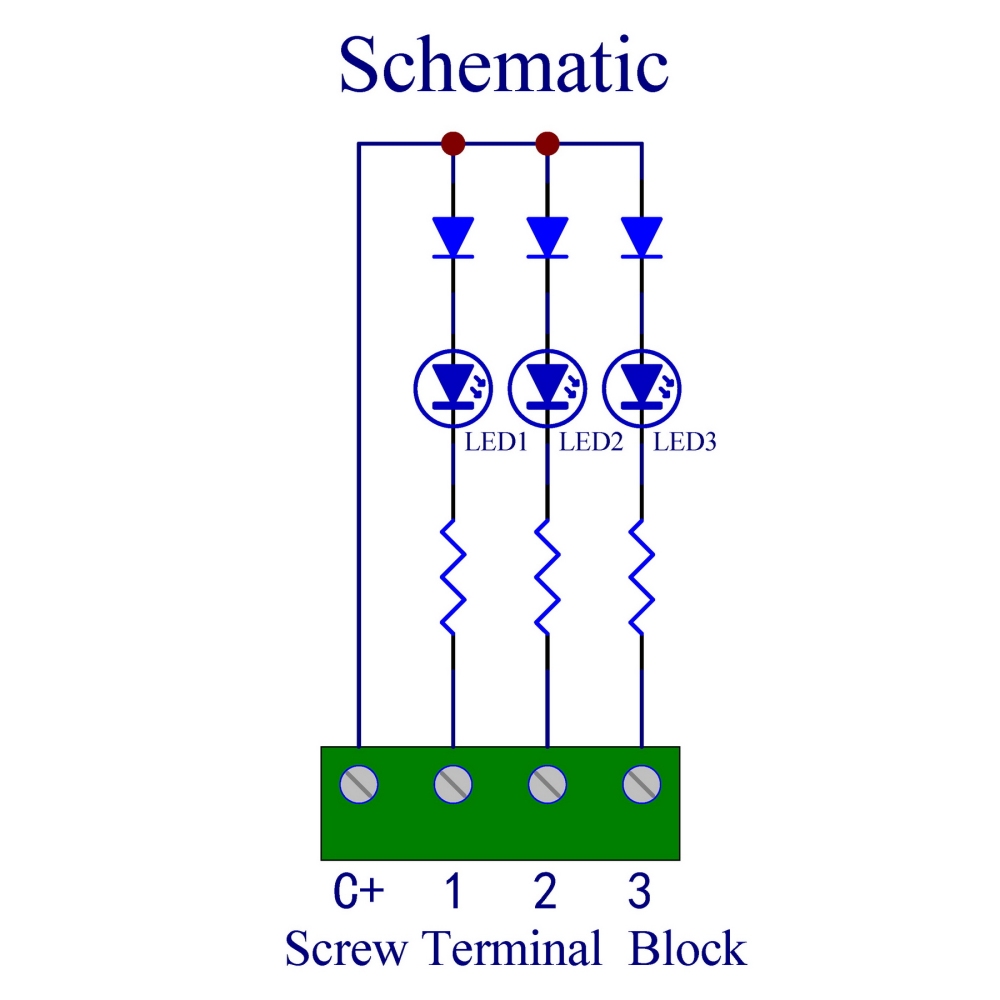

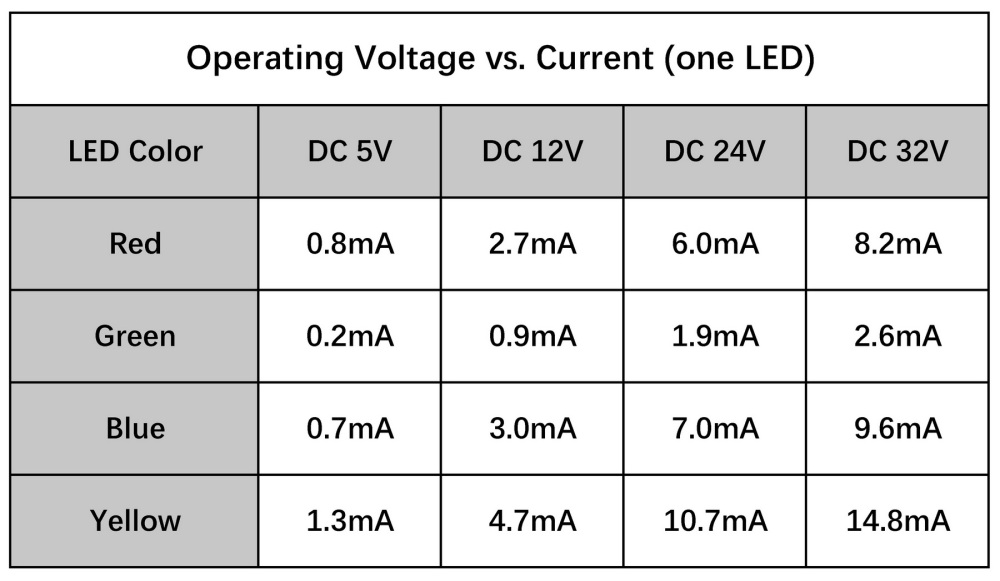

Operating voltage: DC 5 to 32V. Common positive circuit.
Terminals block: pitch 5.08mm/0.2", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

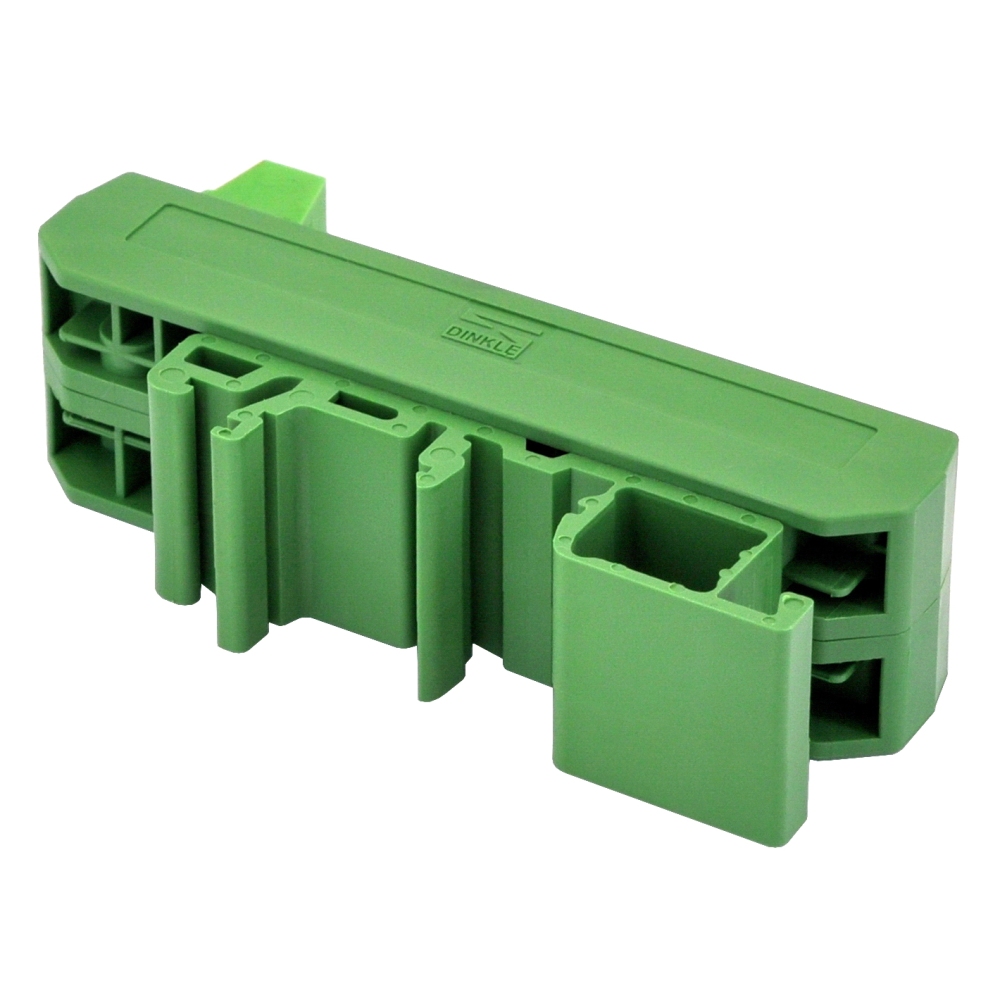

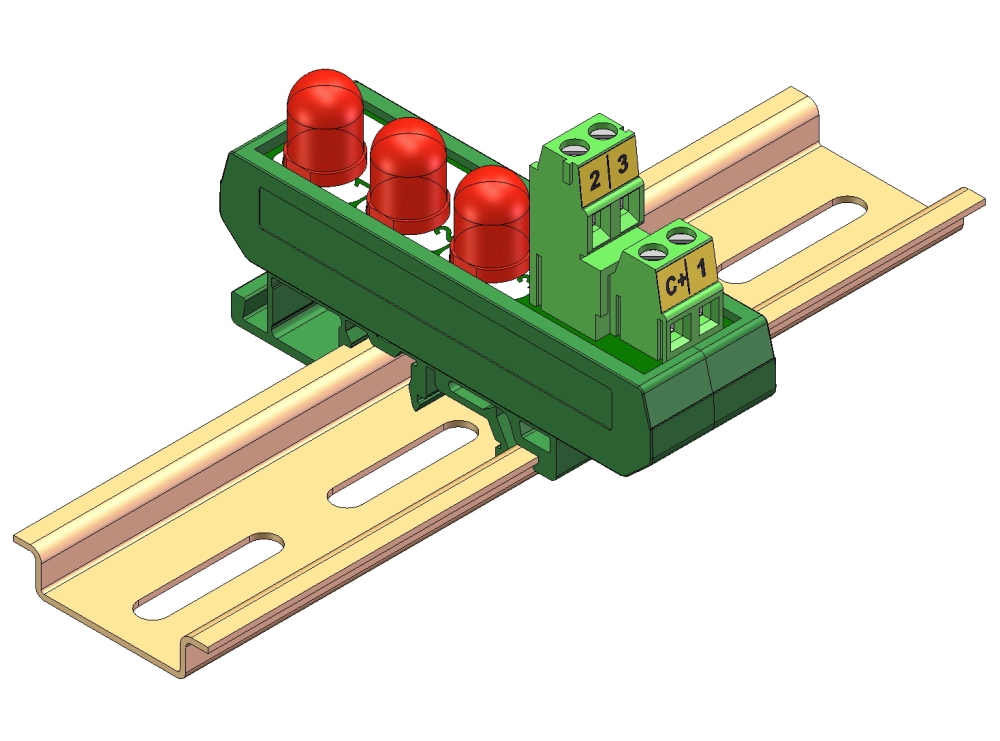

High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
UL CE certified nylon material mount carrier. FR-4 fiberglass material PCB, UL 94-V0 certified PCB. UL CE CQC certified terminal blocks.
