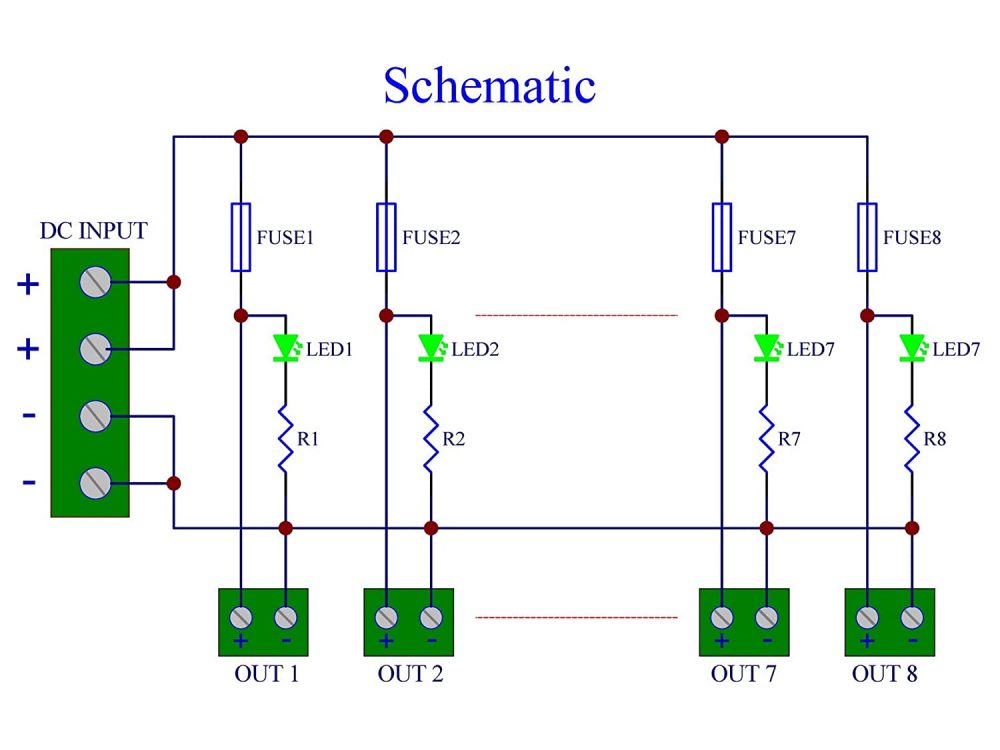

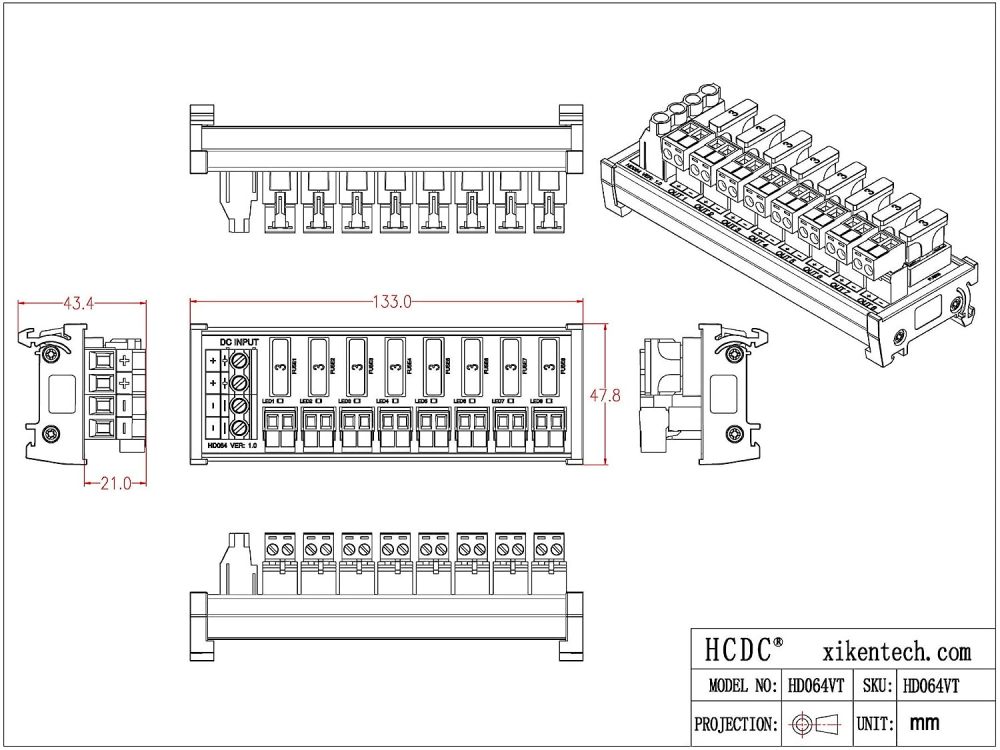

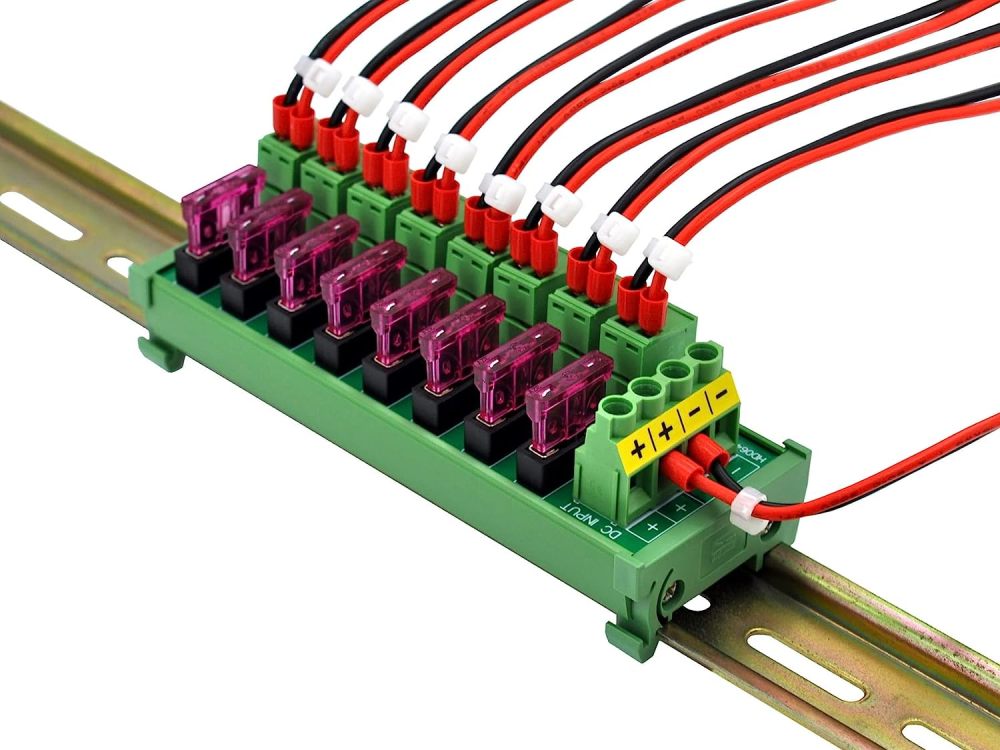

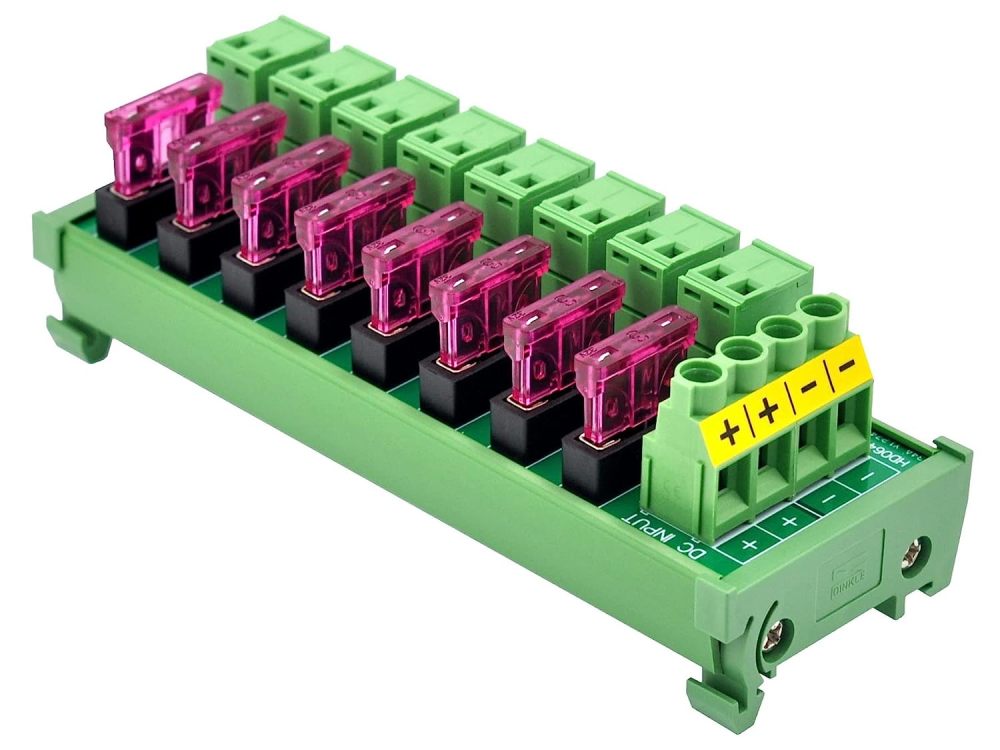

DIN Rail Mount DC 5-32V 8 Channel Pluggable Top Wiring Terminal Block Power Distribution Fuse Module, HCDC HD064VT

1, Operating voltage DC 5 to 32V. Maximum total input / output current 20 Amp.

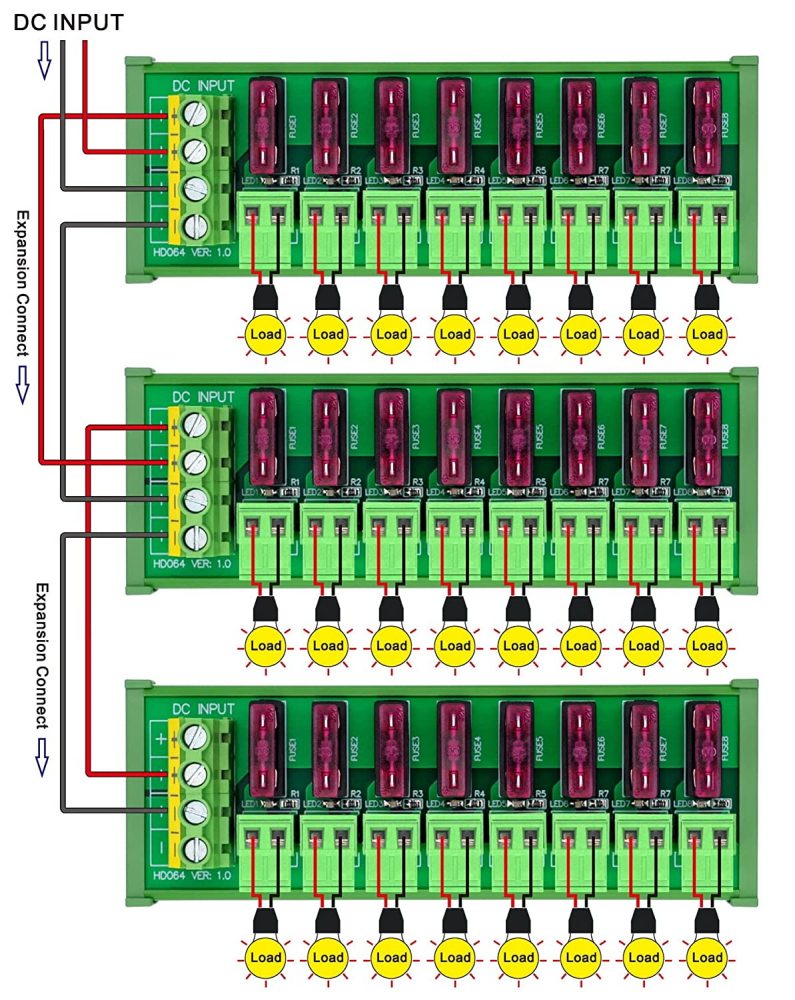

2, Input: Maximum current 20 Amp for per position. Double positions + and - polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.

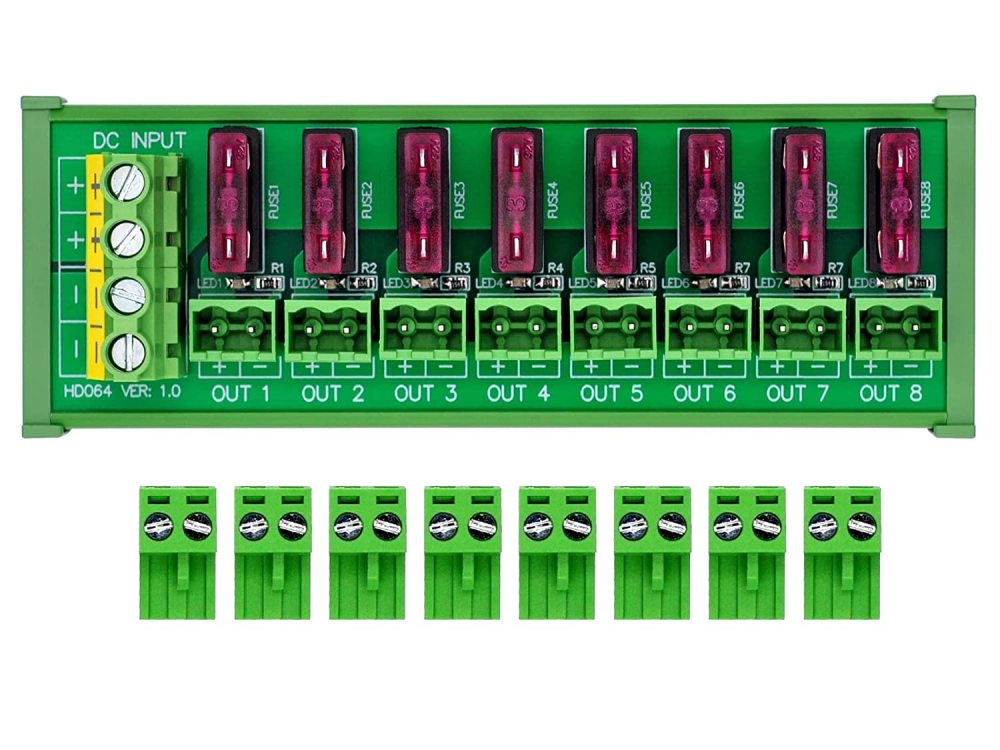

3, Output: 8 position pluggable top wiring terminal blocks. Maximum current 3 Amp for per position (the terminal highest working current can support up to 10 Amp, but factory pre-installed fuse value is 3 Amp, if you want more output current, please change the fuse). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

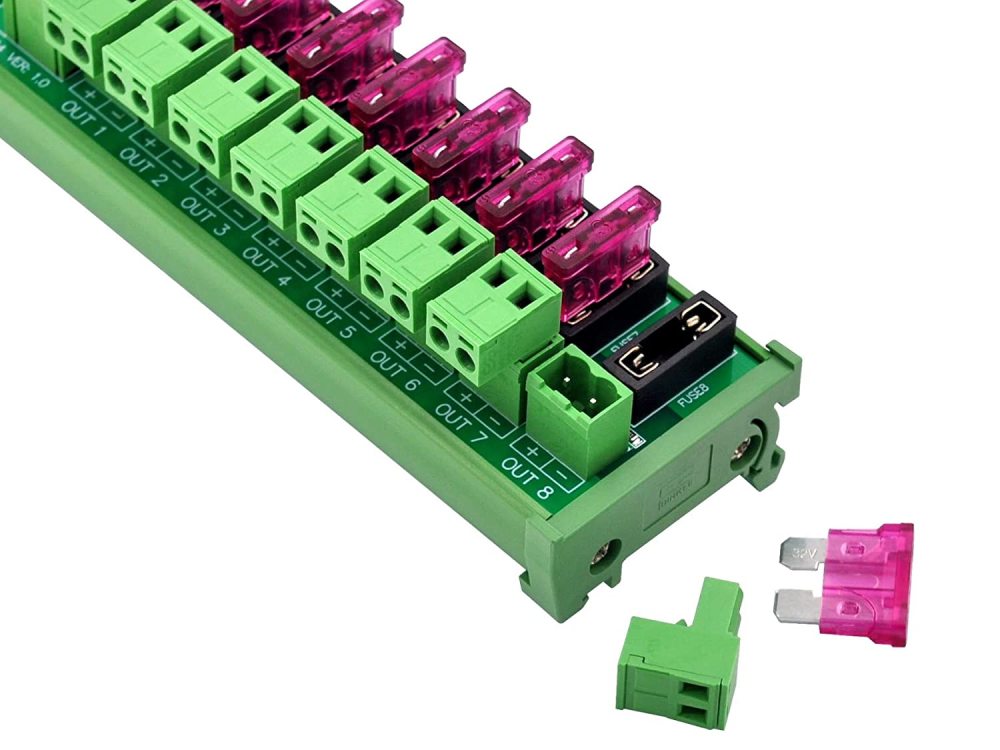

4, Pluggable fuse holder, can support medium blade ATO / ATC fuse. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.

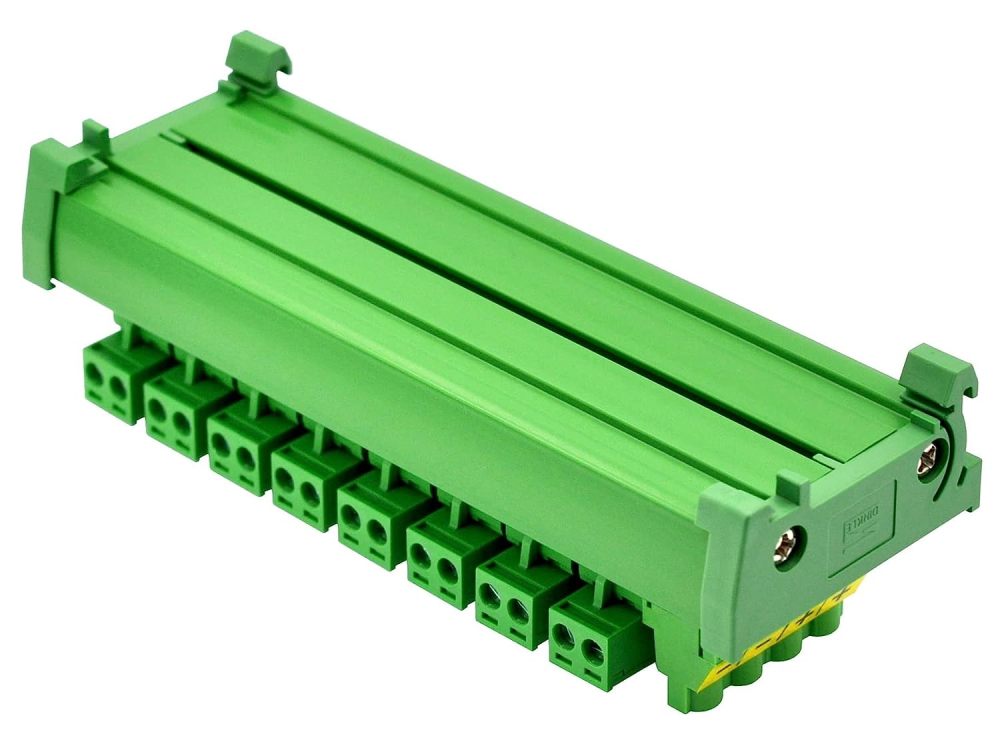

5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.
