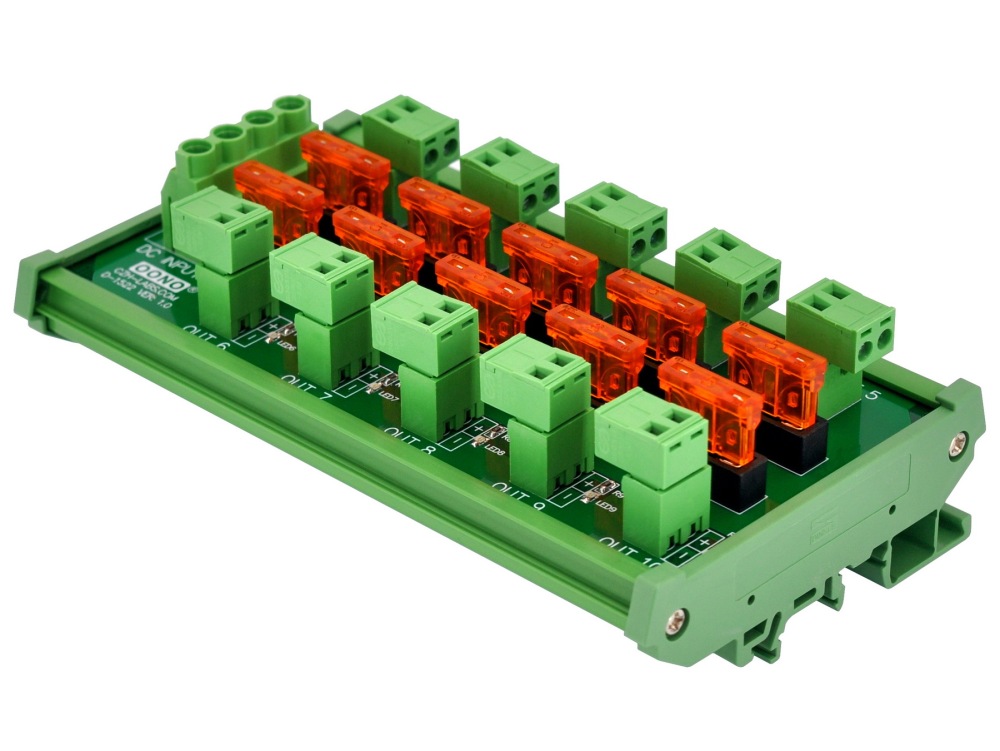

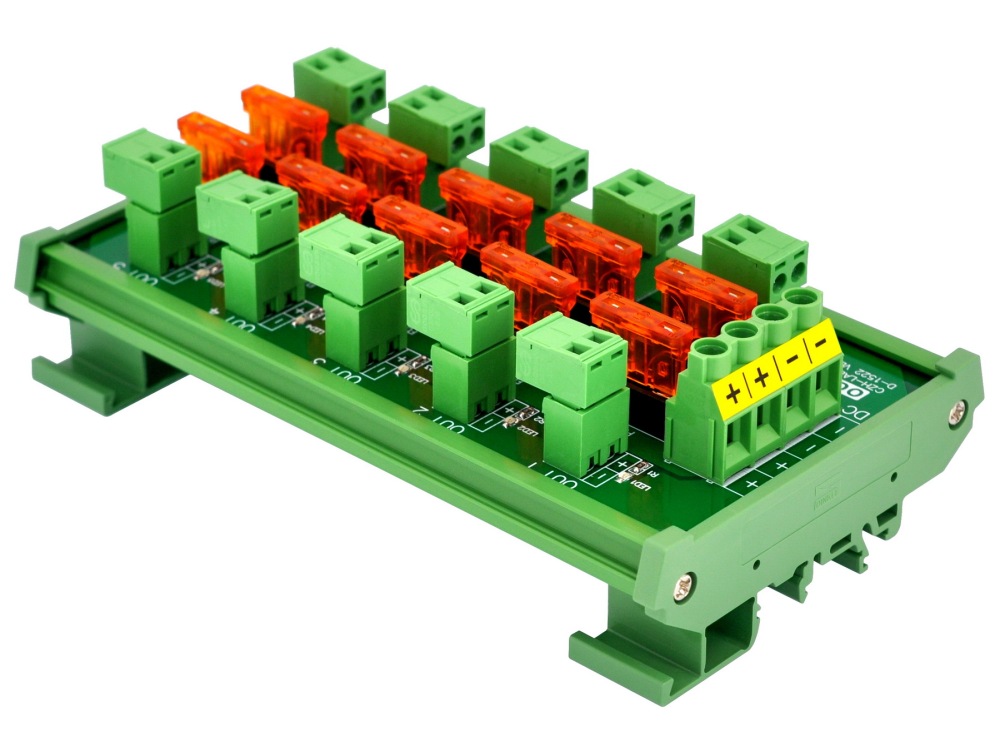

DIN Rail Mount DC 5-32V 10 Position Pluggable Screw Terminal Block Power Distribution Module

1, Operating voltage DC 5 to 32V. Maximum total input / output current 30 Amp.
2, Input: Maximum current 30 Amp for per position. Double positions + and - polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.

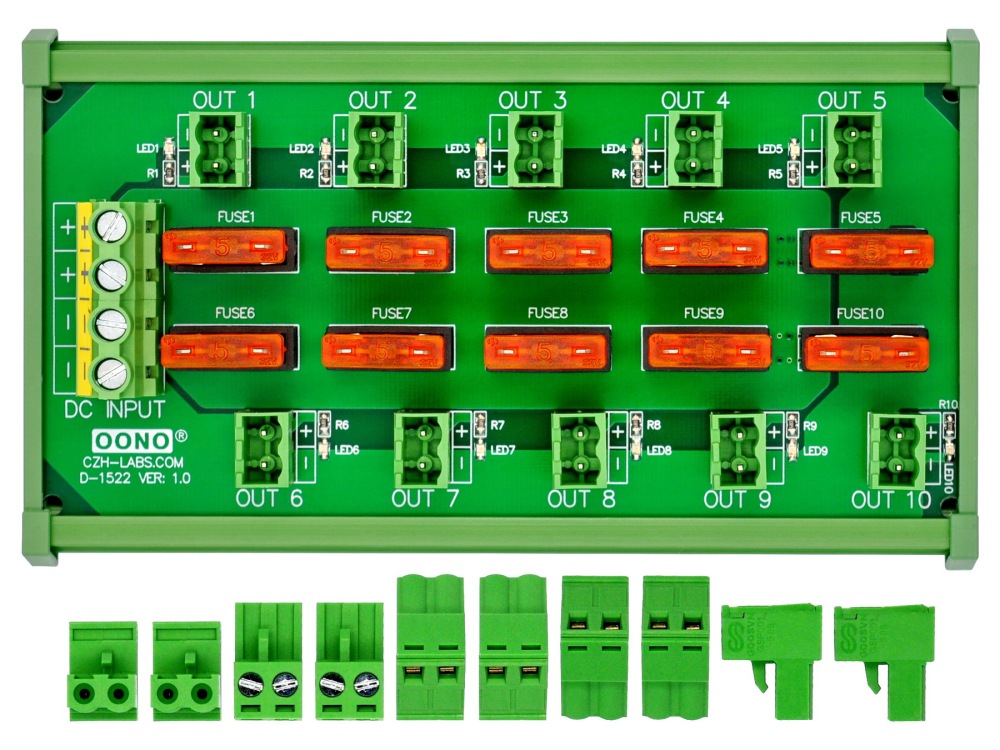

3, Output: 10 position pluggable terminal blocks. Maximum current 5 Amp for per position (the terminal highest working current can support up to 10 Amp, but factory pre-installed fuse value is 5 Amp, if you want more output current, please change the fuse). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

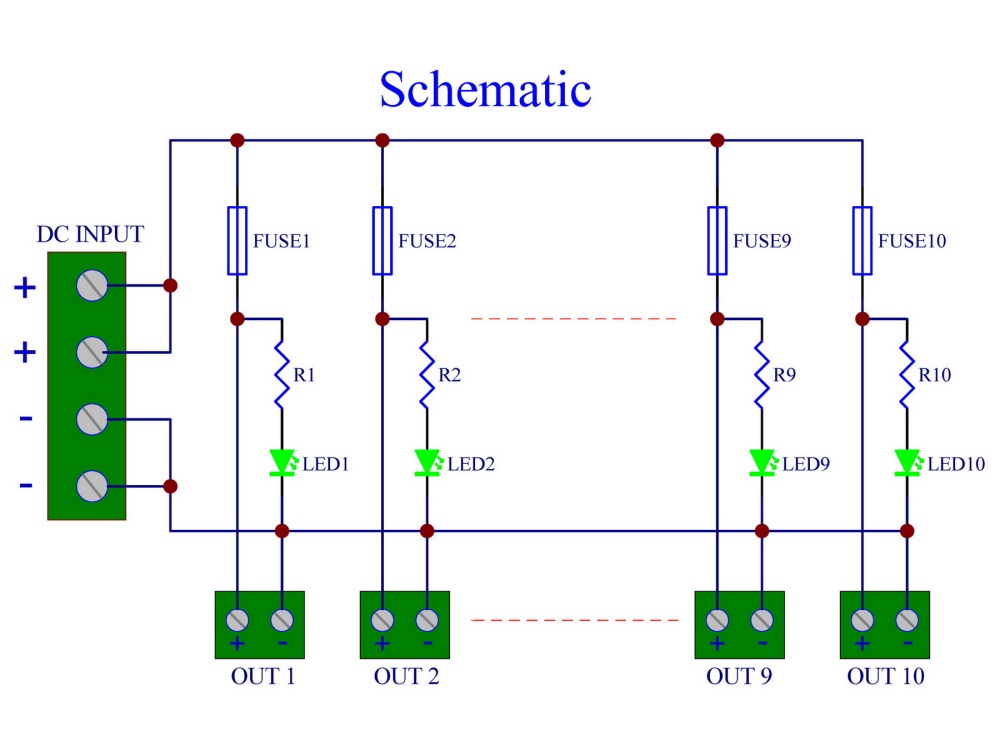

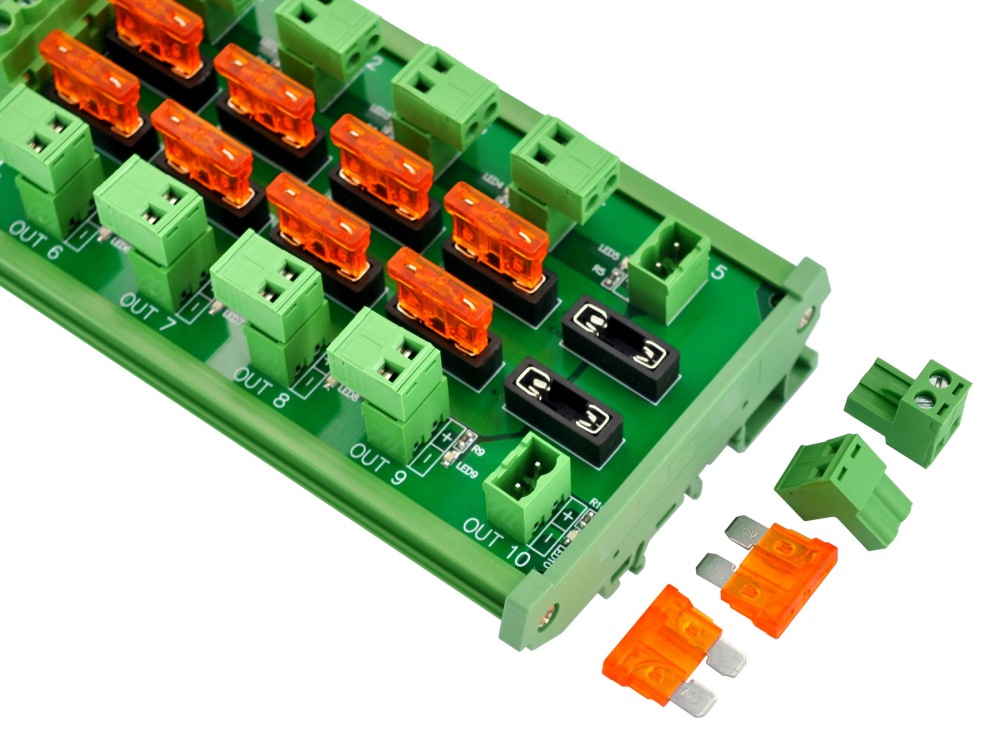

4, Pluggable fuse holder, can support medium blade ATO / ATC fuse. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.

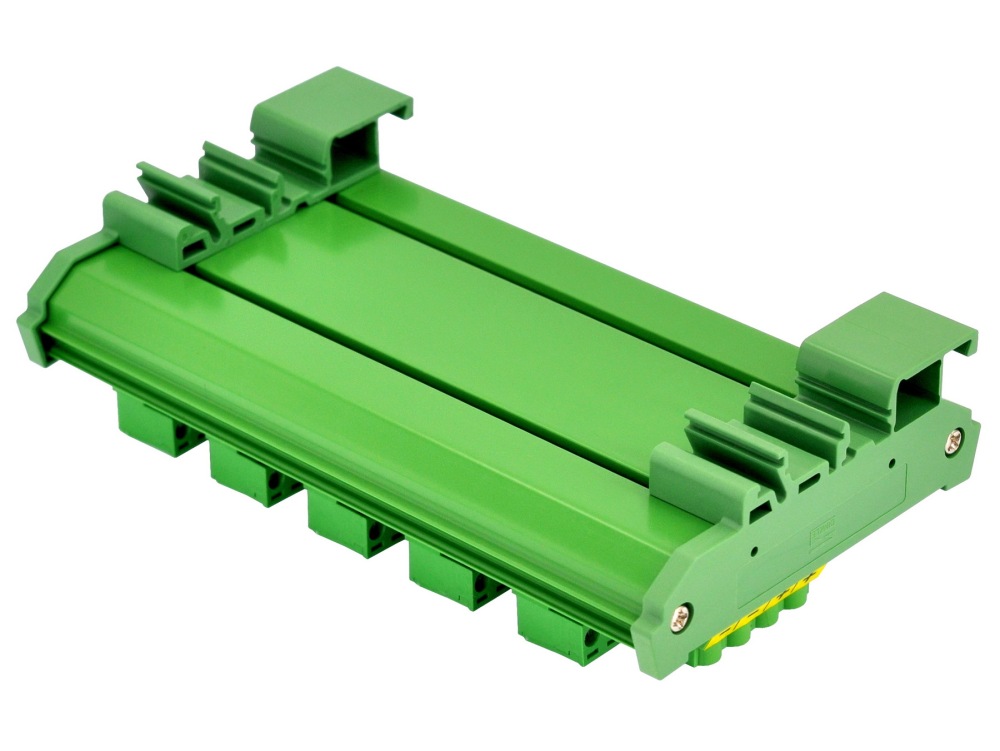

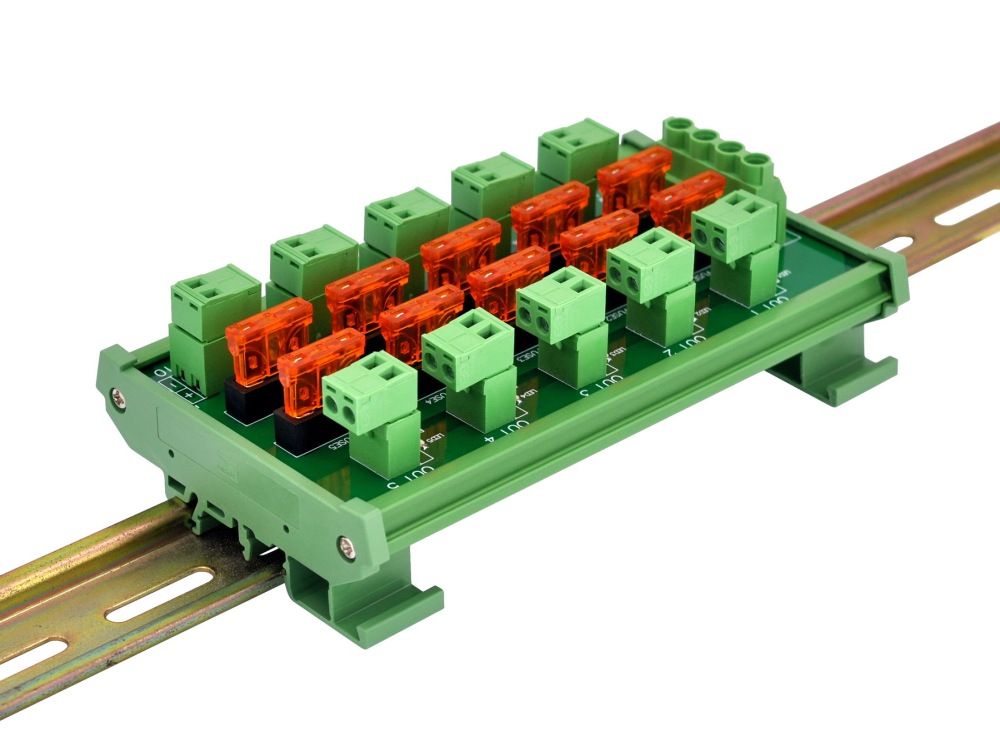

5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.
