DIN Rail Mount AC/DC 5-32V 8 Channel Red 10mm LED Indicator Light Module

Name: DIN Rail Mount AC/DC 5-32V 8 Channel Red 10mm LED Indicator Light Module
Brand: Xiken Tech
SKU: D-1545T/DC8RED
Price: 36 USD
Availability: InStock

SKU: D-1545T/DC8RED

$36.00 ~~$36.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

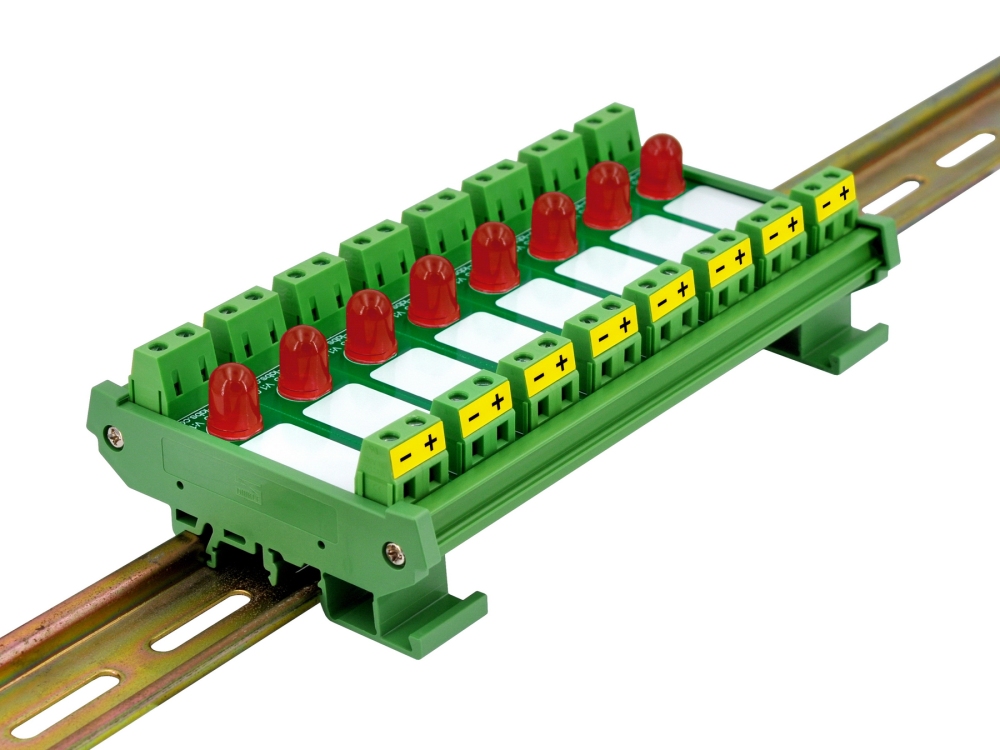

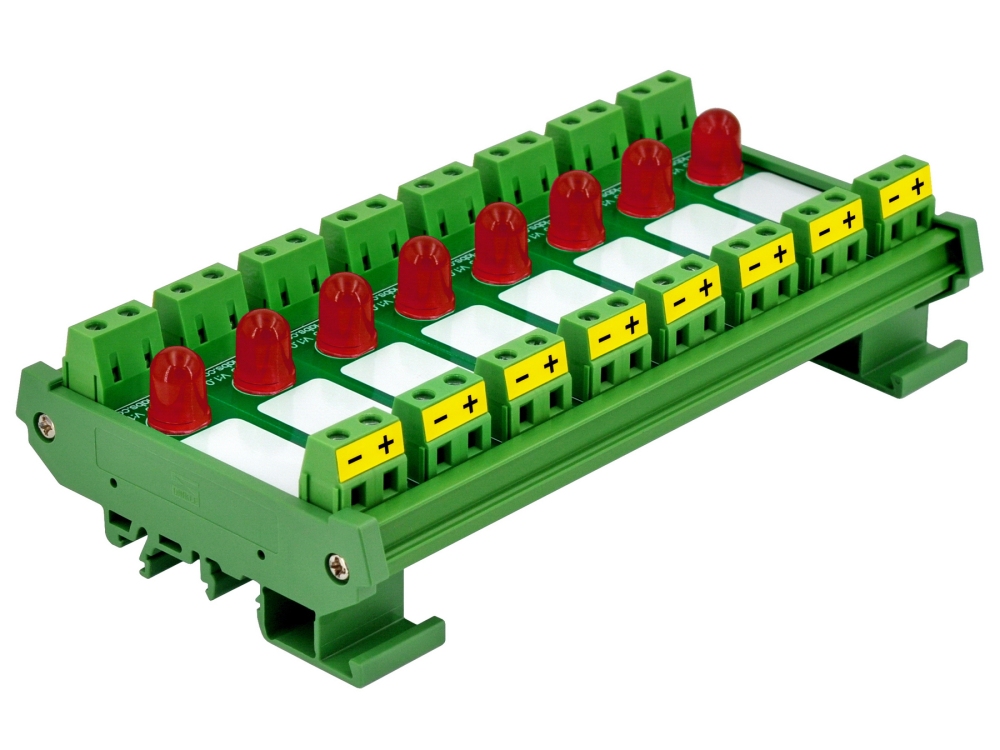

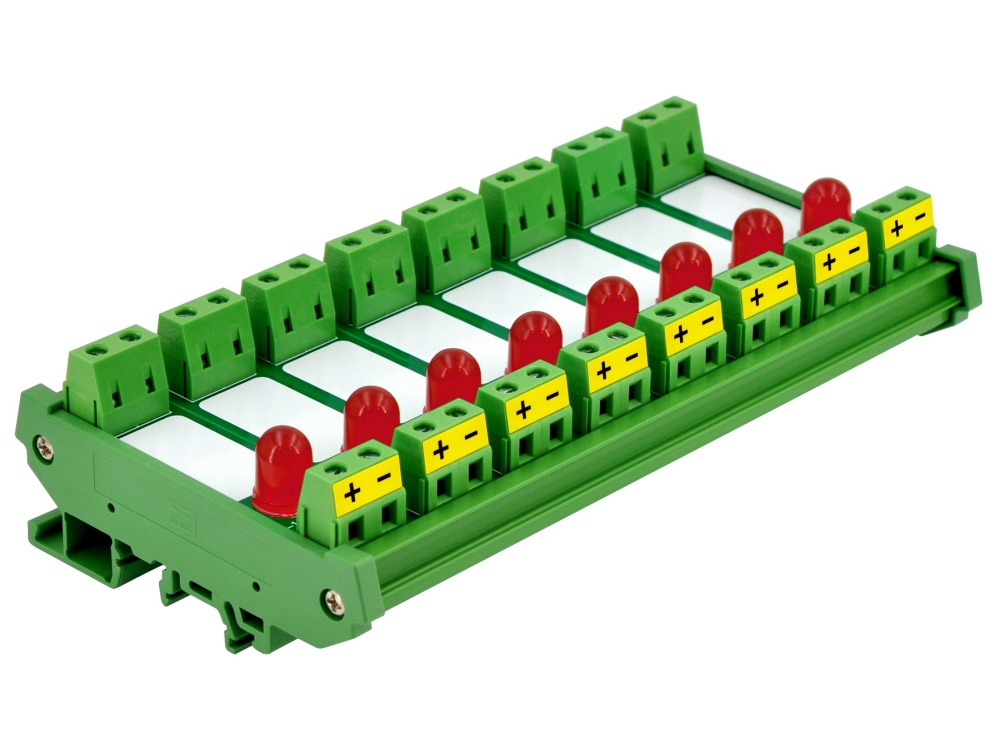

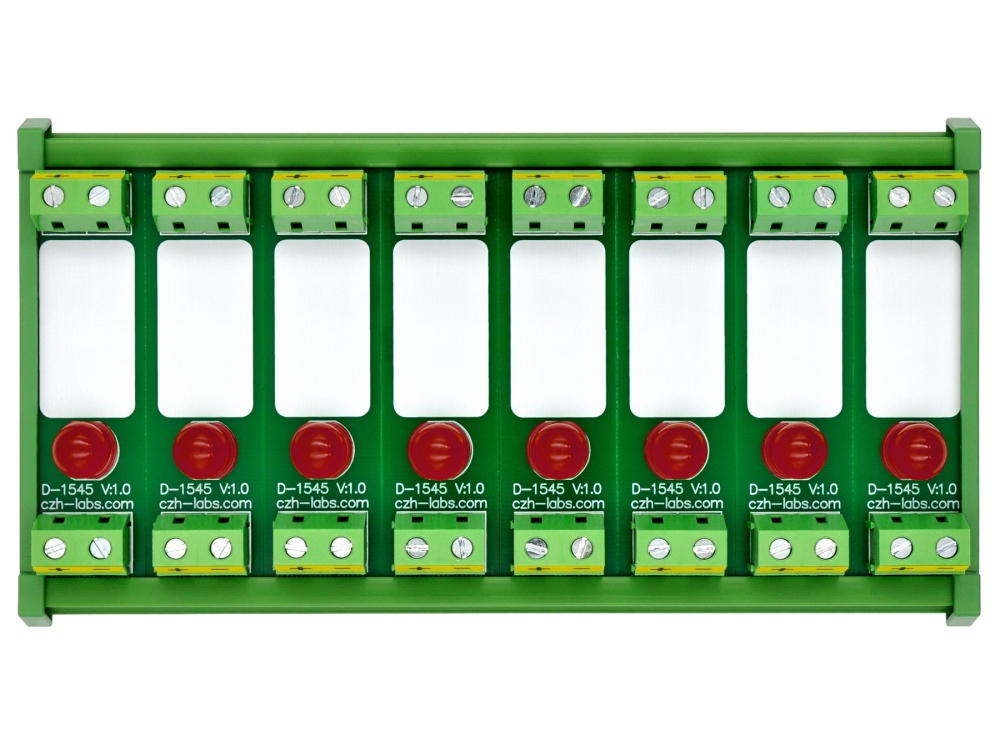

DIN rail mount 8 channel LED Indicator light module, LED color - Red, LED Diameter 10mm.

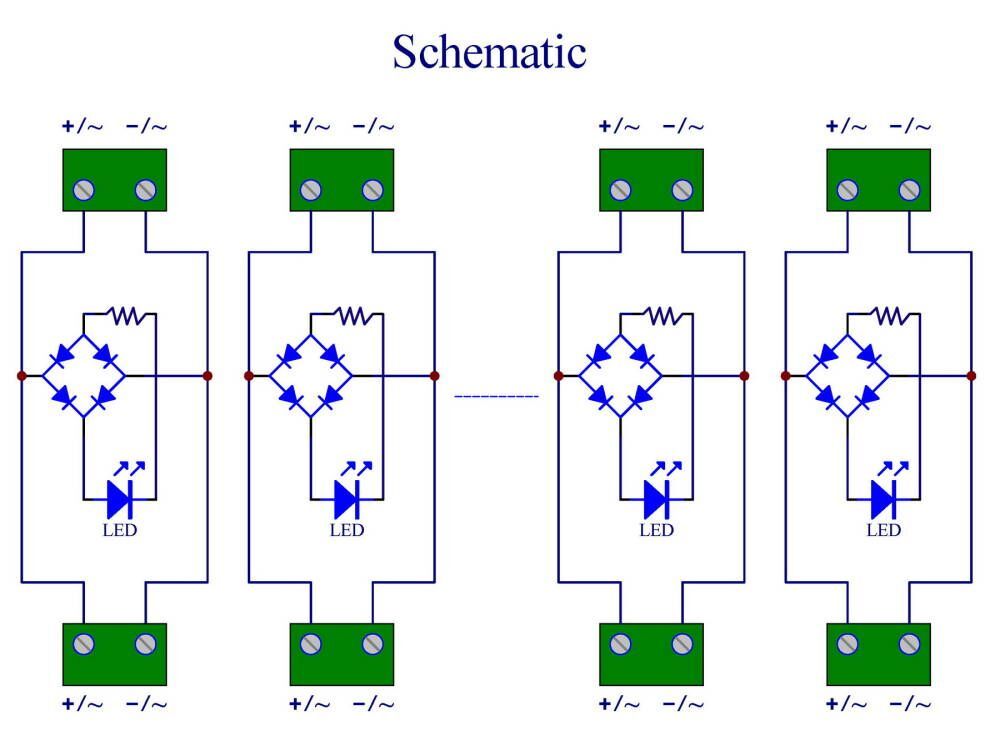

Operating voltage: AC or DC 5 to 32V (when working in AC mode, you don't need to care about the terminal polarity +/-, and the two AC wires can be connected freely).
Terminals block: pitch 7.62mm/0.3", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
UL CE certified nylon material mount carrier. FR-4 fiberglass material PCB, UL 94-V0 certified PCB. UL CE CQC certified terminal blocks.
