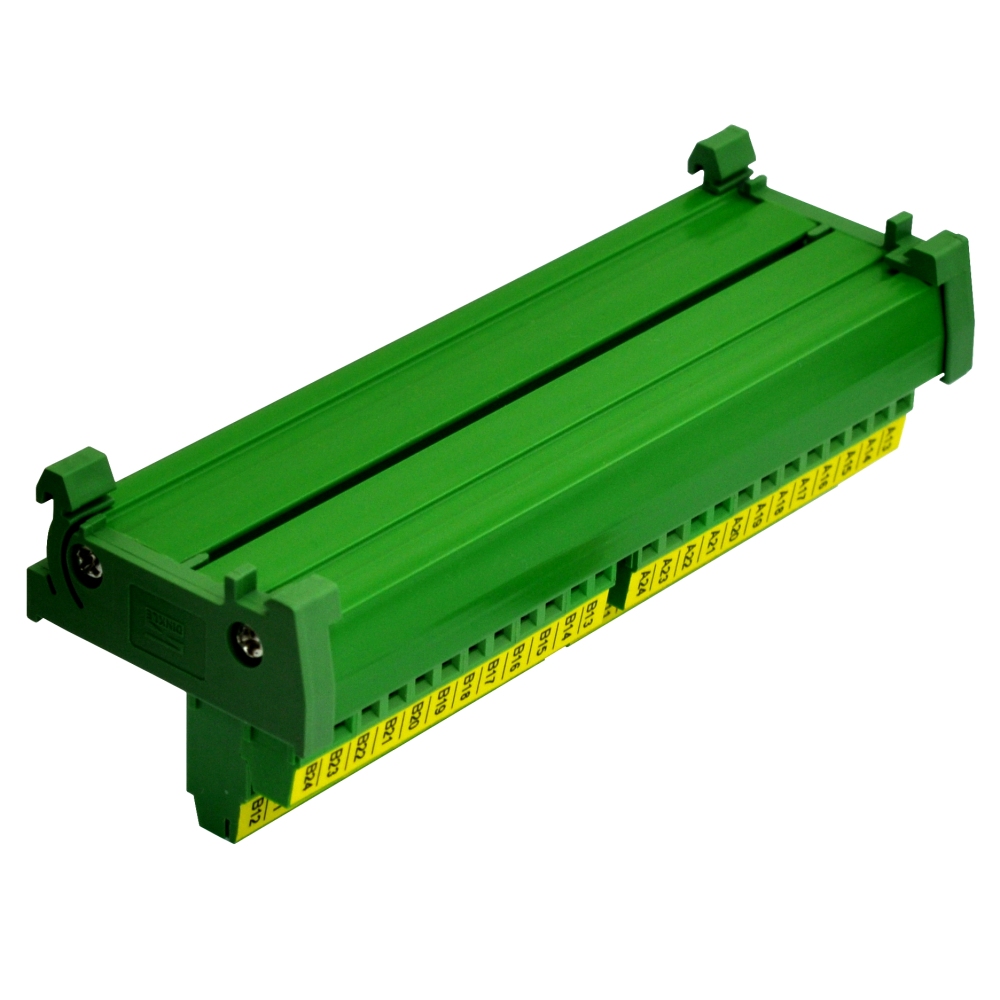

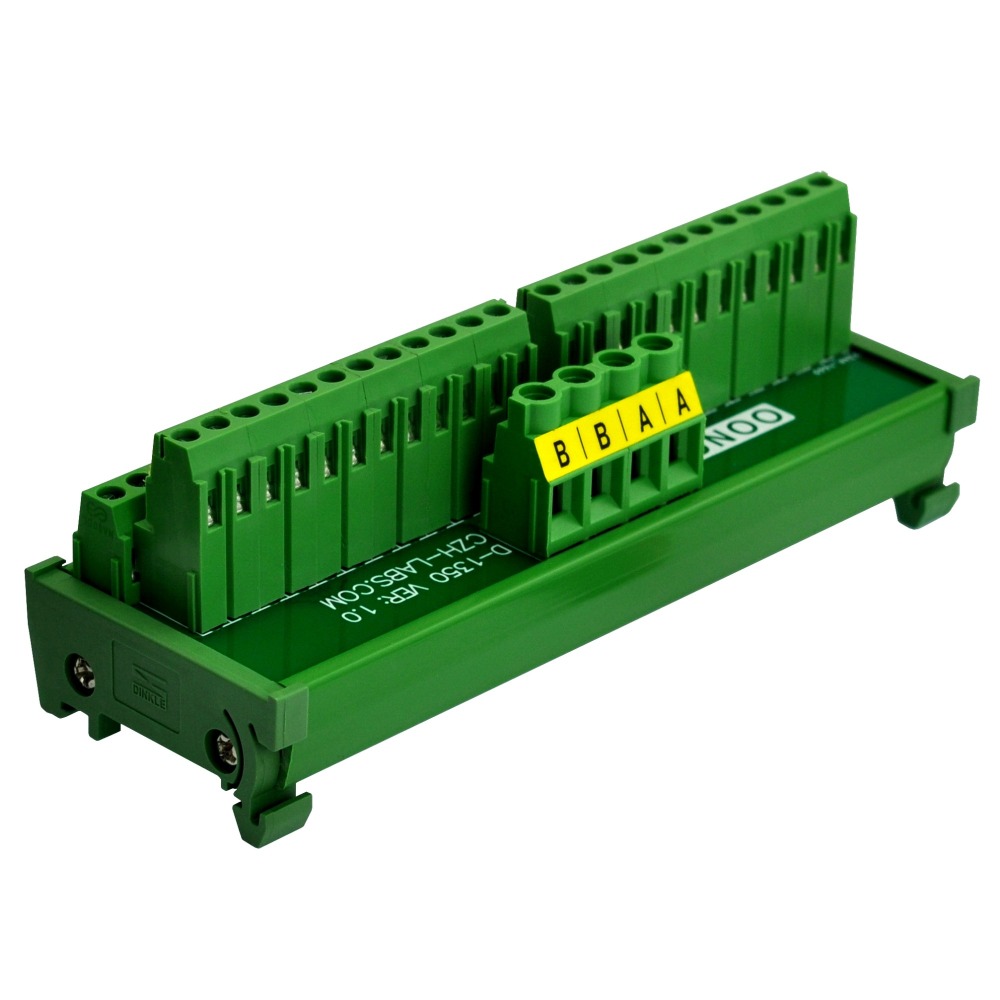

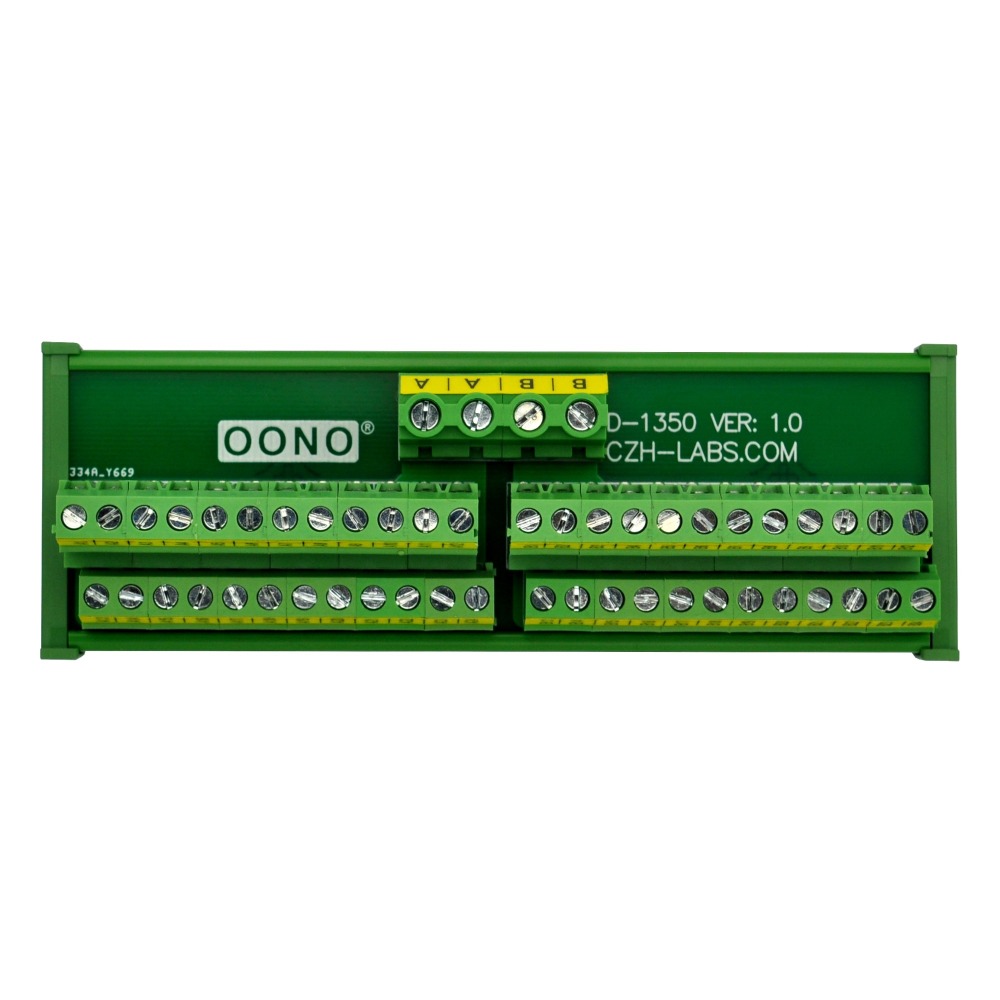

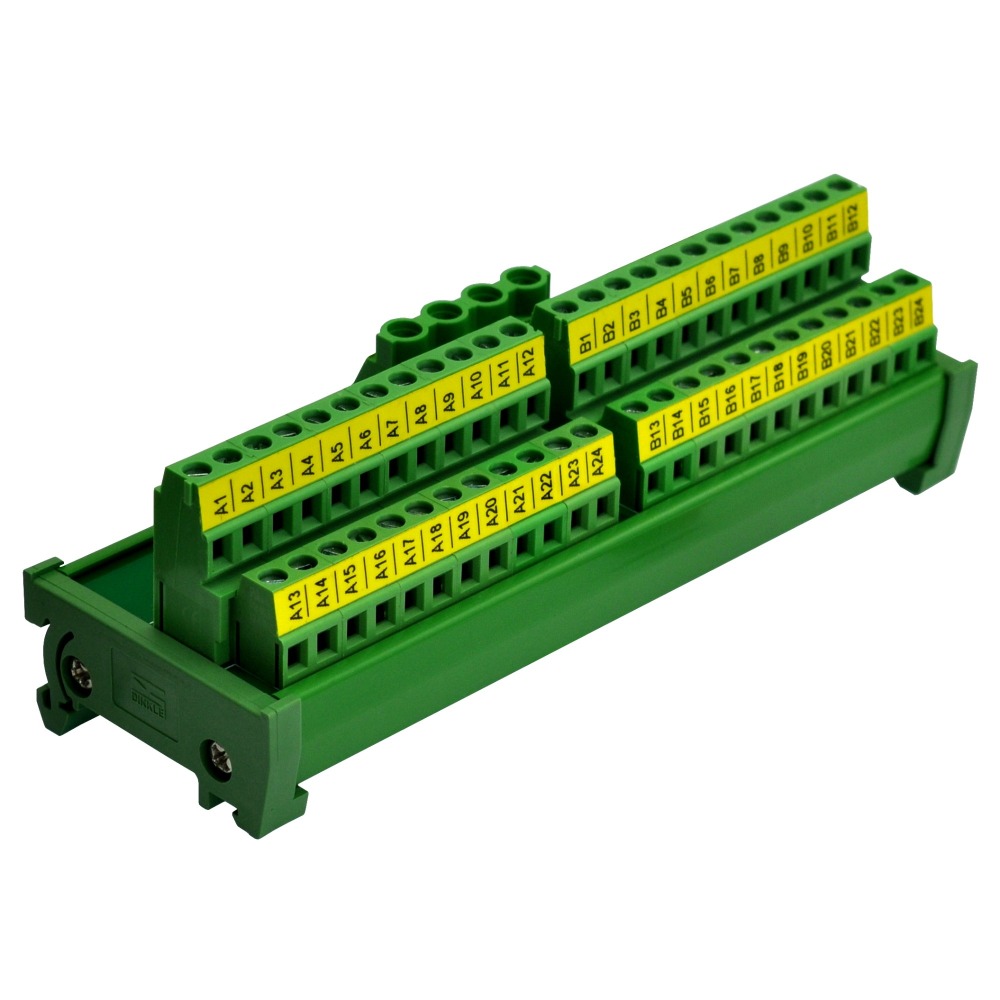

DIN Rail Mount 2x24 Position Screw Terminal Block Power Distribution Module

SKU: D-1350T
0.0 (0)
1 Sold
$25.00 $25.00
DIN Rail Mount 2x24 Position Screw Terminal Block Power Distribution Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
Quantity:
0 in stock
1 * $25 = $25
save $0.00
Add to Favorites (1)
  • DIN Rail Mount 2x24 Position Screw Terminal Block Power Distribution Module
  • DIN Rail Mount 2x24 Position Screw Terminal Block Power Distribution Module
  • DIN Rail Mount 2x24 Position Screw Terminal Block Power Distribution Module
  • DIN Rail Mount 2x24 Position Screw Terminal Block Power Distribution Module
  • DIN Rail Mount 2x24 Position Screw Terminal Block Power Distribution Module
  • DIN Rail Mount 2x24 Position Screw Terminal Block Power Distribution Module
  • DIN Rail Mount 2x24 Position Screw Terminal Block Power Distribution Module
  • Description

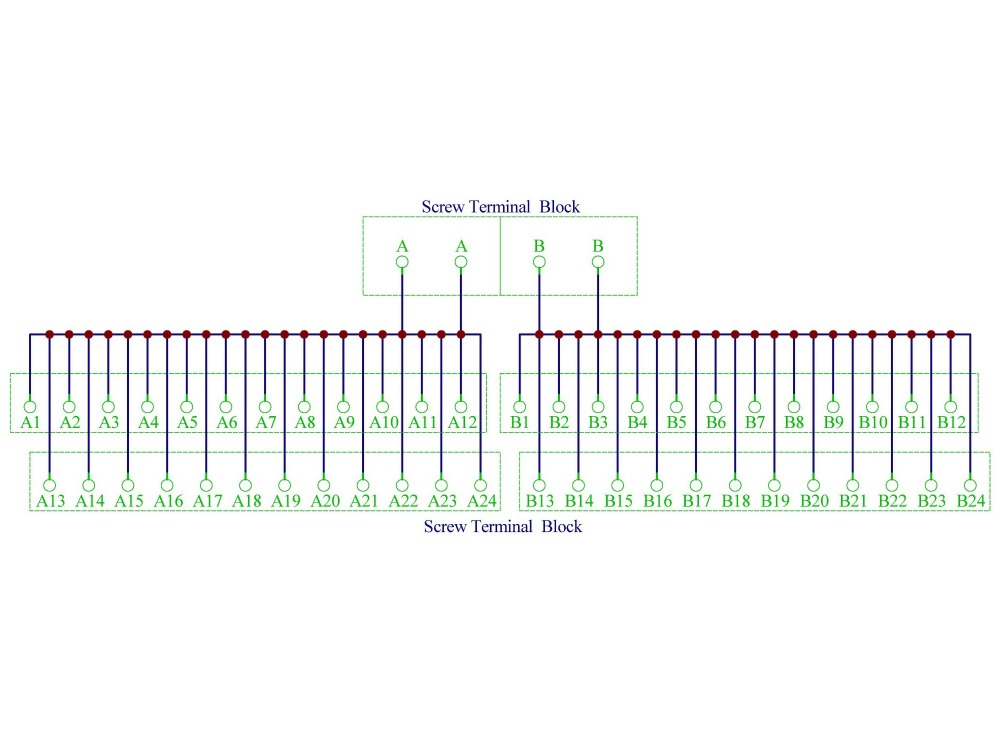

1, Maximum Voltage: 250Vac/dc, Maximum Current Rating 40A(per channel).
2, Input terminals(A, B): pitch - 7.62mm/0.3", current 30A for per position(total 40A for A or B channel), wire size 26~10 AWG / 4.0mm square, stripping length 8mm, Metric M3 slotted screw.
3, Output terminals(A1~A24, B1~B24): pitch - 5.08mm/0.2", current 16A for per position(total 40A for A or B channel), wire size 28~12 AWG / 2.5mm square, stripping length 7mm, Metric M2.5 slotted screw.
4, FR-4 fiber glass PCB, dual copper layers.

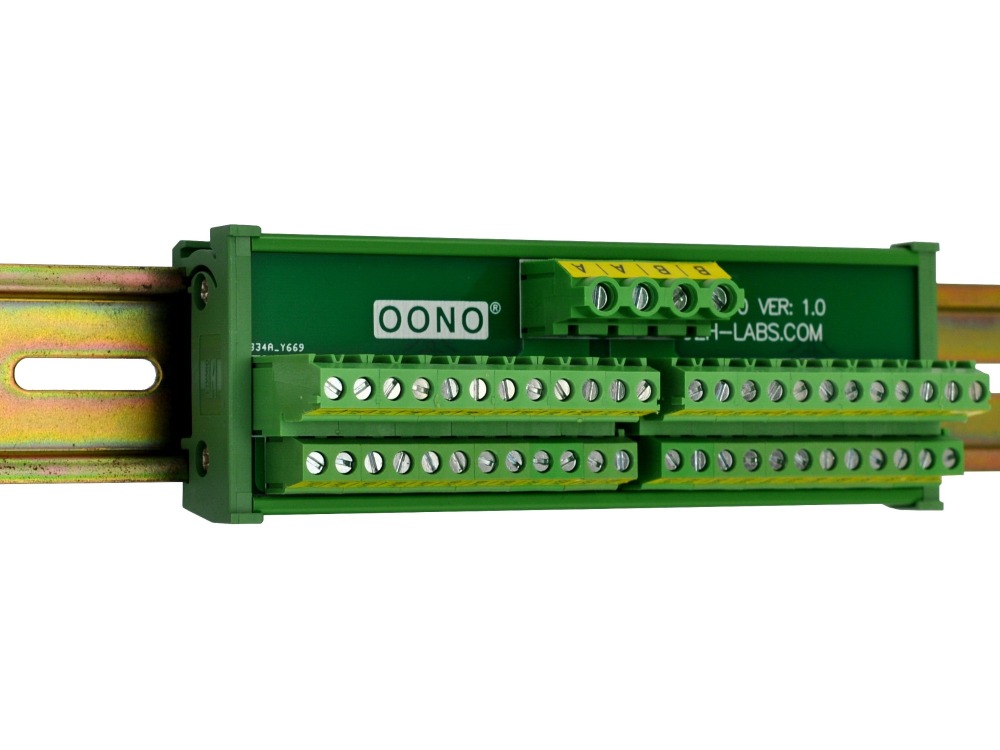

5, High quality Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
