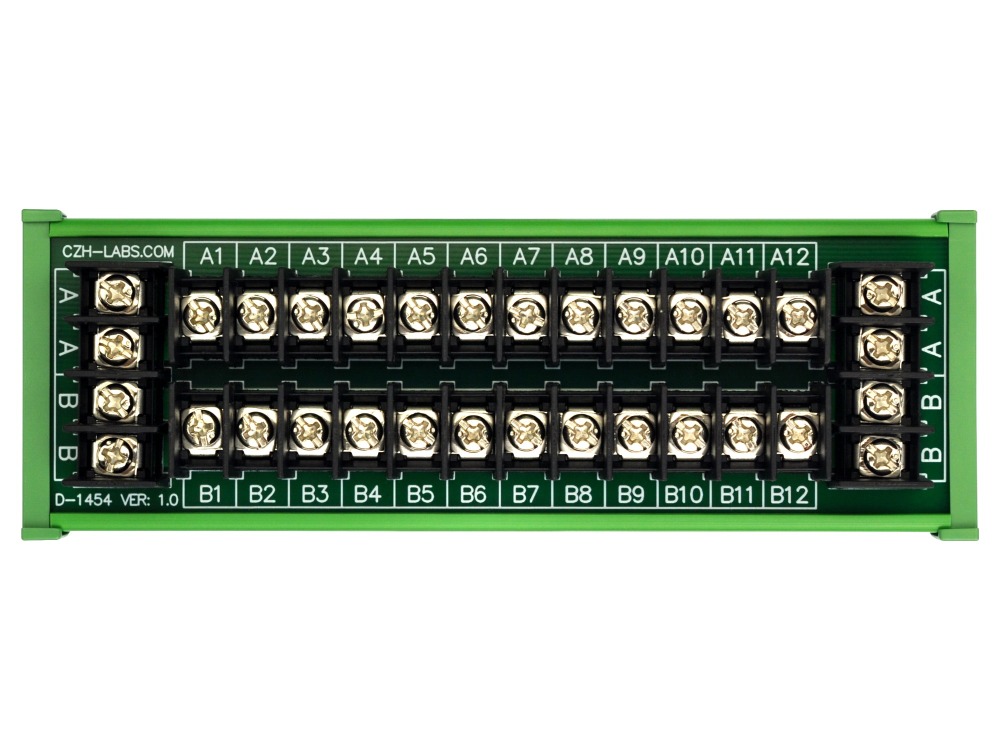

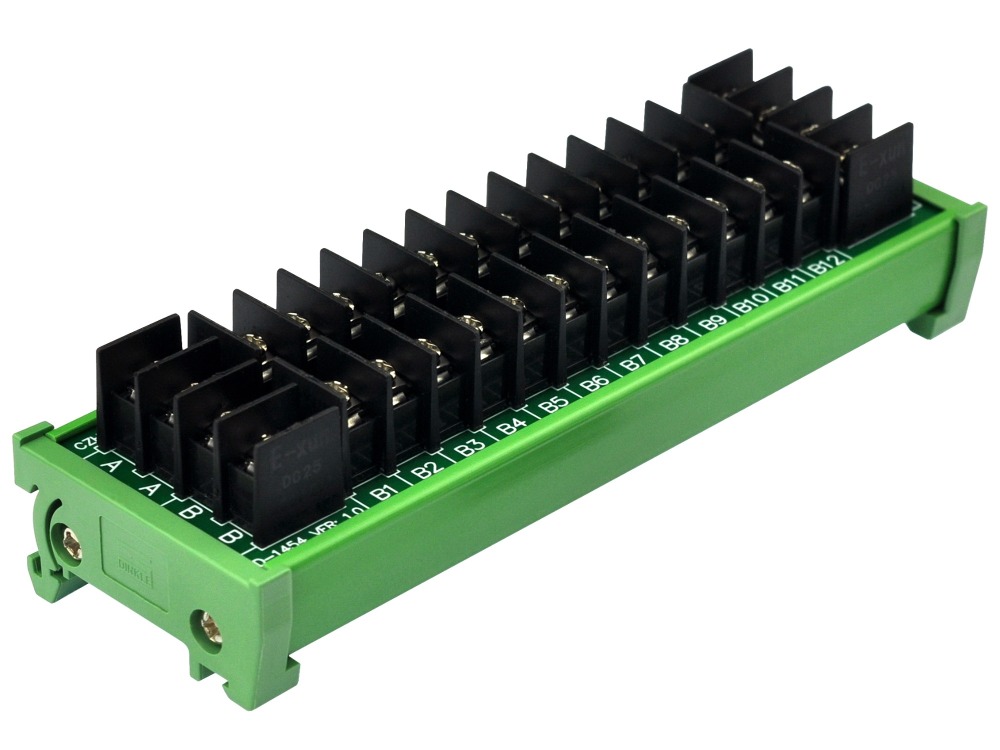

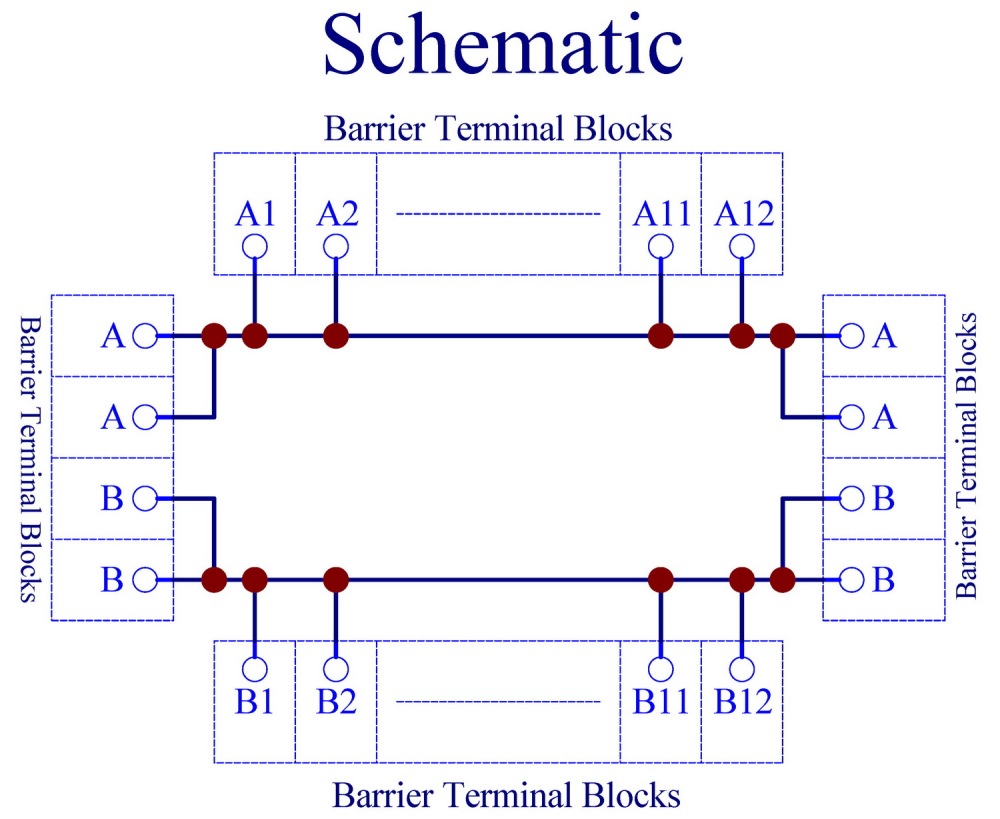

DIN Rail Mount 20Amp 2x12 Position Barrier Terminal Block Power Distribution Module

1, 20Amp 2x12 position barrier terminal block power distribution module. DIN rail mount version.

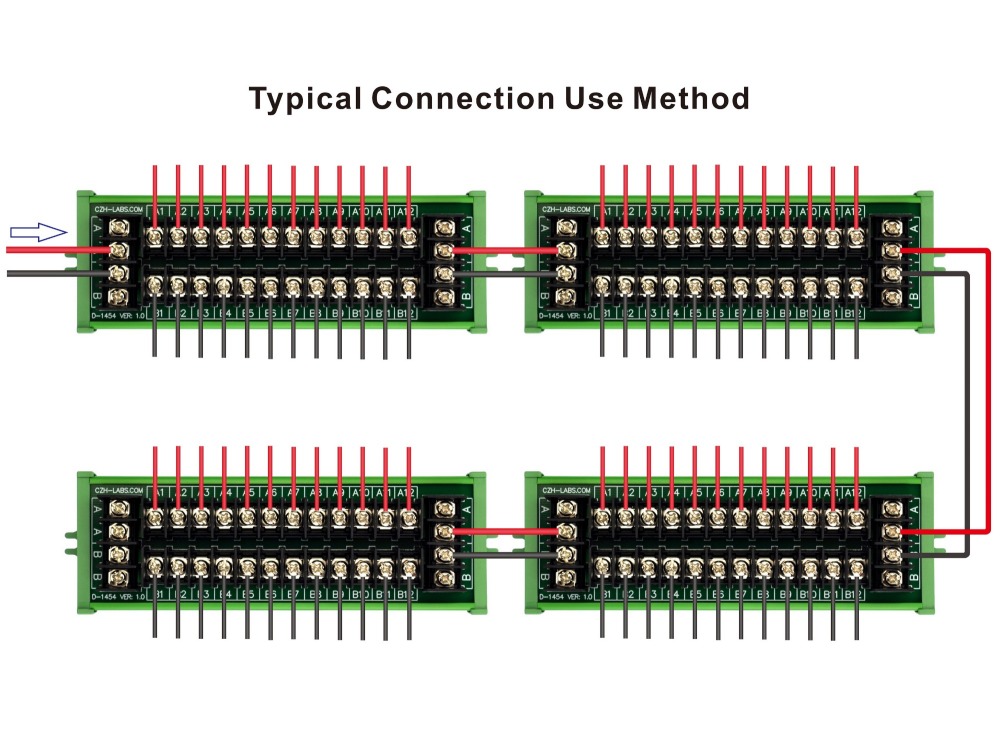

2, Maximum input voltage 300V, maximum total input current 30A(one position maximum current 20A). Maximum total output current 30A(one position maximum current 20A). Support power supply expansion connect to other modules.

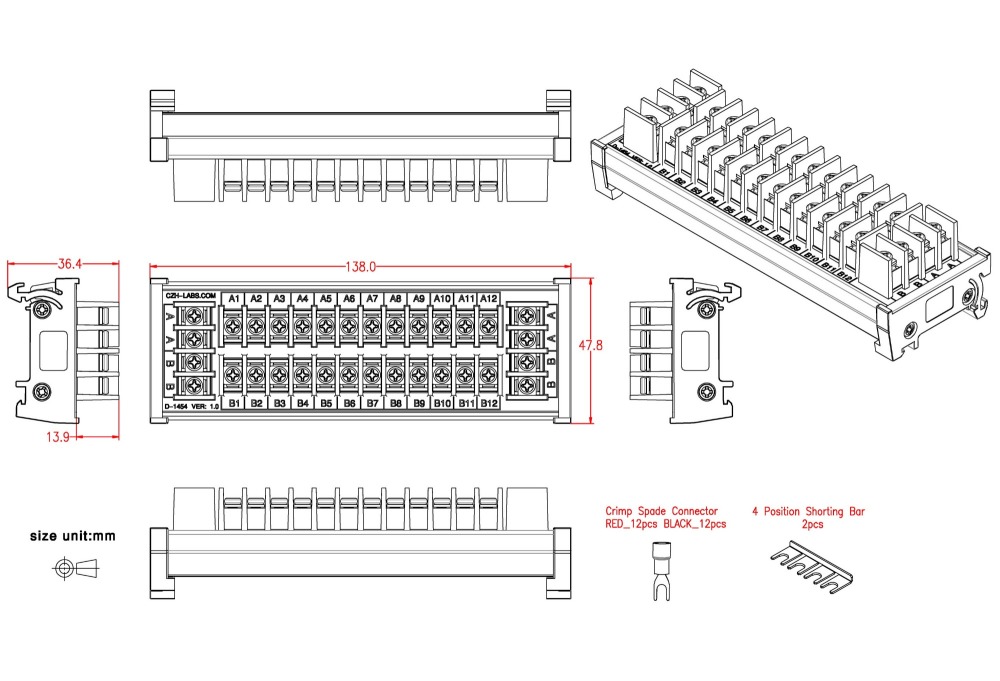

3, Barrier terminal blocks: pitch 7.62mm / 0.3 inch, screw Metric M3(thread diameter 3mm).

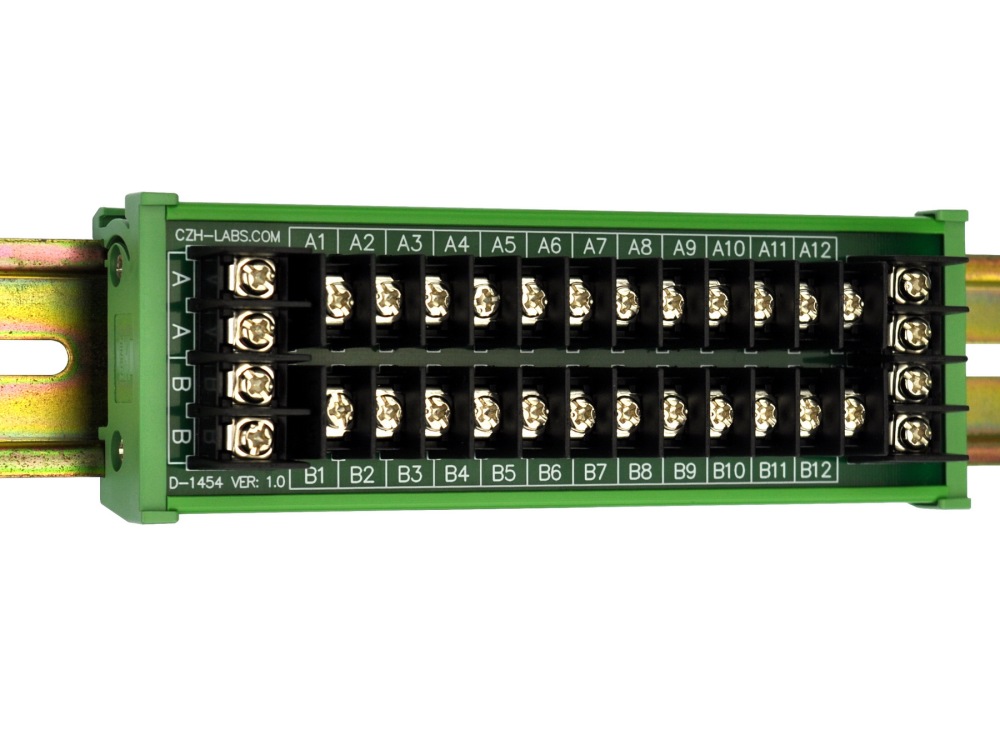

4, Taiwan high quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. FR-4 glass fiber PCB.

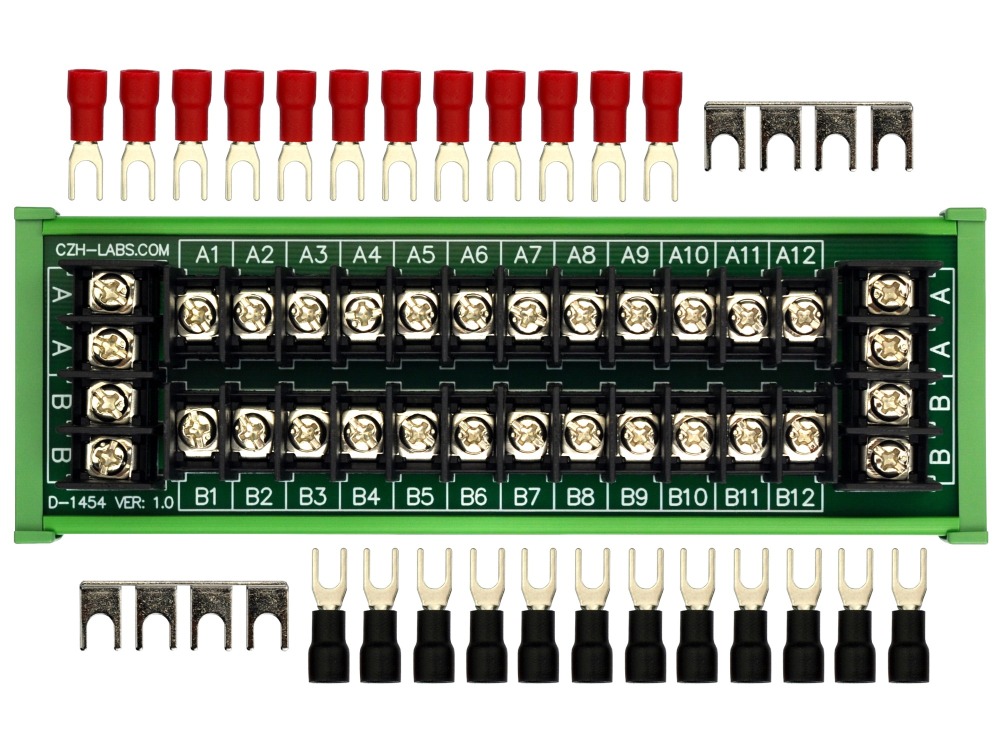

5, Packing list:
    1x Barrier terminal block module.
    12x Red crimp spade connectors(26AWG ~ 12AWG / 2.5mm square).
    12x Black crimp spade connectors(26AWG ~ 12AWG / 2.5mm square).
    2x 4-Position shorting bars(It is convenient for you to flexibly short-circuit the wiring. For example, short-circuit the A to B positions).
