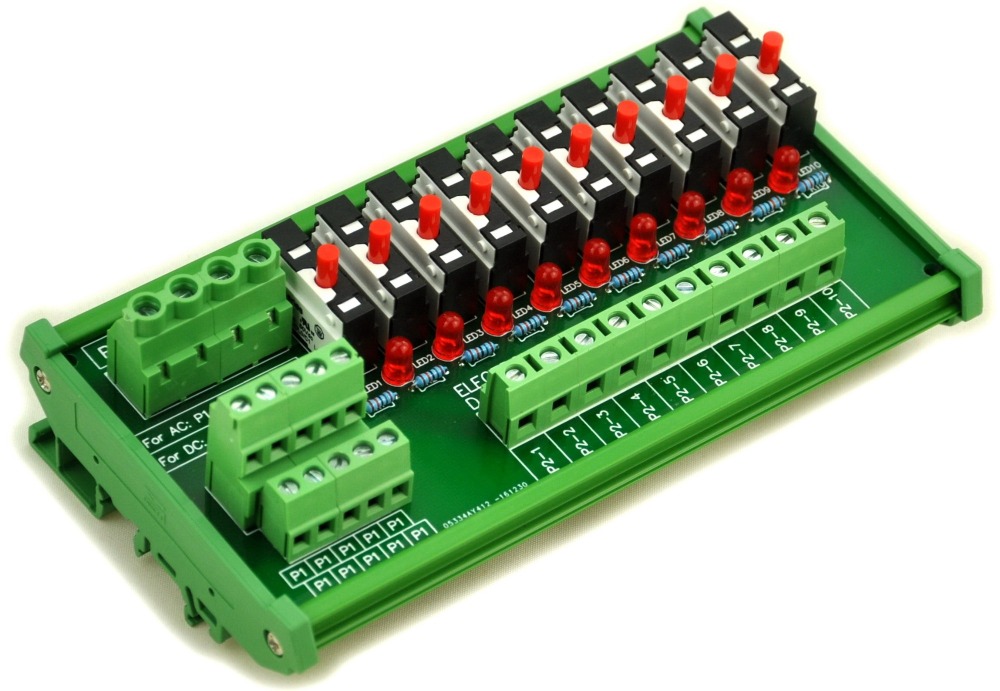

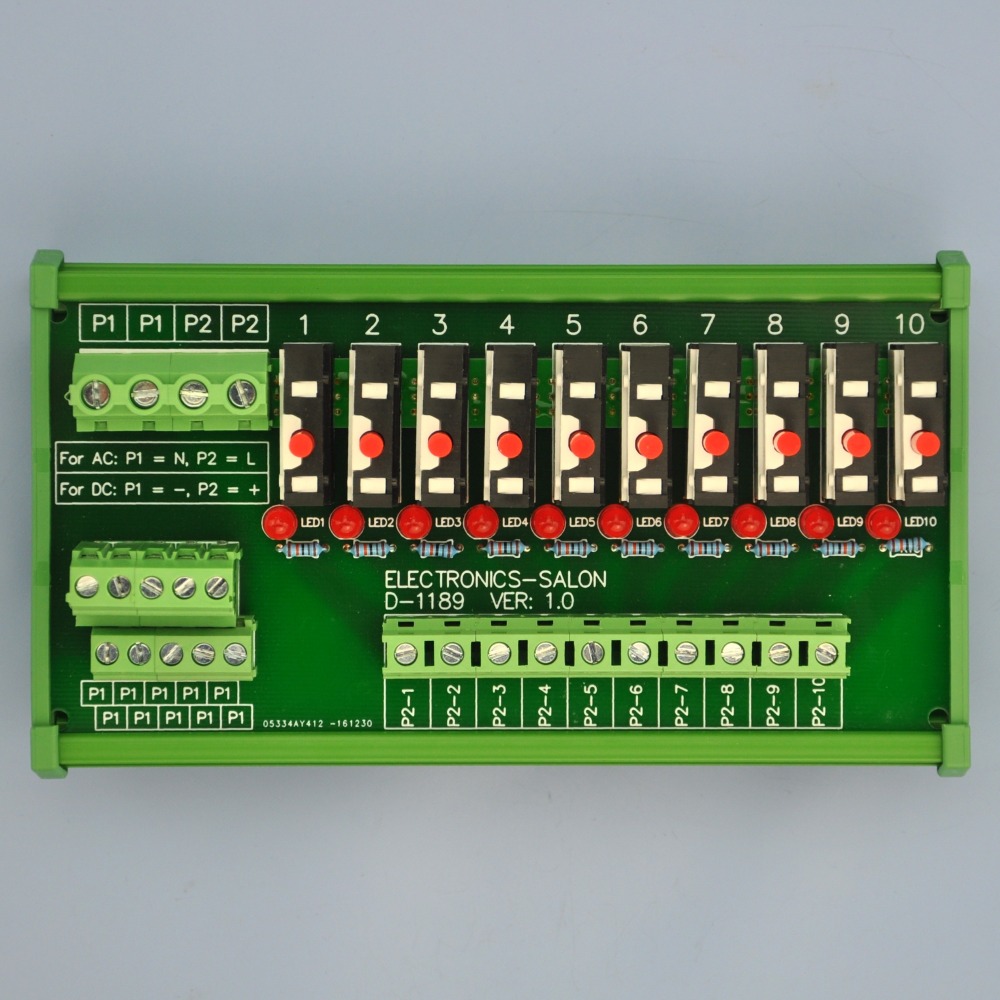

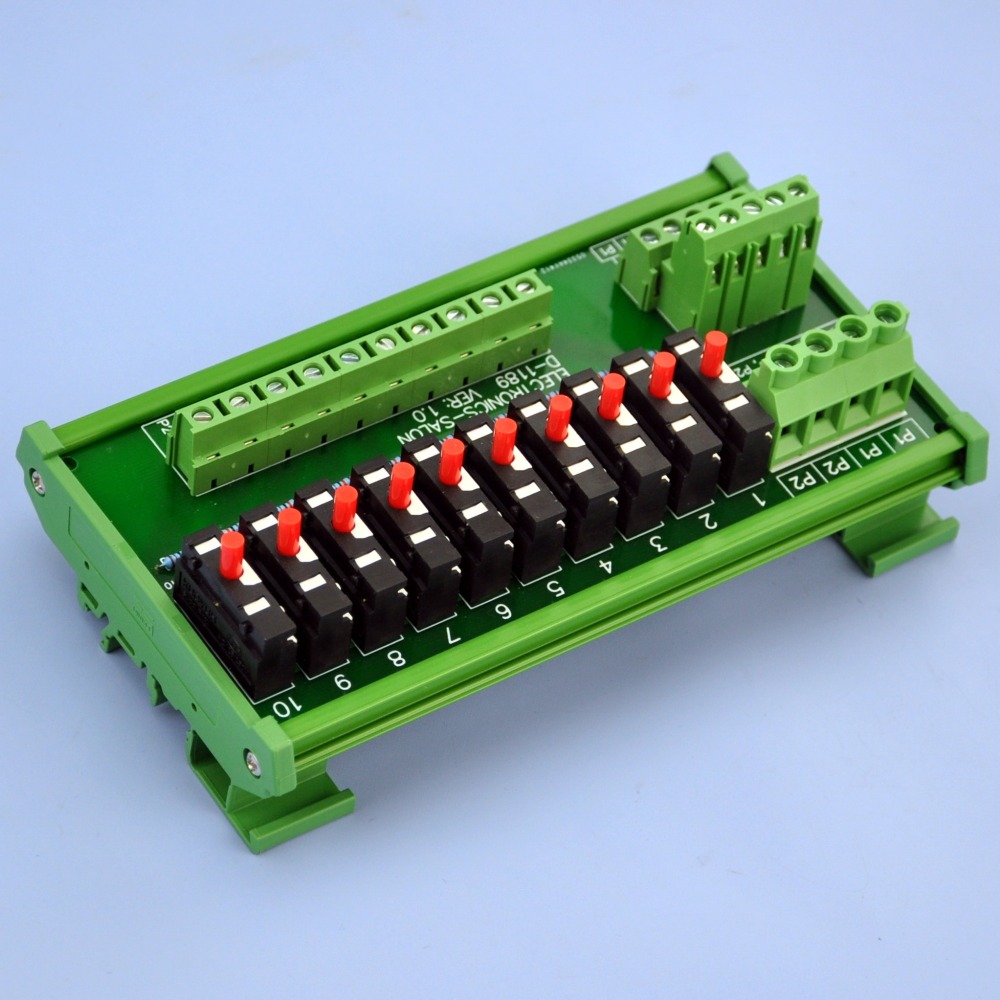

DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.

SKU: D-1189T
$63.00 $63.00
ELECTRONICS-SALON DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $63 = $63
save $0.00
Add to Favorites
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
1/1
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.
  • Description

DIN Rail Mount 10 Position Thermal Circuit Breaker Power Distribution Module.

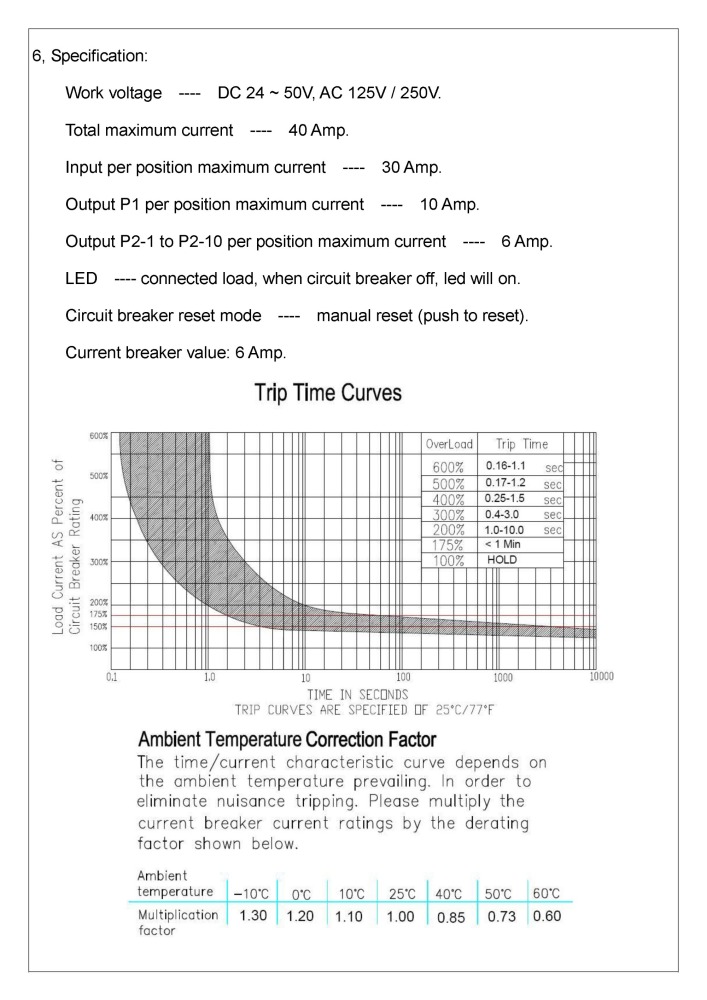

Specification:
Work voltage ---- DC 24 ~ 50V, AC 125V / 250V.
Total maximum current ---- 40 Amp.
Input per position maximum current ---- 30 Amp.
Output P1 per position maximum current ---- 10 Amp.
Output P2-1 to P2-10 per position maximum current ---- 6 Amp.
LED ---- connected load, when circuit breaker off, led will on.
Circuit breaker reset mode ---- manual reset (push to reset).
Current breaker value: 6 Amp.

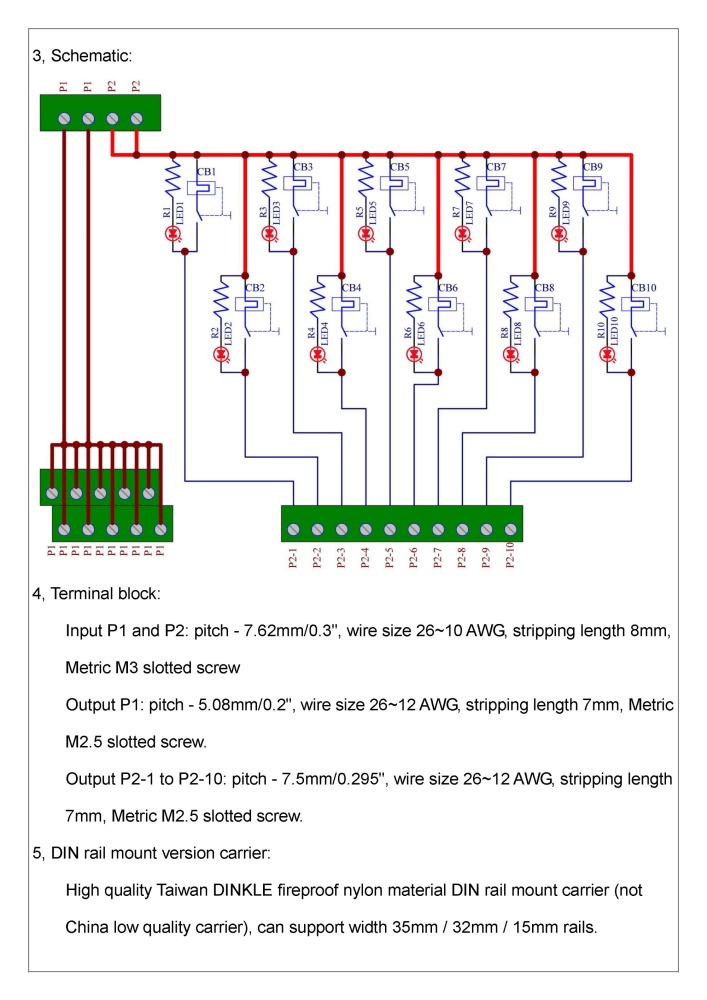

Terminal block:
Input P1 and P2: pitch - 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw
Output P1: pitch - 5.08mm/0.2", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
Output P2-1 to P2-10: pitch - 7.5mm/0.295", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

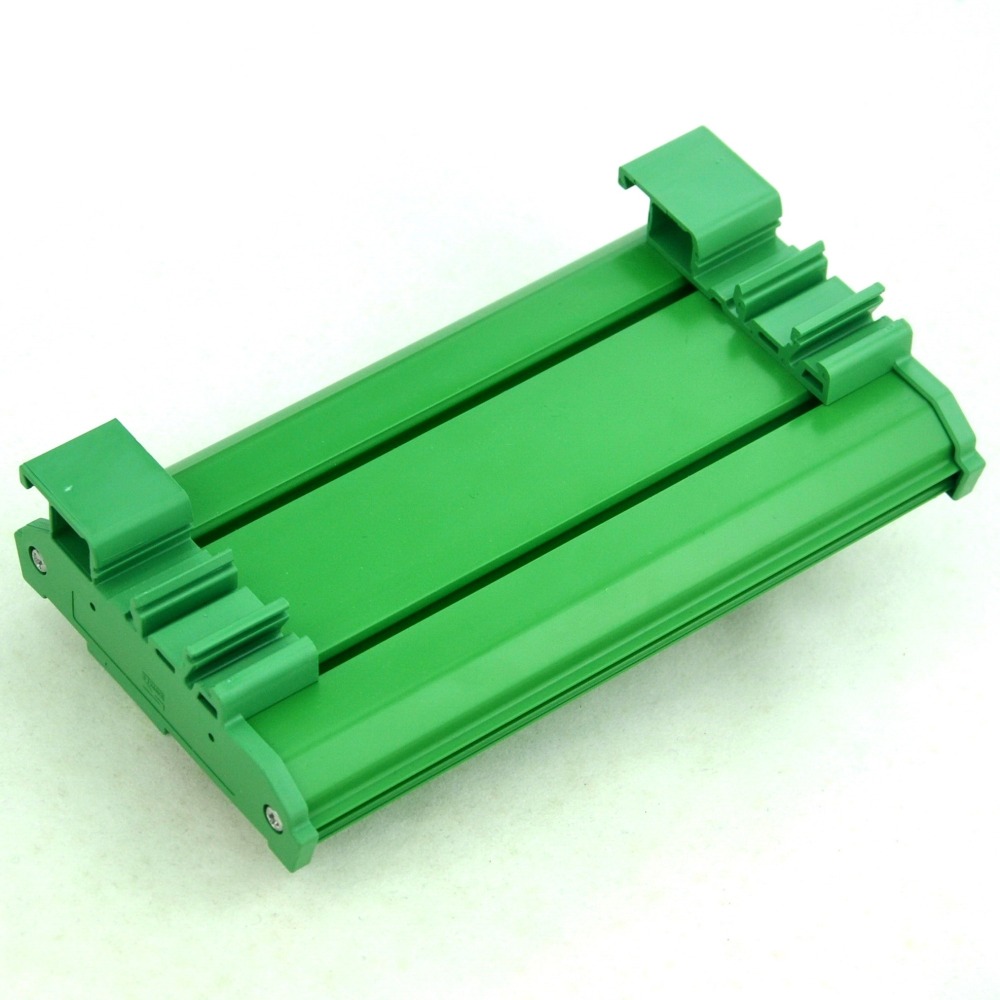

DIN rail mount version carrier:
High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rails.
