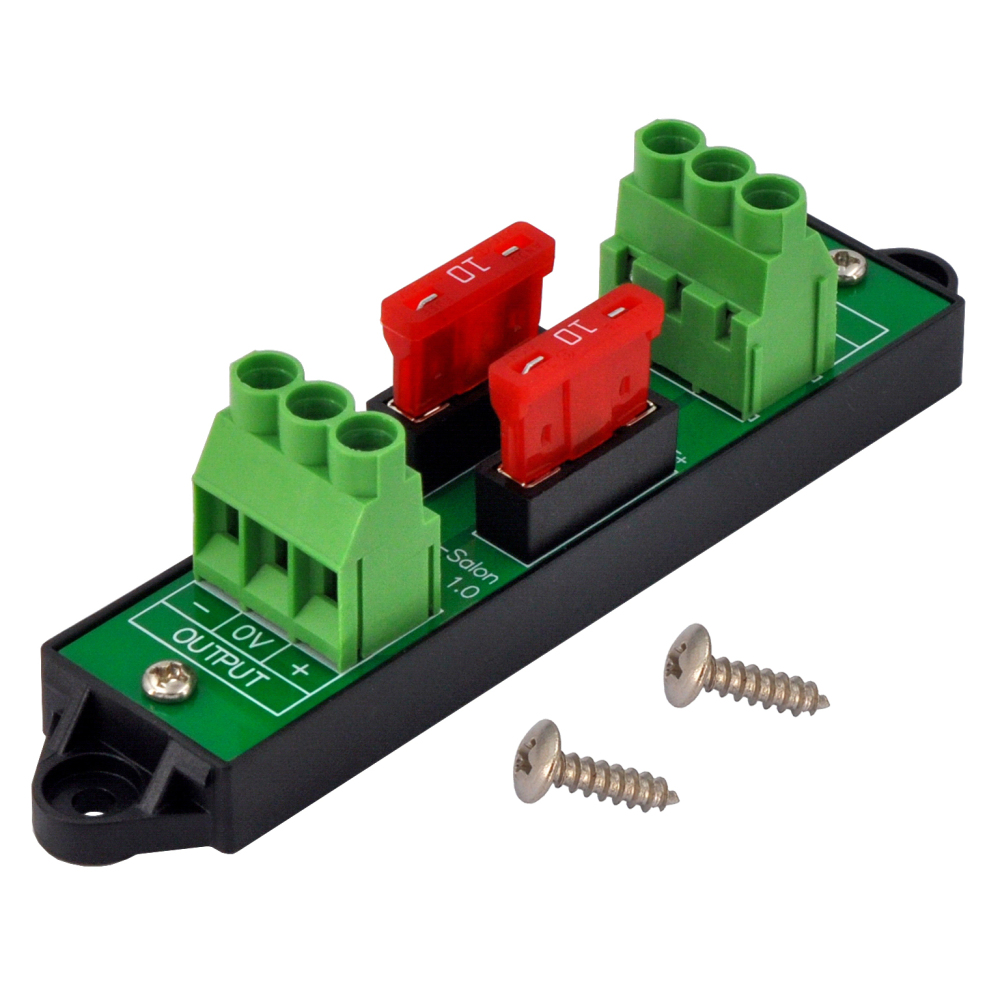

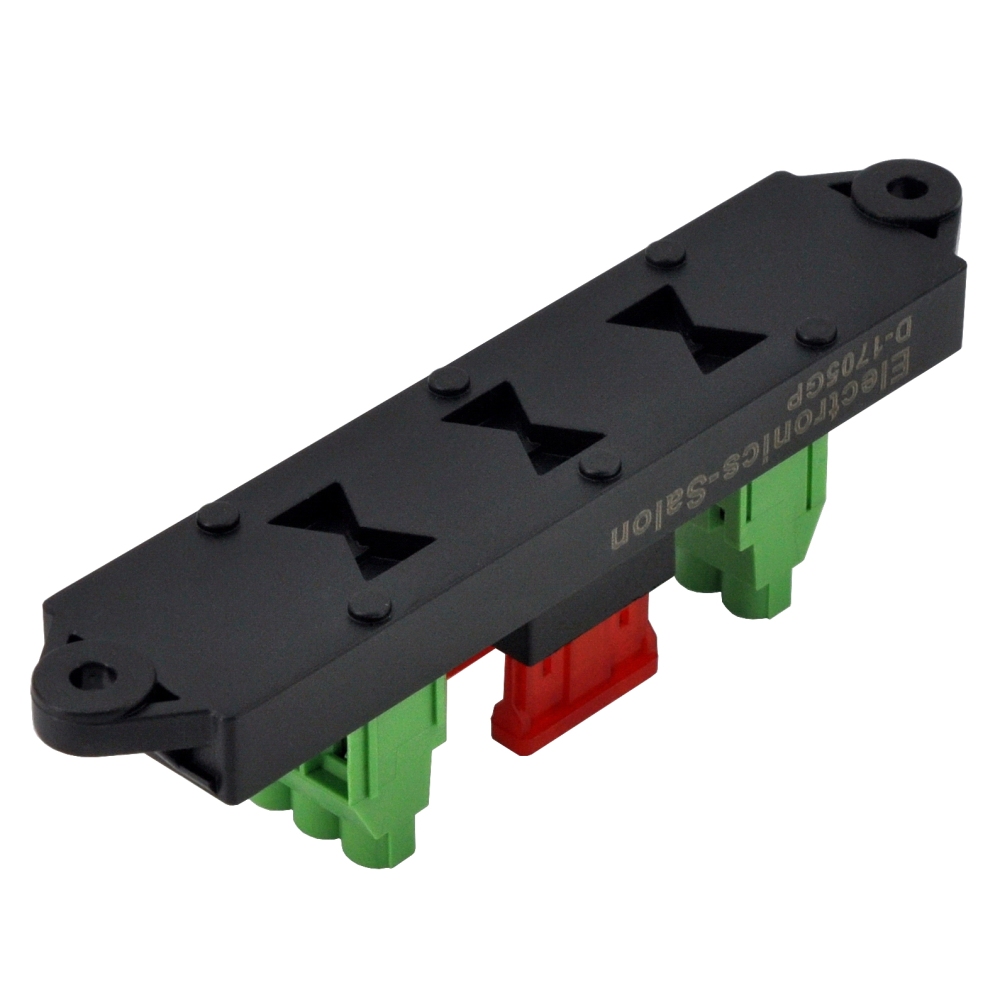

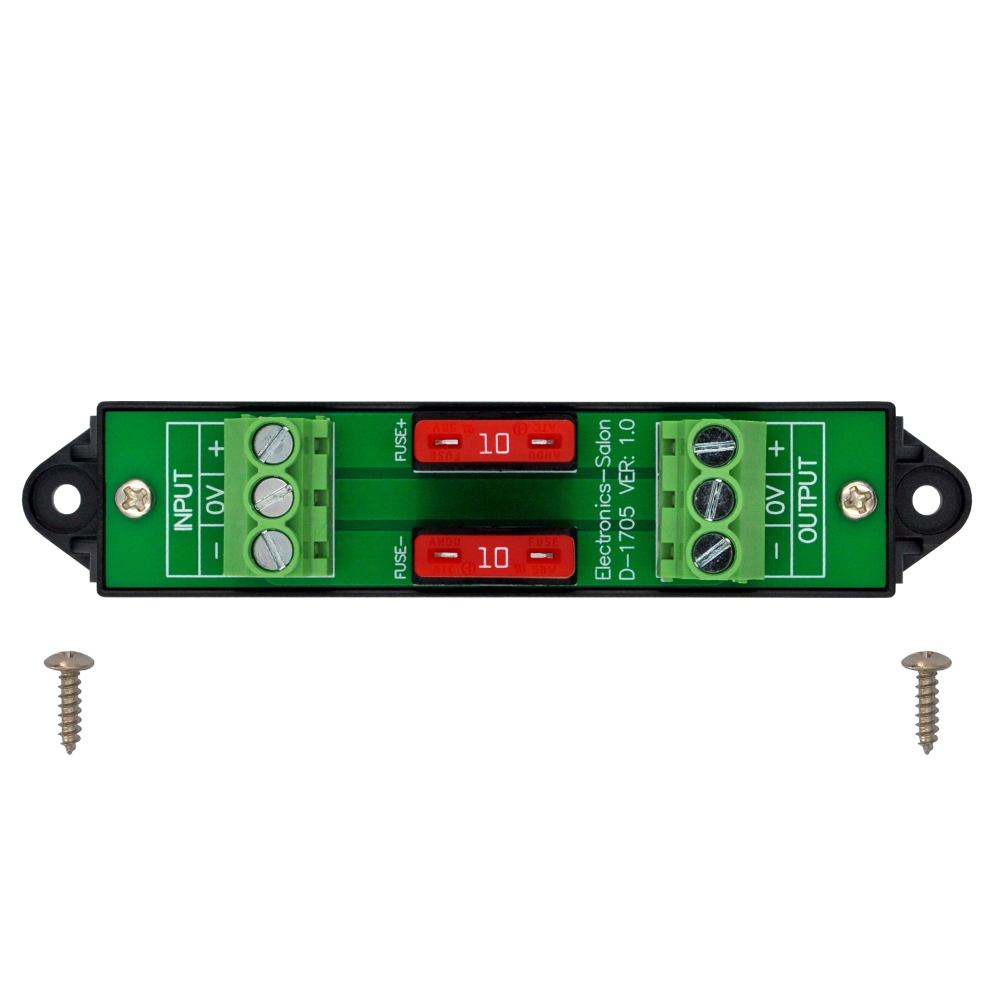

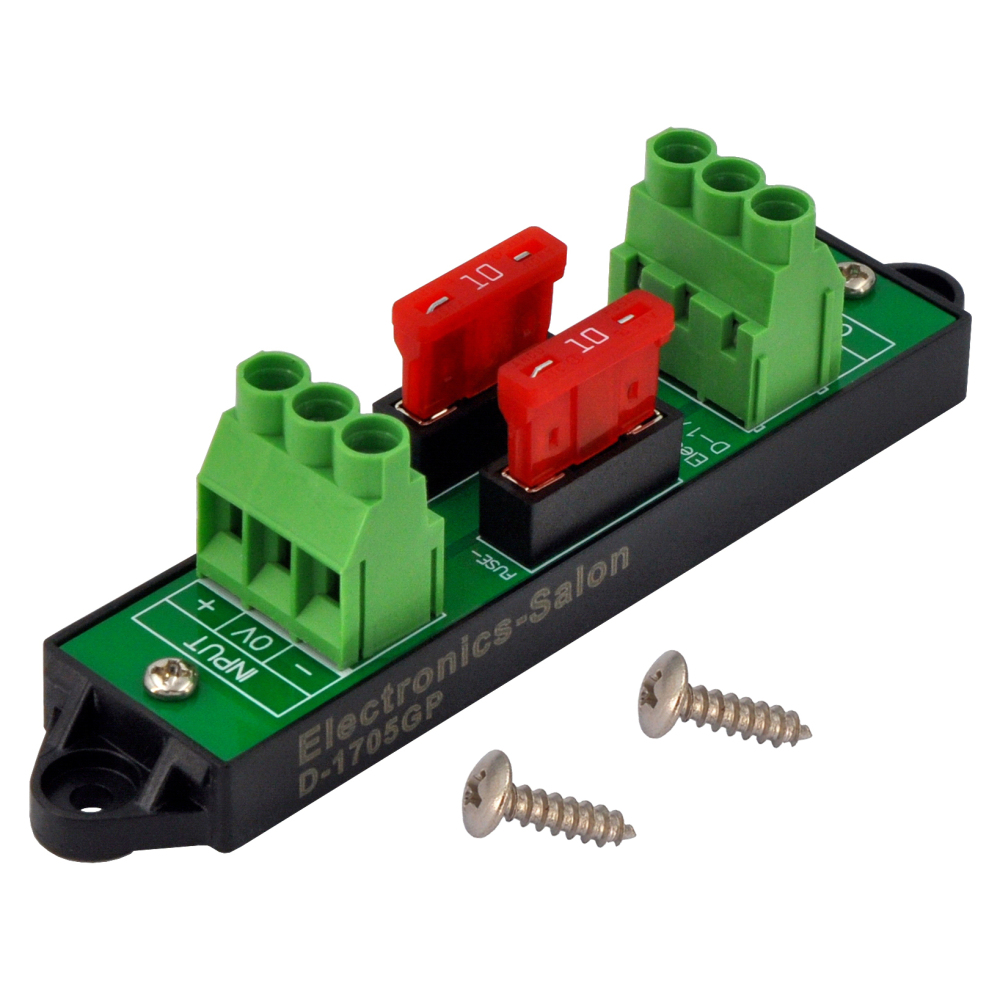

DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP

SKU: D-1705GP
$15.00 $15.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $15 = $15
save $0.00
Add to Favorites
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
1/1
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
  • Description

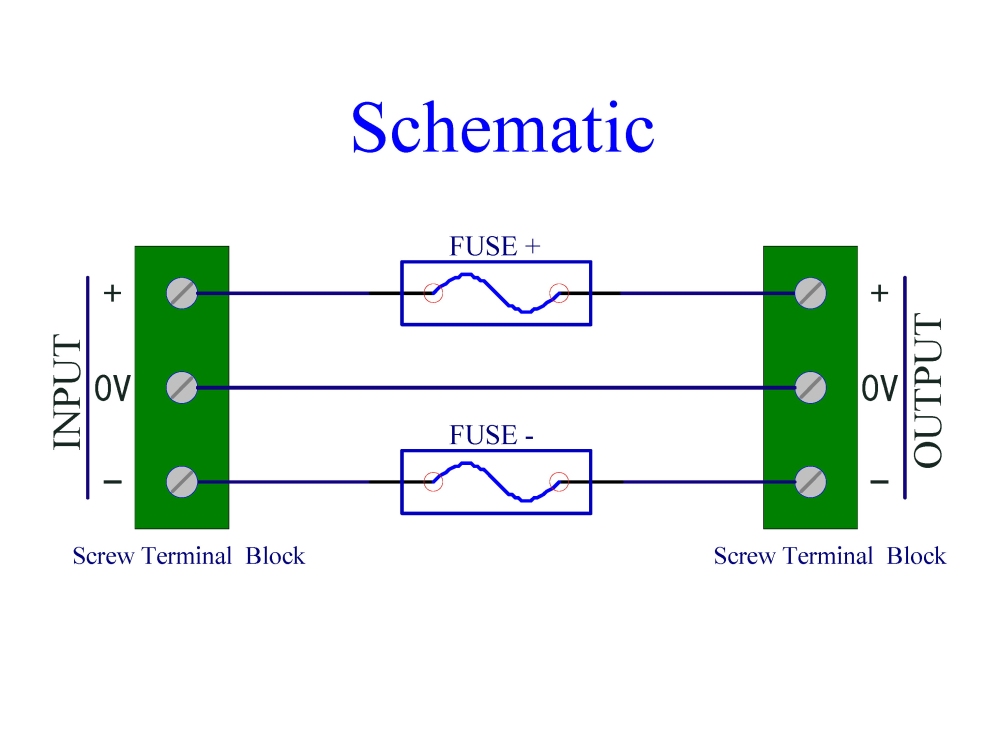

1, DC +/- Dual Channel 5 to 58V 10Amp ATO Fuse Moudle, Screw Mount, D-1705GP
2, Rated voltage +/- DC 58V. Raterd current 10 Amp.
3, Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 10 Amp. The fuse can be replaced very easily, you can replace these fuses with current ranges of 1-30 Amp, but not exceeding 30 Amp.

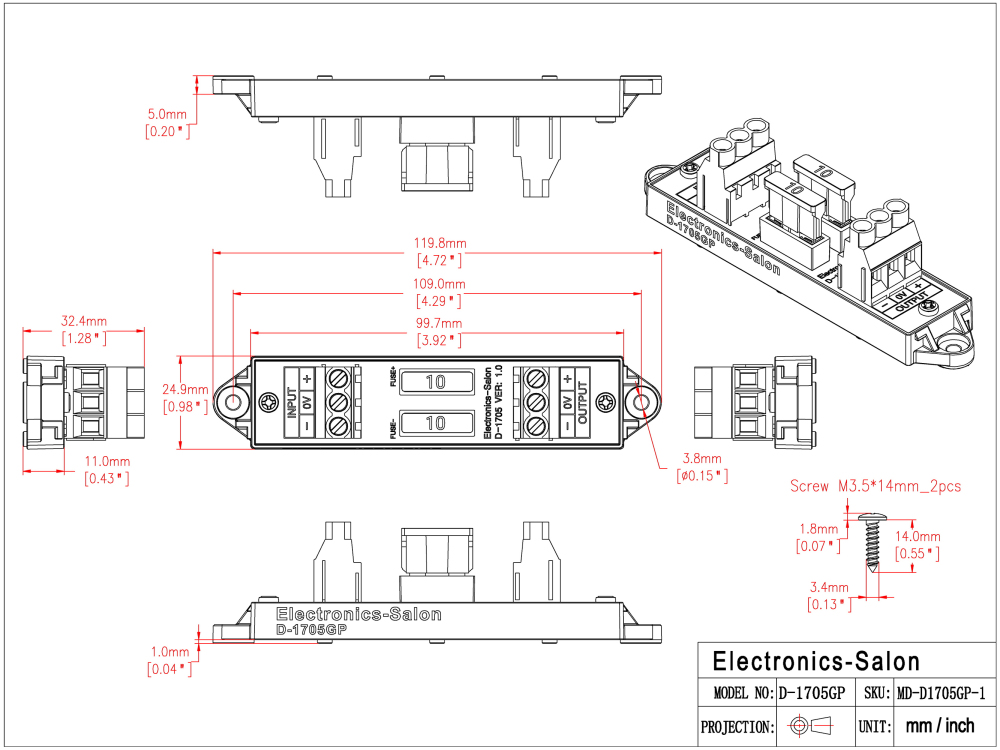

4, ​​​​​Terminal Block: Maximum current 30 Amp. Pin pitch 6.35mm/0.25", wire size 26 - 10 AWG / 4 square milliseconds, stripping length 8mm, Metric M3 slotted screw.
5, UL CE CQC certified terminal blocks. UL certified fuse. UL CE certified FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.
6, Operating Temperature: -40 to 105C.


Download
