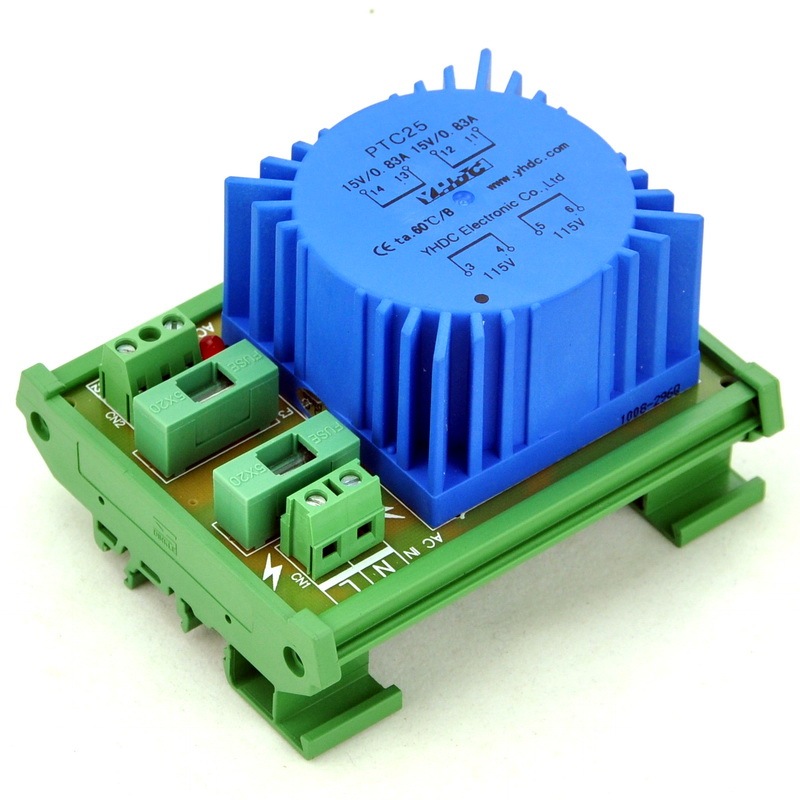

CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.

SKU: D-1004T/M
$66.99 $66.99
CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $66.99 = $66.99
save $0.00
Add to Favorites
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
1/1
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • CZH P 115VAC, S 15VAC, 25VA DIN Rail Mount Toroidal Power Transformer Module.
  • Description
25VA Toroidal Power Transformer Module.
Primary input: 105~125VAC 50/60Hz.
Secondary output voltage/current: 15VAC / 1660mA.
Part number: D-1004T/M

Feature:

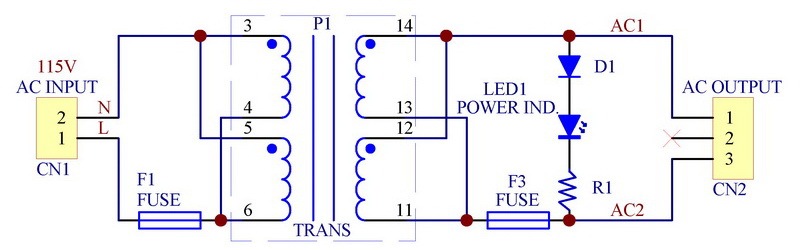

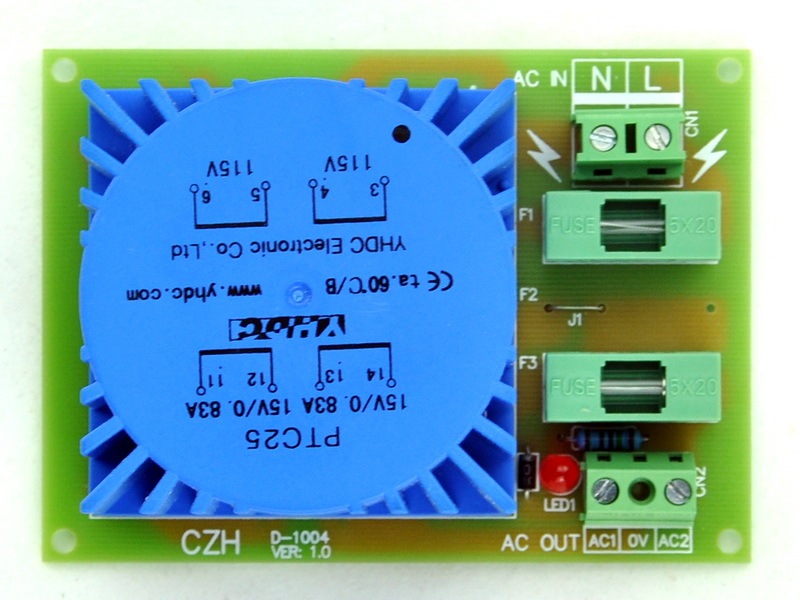

With primary and secondary fuses, fuse holder easy to replace the fuse.
Epoxy resin encapsulated safety isolating toroidal transformer.

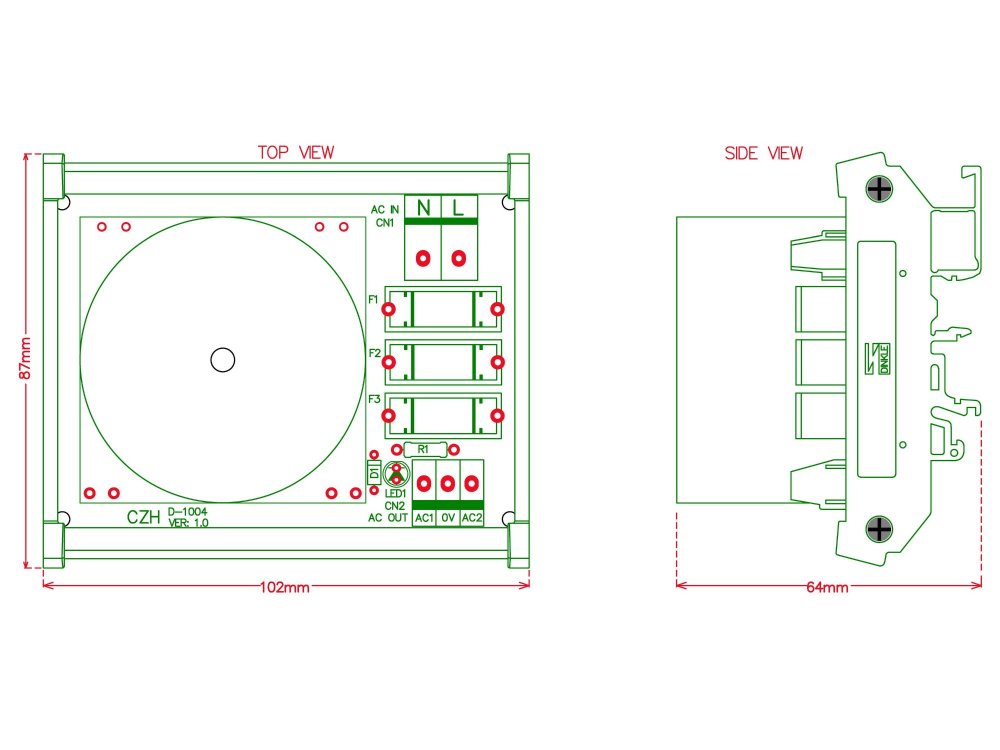

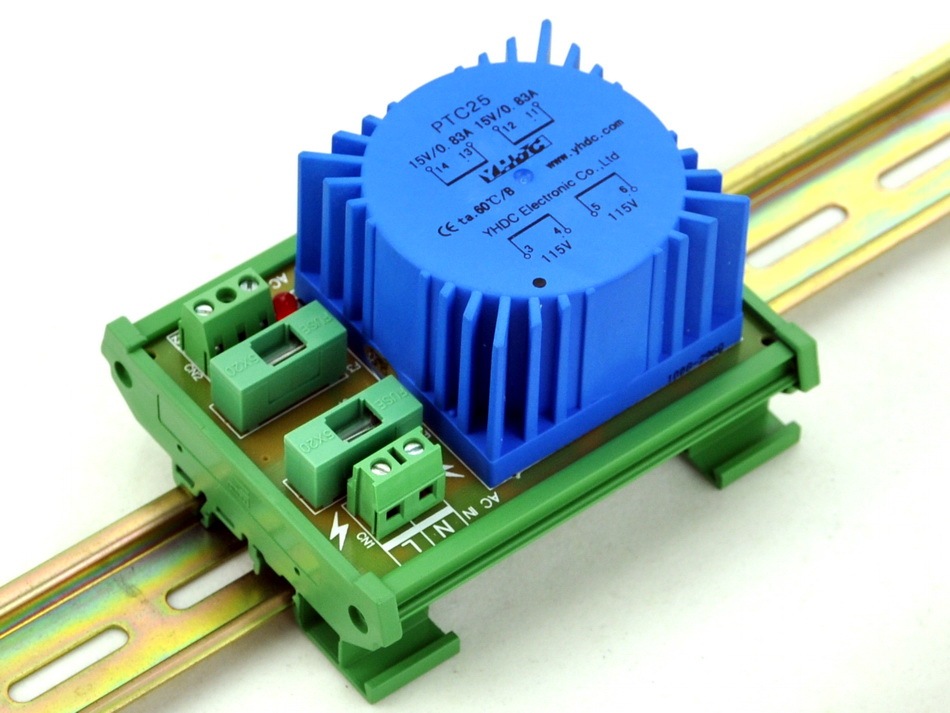

High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails.
DIN mount carrier can be taken apart for panel mount use.
Screw terminal block easy to connect wires.
Output power indicator LED.
Recommend for high-end audio, medical equipment, military engineering applications.

Power transformer characteristic:
Epoxy resin cast in vacuum.
Small leakage, low noise, high efficiency.
Fire resistance property in accordance with UL94-V0.
Dielectric strength: 4000V/1min.
Work frequency: 50 ~ 60Hz.
Voltage regulation: 15VA version: <=20%, 25VA version <=15%.
No-load loss: 15VA version: <=0.3VA, 25VA version <=0.5VA.
Insulation grade: grade B.
The highest use temperature: 60C.
Certification: CE RoHS CQC.
