Description

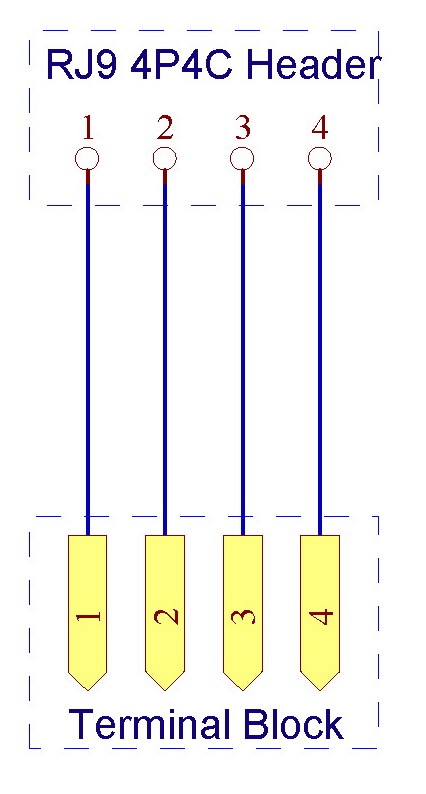

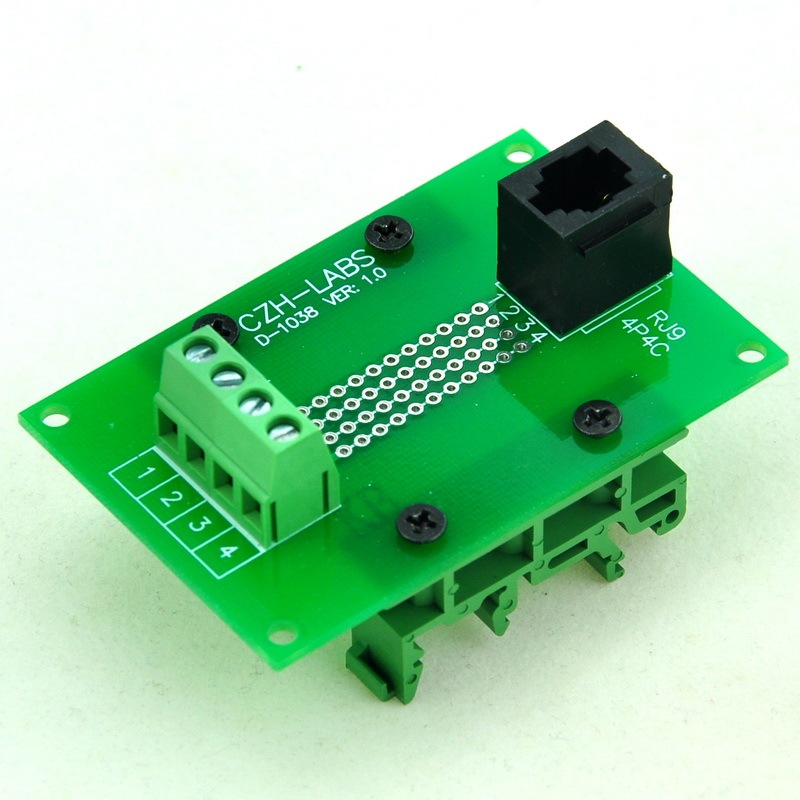

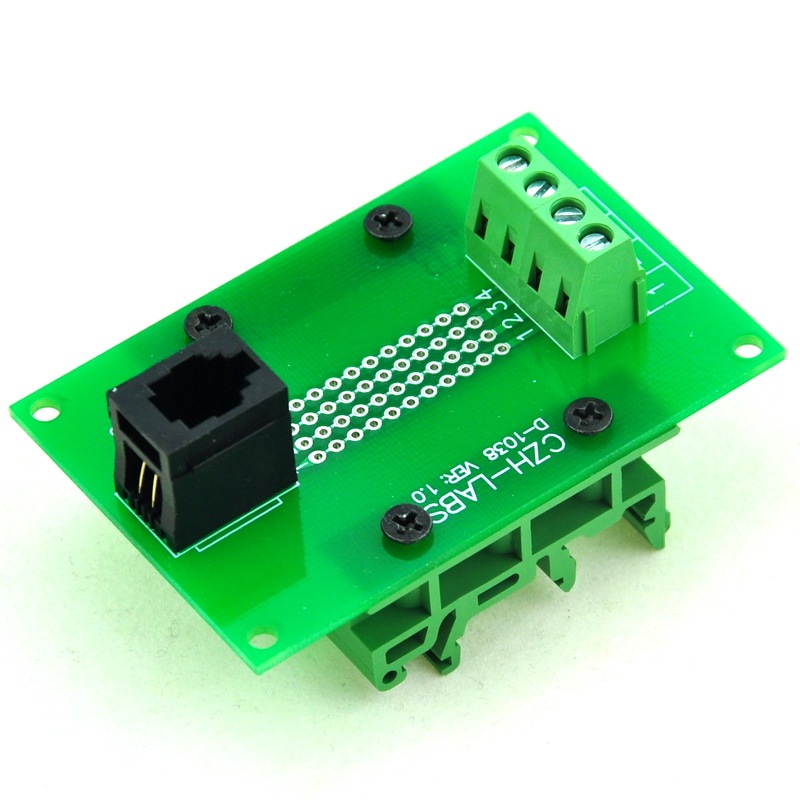

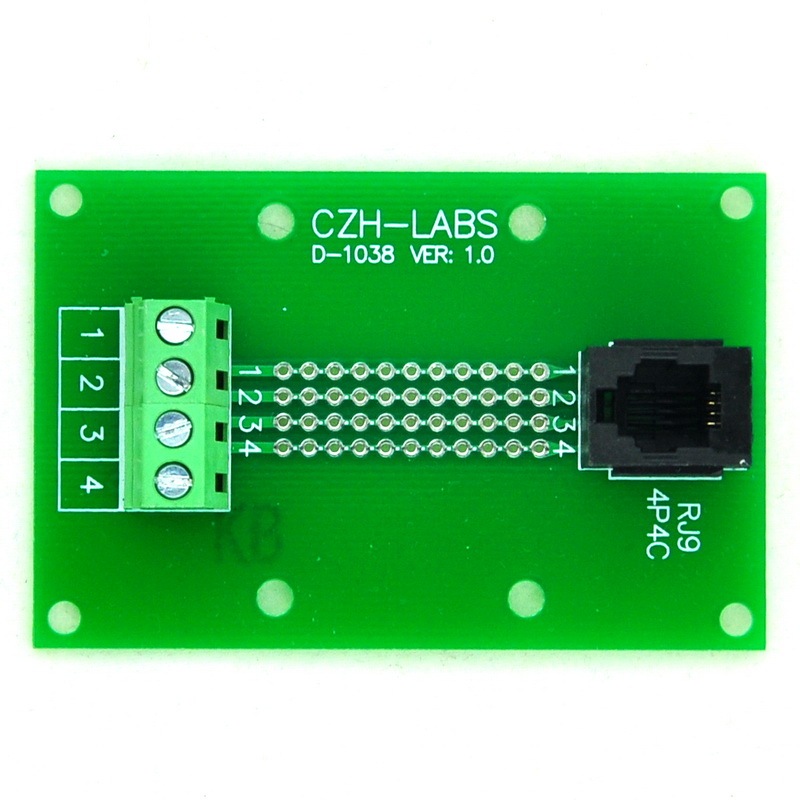

RJ9 4P4C Jack Interface Module with Simple DIN Rail Mounting feet.

RJ9 vertical 4P4C jack.
Pitch 5mm/0.197" screw terminal block.
Solder connection holes 11 per line, supports addition of 0.1" pin headers.

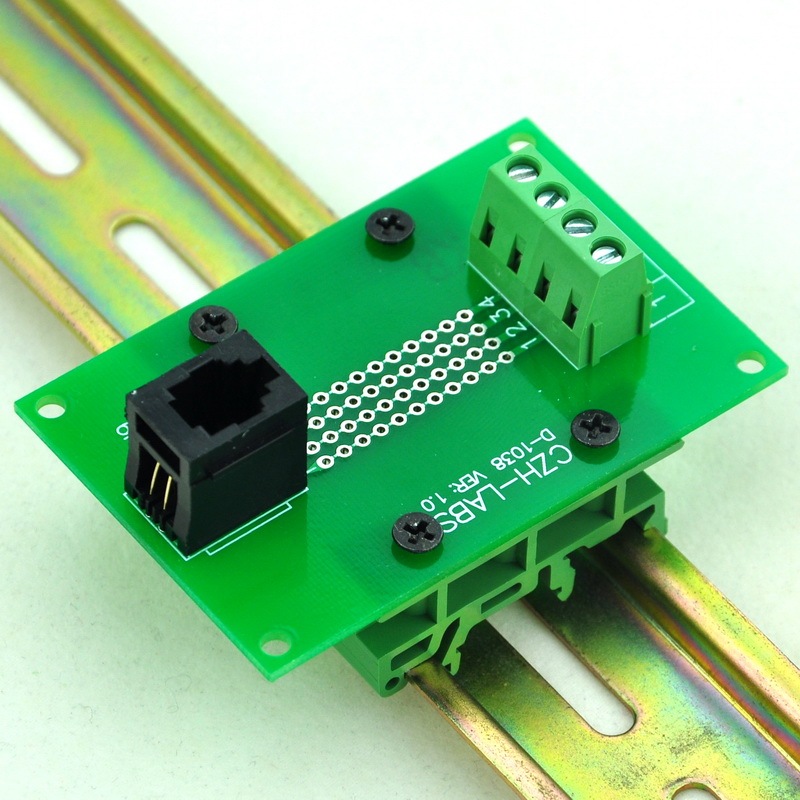

Simple DIN Adapters (Feet): for width 35 / 32 / 15mm DIN rails.
FR-4 fiber glass PCB, dual copper layers.

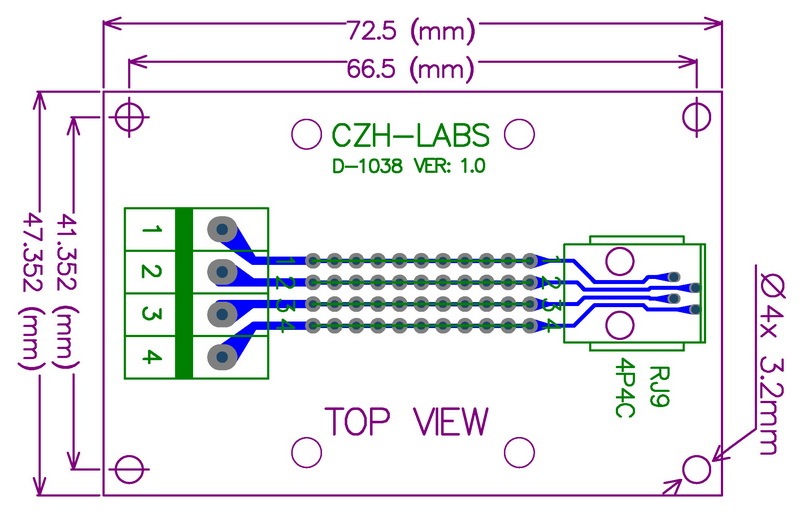

External dimensions: 72.5 x 47.35 x 37mm (W x L x H).
PCB dimensions: 72.5 x 47.35mm(W x L)
100% new, never used.

Rated voltage: 100V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.
