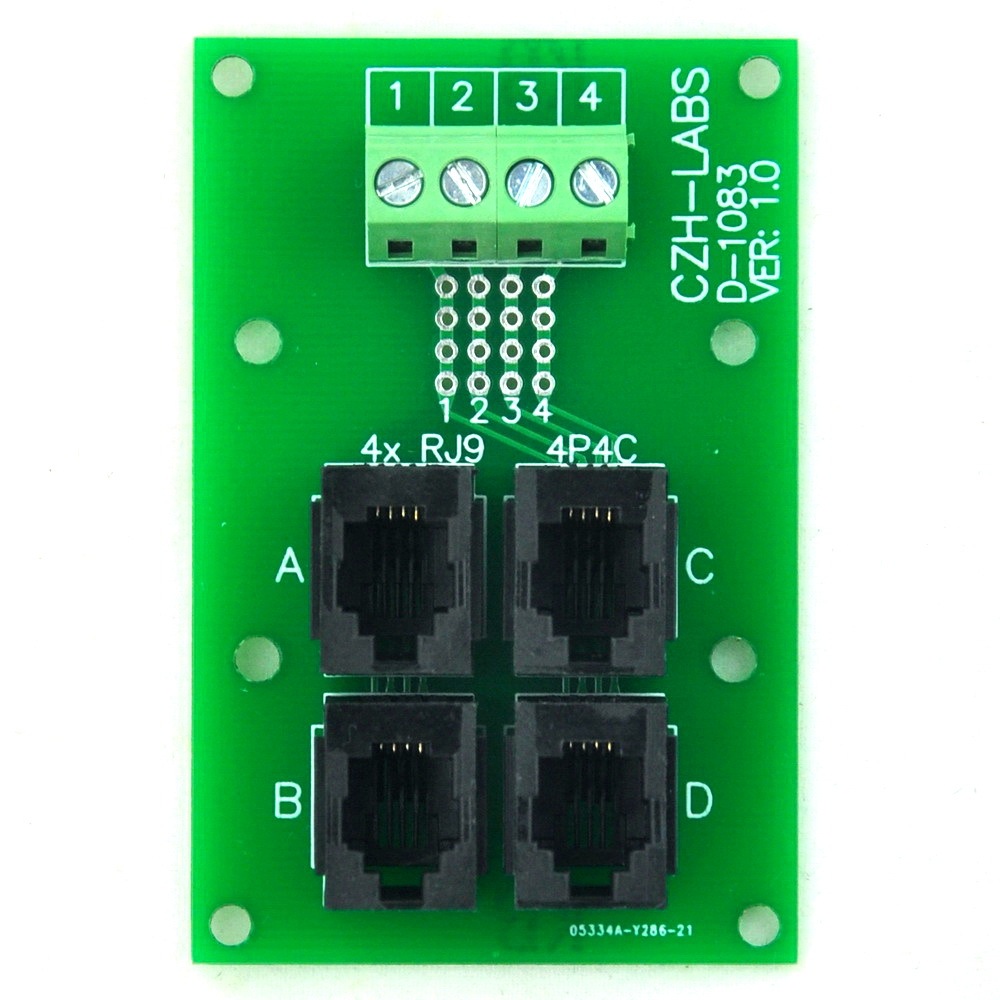

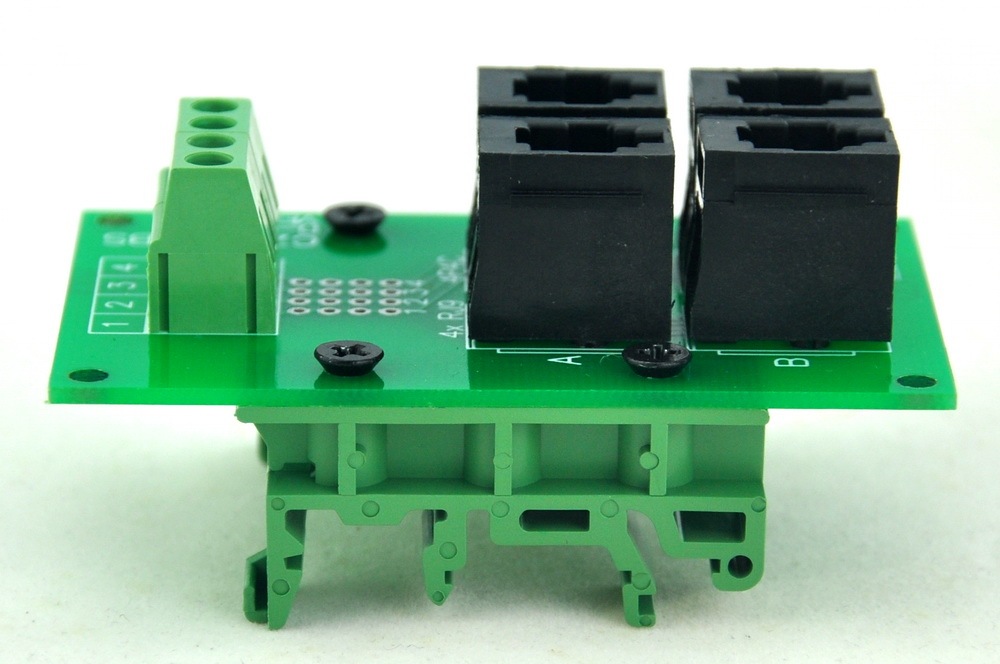

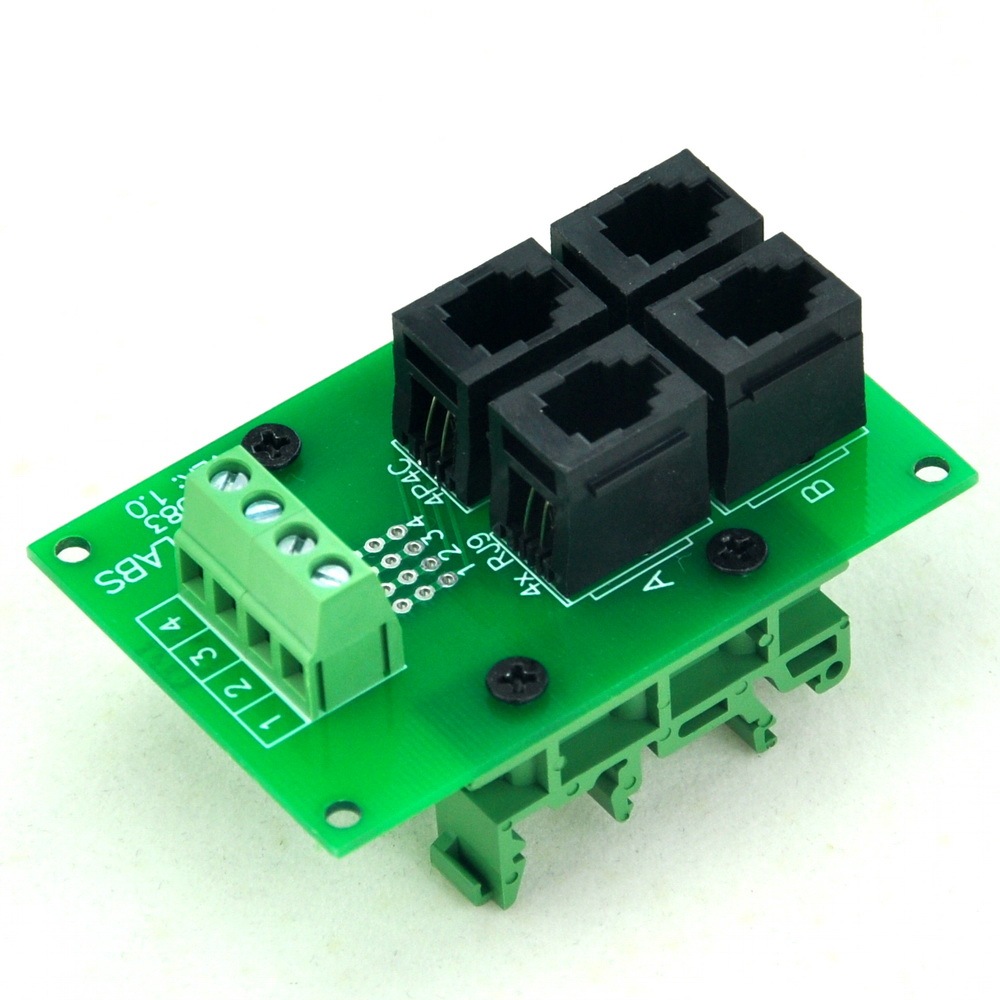

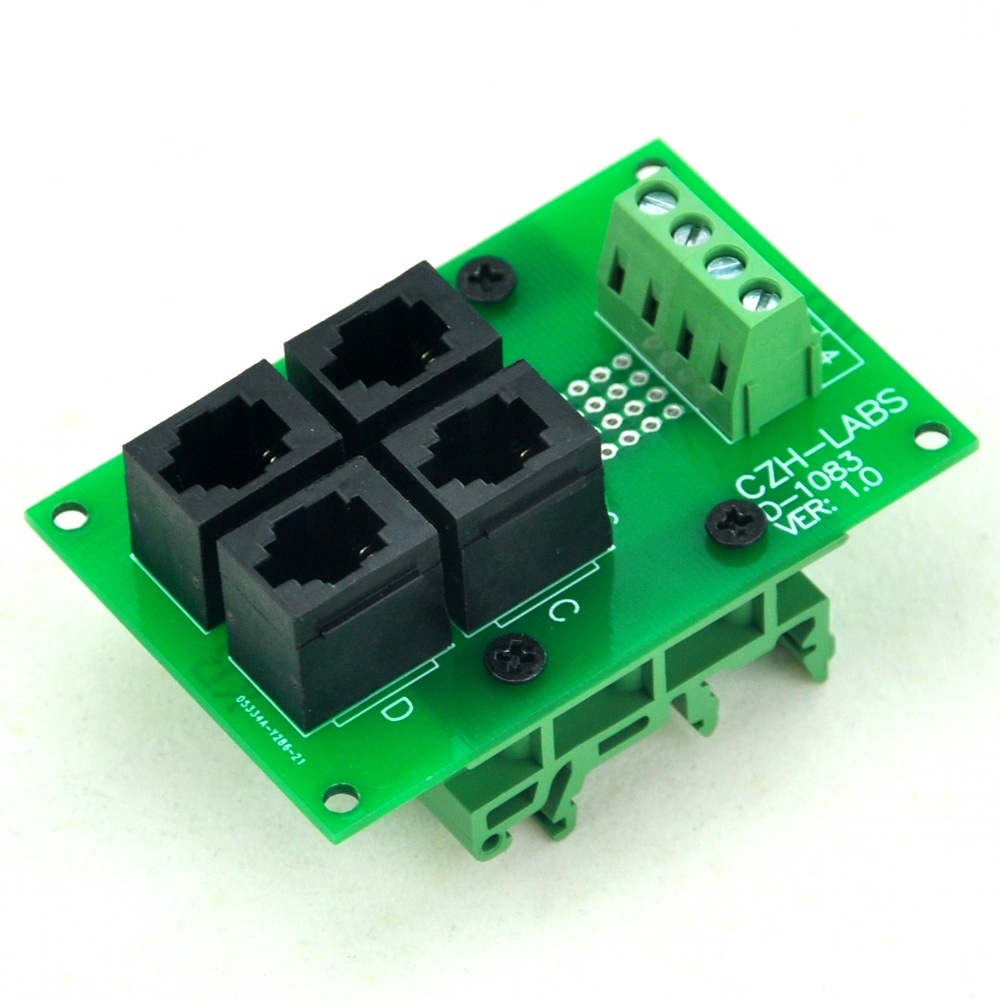

CZH-LABS RJ9 4P4C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket.

Name: CZH-LABS RJ9 4P4C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket.
Brand: Xiken Tech
SKU: D-1083S
Price: 11.99 USD
Availability: InStock

SKU: D-1083S

$11.99 ~~$11.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

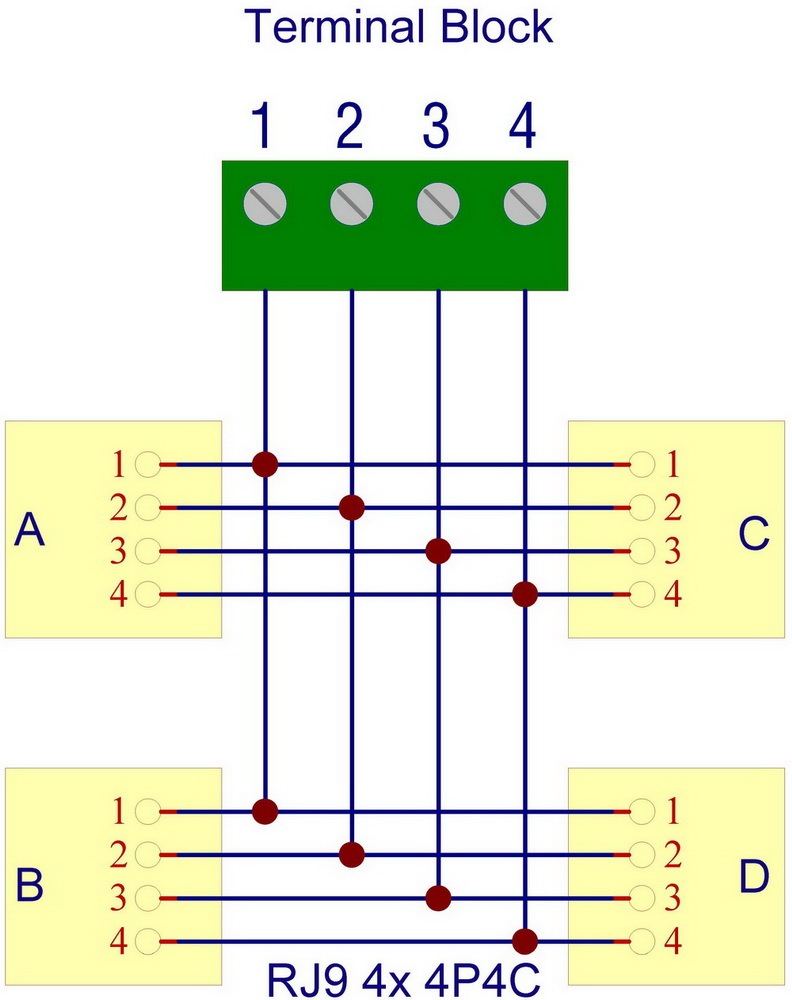

RJ9 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket.

RJ9 vertical 4P4C jacks.
Pitch 5mm/0.197" screw terminal block.
Solder connection holes, four (4) per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers.
Simple DIN Adapter(Bracket), for width 35 / 32 / 15mm DIN rail.

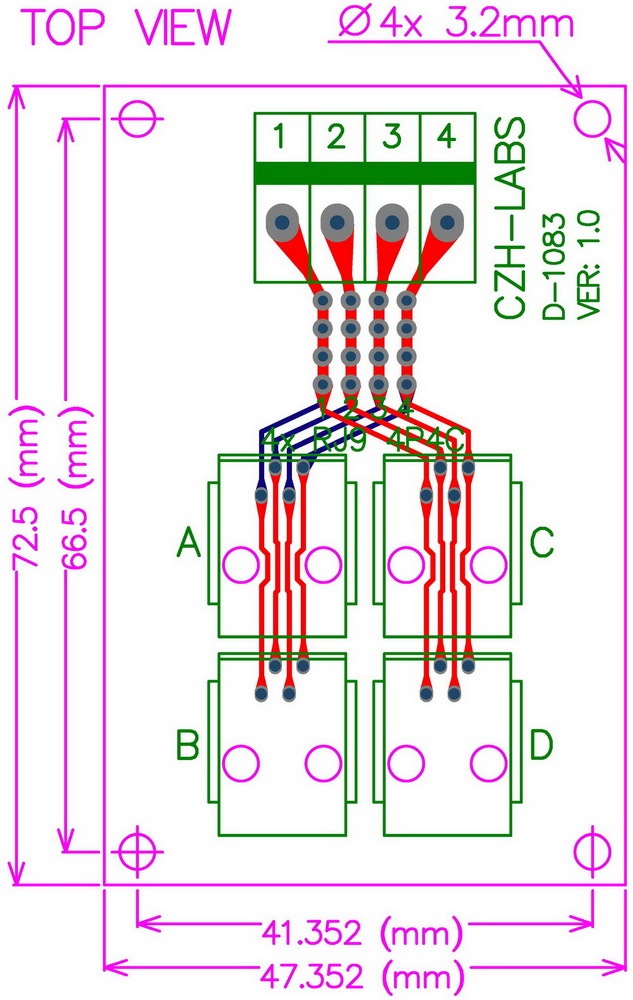

Dimensions: 72.5 x 47.35 x 38mm(W x L x H).
100% new, never used.

Rated voltage: 100V.
Rated current: 0.5A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 26 ~ 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
