CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.

SKU: D-1133U
$6.99 $6.99
CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $6.99 = $6.99
save $0.00
Add to Favorites
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
1/1
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • CZH-LABS Prototype Breakout PCB Shield Board Kit for Raspberry Pi 3 2 B+ A+, Breadboard DIY.
  • Description

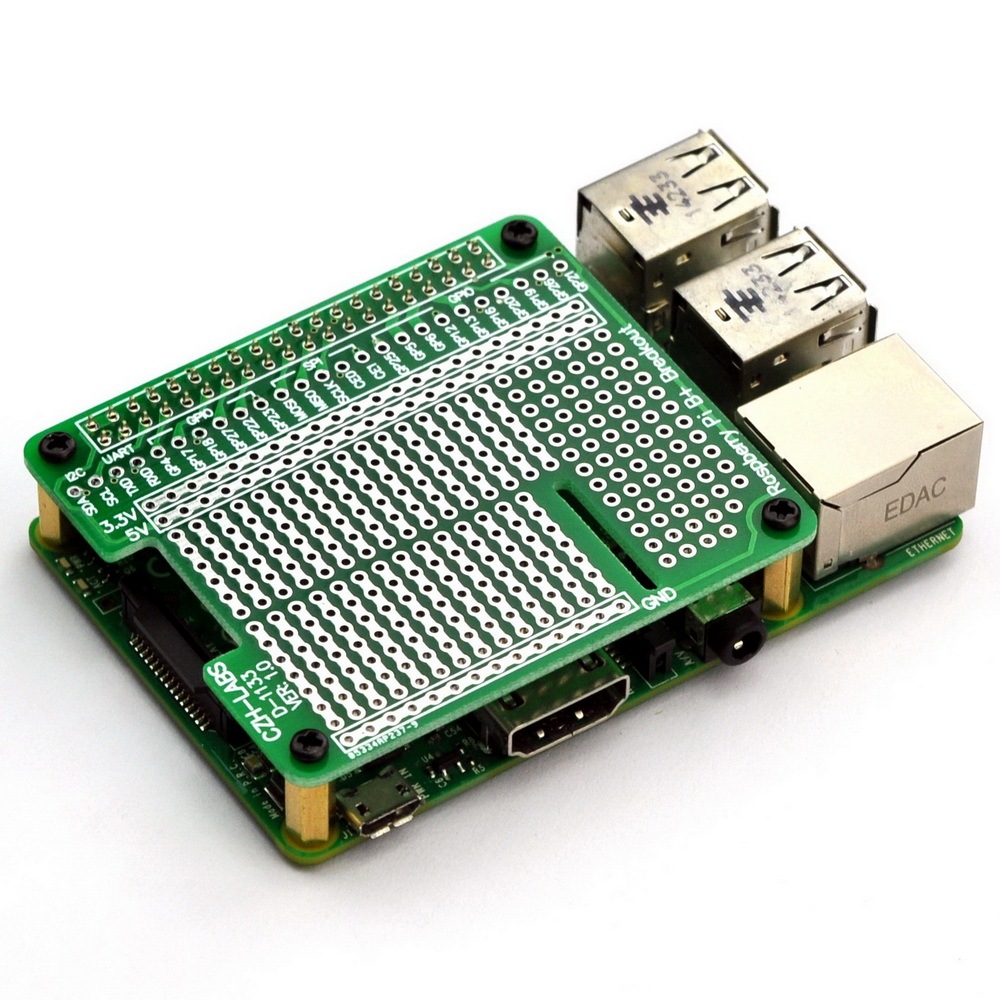

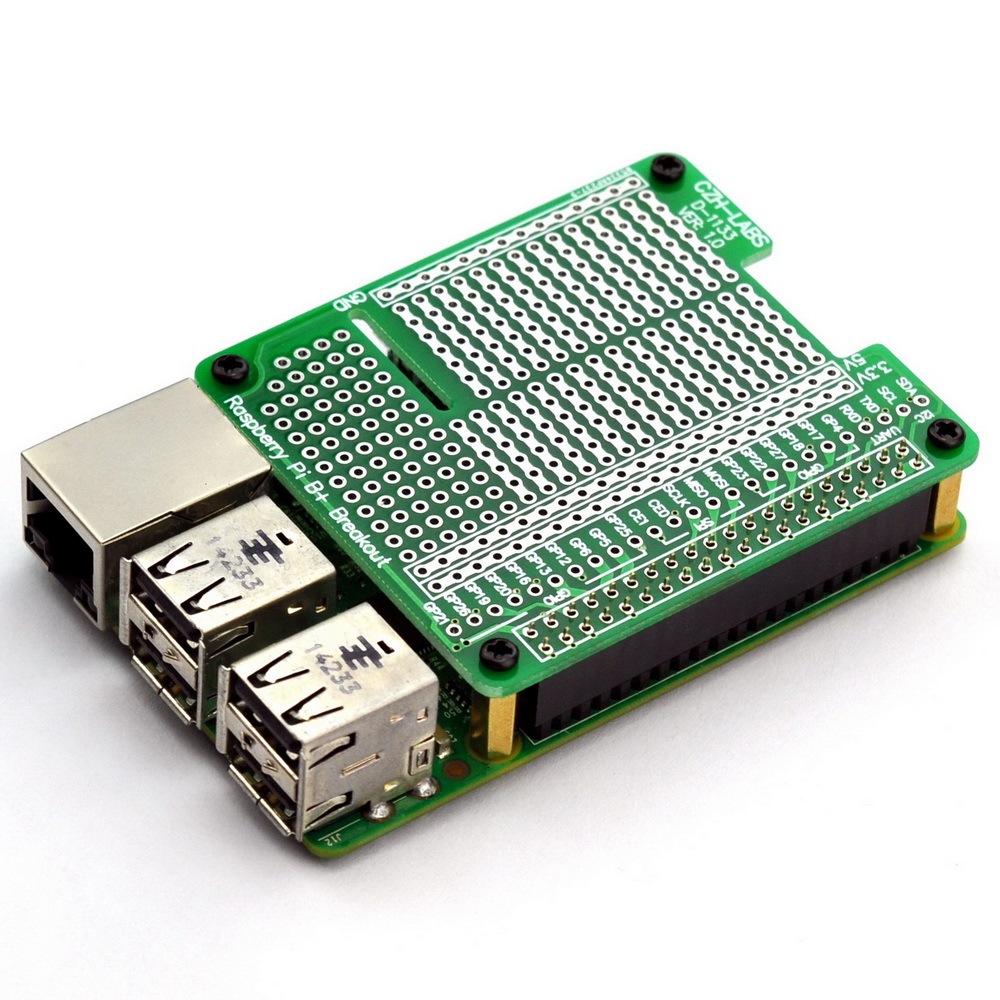

Suitable for Raspberry Pi 1 Model A+, Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+, Pi 3 Model A+.
Quantity: a lot of 1 set.

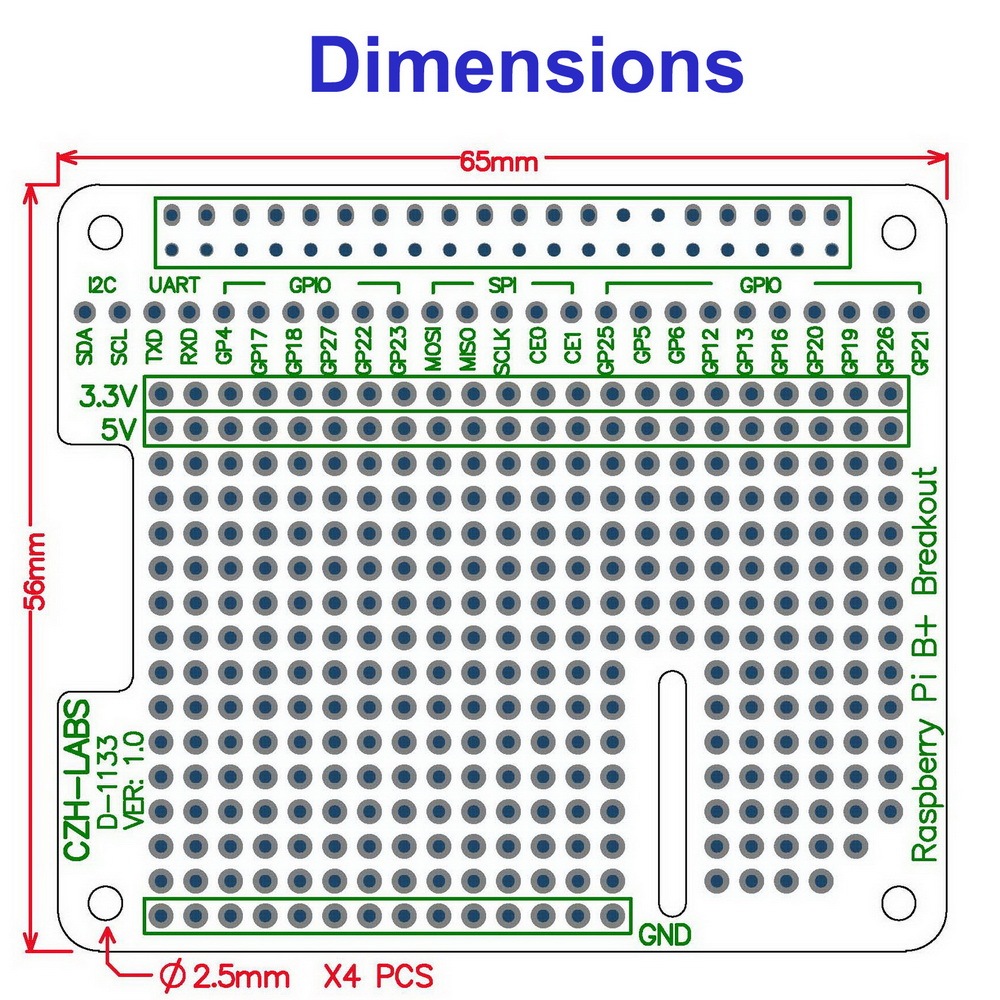

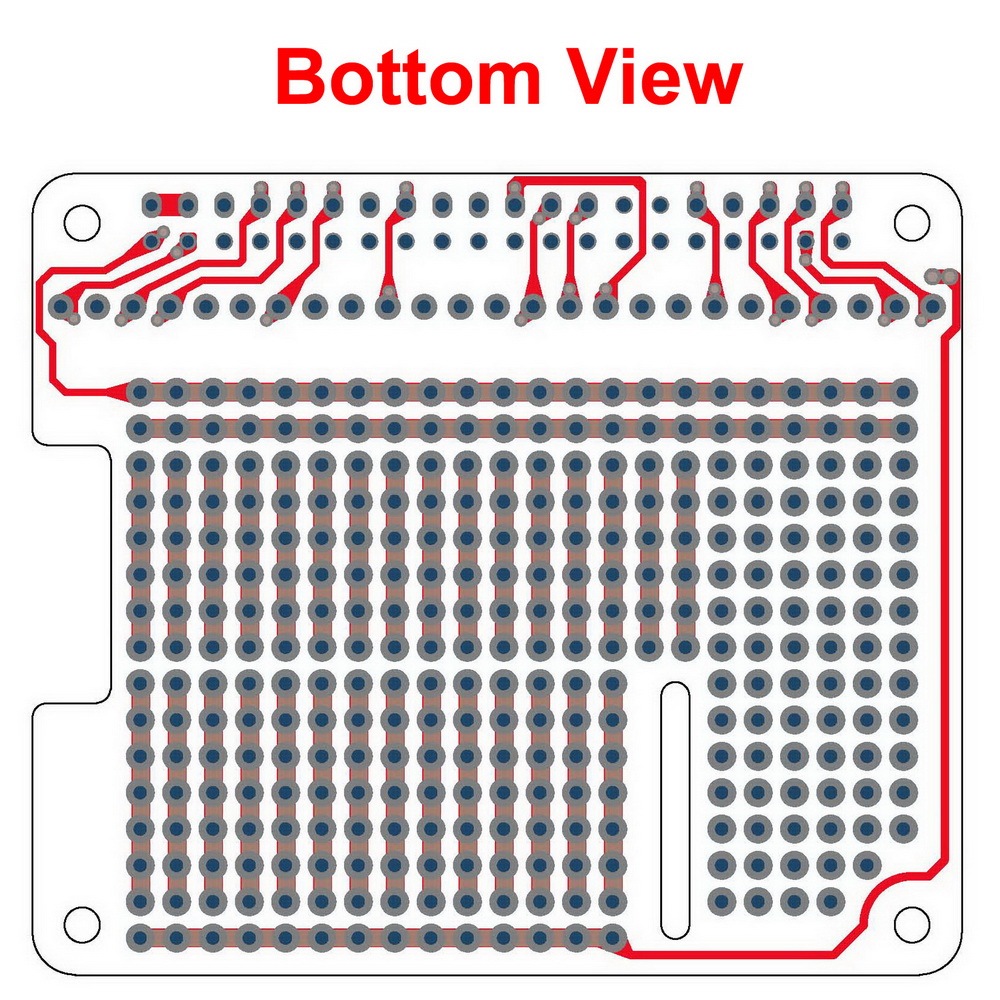

PCB Material: high quality FR-4 glass fiber PCB. Dimensions: 56mm x 65mm / 2.20" x 2.56", Thickness: 1.6mm / 0.063"

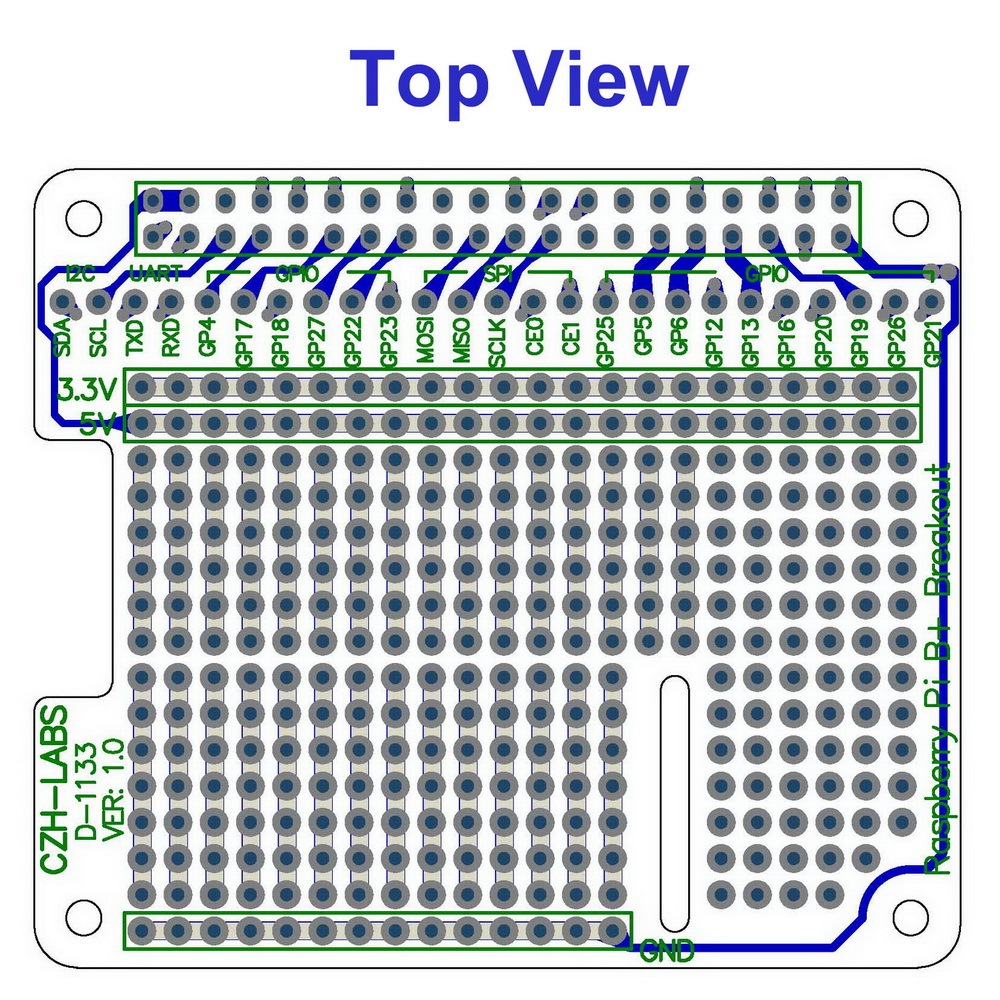

Top to bottom layer all solder pad holes are plated through, pads grid (pitch) 2.54mm / 0.1", hole diameter 0.9mm.

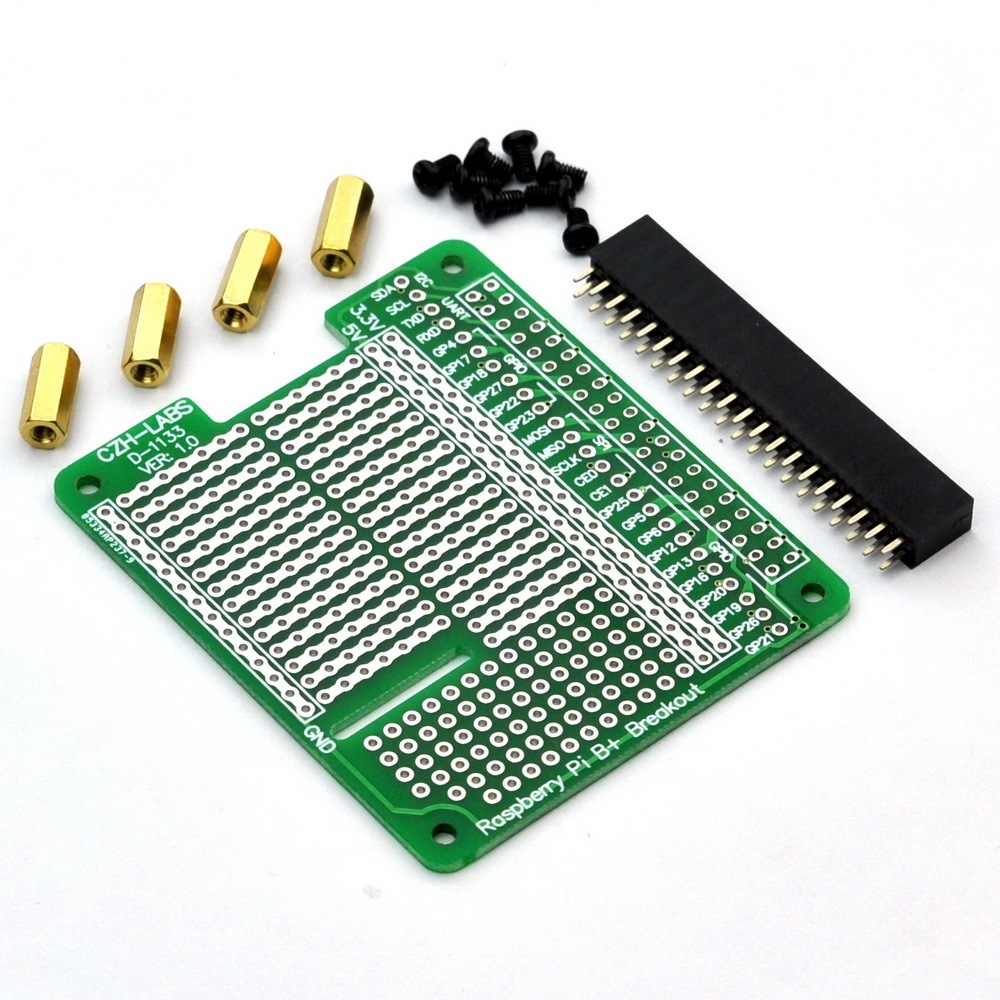

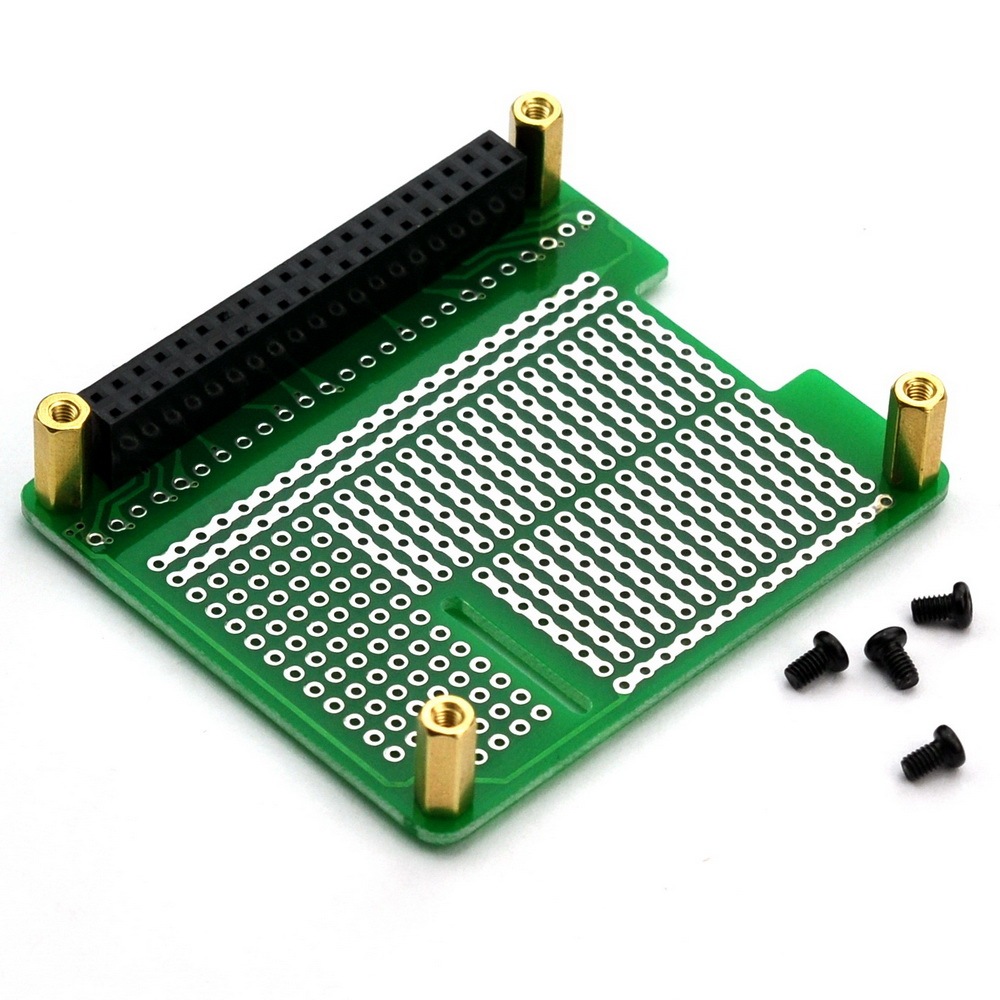

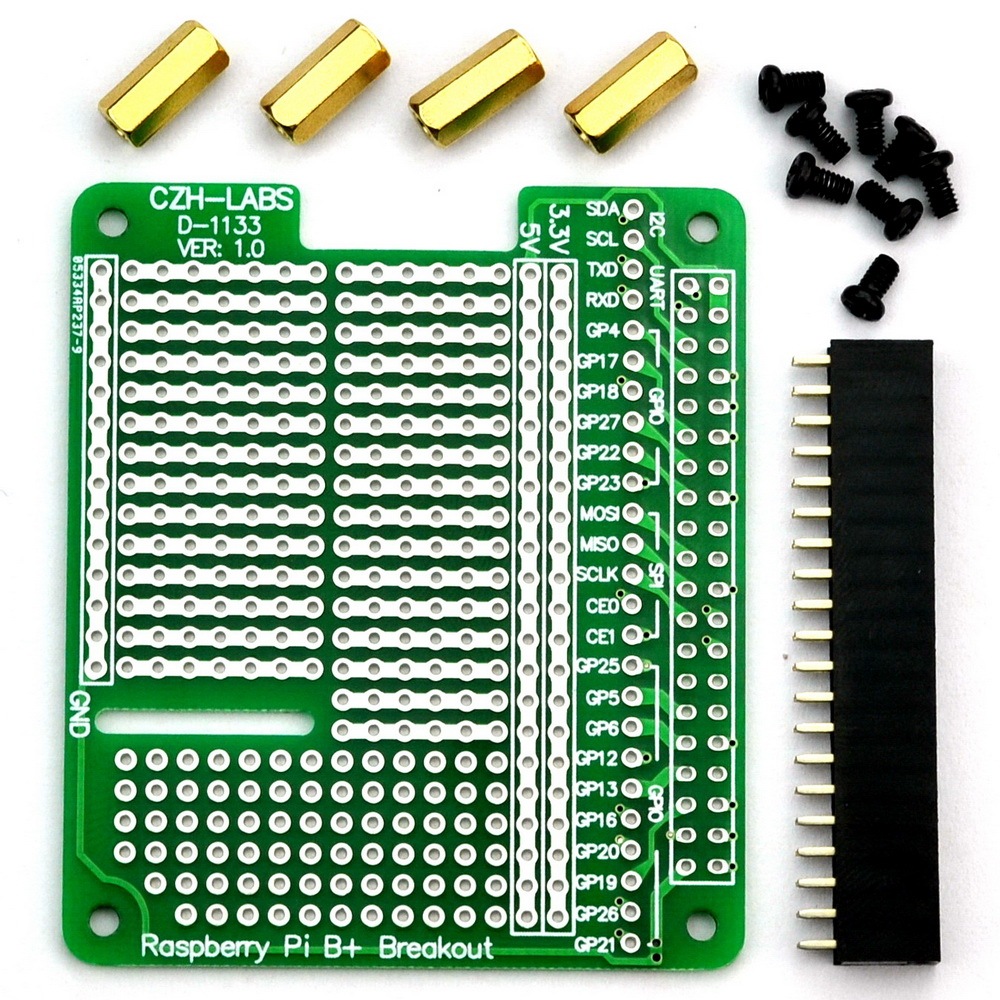

Package included: 1x PCBs, 1x 2x20pin connectors, 4x M2.5 11mm brass standoffs, 8x M2.5x4mm metal screws.
