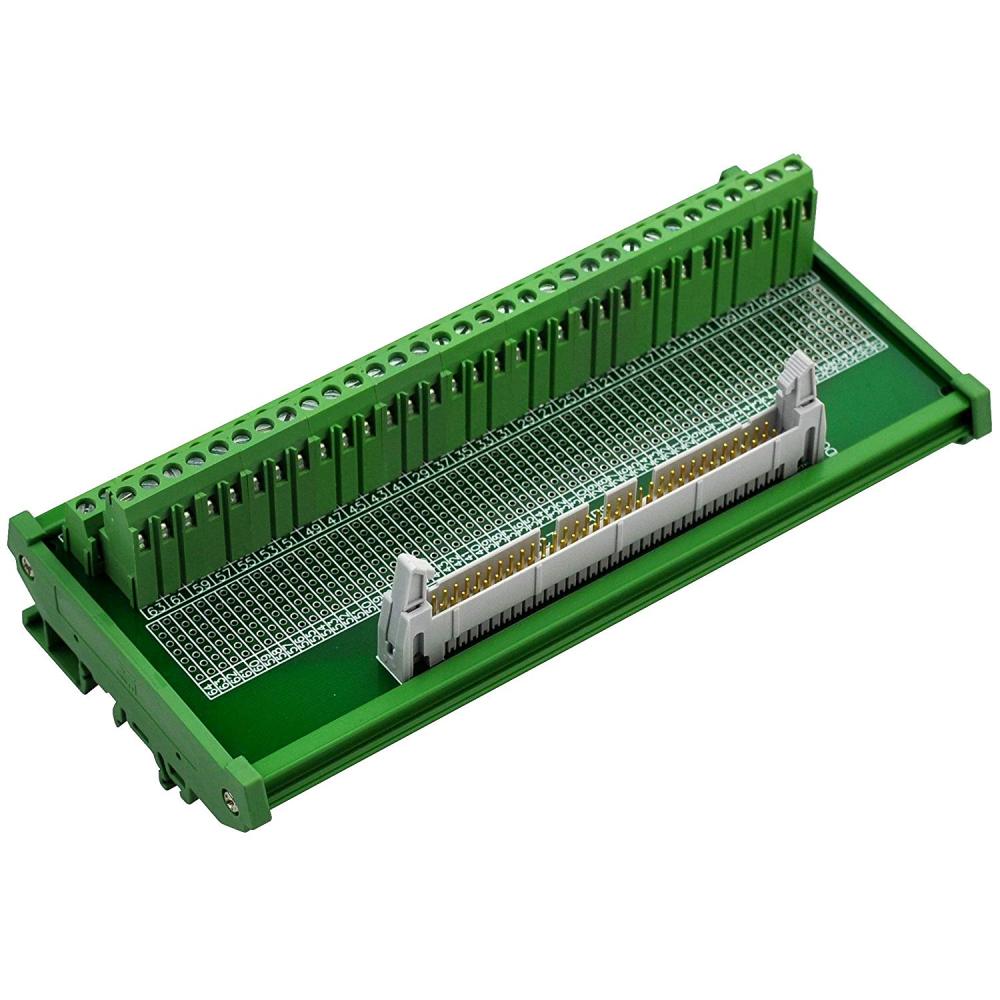

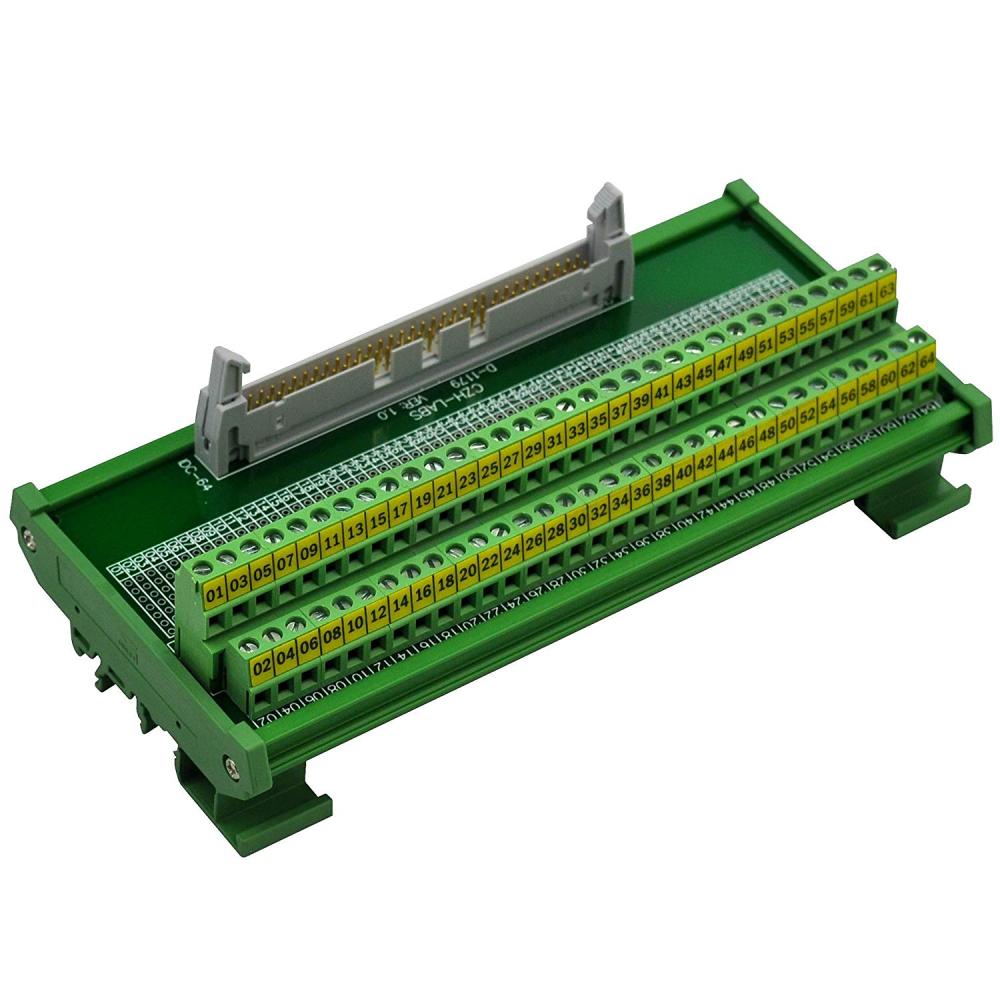

CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"

SKU: D-1179T
$47.00 $47.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $47 = $47
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
1/1
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS DIN Rail Mount IDC-64 Male Header Connector Breakout Board Interface Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • Description

Standard high quality IDC/FRC connector, pin pitch 2.54mm / 0.1”
Standard high quality terminal block, position pitch 5.08mm / 0.2”

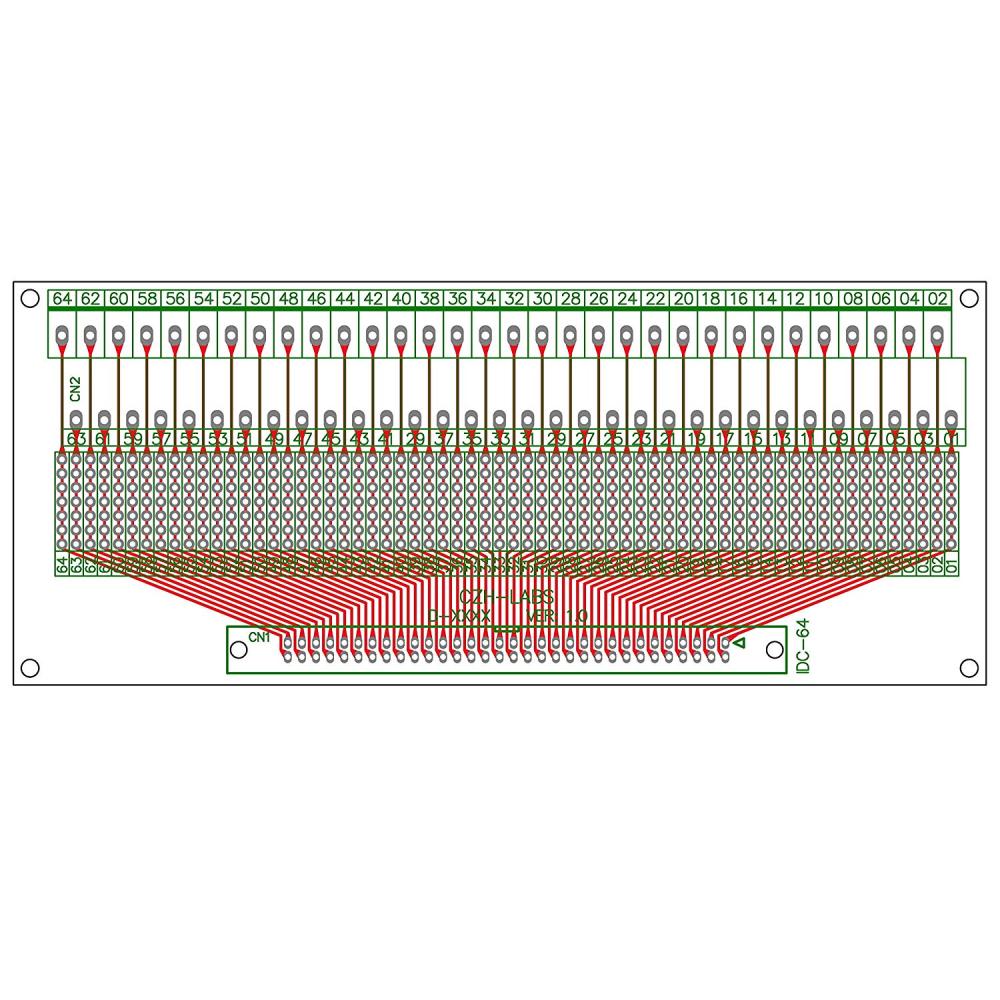

Solder connection holes 7 per line, supports addition of 2.54mm / 0.1" pin headers. FR-4 fiber glass PCB, dual copper layers.

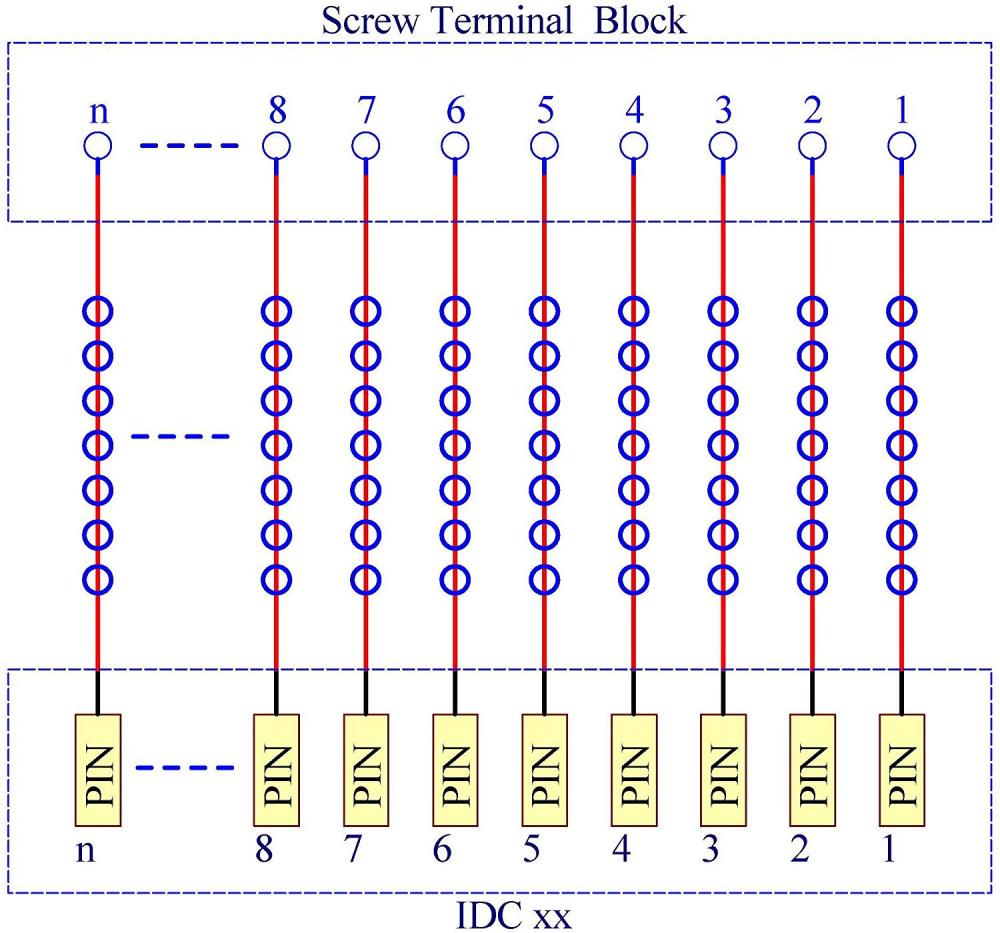

Clear terminal block position marking label, match the position corresponding to the IDC connector.

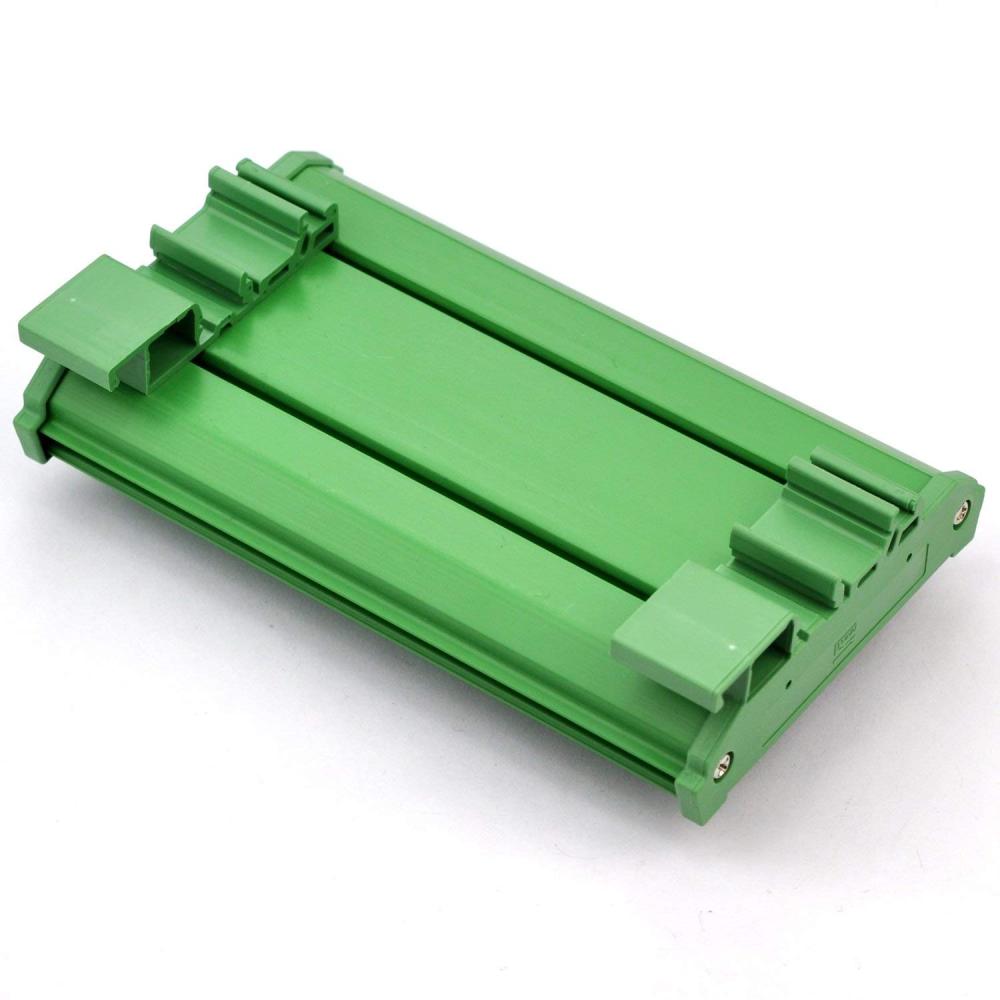

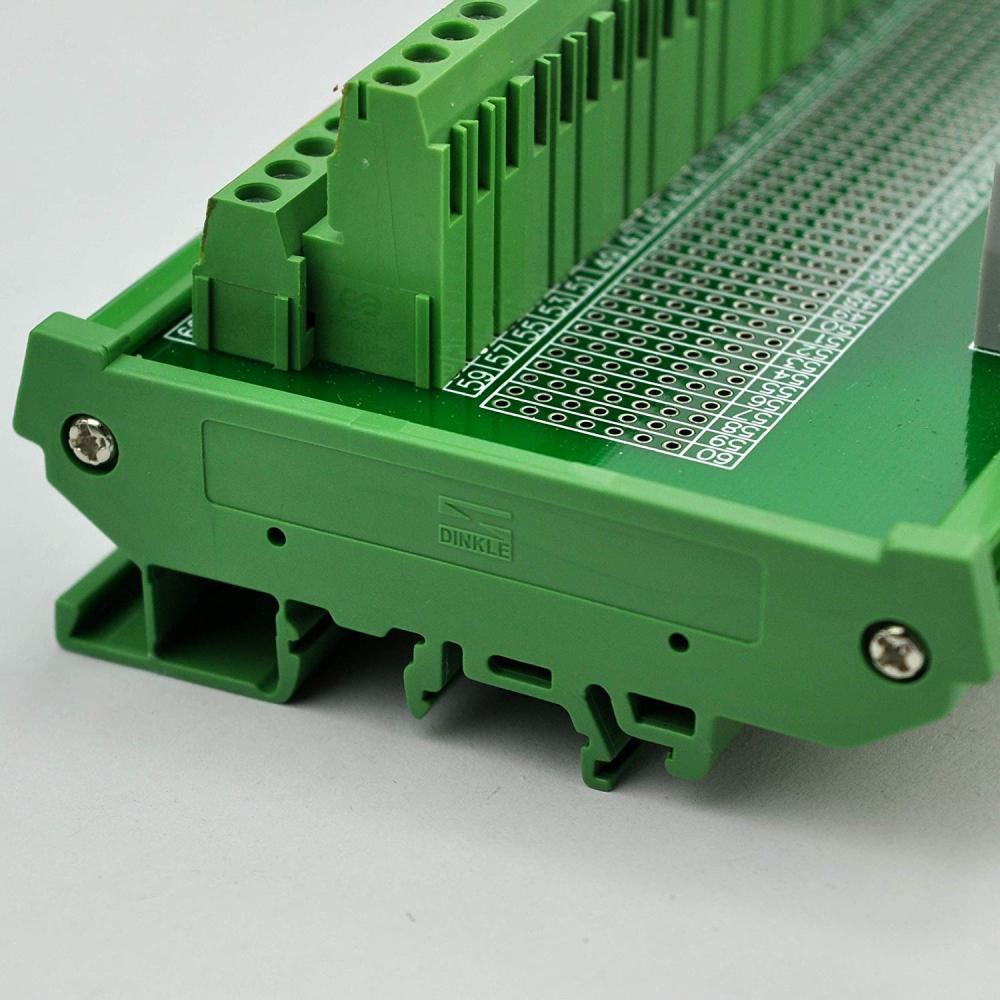

Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

Terminal Block:
Pitch 5.08mm/0.2" screw terminal block.
Wire range 26 to 12AWG / 2.5mm square.
Strip length 7mm / 0.28”
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.

Specification:
Rated voltage: 60V.
Rated current: 1Amp / per pin.
Operating temperature: -20ºC to 70ºC
