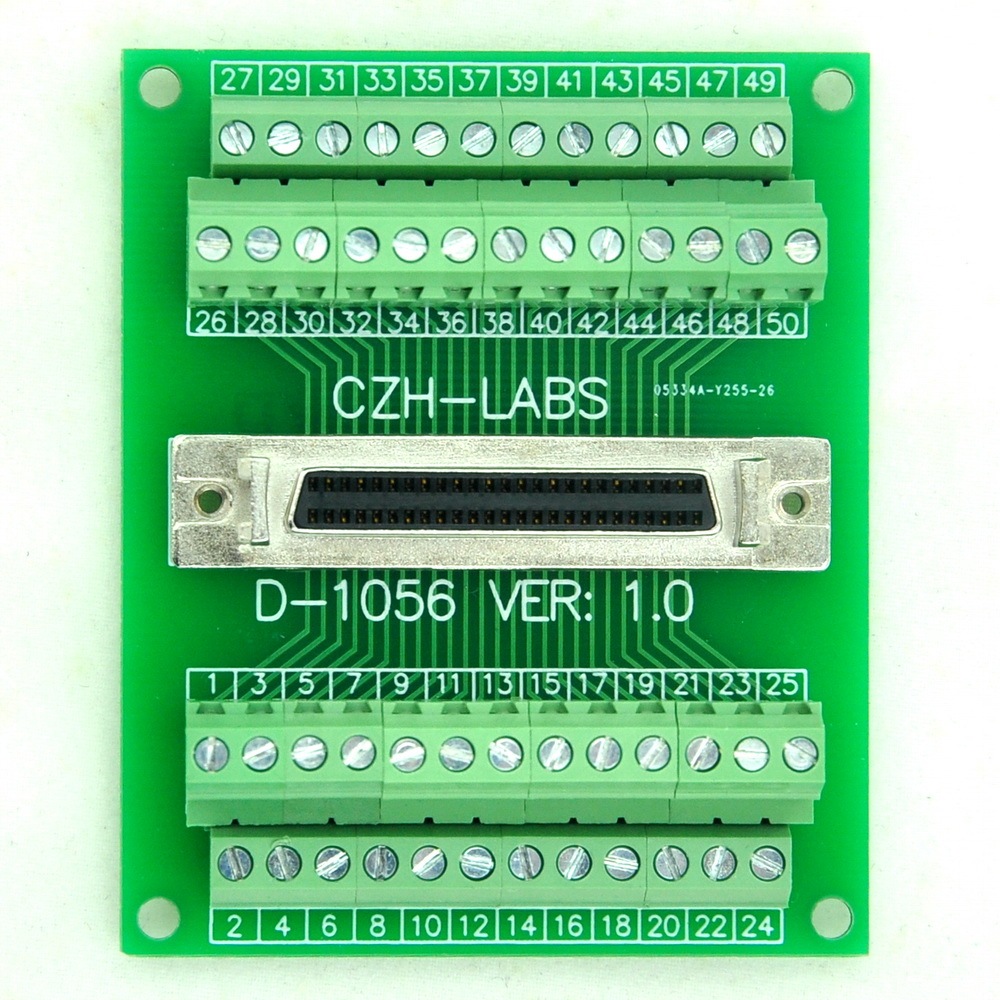

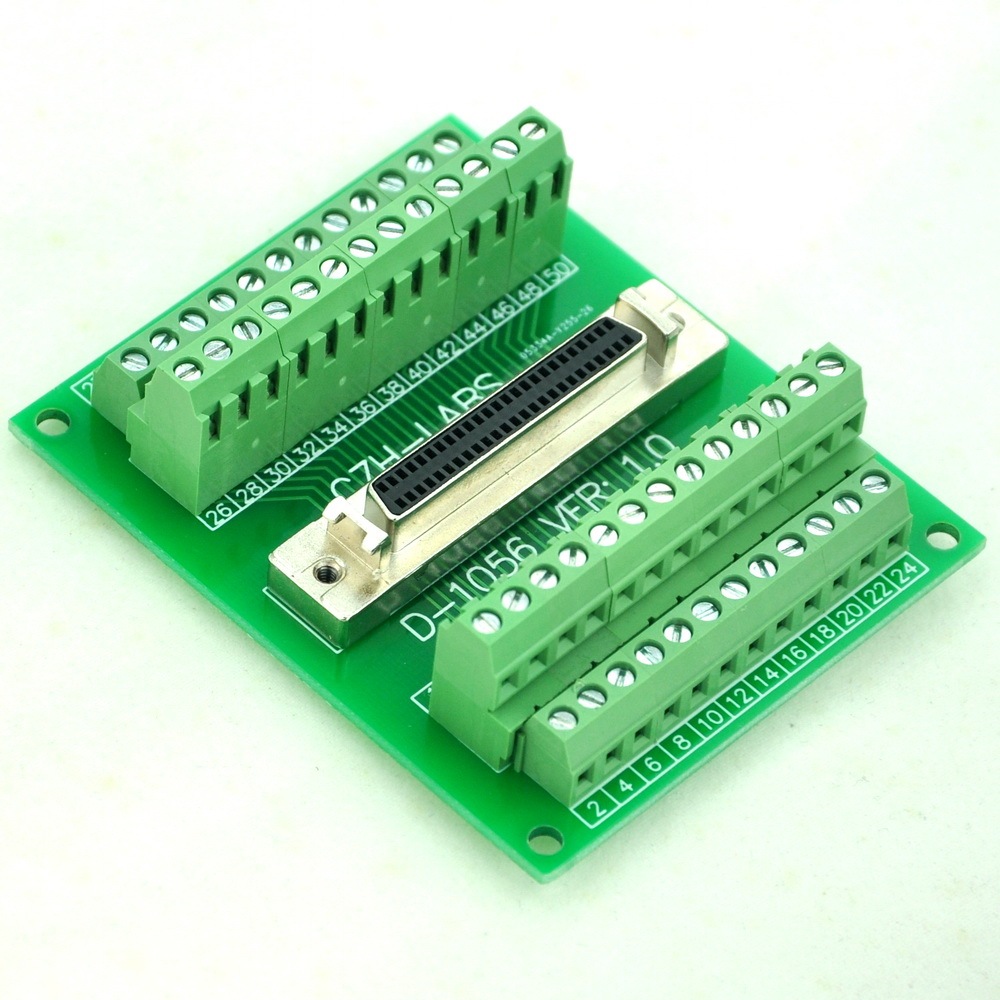

CZH-LABS 50-pin Half-Pitch/0.05" D-SUB Female Breakout Board, DSUB, SCSI, Terminal Module.

Name: CZH-LABS 50-pin Half-Pitch/0.05" D-SUB Female Breakout Board, DSUB, SCSI, Terminal Module.
Brand: Xiken Tech
SKU: D-1056DB
Price: 26 USD
Availability: InStock

SKU: D-1056DB

$26.00 ~~$26.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

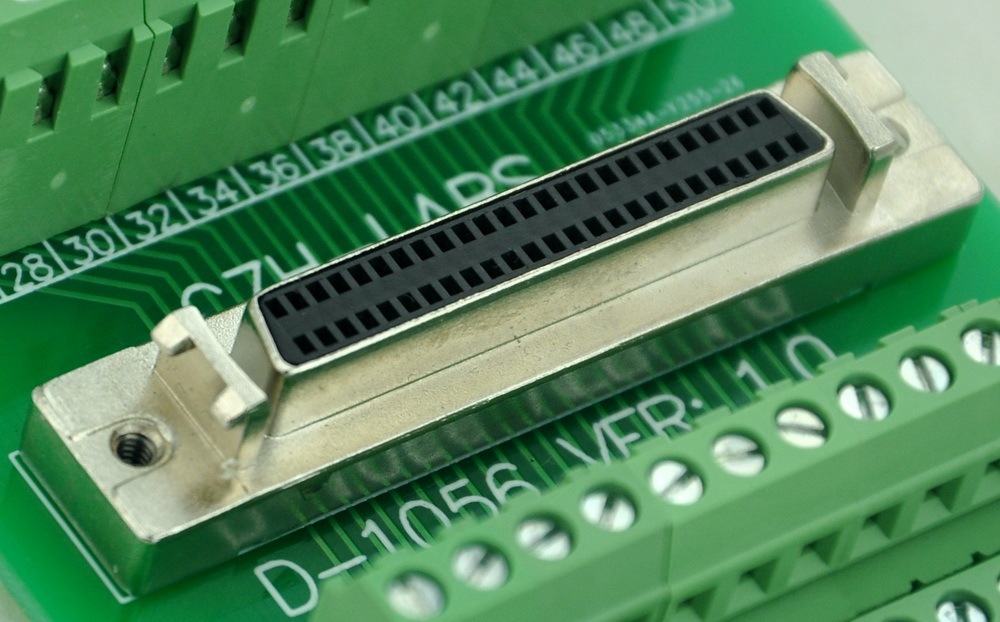

50-pin pitch 1.27mm/0.05" D-SUB female connector.
50-position pitch 3.81mm/0.15" screw terminal blocks.
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 50V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

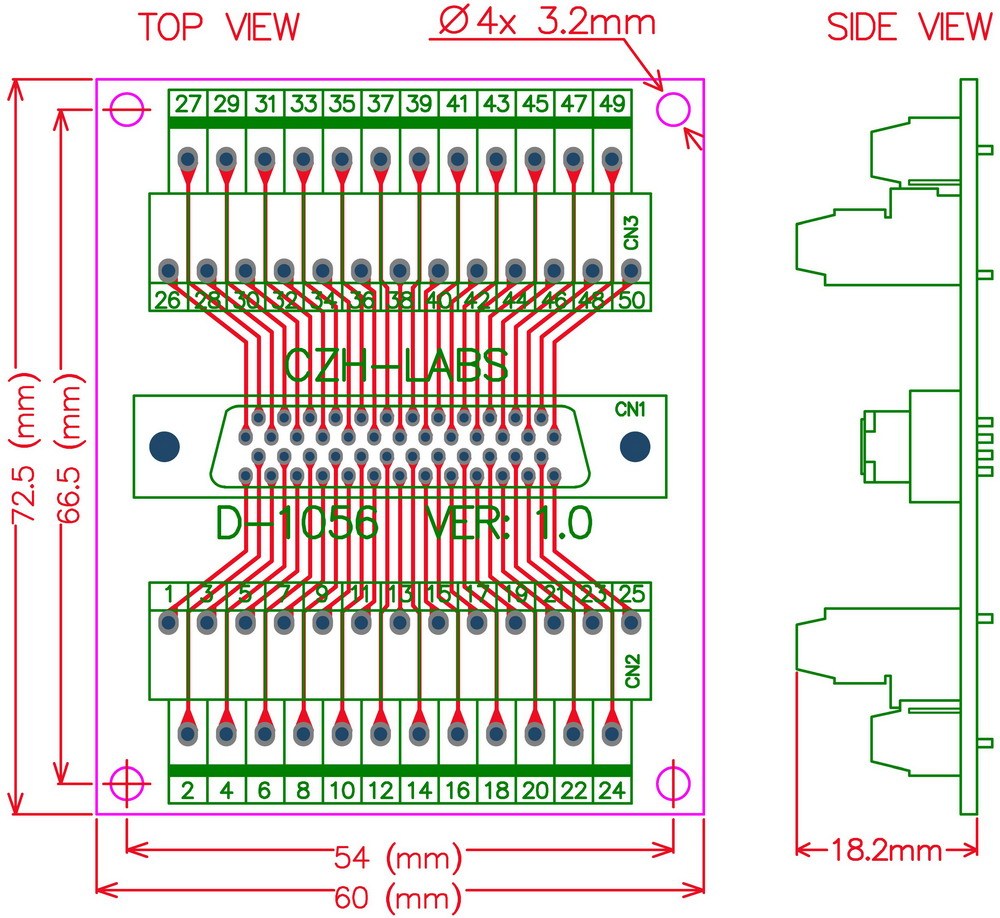

Dimensions: 72.5 x 60 x 18.2mm (W x L x H).
100% new, never used.

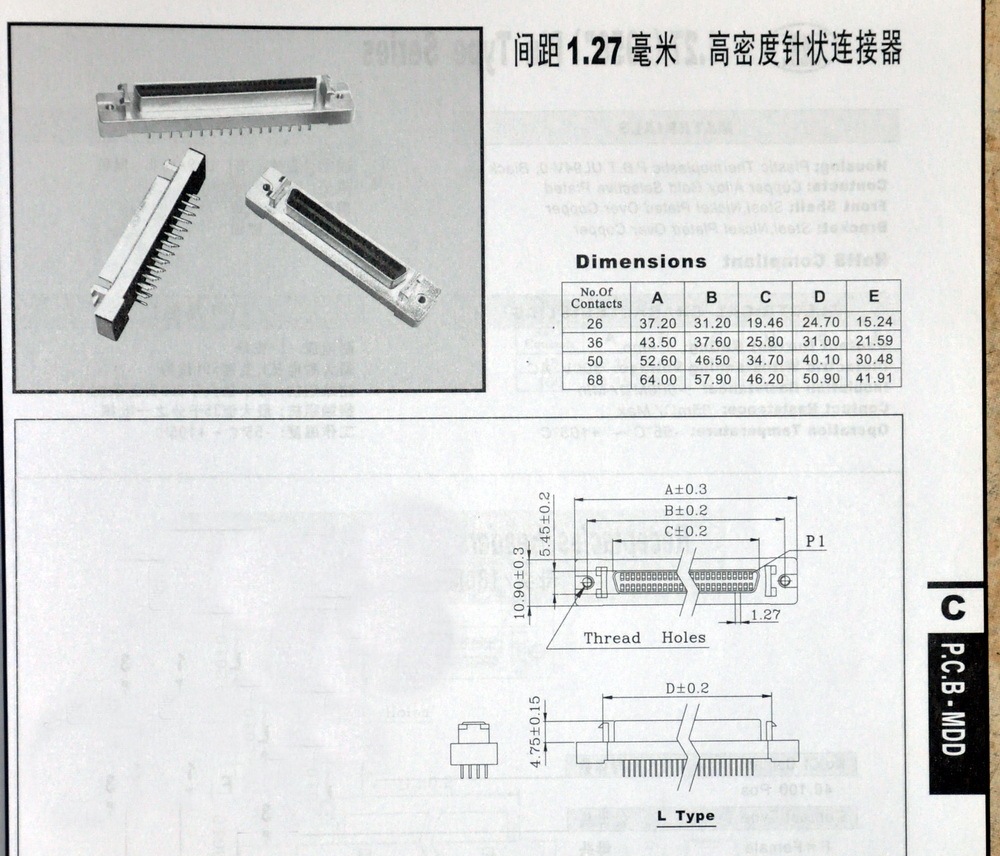

Receptacles connector specifications:
Half-pitch D-SUB female connector (0.050 series D-type connector).
Pin pitch: 1.27mm/0.05"
Row to row pitch: 2.54mm/0.1"

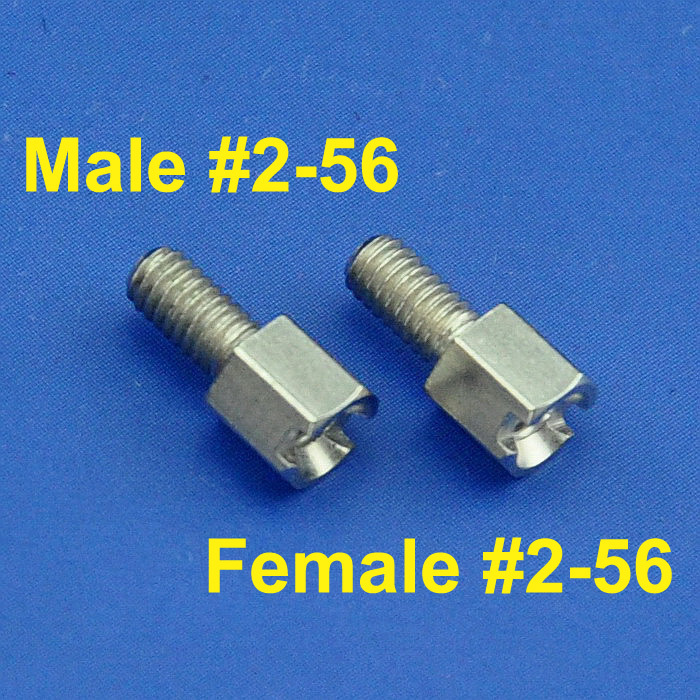

Support cable type: Latch bracket & #2-56 screw bracket type.
(other, we can supply M2.6 screw bracket version, if you need M2.6 screw bracket version please contact me).

Terminal block specifications:
Wire range: 26-16AWG.
Pitch: 3.81mm/0.15"
Strip length: 5mm.
Screws: M2,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
