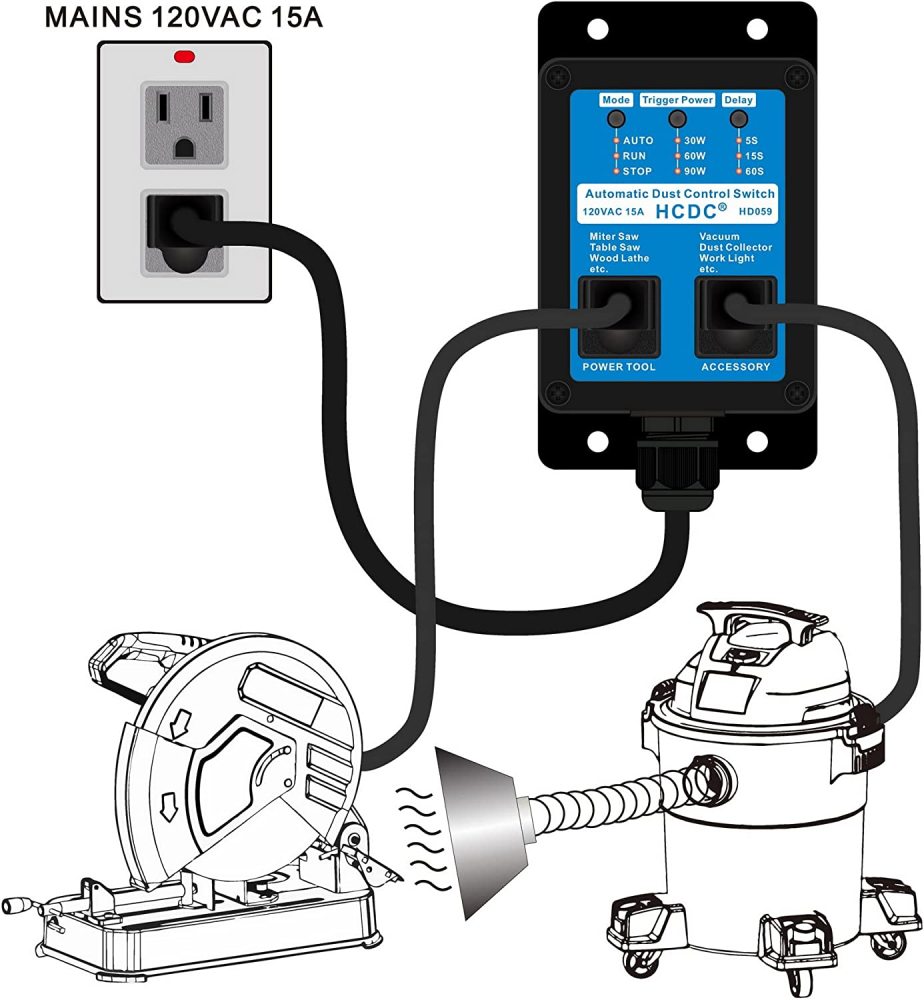

1, Automatically turn on and turn off the power of the dust collector, allowing you to focus on your work without having to repeatedly manually operate the power switch. The design is based on a microcontroller and a sophisticated power detection IC, making the product more intelligent and friendly. This product has the power-on self-test, and the power-down memory function of triggering power and delay time settings, avoid resetting each time in the future. When you start to use the tool, the dust collector will turn on with a delay of 1 second to avoid overloading and tripping of the power circuit.
2, Operating voltage AC 100 to 130V(60Hz). Maximum current 15 Amp. Maximum load 1800 Watts. Length 19 inch (0.5 meter) power cable, UL-certified American Standard 14AWG (2.08 square millimeter) x 3 cores.
3, The working mode of the dust collector AUTO - RUN - STOP can be manually selected. It will be in AUTO mode every time it is powered on. If you want the dust collector to work continuously or stop for a long time without being affected by the operation of the tool, you can press the MODE button to select the desired working mode.
4, The threshold power of the trigger tool to start the dust collector can be selected from 30 - 60 - 90 Watts. This function has a power-down memory function, and it does not need to be set again when the power is turned on next time.
5, The delay time for shutoff can be configured 5 - 15 - 60 Seconds, after the tool is stopped, the dust collector can continue to clearing the remaining dust and residue. This function has a power-down memory function, and it does not need to be set again when the power is turned on next time.
SPECIFICATIONS:
AC power: 110 to 130VAC (60Hz)
Maximum total current: 15 Amps
Maximum load: 1800 Watts
Mode button: AUTO - RUN - STOP, Can be set cyclically.
Trigger power: 30W - 60W - 90W, Can be set cyclically.
Delay time: 5S - 15S - 60S, Can be set cyclically.
