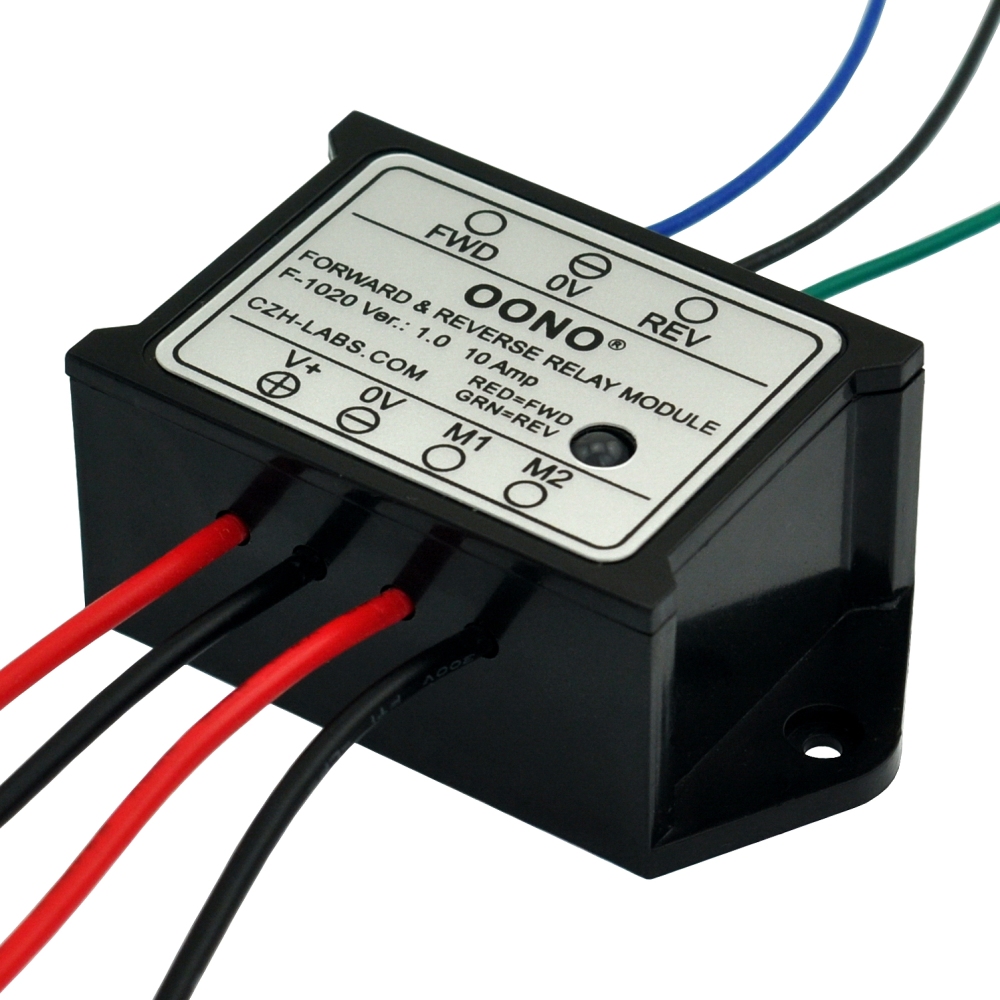

12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module

SKU: F-1020/12V
$12.00 $12.00
12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $12 = $12
save $0.00
Add to Favorites
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
1/1
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 12V 10Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • Description

1, Reversing relay module. Powers any reversing motor equipment, can be used for any application that requires the ability to reverse motion.

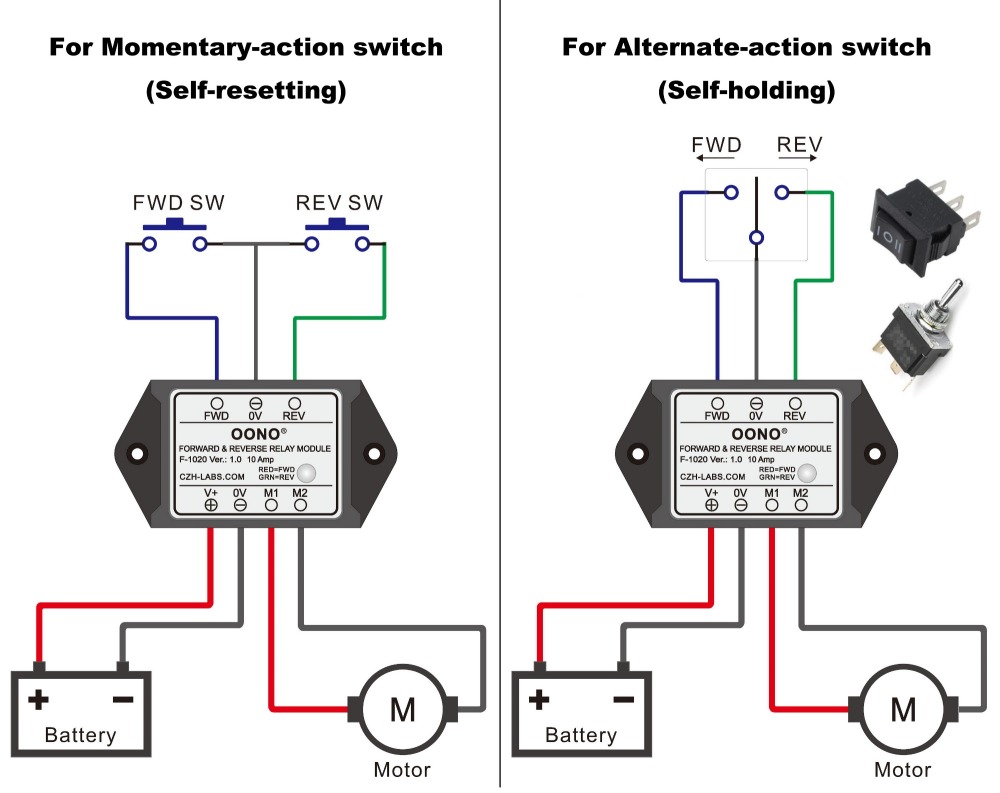

2, Support Momentary-action(Self-resetting) switch and Alternate-action (Self-holding) switch. For Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops.

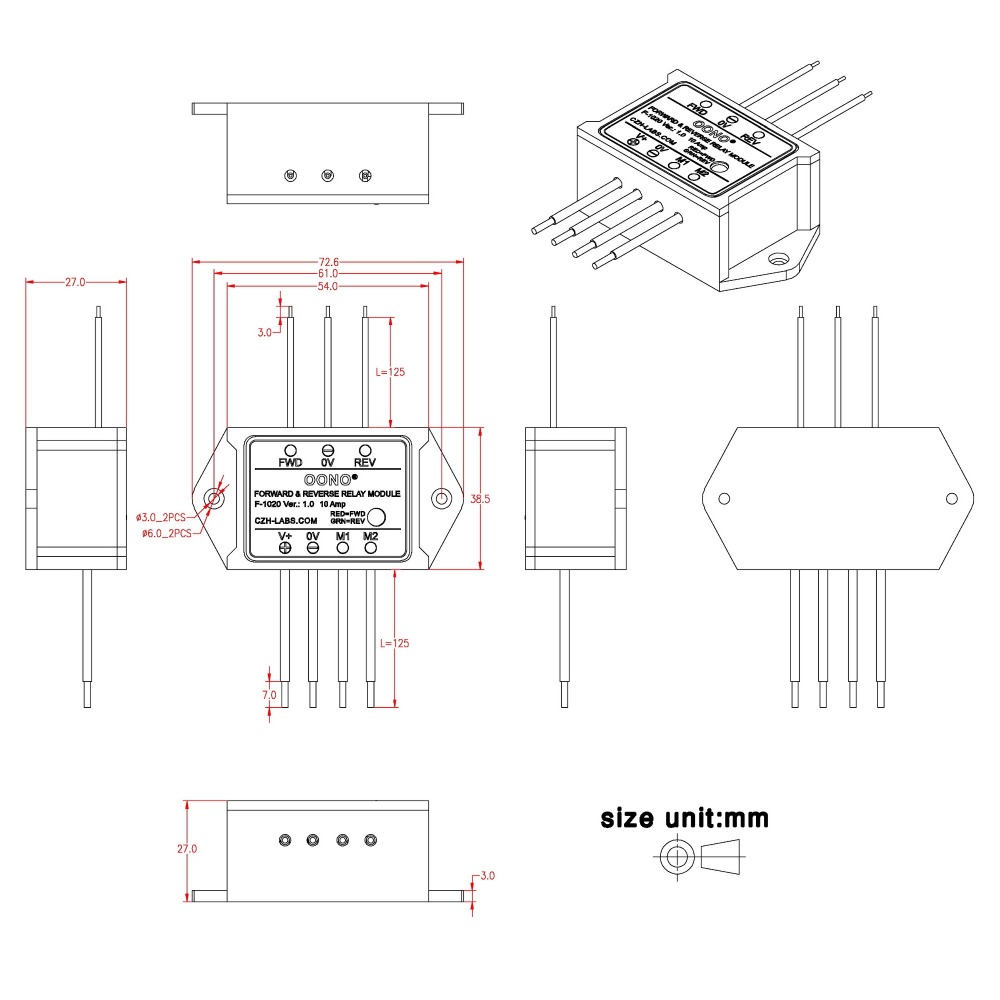

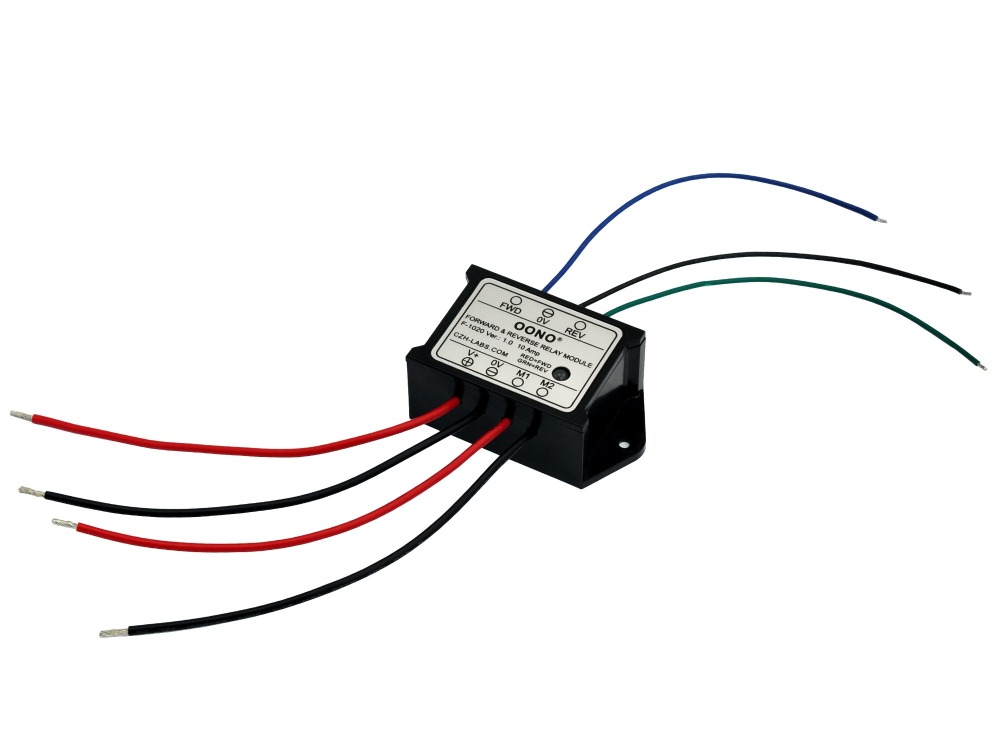

3, Compact plastic case and wires connect for easy mount.

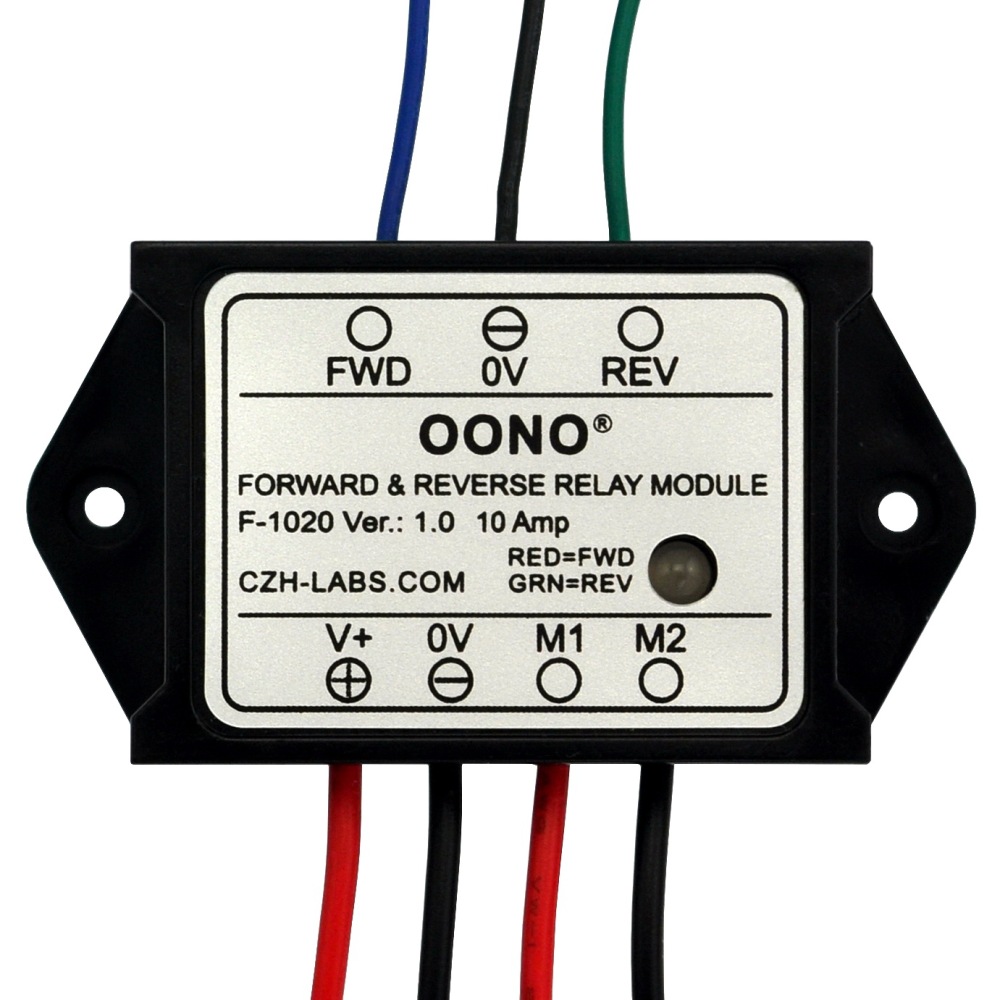

4, Forward and Reverse status indicating LED, forward status lighting red, reverse lighting green. When the control switch is not turned on, the module does not consume electric energy.
5, Operating Voltage: 10 ~ 15V DC, Rated current 10 Amp.
